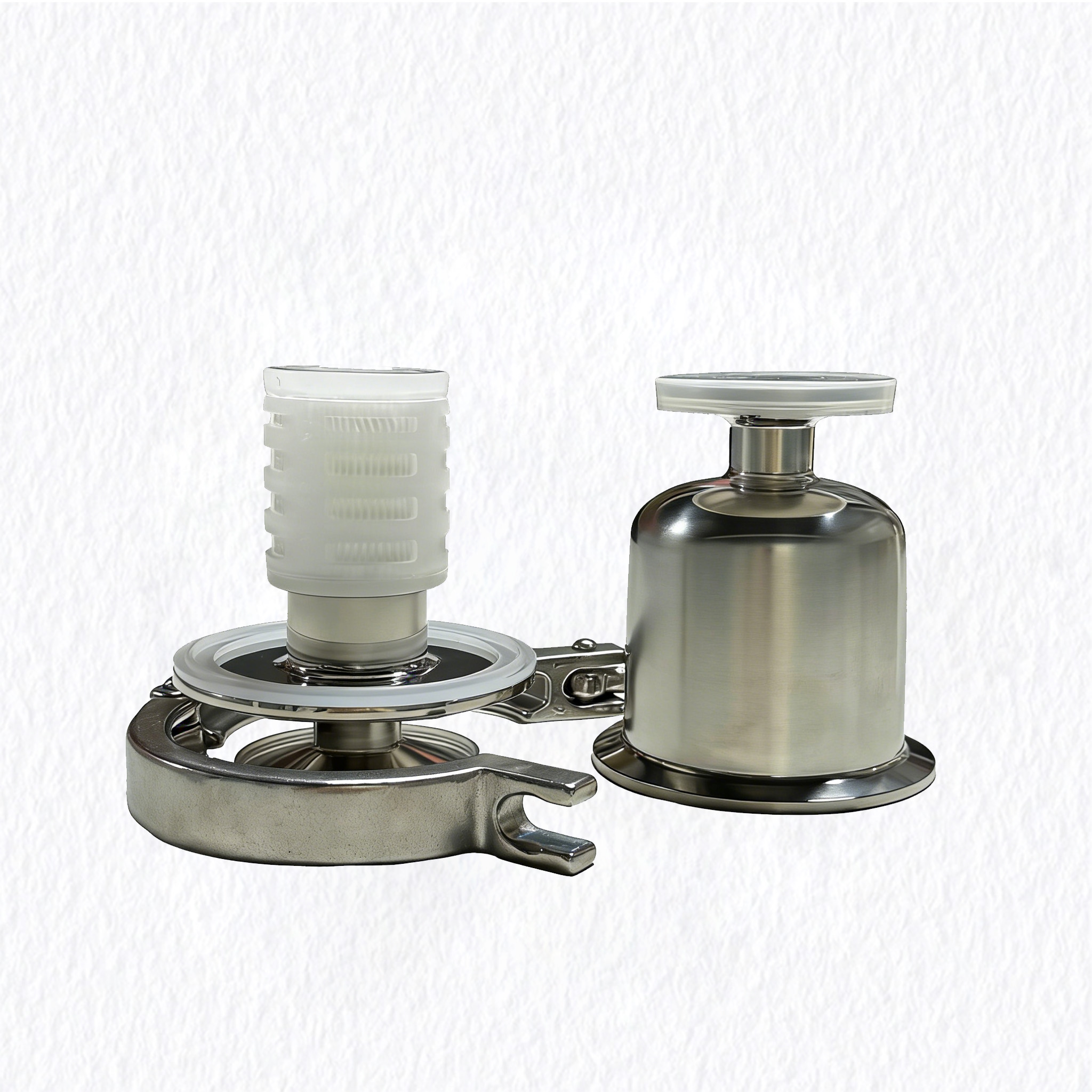

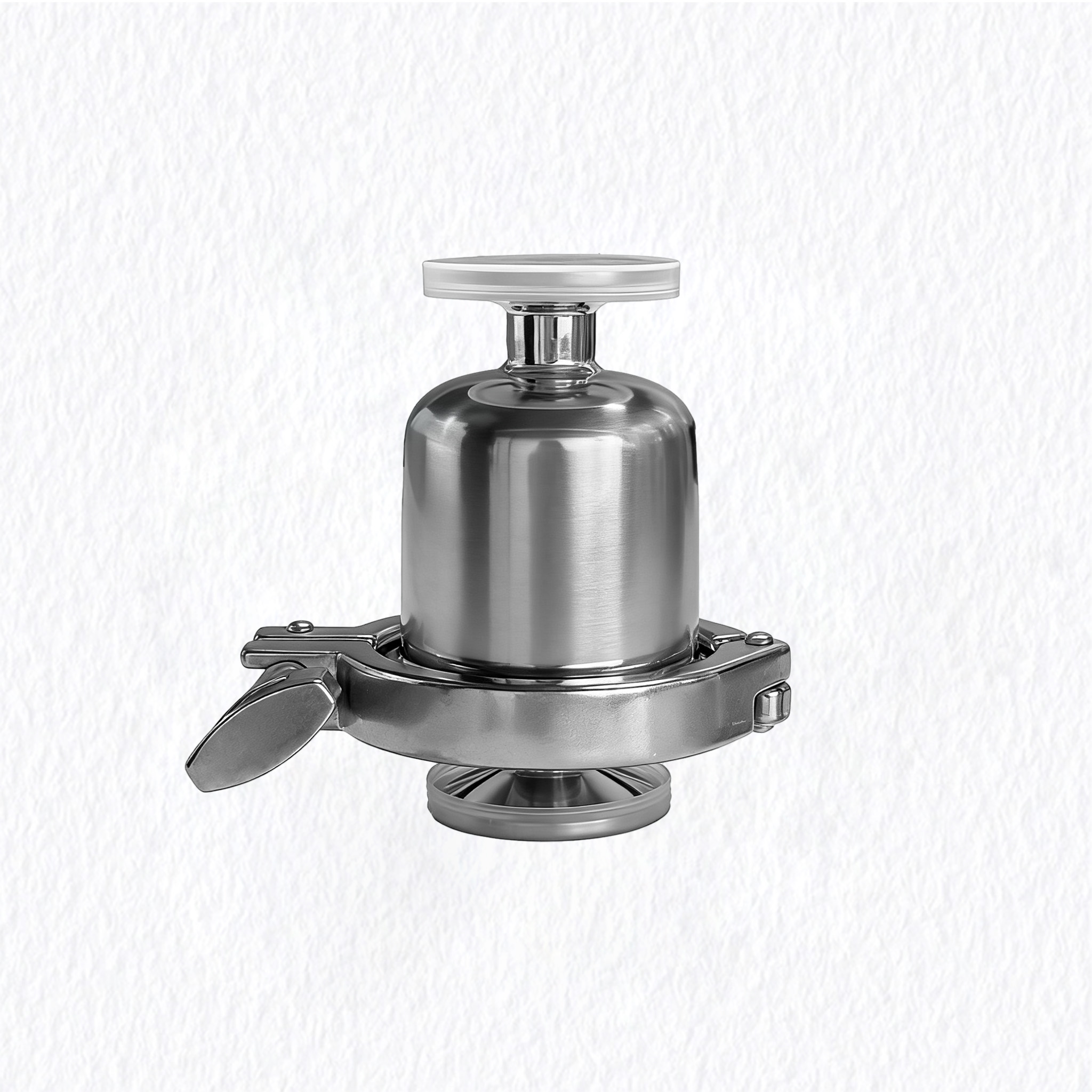

Q1: What is the maximum particle removal efficiency of this Stainless Steel Gas Filter for Liquid Cooling?

A1: Paired with a high-efficiency filter cartridge, it achieves a $\ge$99.9999% removal efficiency for particles greater than or equal to $0.5\mu\text{m}$, delivering chip-grade gas purity.

Q2: How does the design of this gas filter prevent the gas from being contaminated by the equipment itself?

A2: The housing features a dead-leg free and non-shedding design. The internal structure eliminates dead zones, and all surfaces are precision polished to guarantee zero particle release from the housing itself.

Q3: What role does this gas filter play during the component assembly stage of liquid cooling systems?

A3: It is used for component purging. It provides ultra-clean nitrogen or compressed air to purge cold plates, pipes, and quick-disconnects before assembly, effectively blowing away residual micro-particles.

Q4: How is this product applied during the blending and filling of liquid coolants?

A4: It supplies an ultra-clean gas blanket (protective atmosphere) during coolant blending and filling, preventing any airborne particles from contaminating the finished fluid.

Q5: Can this filter be used for leak detection workflows in cooling circuits?

A5: Yes. It delivers clean, oil-free, and dust-free gas specifically for leak testing, which ensures the ultimate accuracy and reliability of the leak detection process.

Q6: What materials are available for the housing construction, and are they resistant to industrial gases?

A6: The housing is constructed from high-quality SUS304 or SUS316L stainless steel. This robust construction is highly resistant to corrosive industrial gases and harsh environments, ensuring long-term operational reliability.

Q7: Which seal options can be selected based on gas compatibility requirements?

A7: According to the ordering guide, the filter supports multiple premium sealing materials, including Silicone, EPDM, Viton, and TEV (PTFE encapsulated rubber).

Q8: What types of inlet and outlet connections are supported by this gas filter?

A8: It supports sanitary Tri-Clamp connections (e.g., DN25/DN40/DN50) and industrial Flange connections (ranging from DN25 up to DN150, including DIN Flange DN40) to accommodate customizable setups.

Q9: What filter cartridge lengths can be ordered for this gas filter housing?

A9: The configuration chart supports standard lengths of 10", 20", 30", and 40", allowing users to size the filter according to their gas flow rate needs.

Q10: Does LOONG Filtration offer any specialized protective linings for this gas housing?

A10: Yes. Based on the ordering information, options include "Without Lining" (standard stainless steel), PTFE linings, FPA linings, or Fluorine coatings to handle ultra-aggressive or high-purity chemical gas processes.
