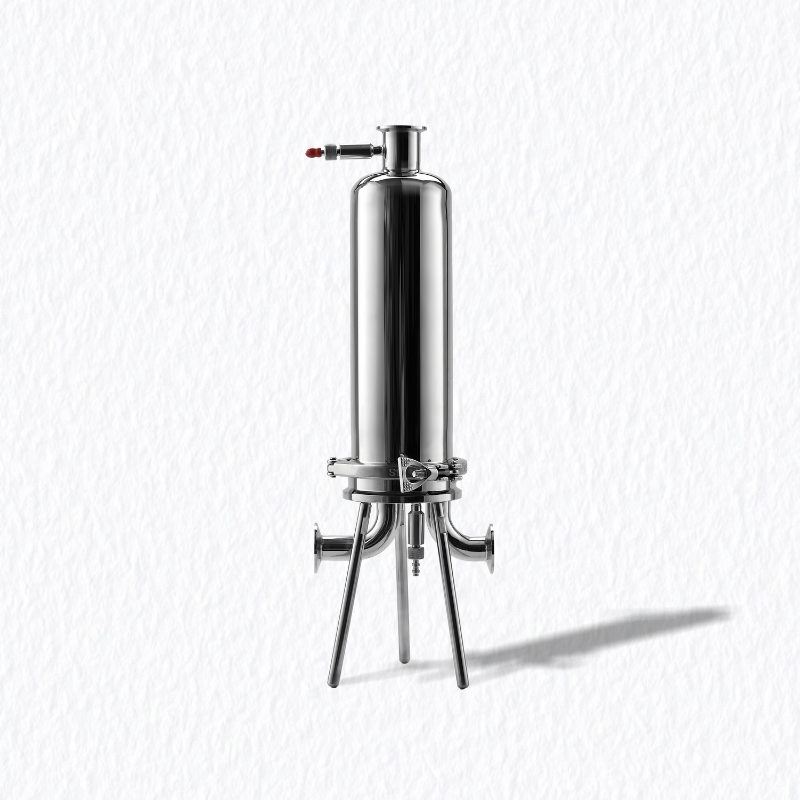

Industrial Stainless Steel Liquid Filter Housing Full View - Loong Filtration
Industrial Stainless Steel Liquid Filter Housing Full View - Loong Filtration Industrial Stainless Steel Liquid Filter Housing Full View - Loong Filtration

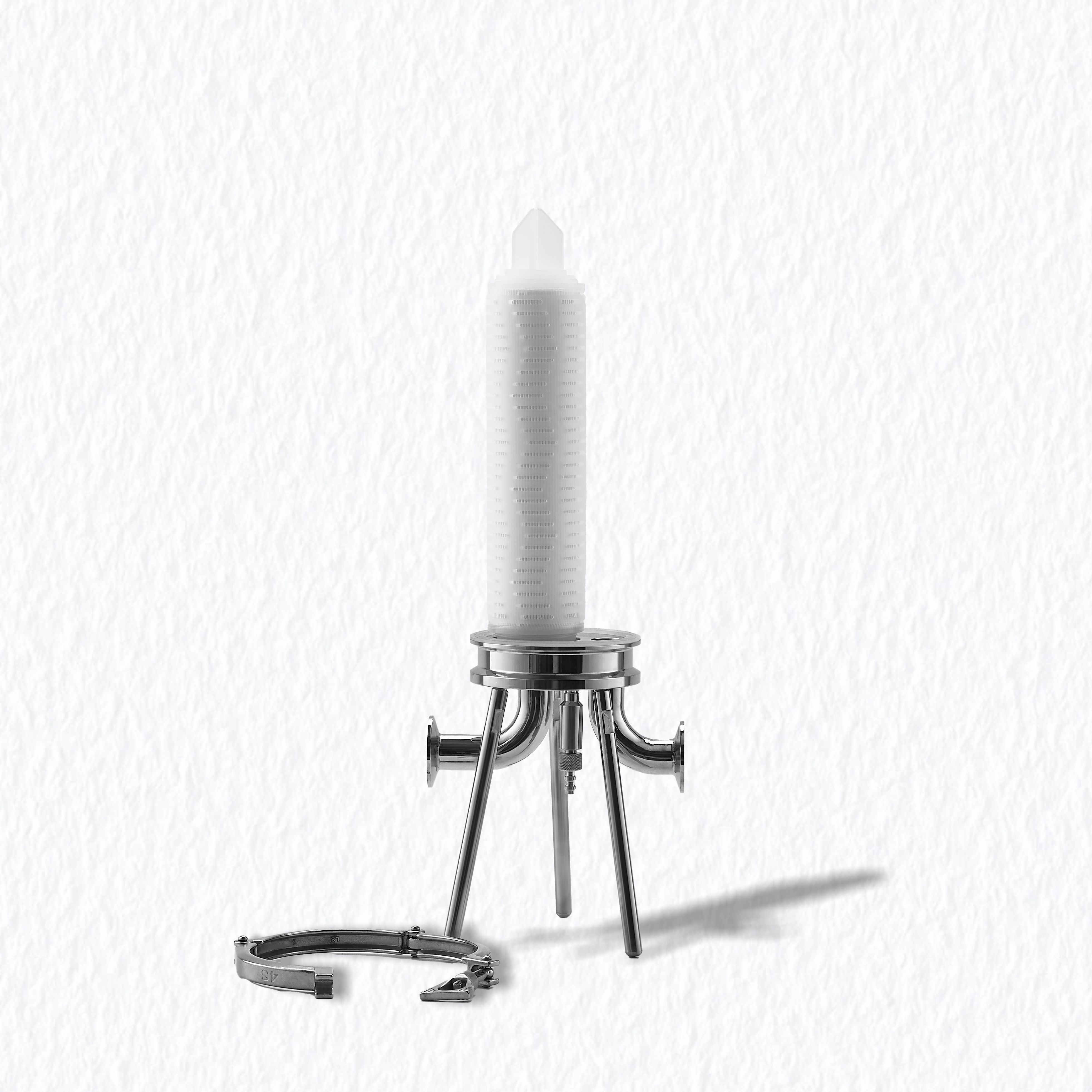

Internal Structure of Sanitary Cartridge Filter Housing Internal Structure of Sanitary Cartridge Filter Housing

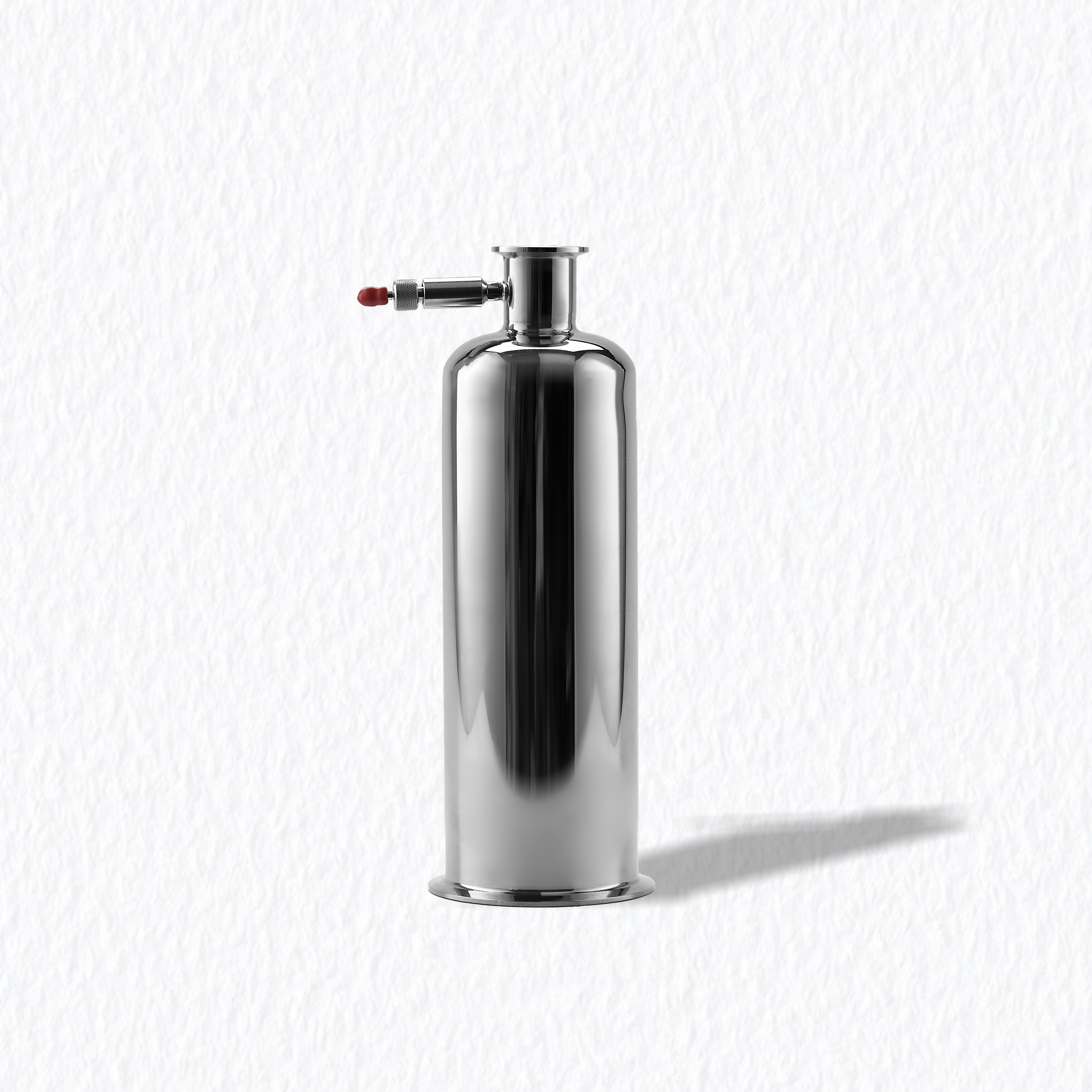

Mirror Polished 316L Stainless Steel Filter Housing Body Mirror Polished 316L Stainless Steel Filter Housing Body

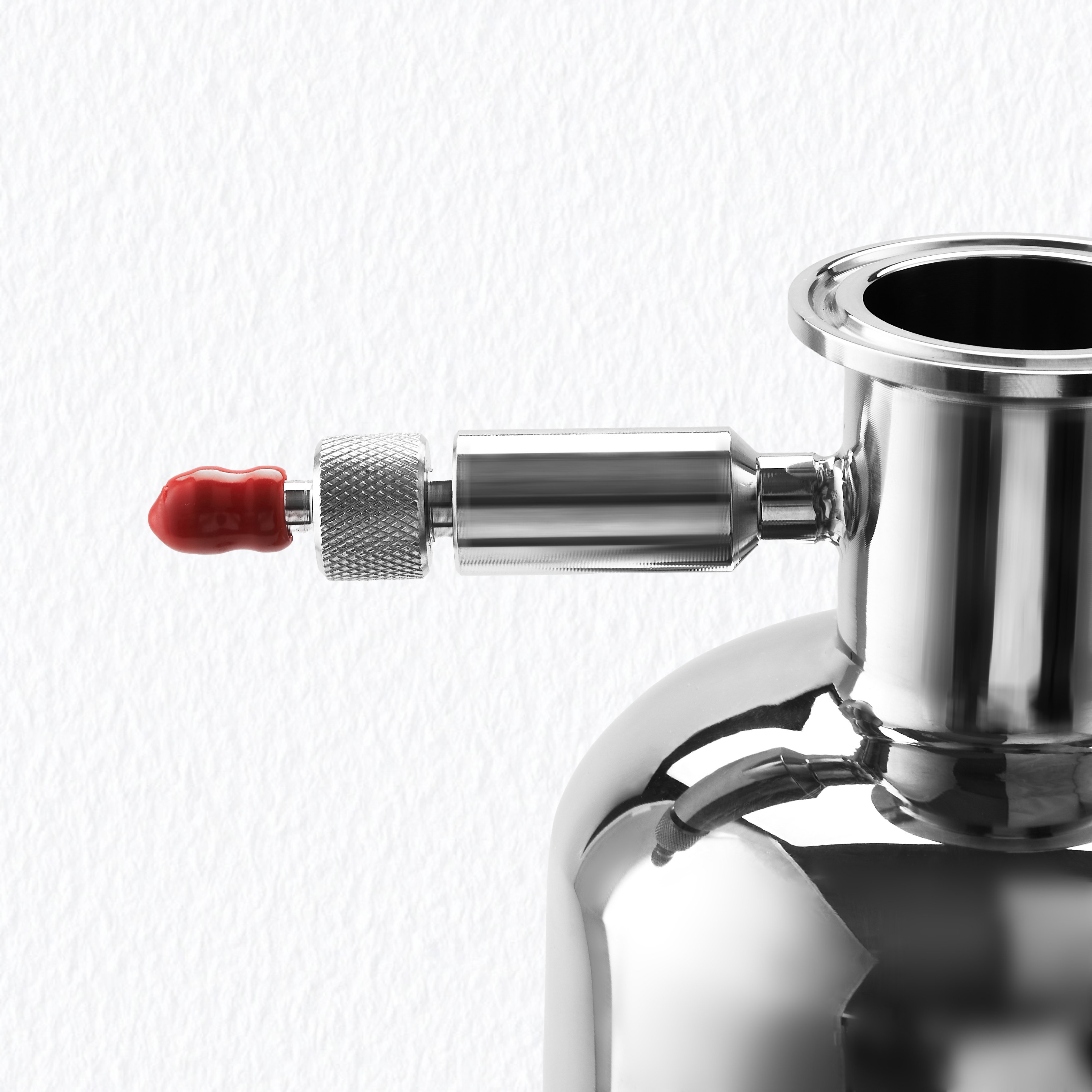

Sanitary Vent Valve and Pressure Gauge Connection Detail Sanitary Vent Valve and Pressure Gauge Connection Detail

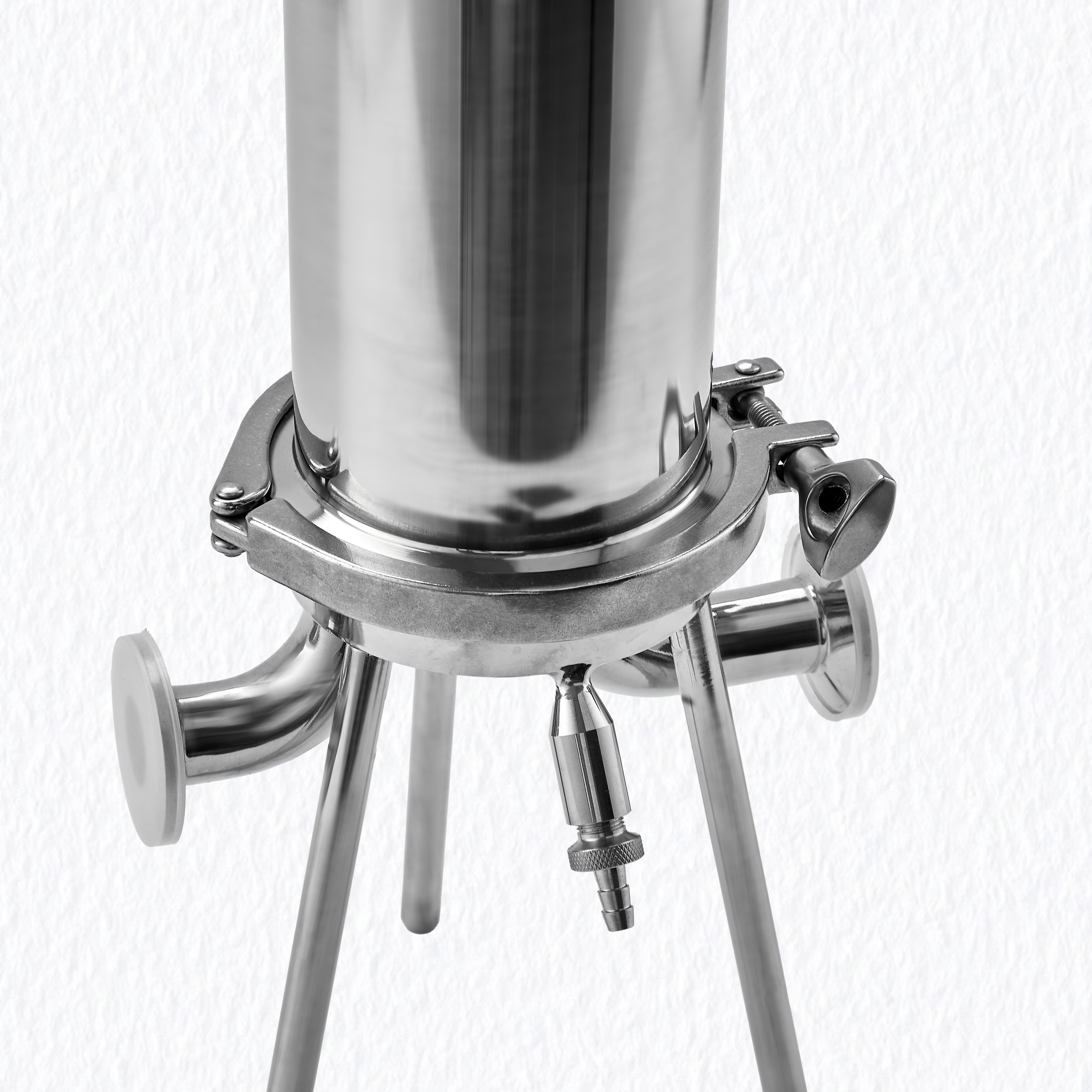

Adjustable Support Legs and Bottom Drain Outlet Detail Adjustable Support Legs and Bottom Drain Outlet Detail

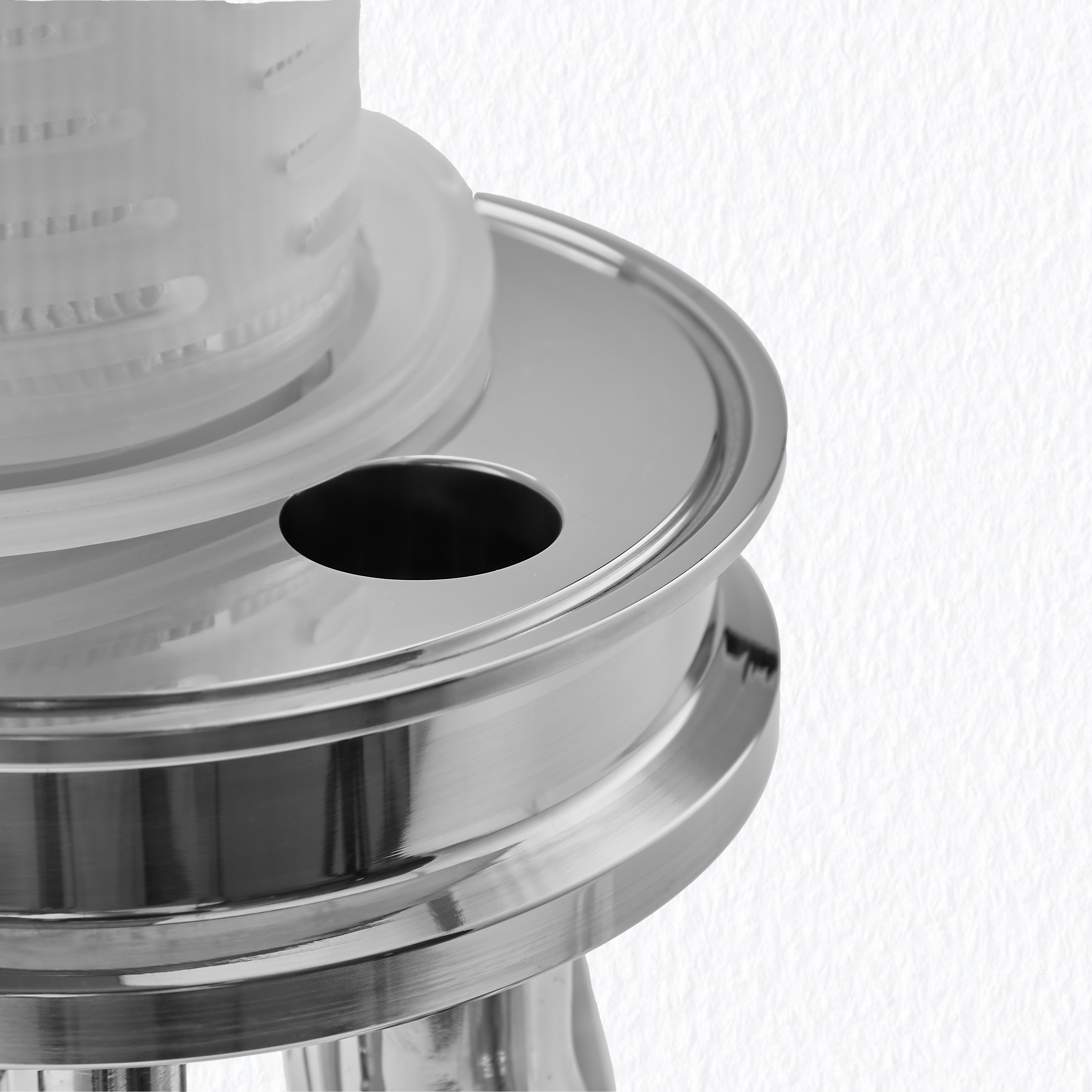

High Pressure Flange Connection and Sealing Mechanism High Pressure Flange Connection and Sealing Mechanism

loading

SS Liquid Filter Housing

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LY

  • Pharma&Biotech, Microelectronics, Food & Beverage, Fine Chemical

  • Filter Housings

  • Metal

Availability:
Quantity:
Inquire Add to Basket


Pharmaceutical Grade Series Stainless Steel Liquid Filter Housing


This series of Filter Housing is constructed entirely from SUS316L or SUS304 stainless steel with precision mirror polishing, delivering exceptional corrosion resistance and easy-clean properties. Engineered as an ideal filtration solution for the biopharmaceutical industry, this series accommodates flexible configurations with 5″ to 40″ pleated cartridges, scaling from laboratory to industrial production needs. Featuring optimized flow path design and dead-leg free construction, it effectively retains particles and bacteria down to 0.1μm while guaranteeing zero media migration. This reliable system ensures filtration integrity for critical process fluids including purified water, pharmaceuticals, and solvents.


APPLICATIONS
•  Pharmaceutical Water Systems:Terminal filtration for purified water and WFI systems to meet pharmacopeia standards

• Pharmaceutical Solution Filtration:Clarification and sterilization of various injections, oral liquids, and syrups

• Bioprocess Fluids:Aseptic processing of cell culture media, buffers, and biological products

• Industrial Solvent Filtration:Precision filtration of acid/alkali solutions and organic solvents for downstream protection

• Food & Beverage Processing: Clarification and microbial control for high-value liquid food products


Comprehensive Filtration SolutionsAt LOONG Filtration, we deliver more than just equipment. We provide full-cycle support including raw membrane material selection and precise micron rating determination. Our experts assist in matching the compatible media filter cartridges or filter bags to your specific fluids, ensuring the optimal filtration process and filter housing configuration for your system.Contact us to optimize your production line today.



BENEFITS OF SS LIQUID FILTER HOUSING

• Premium Material & Surface Finish

All-stainless construction with mirror polish provides superior corrosion resistance and meets stringent sanitary standards

•Flexible Configuration Options

Compatible with multiple cartridge lengths (5″-40″) for adaptable filtration solutions based on capacity and precision requirements

• Reliable Filtration Performance

Dead-leg free design and zero media migration ensure process safety and prevent secondary contamination

• Excellent Chemical Compatibility

Outstanding resistance to acids, alkalis, and heat suits various challenging process conditions and fluid characteristics


MATERIALS OF CONSTRUCTION

Housing
SUS304/316L stainless steel
Seal
Silicone/EPDM/Viton/TEV


OPERATING CONDITIONS

Max.  Temperature
150 ℃
Max. Differential Pressure
8 bar


CONNECTION

Inlet/Outlet
Flange/Tri-Clamp/Thread
Gauge port Thread
Cartridge connection
222/226/DOE






MATERIAL LINING NO. of FILTERS CONNECTION LENGTH(IN) SEAL INLET/OUTLET
304 Without 1 222 10'' Silicone Tri-Clamp DN25
316 PTFE 3 226 20'' EPDM Tri-Clamp DN40
WCB（Mild Steel） FPA 4 M20 30'' Viton Tri-Clamp DN50
PPH（Homopolymer PP） Fluorine 7 3M 40'' TEV Flange DN25

Butyronitrile 25 PARKER
Butyronitrile Flange DN40

PE 150 PALL
PTFE Flange DN50



PHOSPHOR

Flange DN80



38-5

Flange DN150






DIN Flange DN40

SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' SilFlange DN25icone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



download Stainless Steel Liquid Filter Housing from LOONG Filtration.pdf


What is the maximum operating pressure for this housing?

Our standard design supports up to 10 bar (145 psi). We also offer high-pressure customization up to 100 bar for special industrial applications.


Can you provide different connection types?

Yes. Standard connections include Flange (ANSI/DIN/JIS), Tri-clamp, and Thread (BSP/NPT). Custom connections are available upon request.


What is the lead time for a custom order?

For standard models, we ship within 1 week. Custom designs typically require 15-20 days for fabrication and testing.


How is filtration precision (e.g., micron rating) defined?

Filtration precision is usually expressed in microns (μm), representing the minimum particle diameter that a filter can effectively capture. For example, a 10-micron filter means it can remove most particles with a diameter greater than or equal to 10 microns. The definition of precision may vary slightly depending on the test method (such as bubble point test, multi-pass test).


What precautions should be taken when installing a filter?

• Ensure that the fluid flow direction is consistent with the arrow marked on the filter housing.

• Ensure the installation location facilitates maintenance and filter element replacement.

• Before connecting the pipeline, purge the pipeline to prevent contaminants such as welding slag from directly impacting the filter element.

• Before installation, check whether seals such as O-rings are intact and properly positioned.


What is the maximum working pressure of your filter housings and systems?

LOONG Filtration's industrial-grade filter housings are available in 150psi specifications, which can match most working conditions. If you have special requirements, please contact us, and we will customize the product for you.
