FBVL/FPVL
Pharma&Biotech, Microelectronics, Food & Beverage
Membrane Filter Cartridges
PVDF
| Availability: | |
|---|---|
| Quantity: | |

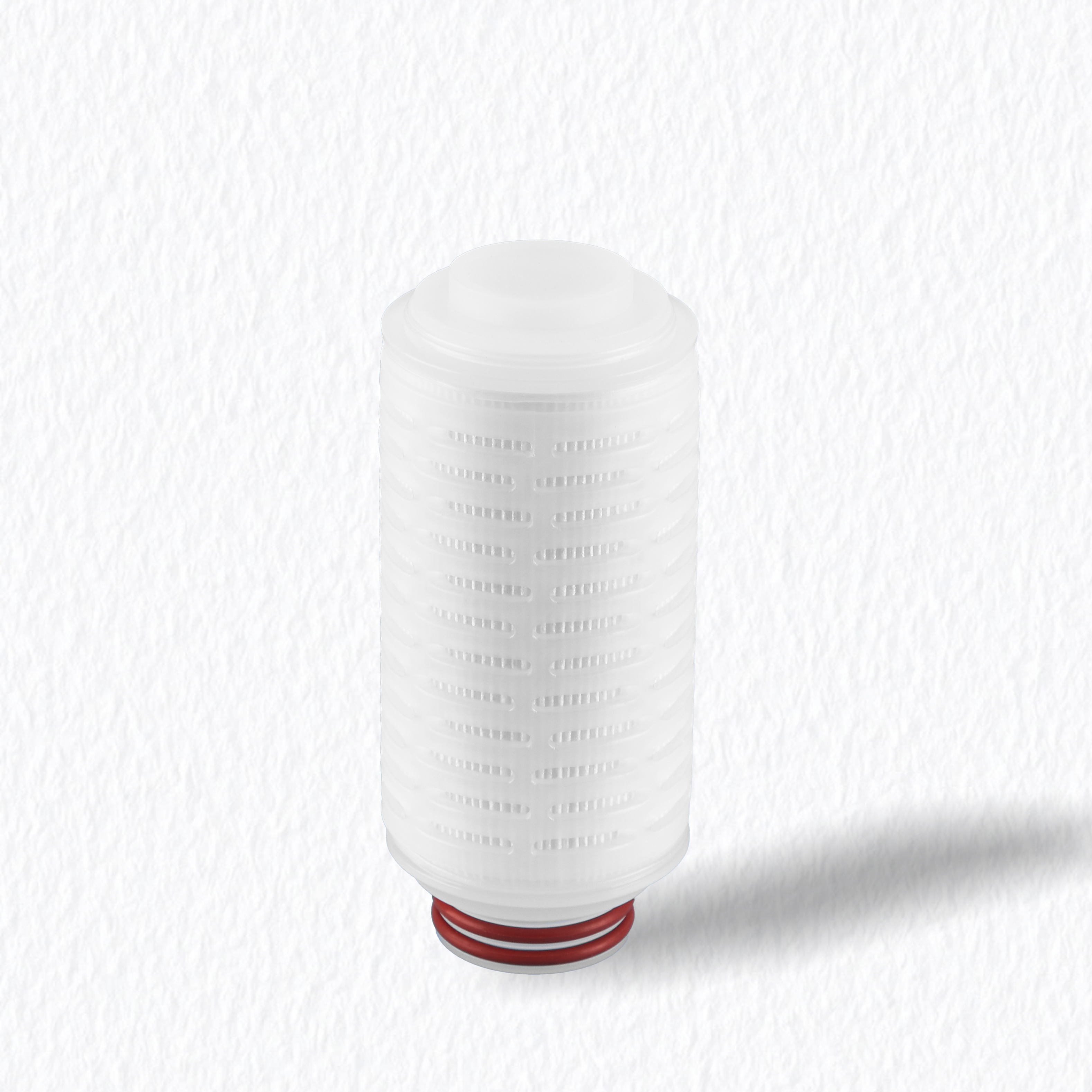

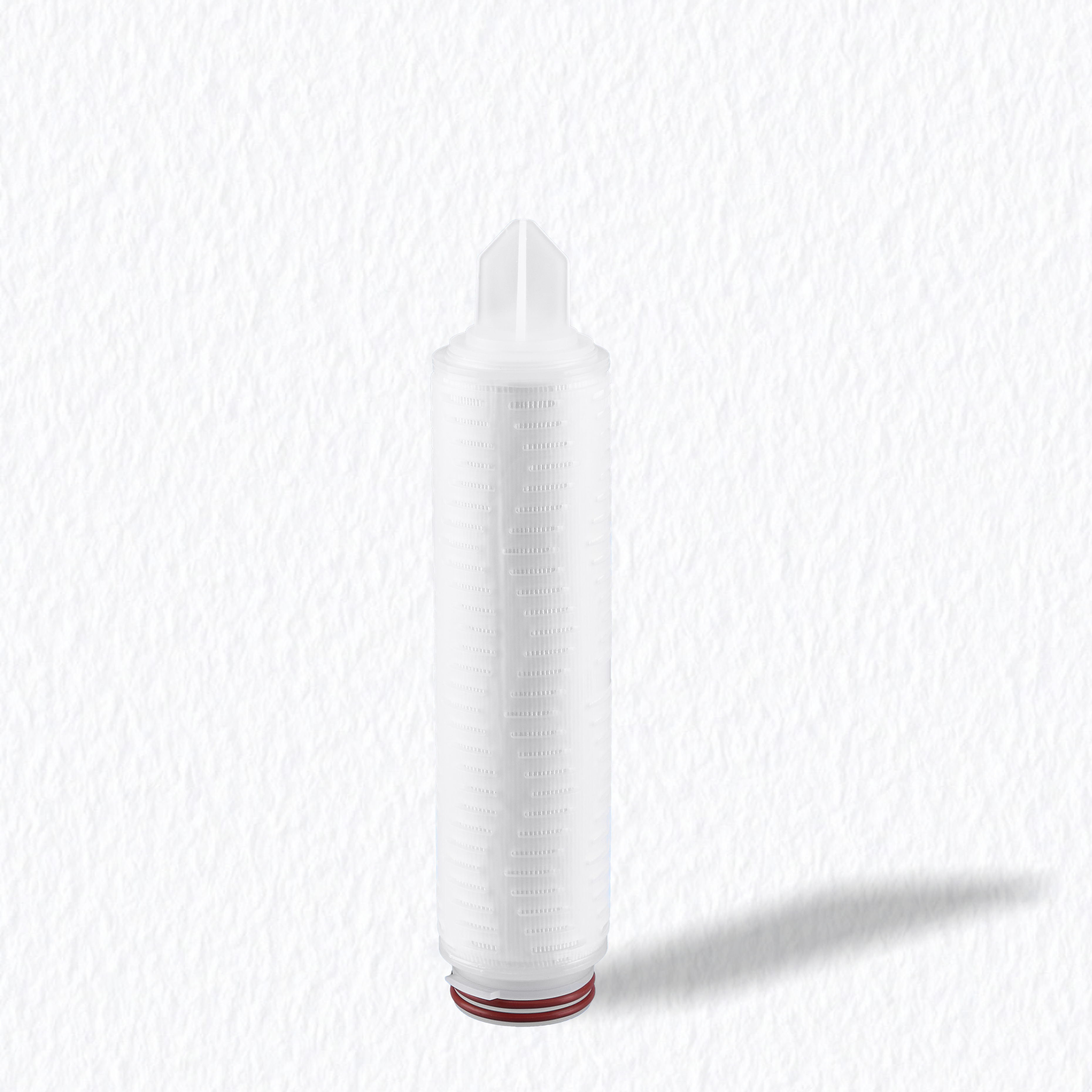

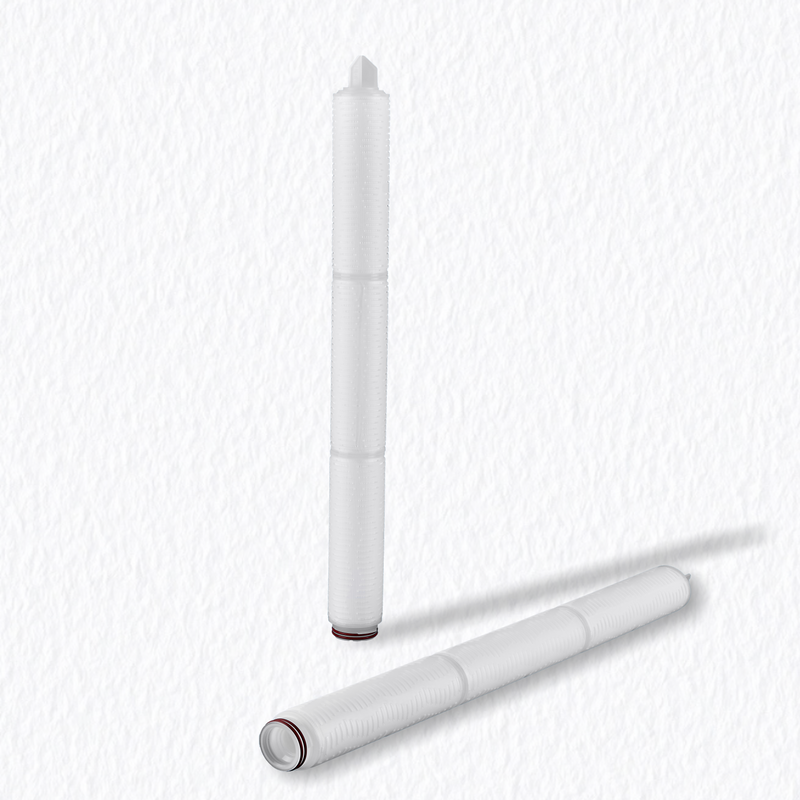

Hydrophilic PVDF Filter Cartridge - Low Extractables & Low Protein Binding for Pharma & Food Applications
The Hydrophilic PVDF Filter Cartridge provides low protein binding and minimal extractables, ideal for sensitive pharmaceutical and food applications. Its naturally hydrophilic membrane requires no alcohol pre-wetting, enabling immediate high-flow filtration without contamination risk. With broad chemical compatibility and sterilizing capability, it ensures high product recovery in biological solutions, beverage processing, and pharmaceutical production.
FOOD & BEVERAGE
• Beer: Final sterile filtration before bottling/canning
• Wine: Sterile filtration to ensure product stability
• Mineral Water: Final bacterial removal filtration
• Soft Drinks: Carbonated beverage sterilization
Compliance: Compliance: FDA 21 CFR 177.2510; NSF/ANSI 61; EU 1935/2004
Recommend Series: FBVL
Pore Size (µm): 0.1 • 0.22 • 0.45 • 1.0 • 3.0 • 5.0
PHARMA&BIOTECH
• Sterile Filtration of Protein Drugs for Biological Therapeutics
• Sterile Filtration of Culture Media for Serum-Free and Cell Culture Applications
• Sterile Filtration of Blood Products for Plasma Derivatives and Blood Components
• Sterile Filtration of Veterinary Preparations for Animal Health Products
• Sterile Filtration of Peptide Products for Peptide-Based Pharmaceuticals
Compliance: USP Class VI, ISO 13485, cGMP
Recommend Series: FPVL
Pore Size (µm): 0.22 • 0.45 • 1.0 • 0.22+0.22 • 0.22+0.45
Hydrophilic PVDF Filter Cartridge - Low Extractables & Low Protein Binding for Pharma & Food Applications
The Hydrophilic PVDF Filter Cartridge provides low protein binding and minimal extractables, ideal for sensitive pharmaceutical and food applications. Its naturally hydrophilic membrane requires no alcohol pre-wetting, enabling immediate high-flow filtration without contamination risk. With broad chemical compatibility and sterilizing capability, it ensures high product recovery in biological solutions, beverage processing, and pharmaceutical production.
FOOD & BEVERAGE
• Beer: Final sterile filtration before bottling/canning
• Wine: Sterile filtration to ensure product stability
• Mineral Water: Final bacterial removal filtration
• Soft Drinks: Carbonated beverage sterilization
Compliance: Compliance: FDA 21 CFR 177.2510; NSF/ANSI 61; EU 1935/2004
Recommend Series: FBVL
Pore Size (µm): 0.1 • 0.22 • 0.45 • 1.0 • 3.0 • 5.0
PHARMA&BIOTECH
• Sterile Filtration of Protein Drugs for Biological Therapeutics
• Sterile Filtration of Culture Media for Serum-Free and Cell Culture Applications
• Sterile Filtration of Blood Products for Plasma Derivatives and Blood Components
• Sterile Filtration of Veterinary Preparations for Animal Health Products
• Sterile Filtration of Peptide Products for Peptide-Based Pharmaceuticals
Compliance: USP Class VI, ISO 13485, cGMP
Recommend Series: FPVL
Pore Size (µm): 0.22 • 0.45 • 1.0 • 0.22+0.22 • 0.22+0.45
BENEFITS OF HYDROPHILIC PVDF FILTER CARTRIDGE
• Low Extractables & Protein Adsorption: Maximizes product recovery in sensitive applications
• Instant Wettability: No alcohol pre-wetting required - ready for water-based solutions
• High Flow Rates: Optimized membrane structure ensures efficient processing
• Broad Chemical Compatibility: Suitable for most pharmaceutical and food processing solutions
• Validated Sterilization: Steam sterilizable and compatible with various sterilization methods
| Membrane | Hydrophobic PVDF |
| Cage & Support & End Caps | PP |
| O-rings/Gasket | Silicone/Viton/EPDM/TEV |
PERFORMANCE CHARACTERISTICS
| PP | <60 ℃ |
| PP with Stainless Steel Lined End Cap | <85 ℃ |
| PP with Stainless Steel Lining | <95 ℃ |
| Positive/Reverse Pressure Resistance | 4 bar/2 bar (23 ℃) |
| Steam Sterilization | 123 ℃@30 min(for FPVL Series) |
| pH Range | 2-10(for FPVL Series) |
DIMENSIONS
| Outer Diameter | 68 mm |
| Length | 10", 20", 30", 40" |
BIOSAFETY(FOR FPVL SERIES)
| Endotoxin | <0.25 EU/ml |
| Extractable | ≤50 mg/10" |
INTEGRITY TEST(BP,95%ETHANOL@23℃)(FOR FPVL SERIES)
| 0.22 μm | ≥2.4 bar |
| Length | 10", 20", 30", 40" |
BENEFITS OF HYDROPHILIC PVDF FILTER CARTRIDGE
• Low Extractables & Protein Adsorption: Maximizes product recovery in sensitive applications
• Instant Wettability: No alcohol pre-wetting required - ready for water-based solutions
• High Flow Rates: Optimized membrane structure ensures efficient processing
• Broad Chemical Compatibility: Suitable for most pharmaceutical and food processing solutions
• Validated Sterilization: Steam sterilizable and compatible with various sterilization methods
| Membrane | Hydrophobic PVDF |
| Cage & Support & End Caps | PP |
| O-rings/Gasket | Silicone/Viton/EPDM/TEV |
PERFORMANCE CHARACTERISTICS
| PP | <60 ℃ |
| PP with Stainless Steel Lined End Cap | <85 ℃ |
| PP with Stainless Steel Lining | <95 ℃ |
| Positive/Reverse Pressure Resistance | 4 bar/2 bar (23 ℃) |
| Steam Sterilization | 123 ℃@30 min(for FPVL Series) |
| pH Range | 2-10(for FPVL Series) |
DIMENSIONS
| Outer Diameter | 68 mm |
| Length | 10", 20", 30", 40" |
BIOSAFETY(FOR FPVL SERIES)
| Endotoxin | <0.25 EU/ml |
| Extractable | ≤50 mg/10" |
INTEGRITY TEST(BP,95%ETHANOL@23℃)(FOR FPVL SERIES)
| 0.22 μm | ≥2.4 bar |
| Length | 10", 20", 30", 40" |
| SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
| Electronics | Hydrophilic PVDF | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | |
| Phamarmical | 0.22μm | 222/Flat | 5'' | PBT | Interface lining steel | EPDM | |
| Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Fully lining | Viton | |
| 1.0μm | 226/Flat | 20'' | PFA | Skeleton lining | TEV | ||
| 3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
| 10μm | 215/Fin | 40'' | GF | PTFE | |||
| 0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
| M20 | Metal-graphite Wound | ||||||
| M30 | |||||||
| 216/Fin | |||||||
| 216/Flat | |||||||
| M15 | |||||||
| Insertion Type | |||||||
| Barbed Type |
| SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
| Electronics | Hydrophilic PVDF | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | |
| Phamarmical | 0.22μm | 222/Flat | 5'' | PBT | Interface lining steel | EPDM | |
| Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Fully lining | Viton | |
| 1.0μm | 226/Flat | 20'' | PFA | Skeleton lining | TEV | ||
| 3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
| 10μm | 215/Fin | 40'' | GF | PTFE | |||
| 0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
| M20 | Metal-graphite Wound | ||||||
| M30 | |||||||
| 216/Fin | |||||||
| 216/Flat | |||||||
| M15 | |||||||
| Insertion Type | |||||||
| Barbed Type |
Are LOONG’s filter cartridges Food Contact and Pharmaceutical Compliant?
Yes, they mostly are.Most of our filter cartridges are certified according to FDA and GMP regulation EC 2023/2006.Please contact us to get the detailed certification.
What is the benefit if you use LOONG filtration filter elements in Food and Beverage industry?
Sanitation and safety in the food & beverage industry are always under intense scrutiny. Given the unique nature of these products, they are highly vulnerable to bacterial contamination and spoilage during production or storage. Ensuring their safety and hygiene is critical—not only for compliance, but for protecting public health. At LOONG Filtration, our advanced filtration solutions are engineered to meet the sector’s rigorous demands. By cellulose filter, PP, PTFE, PES, and glass fiber pleated filter cartridges, along with metal filter cartridges, across various production stages, we ensure that every product reaching your customers is safe, consistent, and of the highest quality.
What are the advantages of pleated filter cartridges?
Pleated designs offer larger surface area, longer service life, higher flow rates, and reduced pressure drop compared to standard wound cartridges.
Can your filters handle high-temperature or corrosive environments?
Yes, we offer filter cartridges made from PTFE, PES, stainless steel, and other materials resistant to high temperatures, acids, alkalis, and aggressive chemicals.
Are LOONG’s filter cartridges Food Contact and Pharmaceutical Compliant?
Yes, they mostly are.Most of our filter cartridges are certified according to FDA and GMP regulation EC 2023/2006.Please contact us to get the detailed certification.
What is the benefit if you use LOONG filtration filter elements in Food and Beverage industry?
Sanitation and safety in the food & beverage industry are always under intense scrutiny. Given the unique nature of these products, they are highly vulnerable to bacterial contamination and spoilage during production or storage. Ensuring their safety and hygiene is critical—not only for compliance, but for protecting public health. At LOONG Filtration, our advanced filtration solutions are engineered to meet the sector’s rigorous demands. By cellulose filter, PP, PTFE, PES, and glass fiber pleated filter cartridges, along with metal filter cartridges, across various production stages, we ensure that every product reaching your customers is safe, consistent, and of the highest quality.
What are the advantages of pleated filter cartridges?
Pleated designs offer larger surface area, longer service life, higher flow rates, and reduced pressure drop compared to standard wound cartridges.
Can your filters handle high-temperature or corrosive environments?
Yes, we offer filter cartridges made from PTFE, PES, stainless steel, and other materials resistant to high temperatures, acids, alkalis, and aggressive chemicals.
