OEM/ODM Lenticular Filter Manufacturer for Pharma, Beverage & Fine Chemicals

A lenticular filter work principle is based on depth filtration. Liquid flows from the outside of the stacked disc filter module through the depth-sensitive media toward the center core. As the liquid passes through the matrix, particles are trapped throughout the entire thickness of the media, not just on the surface, allowing for superior clarification.

In industrial liquid processing, the four primary types include:

Depth Filters: Such as the lenticular filter or depth stack filter, which trap particles within the media.

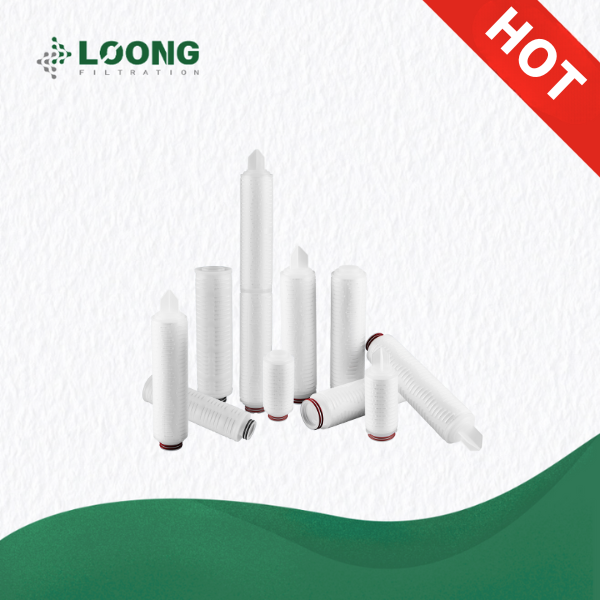

Surface Filters: Like pleated cartridges that catch particles on the surface.

Membrane Filters: Used for sterile filtration and fine particle removal.

Cake/Precoat Filters: Utilizing filter aids like DE to build a filtration layer.

"Better" depends on your filtration stage. A 20 micron lenticular filter is excellent for coarse pre-filtration, removing large debris to protect downstream stages. A 5 micron depth stack filter is better for fine polishing and clarification. LOONG Filtration recommends using them in series to optimize filter life and ensure final product clarity.

Using a lenticular filter involves four key steps:

Installation: Place the depth stack filter modules onto the center post of the housing and tighten the compression nut.

Sanitization: Flush the system with hot water or steam to ensure hygiene.

Wetting/Bleeding: Slowly fill the housing with liquid while venting air through the top valve.

Filtration: Maintain a constant flow rate. Avoid sudden pressure shocks which can damage the depth media.

Contact LOONG Filtration for a technical consultation

You should replace your lenticular filter when the differential pressure (Delta P) reaches the terminal limit recommended by the manufacturer, typically between 1.5 to 2.5 bar (22-36 psi). Other signs include a significant drop in flow rate or if the effluent quality no longer meets your standards after regeneration. Contact LOONG Filtration for a technical consultation

If you notice no differential pressure during operation, it usually indicates a "bypass." This can happen if the lenticular filter module is not seated correctly, the center post gaskets are damaged, or the filter media has been ruptured due to excessive backpressure. Immediate inspection of the Filter Modules is required.

To "repack" or regenerate a lenticular filter used in wine production (to remove tartrate buildup), flush the system with a 1-2% citric acid solution. Allow it to circulate or soak for 15-30 minutes, then rinse thoroughly with cold water. This process helps restore the flow rate and extends the service life of your LOONG Filtration depth stack.

For a lenticular filter, a positive displacement pump (such as an air-operated double diaphragm pump or a flexible impeller pump) is ideal. These pumps provide a gentle, constant flow which is crucial for depth filtration. Centrifugal pumps can be used if they are controlled by a VFD to avoid high-velocity turbulence that could dislodge trapped particles. Contact LOONG Filtration for a technical consultation

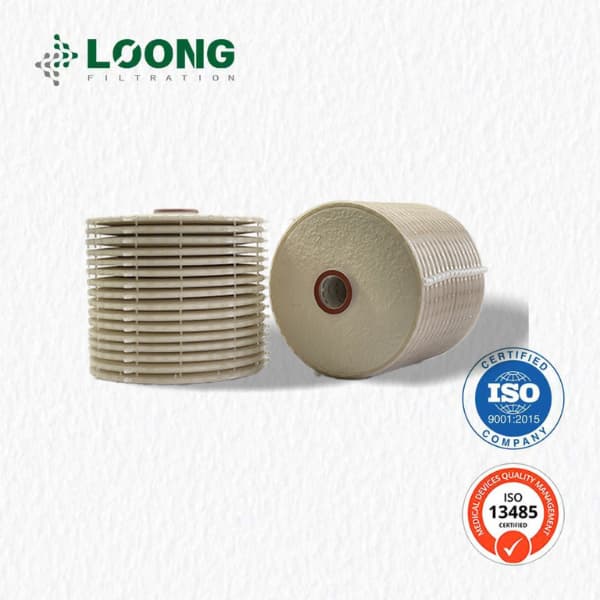

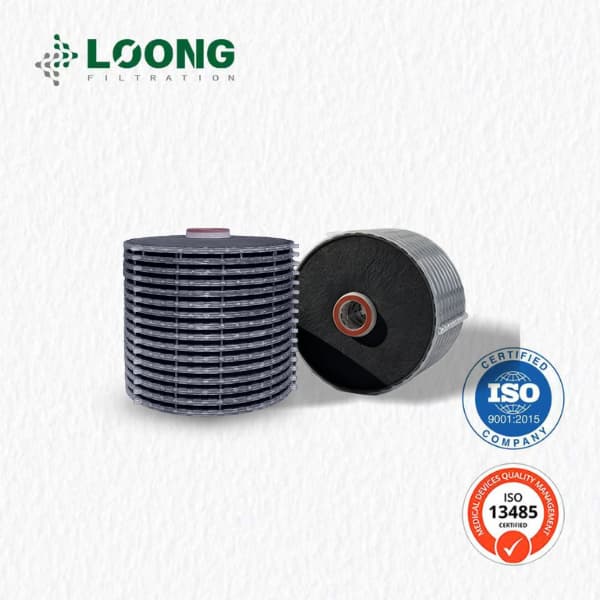

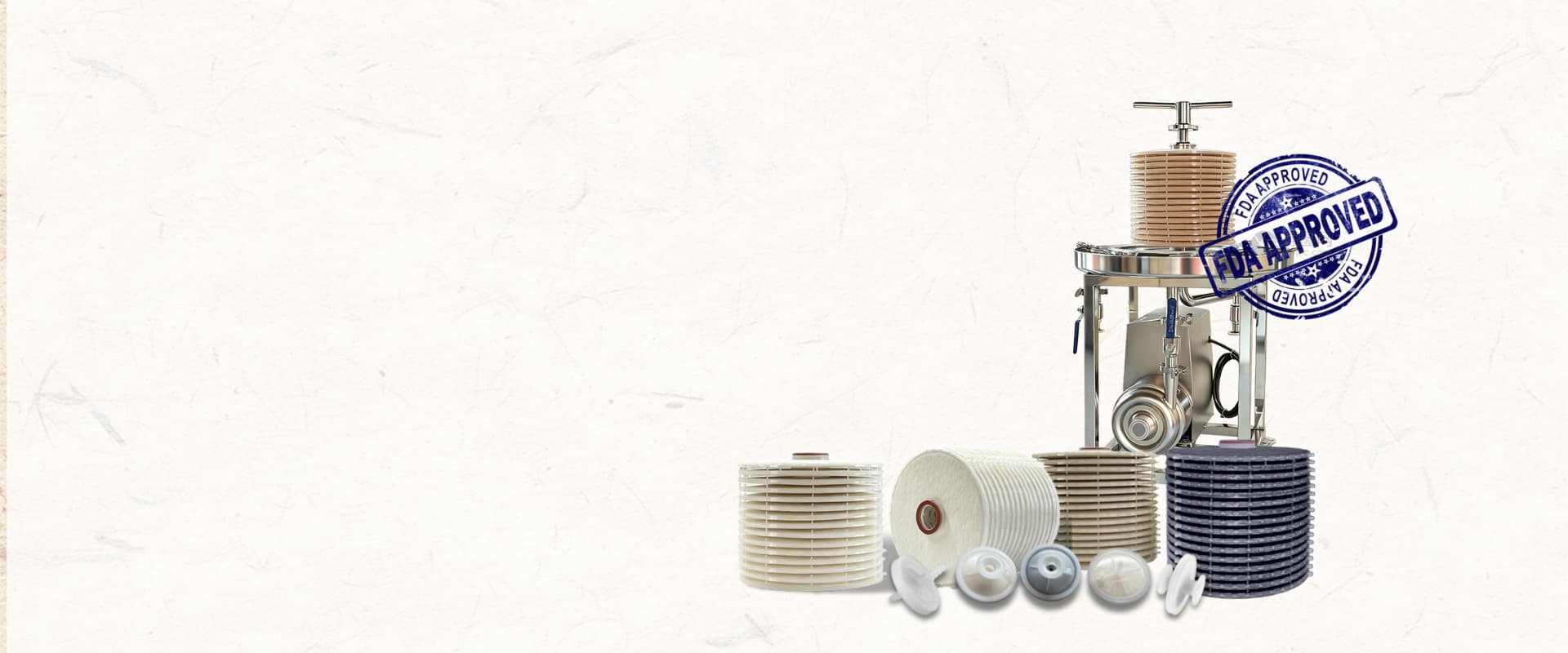

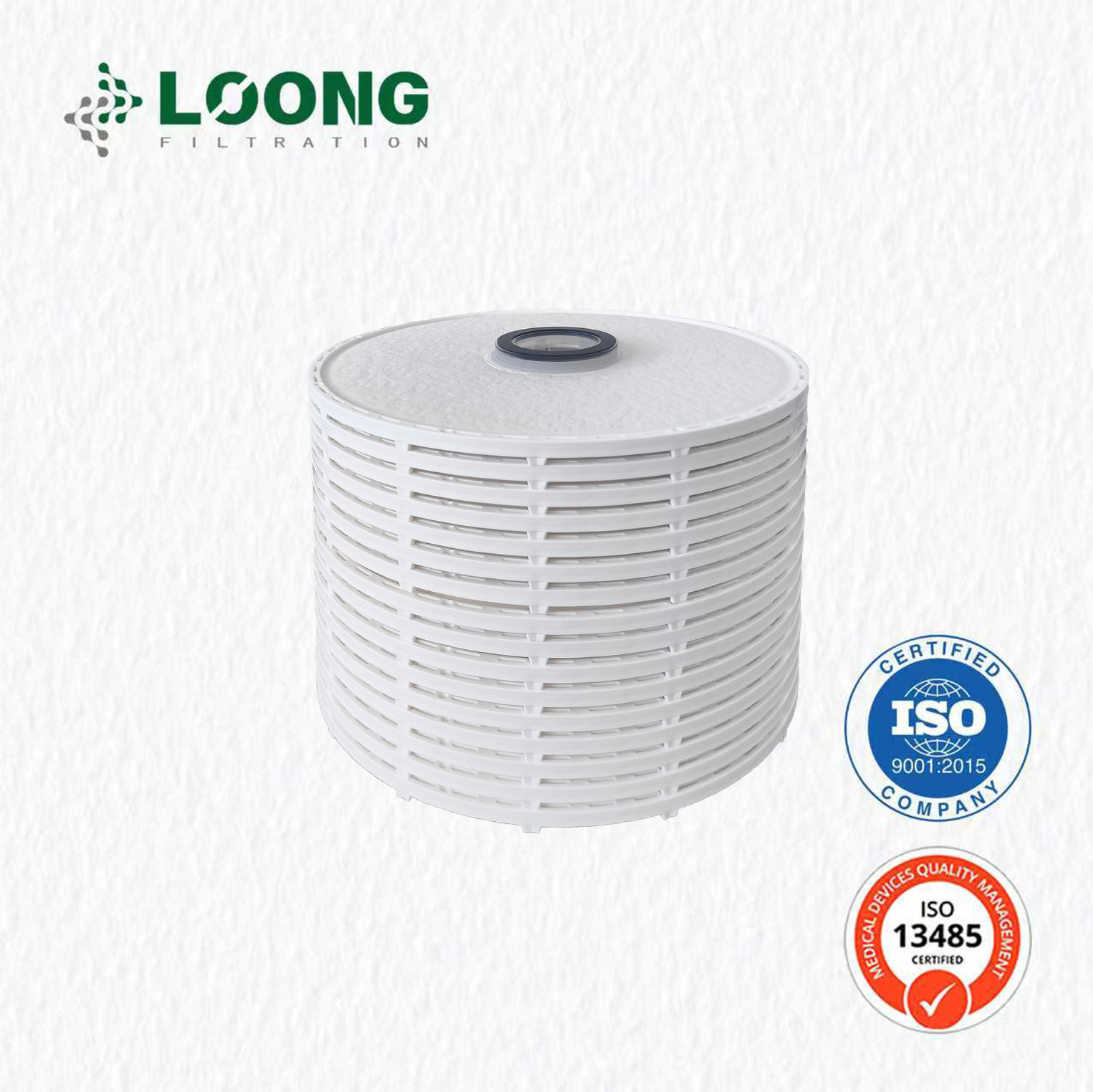

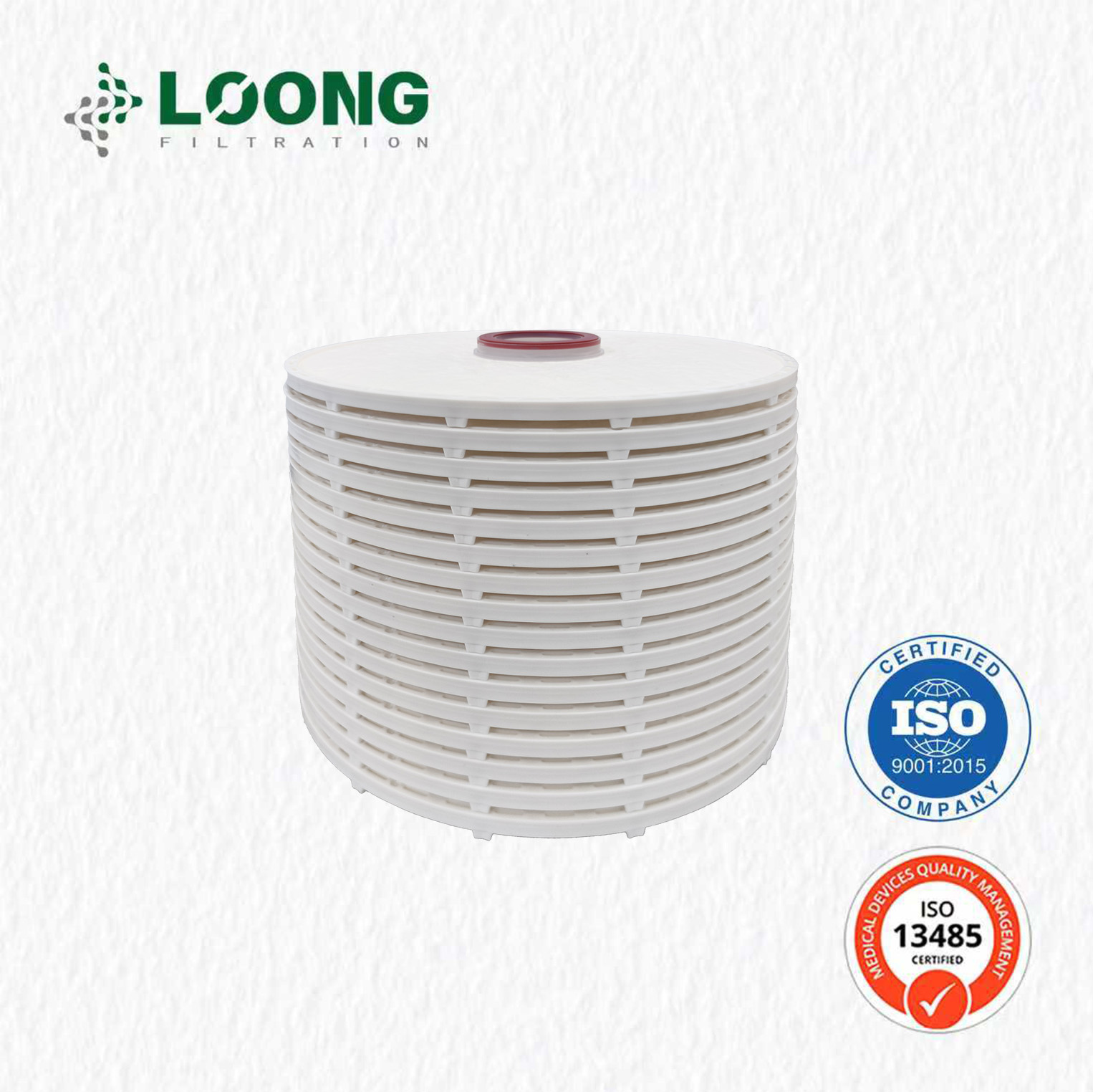

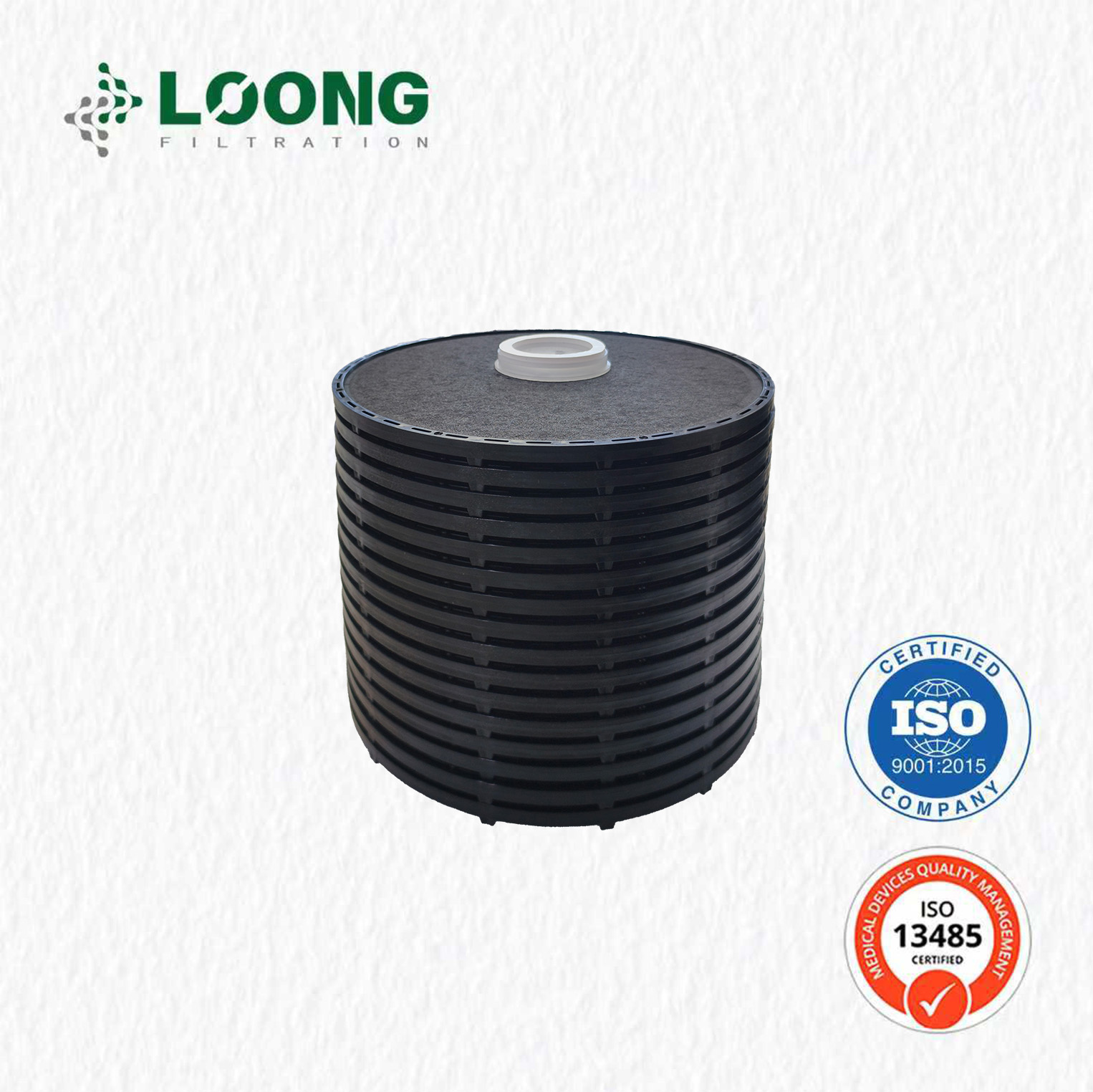

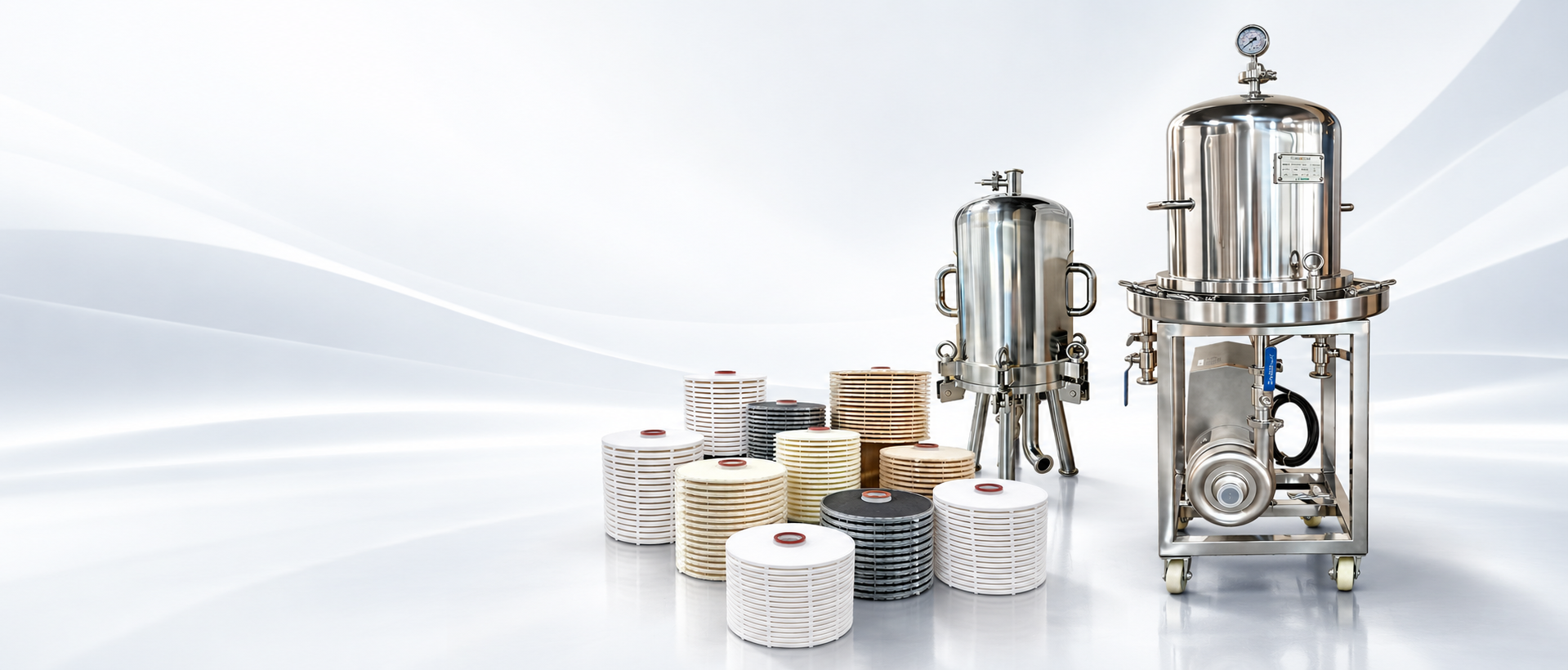

A lenticular filter, often referred to as a depth stack filter, consists of multiple filter cells stacked together in a modular format. At LOONG Filtration, our modules are designed to provide a much larger filtration surface area than traditional sheets within a compact, enclosed system. Using a lenticular filter module ensures a drip-free environment, making it the gold standard for high-purity clarification in wine and food industries.

Our depth stack filters are engineered for high dirt-holding capacity and consistent performance. Key benefits include:

Lower Operational Costs: Easy to install and replace, reducing labor time.

Minimized Product Loss: The enclosed design prevents leakage and oxidation.

Versatility: LOONG Filtration offers various micron ratings to handle everything from coarse clarification to sterile filtration.

A: Absolutely. We provide comprehensive OEM/ODM support. Simply send us your detailed requirements, and our engineering team will analyze the specs to provide professional proposals and custom-branded designs.

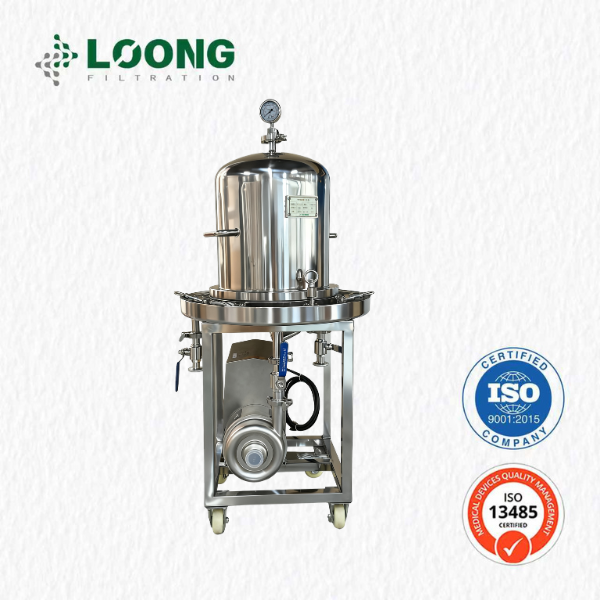

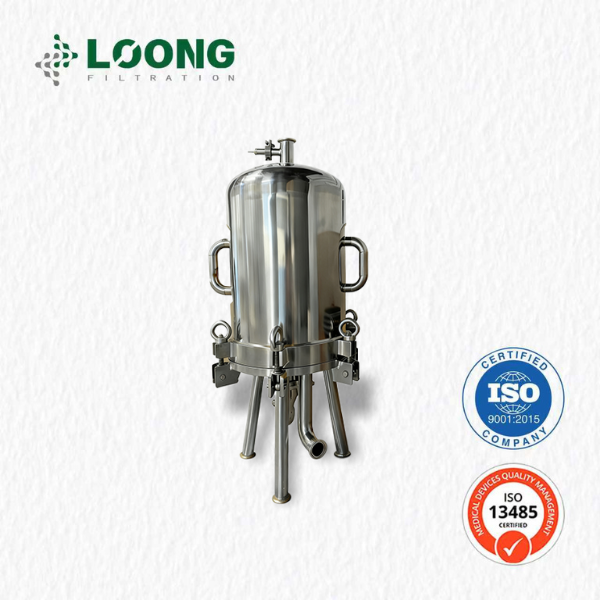

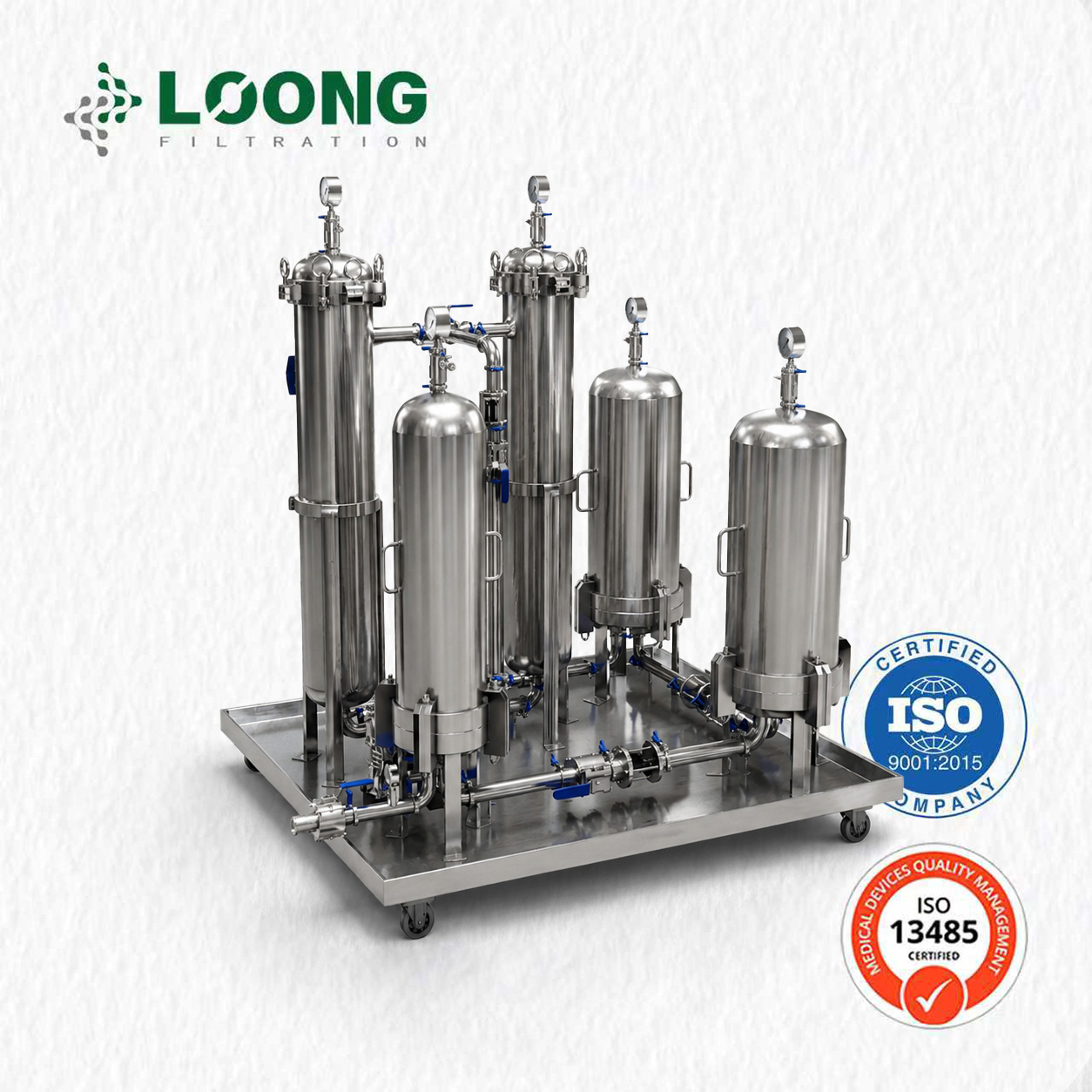

Selection depends on your liquid's turbidity and the desired final clarity. LOONG Filtration provides a wide range of media types, including DE-free options and pharmaceutical-grade stacked disc filters. We recommend analyzing your flow rate and particles' nature to choose the optimal micron rating. Visit our Filter Housing page to see the compatible equipment for these modules.

Yes. We maintain the highest quality standards,Most products are manufactured in accordance with FDA and GMP regulations.Our pleated range complies with EU 10/2011, USP Class VI <88>, and RoHS. Our facilities are ISO 9001 and ISO 13485 certified. Detailed certification reports are available upon request.

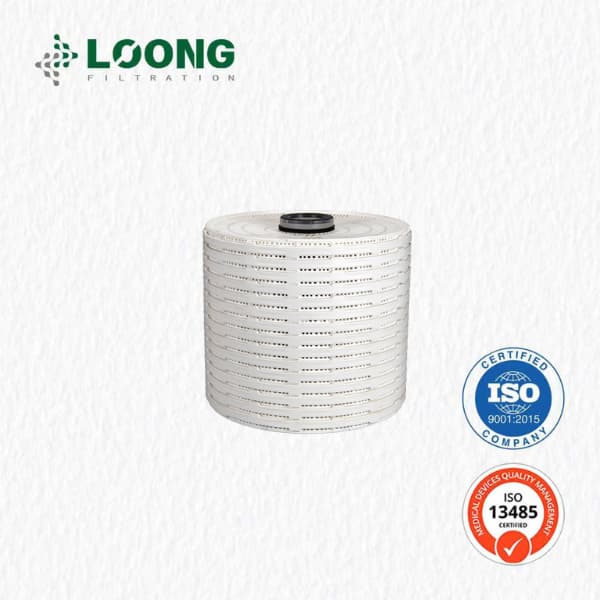

While lenticular filters are primary depth media, certain grades from LOONG Filtration can be gently rinsed with cold or warm water to extend their service life, depending on the solids load. However, for critical applications like pharmaceutical grade depth filtration, we suggest standard replacement protocols to ensure maximum filtration efficiency.Also we have the backwashed type lenticular filters. pls contact with our expert to find more informations.
