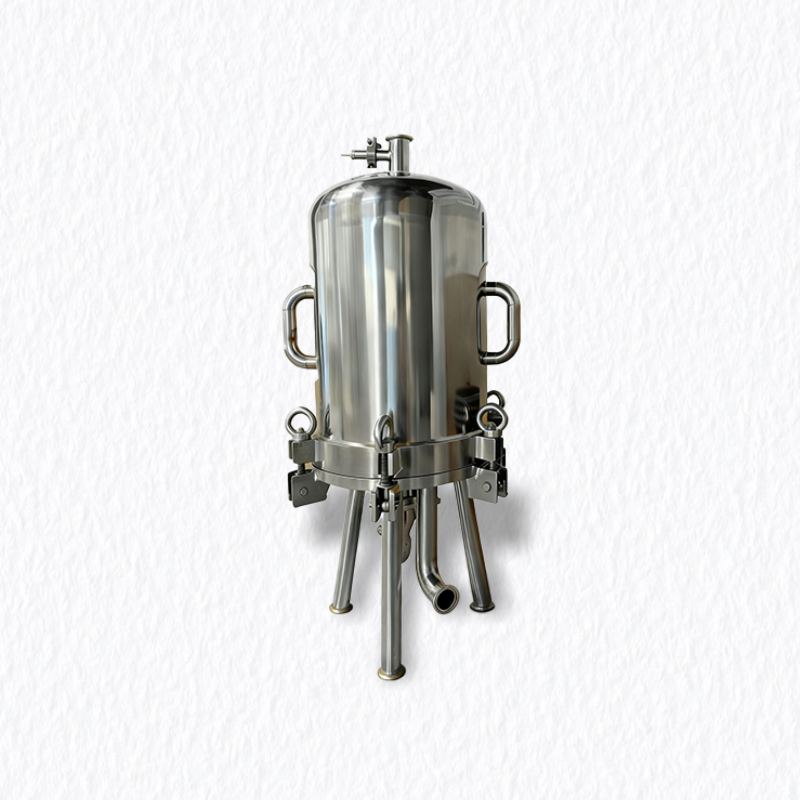

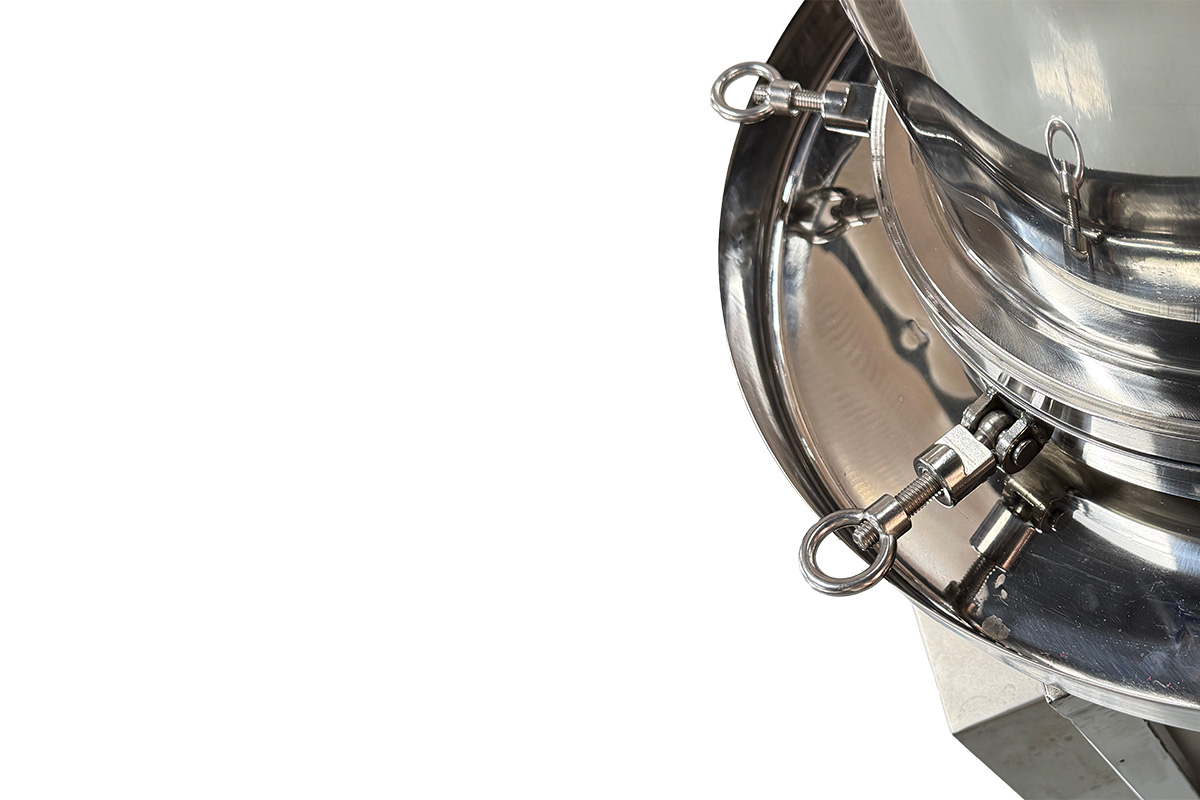

Lenticular Filter Housing-Special Design for High Volume Clarification
The LL Series Lenticular Filter uses an innovative deep-bed filtration system designed to replace traditional diatomite filters. Its unique bottom inlet/outlet configuration ensures laminar flow distribution, significantly enhancing filtration efficiency while preventing product turbulence. This high-capacity filter accommodates substantial solid loads, making it ideal for large-volume clarification processes in beverage, food, and pharmaceutical applications where consistent clarity and operational efficiency are paramount.
• Pharmaceutical Intermediate Filtration: Pre-filtration and clarification of pharmaceutical intermediates, enzymes and biochemical reagents
• Chemical & Electronic Industries: Precision filtration and particle control for high-purity chemicals and electronic grade reagents
Lenticular Filter Housing-Special Design for High Volume Clarification
The LL Series Lenticular Filter uses an innovative deep-bed filtration system designed to replace traditional diatomite filters. Its unique bottom inlet/outlet configuration ensures laminar flow distribution, significantly enhancing filtration efficiency while preventing product turbulence. This high-capacity filter accommodates substantial solid loads, making it ideal for large-volume clarification processes in beverage, food, and pharmaceutical applications where consistent clarity and operational efficiency are paramount.
• Pharmaceutical Intermediate Filtration: Pre-filtration and clarification of pharmaceutical intermediates, enzymes and biochemical reagents
• Chemical & Electronic Industries: Precision filtration and particle control for high-purity chemicals and electronic grade reagents
BENEFITS OF LENTICULAR FILTER
• Zero Residual Design: Smooth surface and accessible structure enable complete cleaning with no product retention between batches
• High Capacity Operation: Deep bed filtration media provides substantial dirt holding capacity, extending service cycles for large volume processing
• Easy Maintenance Access: Multiple body access points facilitate quick media changes and reduce operational downtime
• Validated Clarification Performance: Consistent results in replacing traditional diatomite filtration with cleaner, more efficient operation
MATERIALS OF CONSTRUCTION
| Housing | SUS304/316L Stainless Steel/Duplex SS/Titanium/Hastelloy |
| Screen Holde | 304/316L Stainless Steel |
| Seal | Silicone/EPDM/Viton/TEV |
OPERATING CONDITIONS
| Max. Operating Temperature | ＜150 ℃ |
| Max. Differential Pressure | 0.6 MPa |
| Sterilizatio | 121℃/30min |
CONNECTION
| Outer Diameter | 165 mm |
| Length | 20", 40", 60" |
BENEFITS OF LENTICULAR FILTER
• Zero Residual Design: Smooth surface and accessible structure enable complete cleaning with no product retention between batches
• High Capacity Operation: Deep bed filtration media provides substantial dirt holding capacity, extending service cycles for large volume processing
• Easy Maintenance Access: Multiple body access points facilitate quick media changes and reduce operational downtime
• Validated Clarification Performance: Consistent results in replacing traditional diatomite filtration with cleaner, more efficient operation
MATERIALS OF CONSTRUCTION
| Housing | SUS304/316L Stainless Steel/Duplex SS/Titanium/Hastelloy |
| Screen Holde | 304/316L Stainless Steel |
| Seal | Silicone/EPDM/Viton/TEV |
OPERATING CONDITIONS
| Max. Operating Temperature | ＜150 ℃ |
| Max. Differential Pressure | 0.6 MPa |
| Sterilizatio | 121℃/30min |
CONNECTION
| Outer Diameter | 165 mm |
| Length | 20", 40", 60" |
| Material | LINING | NO.OF FILTERS | SEAL | INLET/OUTLET |
| 304 | Without | 1 | Silicone | Tri-Clamp DN25 |
| 316 | PTFE | 2 | EPDM | Tri-Clamp DN40 |
| Duplex SS | FPA | 3 | Viton | Tri-Clamp DN50 |
| Titanium | Fluorine | 4 | TEV | Flange DN25 |
| Hastelloy | Butyronitrile | Butyronitrile | Flange DN40 | |
| PE | PTFE | Flange DN50 | ||
| Flange DN80 | ||||
| Flange DN150 | ||||
| DIN Flange DN40 |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | SilFlange DN25icone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| Material | LINING | NO.OF FILTERS | SEAL | INLET/OUTLET |
| 304 | Without | 1 | Silicone | Tri-Clamp DN25 |
| 316 | PTFE | 2 | EPDM | Tri-Clamp DN40 |
| Duplex SS | FPA | 3 | Viton | Tri-Clamp DN50 |
| Titanium | Fluorine | 4 | TEV | Flange DN25 |
| Hastelloy | Butyronitrile | Butyronitrile | Flange DN40 | |
| PE | PTFE | Flange DN50 | ||
| Flange DN80 | ||||
| Flange DN150 | ||||
| DIN Flange DN40 |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | SilFlange DN25icone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
How is filtration precision (e.g., micron rating) defined?
Filtration precision is usually expressed in microns (μm), representing the minimum particle diameter that a filter can effectively capture. For example, a 10-micron filter means it can remove most particles with a diameter greater than or equal to 10 microns. The definition of precision may vary slightly depending on the test method (such as bubble point test, multi-pass test).
What is the pressure differential (pressure drop) of a filter? Why is it important?
Pressure differential refers to the pressure loss between the inlet and outlet when fluid passes through the filter. A new filter has a very small pressure differential. As contaminants accumulate, the pressure differential will gradually increase. Excessively high pressure differential can lead to reduced flow rate, increased energy consumption, and even damage to the filter element or filter housing. Therefore, it is an important basis for determining when to replace the filter element.
What housing material options are available for filters?
LOONG Filtration's industrial-grade filter housings are made of T304 stainless steel (standard) or T-316 stainless steel. They can maintain stable operation for a long time without leakage risks even under long-term, high-temperature, and strong-corrosion working conditions.
How is filtration precision (e.g., micron rating) defined?
Filtration precision is usually expressed in microns (μm), representing the minimum particle diameter that a filter can effectively capture. For example, a 10-micron filter means it can remove most particles with a diameter greater than or equal to 10 microns. The definition of precision may vary slightly depending on the test method (such as bubble point test, multi-pass test).
What is the pressure differential (pressure drop) of a filter? Why is it important?
Pressure differential refers to the pressure loss between the inlet and outlet when fluid passes through the filter. A new filter has a very small pressure differential. As contaminants accumulate, the pressure differential will gradually increase. Excessively high pressure differential can lead to reduced flow rate, increased energy consumption, and even damage to the filter element or filter housing. Therefore, it is an important basis for determining when to replace the filter element.
What housing material options are available for filters?
LOONG Filtration's industrial-grade filter housings are made of T304 stainless steel (standard) or T-316 stainless steel. They can maintain stable operation for a long time without leakage risks even under long-term, high-temperature, and strong-corrosion working conditions.
