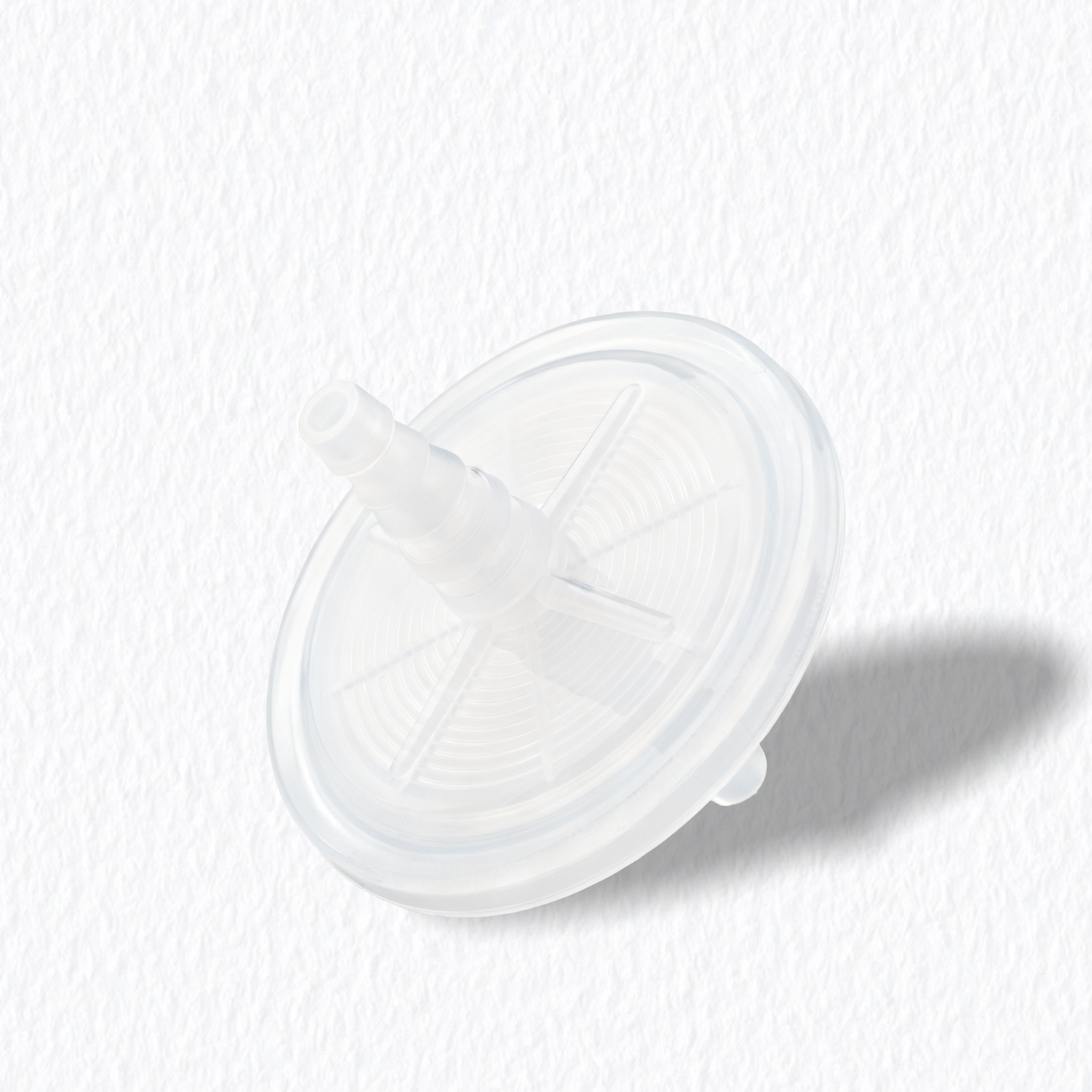

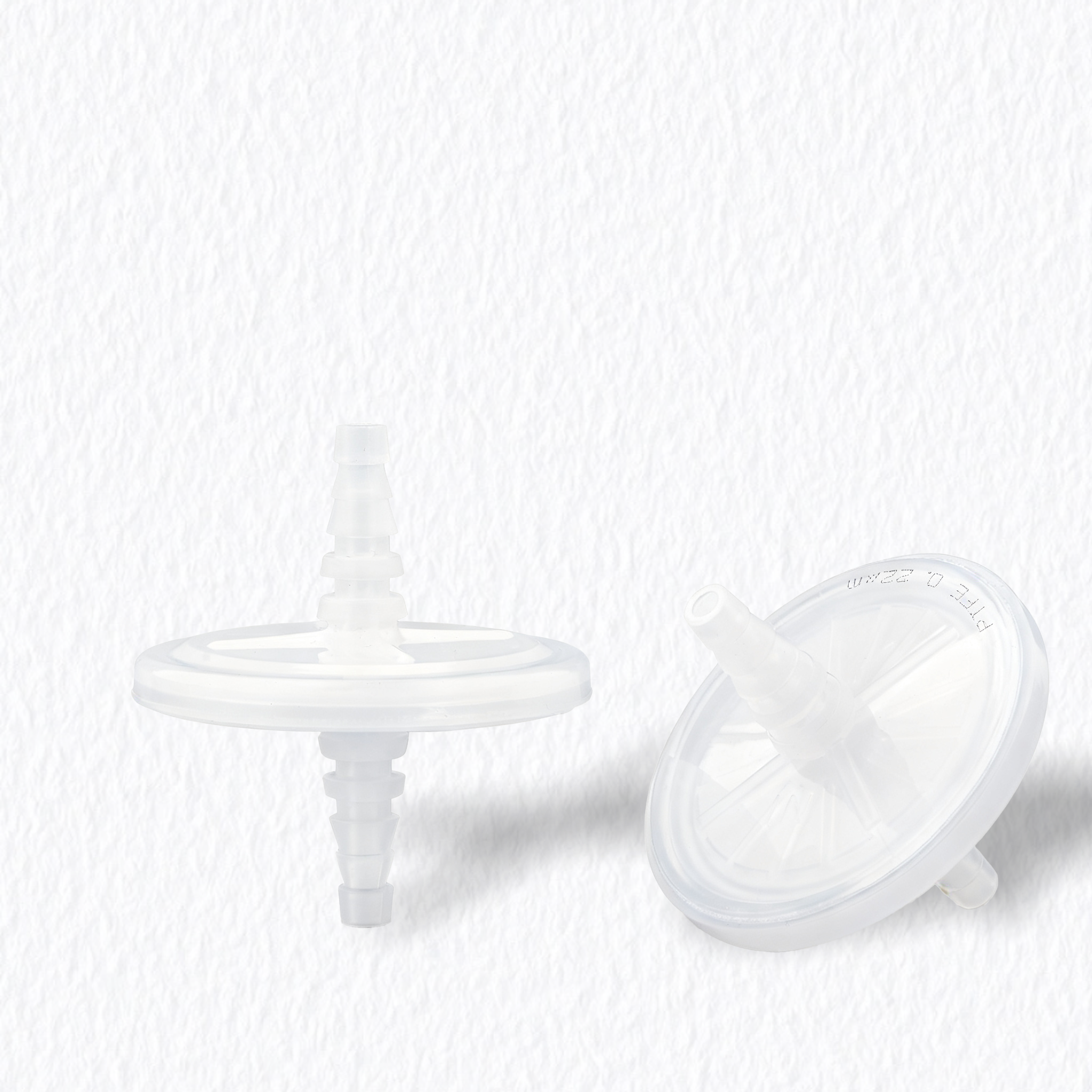

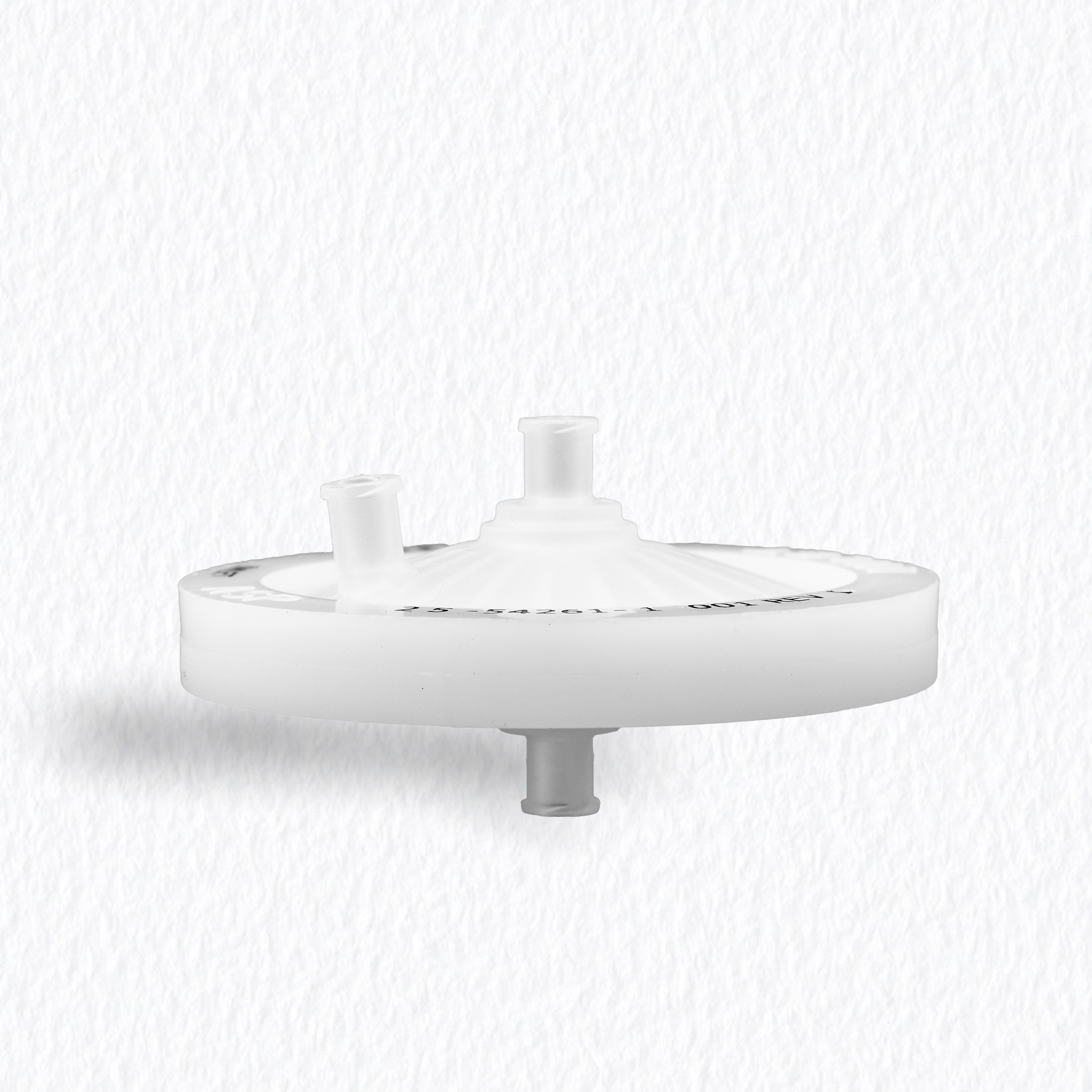

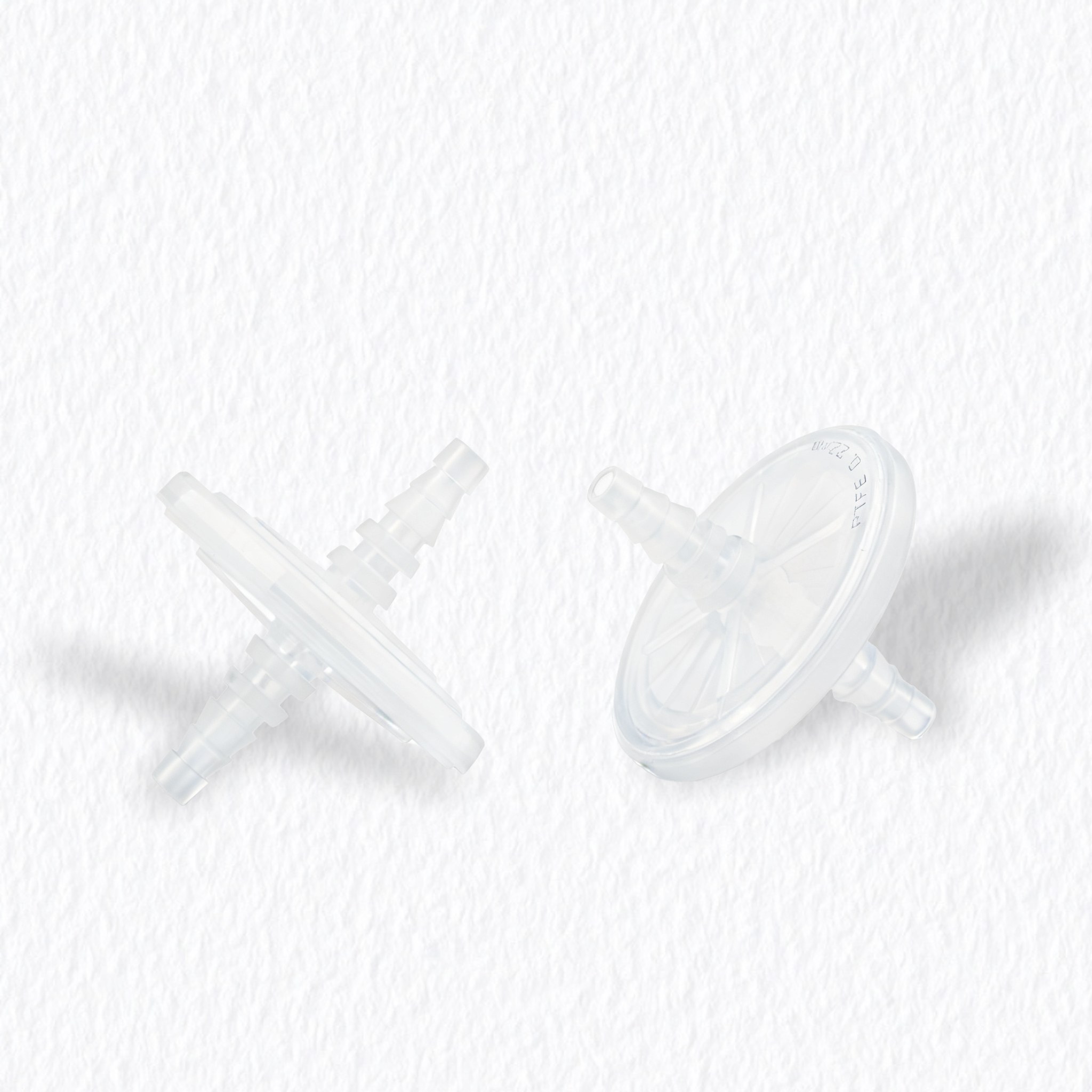

Laboratory Vent Filter Cartridge
Laboratory Vent Filter Cartridge Laboratory Vent Filter Cartridge
Laboratory Vent Filter Cartridge Laboratory Vent Filter Cartridge
Laboratory Vent Filter Cartridge Laboratory Vent Filter Cartridge
Laboratory Vent Filter Cartridge Laboratory Vent Filter Cartridge

loading

Laboratory Vent Filter Cartridge

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • SF

  • Pharma&Biotech, Microelectronics, Laboratory

  • Disc Filters

  • Nylon, PTFE, PP, Mixed cellulose (MCE), Glass fiber (GF), PVDF

Availability:
Quantity:
Inquire Add to Basket


Compact Vent Filter Cartridge for Laboratory & Small Batch Processes


This series of Compact Vent Filter Cartridge is designed for laboratory and small-scale production use. Manufactured with heat-sealing technology to eliminate adhesive contamination, they provide secure sealing with ultra-low extractables. Their robust yet compact construction withstands high-temperature sterilization, while the disposable design ensures operational safety. Ideal for protecting sensitive equipment from particulate and microbial contamination in applications such as cell culture, bioreactors, and vacuum systems.


APPLICATIONS

• Cell Culture Gas Treatment: Provides balanced, clean gas environment for cell growth and metabolism processes

• Vacuum System Protection: Effectively protects vacuum pumps and related equipment from particulate and liquid intrusion

• Bioreactor Inlet Filtration: Removes microorganisms and particles from gas streams to maintain optimal bioreactor conditions

• Precision Instrument Protection: Provides reliable intake air filtration for sensitive electronic equipment and analytical instruments

• Laboratory Small-scale Processes: Suitable for various gas and liquid filtration needs in R&D and small-scale production



BENEFITS OF  COMPACT VENT FILTER CARTRIDGE

• Clean Sealing Technology

Heat-sealing process completely eliminates adhesives, ensuring media purity and reliable sealing performance

• Compact & Efficient Design

Small footprint with excellent filtration performance, ideal for space-constrained applications

• Outstanding Thermal Stability

Excellent heat resistance supports repeated sterilization cycles, meeting strict sterile requirements

• User-Friendly Operation

Disposable design simplifies replacement procedures, reduces handling time and prevents cross-contamination


MATERIALS OF CONSTRUCTION

Housing
PP
Filter Material
PP/PES/Nylon/MCE/PTFE/PVDF/GF


OPERATING CONDITIONS
Max. Temperature
≤60 ℃
Maximum Operating Pressure
3.5 bar@23 ℃; 3.0 bar@60 ℃(Liquid)
3.0 bar@23 ℃; 2.5 bar@60 ℃(air)


CHARACTERS

Removal Ratings (mm）
0.1, 0.22, 0.45, 0.65, 0.8, 1.2, 3.0, 5.0


BIOSAFETY

Endotoxi
＜0.25 EU/ml
Extractabl
≤15 mg/5"


DIMENSION
Filter Diameter
50 mm
Filtration Area
20 cm²
Inlet
1/4"-1/2" Pagoda joint
Outle
1/4"-1/2" Pagoda joint





SERIES MATERIAL RATING(μm)
Phamarmical PP 0.1μm
Laboratory MCE 0.22μm
Electronics Nylon 0.45μm

PES 0.65μm

PTFE 1.0μm

Hydrophilic PTFE 3.0μm

PVDF 10μm

Hydrophilic PVDF 0.22+0.22μm

GF 0.22+0.45μm
SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



download Vent Filter from LOONG Filtration.pdf


What is the benefit if you use LOONG filtration filter cartridge in Laboratory?

In laboratory settings, filtration is critical to ensuring product purity, process reliability, and regulatory compliance. Whether in pharmaceutical research, food and beverage testing, or environmental analysis, even minor contaminants—such as particulates or microbial agents—can compromise experimental accuracy, product safety, and batch integrity.LOONG's precision-designed filtration products not only improves analytical accuracy and reduces cross-contamination risks.


What are the materials that are used in the construction of filter media or membrane?

Cotton, cellulose, glass fiber, polypropylene, nylon, polyphenylene sulfide (PSS) and a variety of polymeric materials are used in the construction of filter media or membrane.


Are LOONG’s filter elements disposable?

Yes, LOONG’s filter elements are disposable.


Can we get in touch with technicians directly?

Yes, of course. LOONG Filtration is willing to help our customers solve specific technical problems. To improvethe communication efficiency, we would let our technicians answer the questions directly.



Do you offer validation support for regulated industries?

Yes, we provide documentation and technical support for validation processes in industries like pharmaceuticals, life sciences, and food & beverage to ensure compliance and traceability.


CONNECT NOW FOR A QUICK REPLY

Have a quiry? Contact us now and we'll get back to you promptly.
INQUIRY

RELATED PRODUCTS

Activated Carbon Depth Vent Filter
Activated Carbon Depth Vent Filter
Pure Cellulose Depth Vent Filter manufacture
Pure Cellulose Depth Vent Filter
Depth Vent Filter manufacture
Depth Vent Filter

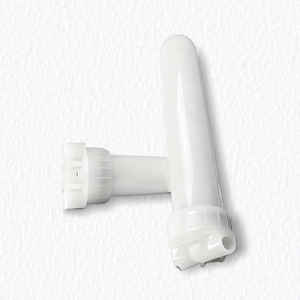

Non-Metallic Chemical Specific Filter
