LXP/LXV/LXA
Water Treatment
Filter Housings
Metal
| Availability: | |
|---|---|
| Quantity: | |

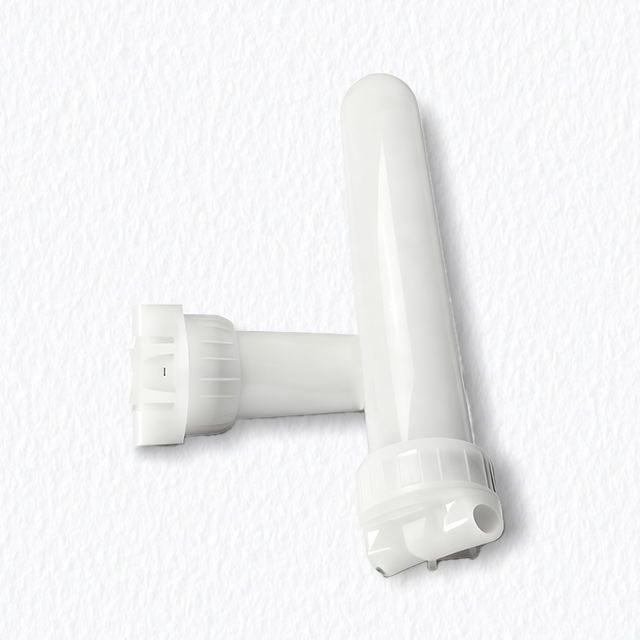

Full Range Non-Metallic Construction Chemical Specific Filter for High Purity Applications
This Chemical Specific Filter offers three non-metallic material options—PP, PVDF, and PFA—to meet diverse chemical filtration needs. The PP version suits deionized water and compatible fluids; PVDF provides broader chemical resistance; and PFA delivers high purity and temperature tolerance for ultra-pure or high-temperature processes. All are manufactured from high-purity materials with low extractables, making them ideal for fine chemical, electronic, and pharmaceutical applications.
APPLICATIONS
• Electronic Chemical Purification: Final filtration of ultra-pure reagents, etchants, photoresists and other high-purity chemicals
• Pharmaceutical Process Filtration: API, intermediate, and solvent filtration complying with GMP requirements
• Fine Chemical Production: Precision filtration and purification of catalysts, additives, and specialty chemicals
• Deionized Water Treatment: Final filtration in high-purity water systems ensuring electronic or injection grade standards
• Laboratory R&D: Precision filtration of chemical reagents and sample preparation in scientific research
• Photovoltaic Material Processing: Purification of chemicals in solar cell manufacturing processes
BENEFITS OF NON-METALLIC CHEMICAL SPECIFIC FILTER
• Excellent Chemical Compatibility
Three high-purity non-metallic materials cover a wide range of chemicals, ensuring safe and stable filtration processes
• Minimal Contaminant Release
Medical-grade raw materials and special processing techniques guarantee low extractables and leaching, maintaining product purity
• Optimized Fluid Dynamics
Compact design minimizes hold-up volume, improves product recovery, and reduces material loss
• Special Condition Adaptability
PFA material withstands high temperature and pressure, PVDF offers balanced cost-performance, PP meets basic application needs
| Housing | 100 % PP/PVDF/PFA |
| Seal | Silicone/EPDM/TEV |
OPERATING CONDITIONS
| Max. Temperature | LXP（PP） 60 ℃ /LXV（PVDF） 60 ℃ /LXA（PFA） 100 ℃ |
| Max. Differential Pressure | LXP（PP） 6.9 bar@23 ℃;3.0 bar@60 ℃ LXV（PVDF） 6.9 bar@23 ℃;3.0 bar@60 ℃ LXA（PFA） 7.5 bar@23 ℃;3.0 bar@100 ℃ |
| Housing | 3/4"NPT, 1"NPT |
| Cartridge Connection | 222, DOE (only LXP Series) |
| MATERIAL | NO. of FILTERS | CONNECTION | LENGTH(IN) | SEAL | INLET/OUTLET |
| PP | 1 | 222 | 10'' | 222 | 3/4"NPT |
| PVDF | DOE | 20'' | DOE | 1"NPT | |
| PFA |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | .45μm | 20'' | SilFlange DN25icone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
How do we get the best shipment scheme of filtration product?
After we get the goods list, total volume and comparedfreight will be calculated with the different shipping companies for the best scheme. For more details welcome to send your requirements to us：sales@LOONGfiltration.com
How do we get your filter catalog and price list?
Our professional engineer team is ready to help you solve the problem and provide professional solutions once they receive the message, and reply within 24 hours. Please send your requirements to us：sales@LOONGfiltration.com
What's the after-sale service?
When you receive the product, we will provide a video guide to help you install it. We can perform a lab examination of the product after you use it in order to produce a more effective and targeted product. In addition to this, we offer a guarantee if the product is not damaged by any external forces.
How can LOONG Filtration ensure the quality of products?
LOONG Filtration has sent our products to authoritative organizations to do tests, and you can check all the certificates on our product quality page.
