Lenticular Filter Housing
Lenticular Filter Housing Lenticular Filter Housing
Lenticular Filter Housing Lenticular Filter Housing
Lenticular Filter Housing Lenticular Filter Housing
Lenticular Filter Housing Lenticular Filter Housing
Lenticular Filter Housing Lenticular Filter Housing

loading

Lenticular Filter Housing

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LLP

  • Pharma&Biotech, Food & Beverage, Fine Chemical

  • Filter Housings

  • Metal

Availability:
Quantity:
Inquire Add to Basket

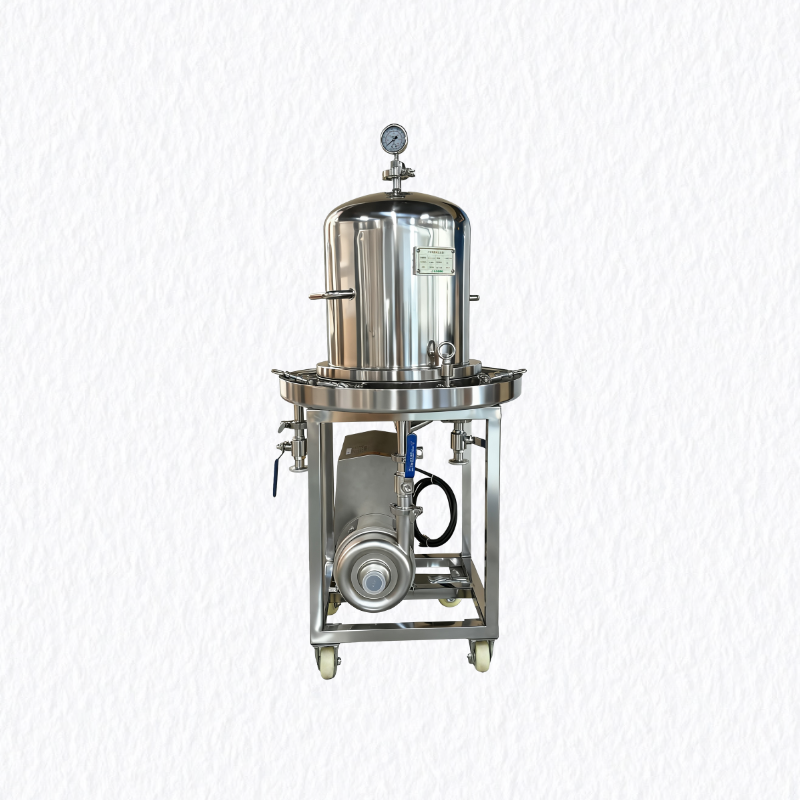

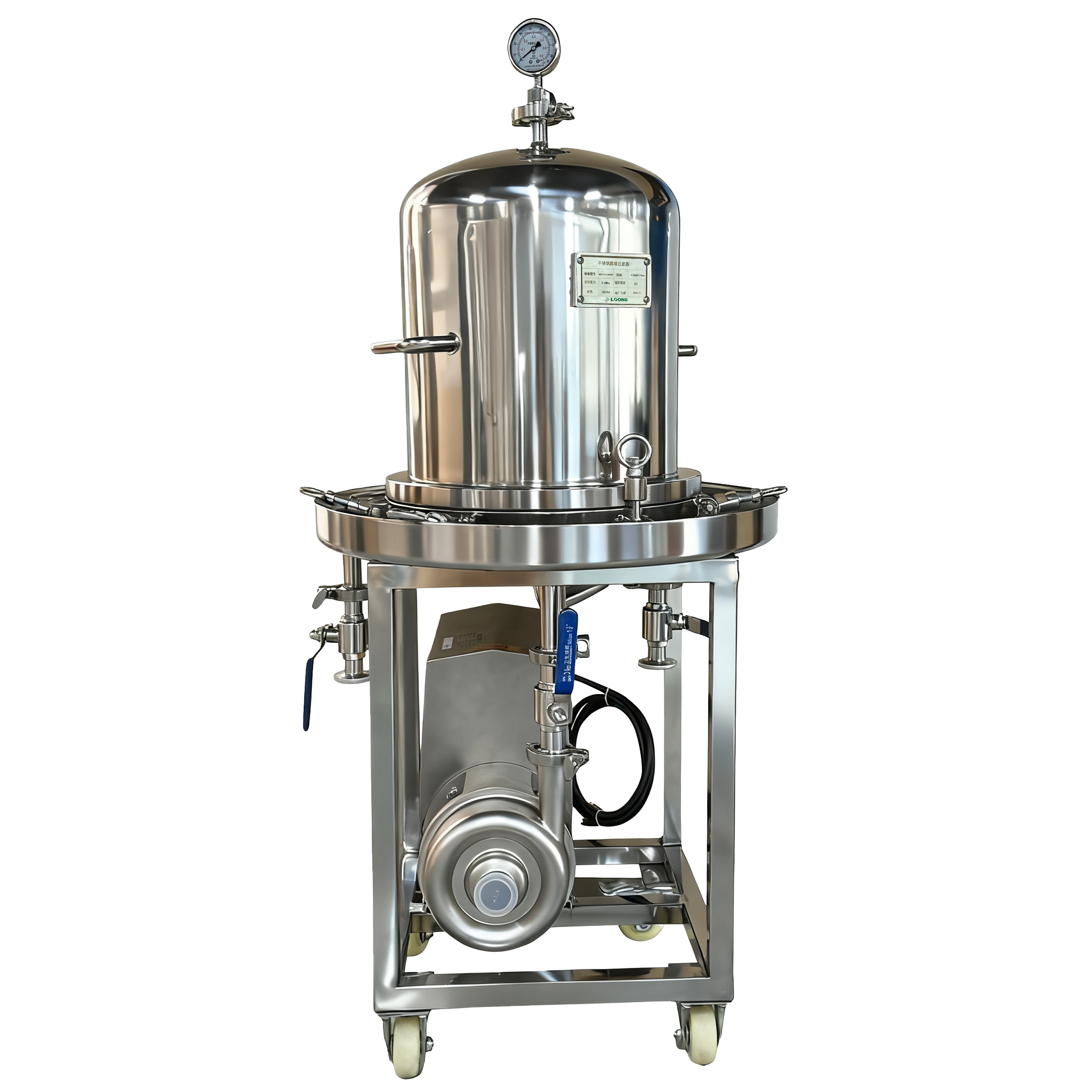

Lenticular Filter Housing-Advanced Replacement for Plate and Frame Filters



The LLP Series Lenticular Filter Housing offers an advanced alternative to plate and frame filters, using a modular stack of precision filter discs for efficient solid-liquid separation. Its enclosed design prevents leaks and contamination, while quick-change membranes cut downtime by 70%. Built with sanitary 316L stainless steel and automated controls, it delivers reliable performance for food, pharmaceutical, and industrial applications.



APPLICATIONS

• Food & Beverage Processing: Beverage Clarification Replacing Plate Filters,Juice and Concentrate Precision Filtration,Edible Oil and Syrup Purification

• Pharmaceutical Intermediate Filtration: Fermentation Broth Solid-Liquid Separation,Herbal Extracts Clarification,Pharmaceutical Intermediates Purification

• Chemical & Electronic Industries: Catalyst Recovery Filtration, High-purity Chemicals Refinement,Colloidal Solutions Processing







BENEFITS OF LENTICULAR FILTER

• Enhanced Filtration Efficiency: Multi-disc design provides big filtration area, increasing processing capacity over 50% compared to plate filters

• Rapid Membrane Replacement: Patented quick-change mechanism enables fast filter replacement, reducing downtime by 70%

• Perfect Sealing Performance: Fully enclosed pressure system completely prevents leakage and product contamination

• Convenient Mobility: Integrated frame with heavy-duty casters facilitates flexible production line layout




MATERIALS OF CONSTRUCTION

Housing
SUS304/316L Stainless Steel/Duplex SS/Titanium/Hastelloy
Screen Holde
304/316L Stainless Steel
Seal
Silicone/EPDM/Viton/TEV


OPERATING CONDITIONS

Max. Operating Temperature
＜150 ℃
Max. Differential Pressure
0.6 MPa
Sterilizatio
121℃/30min


CONNECTION

Outer Diameter 165 mm
Length 20", 40", 60"






Material LINING NO.OF FILTERS SEAL INLET/OUTLET
304 Without 1 Silicone Tri-Clamp DN25
316 PTFE 2 EPDM Tri-Clamp DN40
Duplex SS FPA 3 Viton Tri-Clamp DN50
Titanium Fluorine 4 TEV Flange DN25
Hastelloy Butyronitrile
Butyronitrile Flange DN40

PE
PTFE Flange DN50




Flange DN80




Flange DN150




DIN Flange DN40
SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' SilFlange DN25icone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




How often should I replace the filter element?


There is no fixed schedule. The optimal replacement time depends on the actual working conditions. The main basis is the pressure differential. When the pressure differential reaches the maximum value recommended by the manufacturer, the filter element should be replaced immediately. An estimated replacement cycle can also be formulated based on the operating time or changes in the quality of downstream products.If you still have some questions, please contact LOONG Filtration, we will provide the professional guidance to you.


Can the filter housing be reused?


Yes, filter housings are usually designed for reuse. However, every time the filter element is replaced, the interior of the housing must be thoroughly cleaned and inspected for corrosion or damage.


Can you provide CAD drawings?


LOONG Filtration can provide 3D and 2D CAD drawings in various formats. Please inform us of your specific requirements.
