FCT/FCTL/FPT/FPTL/FET/FETL
Microelectronics, Food & Beverage, Fine Chemical
Membrane Filter Cartridges
PTFE
| Availability: | |
|---|---|
| Quantity: | |

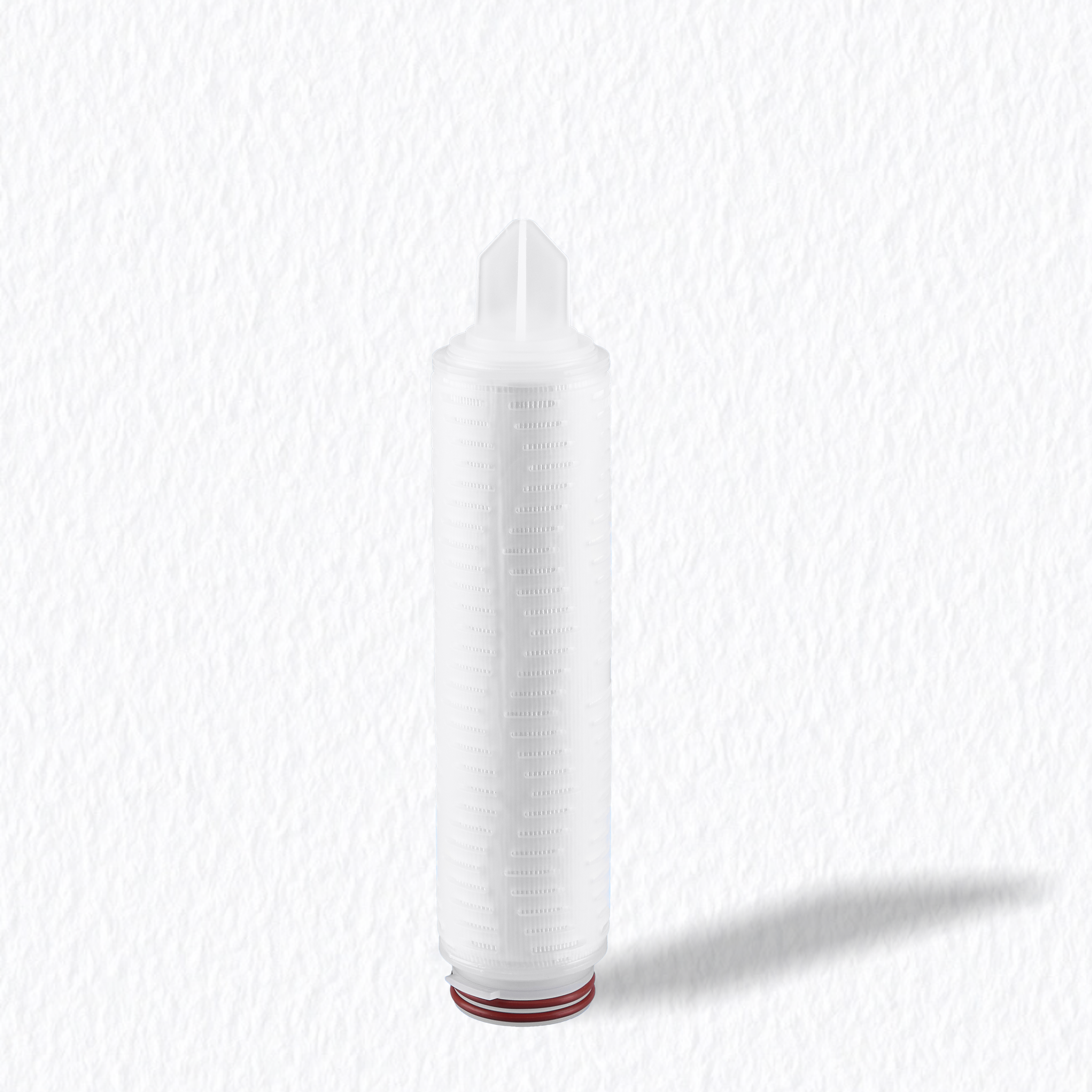

Perfluoro-like PTFE Filter Cartridge - Broad Chemical Compatibility for Corrosive Liquids
The Perfluoro-like PTFE Filter Cartridge combines a hydrophobic PTFE membrane with a PVDF/ECTFE support structure and fluoropolymer-coated sealing rings. This design delivers broad chemical resistance to acids, bases, and oxidizers, offering a cost-effective alternative to full perfluoropolymer construction. Ideal for chemical processing, pharmaceutical intermediates, and industrial purification, each cartridge is integrity tested to ensure consistent performance in demanding fluid applications.
FINE CHEMICAL
• Norganic Acid Filtration for Strong Acid Handling
• Organic Solvent Filtration with Broad Chemical Compatibility
• Process Oil Filtration for Industrial Fluid Clarification
• Aliphatic Compound Filtration in Chemical Synthesis
• Electronic Chemicals Pre-Filtration for Purification Systems
Compliance: REACH/RoHS; FDA 21 CFR 177.2510
PHARMA&BIOTECH
• Process Acid & Solvent Filtration in API Synthesis
• CIP Chemical Filtration for Cleaning Solutions
• Solvent Pre-filtration for Sterile Grade Protection
Compliance: USP Class VI, ISO 13485, cGMP, FDA (DMF)
MICOELECTRONICS
• Inorganic Acid Pre-filtration for Final Polishing
• Solvent Filtration for Equipment Cleaning Processes
• Aliphatic Compound Filtration in Cleaning & Formulation
• Lower-Grade Electronic Chemical Filtration for PCB & Non-Critical Wafer Processes
• UPW Pre-filtration for Polishing Loop Protection
Compliance: SEMI Standards
Pore Size (µm): 0.05 • 0.1 • 0.22 • 0.45 • 1.0 • 3.0 • 5.0 • 10

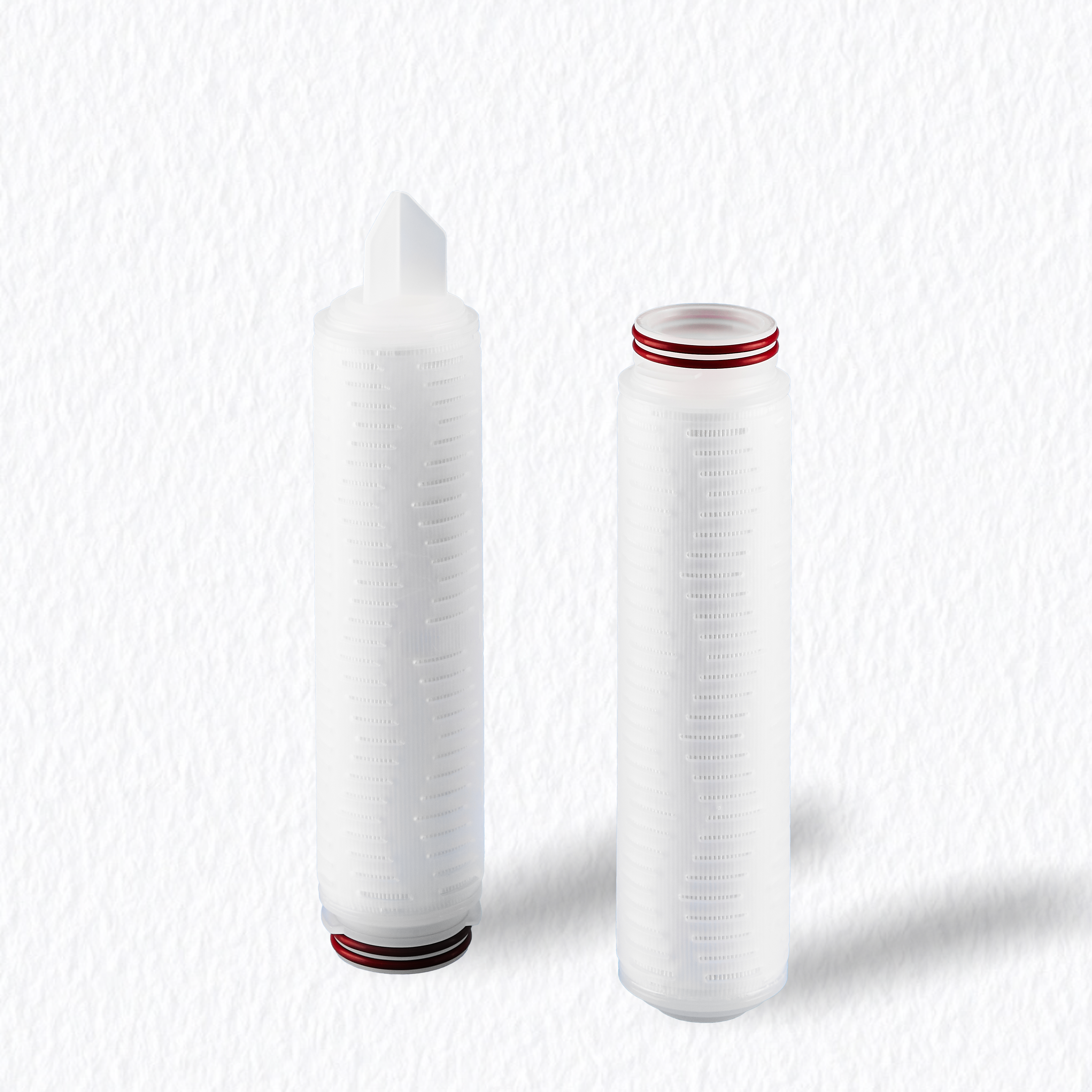

Perfluoro-like PTFE Filter Cartridge - Broad Chemical Compatibility for Corrosive Liquids
The Perfluoro-like PTFE Filter Cartridge combines a hydrophobic PTFE membrane with a PVDF/ECTFE support structure and fluoropolymer-coated sealing rings. This design delivers broad chemical resistance to acids, bases, and oxidizers, offering a cost-effective alternative to full perfluoropolymer construction. Ideal for chemical processing, pharmaceutical intermediates, and industrial purification, each cartridge is integrity tested to ensure consistent performance in demanding fluid applications.
FINE CHEMICAL
• Norganic Acid Filtration for Strong Acid Handling
• Organic Solvent Filtration with Broad Chemical Compatibility
• Process Oil Filtration for Industrial Fluid Clarification
• Aliphatic Compound Filtration in Chemical Synthesis
• Electronic Chemicals Pre-Filtration for Purification Systems
Compliance: REACH/RoHS; FDA 21 CFR 177.2510
PHARMA&BIOTECH
• Process Acid & Solvent Filtration in API Synthesis
• CIP Chemical Filtration for Cleaning Solutions
• Solvent Pre-filtration for Sterile Grade Protection
Compliance: USP Class VI, ISO 13485, cGMP, FDA (DMF)
MICOELECTRONICS
• Inorganic Acid Pre-filtration for Final Polishing
• Solvent Filtration for Equipment Cleaning Processes
• Aliphatic Compound Filtration in Cleaning & Formulation
• Lower-Grade Electronic Chemical Filtration for PCB & Non-Critical Wafer Processes
• UPW Pre-filtration for Polishing Loop Protection
Compliance: SEMI Standards
Pore Size (µm): 0.05 • 0.1 • 0.22 • 0.45 • 1.0 • 3.0 • 5.0 • 10
• Wide Chemical Compatibility: Suitable for most aggressive chemicals except extreme conditions
• Cost-Effective Alternative: Perfluoro-like materials provide similar performance to PFA at lower cost
• High Temperature Resistance: Withstands temperatures up to 130°C
• Hydrophobic/Hydrophilic Properties: Ideal for gas filtration and solvent applications
• Quality Assurance: 100% integrity tested before shipment
MATERIALS OF CONSTRUCTION
| Membrane | Hydrophobic PTFE |
| Cage & Support & End Caps | PVDF/ECTFE |
| O-rings/Gasket | TEV |
| PP | <60 ℃ |
| PP with Stainless Steel Lined End Cap | <85 ℃ |
| PP with Stainless Steel Lining | <95 ℃ |
| Positive/Reverse Pressure Resistance | 4 bar/2 bar (23 ℃) |
| Steam Sterilization | 123 ℃@30 min(for FPT Series) |
| pH Range | 2-10(for FPTV/FPTVL Series) |
DIMENSIONS
| Outer Diameter | 68 mm |
| Length | 10", 20", 30", 40" |
BIOSAFETY (FOR FPT SERIES)
| Endotoxin | <0.25 EU/ml |
| Extractable | ≤50 mg/10" |
| 0.22um | ≥2.4bar |
• Wide Chemical Compatibility: Suitable for most aggressive chemicals except extreme conditions
• Cost-Effective Alternative: Perfluoro-like materials provide similar performance to PFA at lower cost
• High Temperature Resistance: Withstands temperatures up to 130°C
• Hydrophobic/Hydrophilic Properties: Ideal for gas filtration and solvent applications
• Quality Assurance: 100% integrity tested before shipment
MATERIALS OF CONSTRUCTION
| Membrane | Hydrophobic PTFE |
| Cage & Support & End Caps | PVDF/ECTFE |
| O-rings/Gasket | TEV |
| PP | <60 ℃ |
| PP with Stainless Steel Lined End Cap | <85 ℃ |
| PP with Stainless Steel Lining | <95 ℃ |
| Positive/Reverse Pressure Resistance | 4 bar/2 bar (23 ℃) |
| Steam Sterilization | 123 ℃@30 min(for FPT Series) |
| pH Range | 2-10(for FPTV/FPTVL Series) |
DIMENSIONS
| Outer Diameter | 68 mm |
| Length | 10", 20", 30", 40" |
BIOSAFETY (FOR FPT SERIES)
| Endotoxin | <0.25 EU/ml |
| Extractable | ≤50 mg/10" |
| 0.22um | ≥2.4bar |
| SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
| Electronics | Hydrophobic PTFE | 0.1μm | 222/Fin | 2.5'' | PVDF | Silicone | |
| Phamarmical | Hydrophilic PTFE | 0.22μm | 222/Flat | 5'' | Interface lining steel | EPDM | |
| Chemical | 0.01μm | 226/Fin | 10'' | Fully lining | Viton | ||
| 1.0μm | 226/Flat | 20'' | Skeleton lining | TEV | |||
| 3.0μm | DOE/Flat | 30'' | Butyronitrile | ||||
| 10μm | 215/Fin | 40'' | PTFE | ||||
| 0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
| M20 | Metal-graphite Wound | ||||||
| M30 | |||||||
| 216/Fin | |||||||
| 216/Flat | |||||||
| M15 | |||||||
| Insertion Type | |||||||
| Barbed Type |
SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
Electronics | PTFE | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | |
Phamarmical | 0.22μm | 222/Flat | 5'' | PBT | Interface lining steel | EPDM | |
Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Fully lining | Viton | |
Beverage | 1.0μm | 226/Flat | 20'' | PFA | Skeleton lining | TEV | |
3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
10μm | 215/Fin | 40'' | GF | PTFE | |||
0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
M20 | Metal-graphite Wound | ||||||
M30 | |||||||
216/Fin | |||||||
216/Flat | |||||||
M15 | |||||||
Insertion Type | |||||||
Barbed Type |
| SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
| Electronics | Hydrophobic PTFE | 0.1μm | 222/Fin | 2.5'' | PVDF | Silicone | |
| Phamarmical | Hydrophilic PTFE | 0.22μm | 222/Flat | 5'' | Interface lining steel | EPDM | |
| Chemical | 0.01μm | 226/Fin | 10'' | Fully lining | Viton | ||
| 1.0μm | 226/Flat | 20'' | Skeleton lining | TEV | |||
| 3.0μm | DOE/Flat | 30'' | Butyronitrile | ||||
| 10μm | 215/Fin | 40'' | PTFE | ||||
| 0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
| M20 | Metal-graphite Wound | ||||||
| M30 | |||||||
| 216/Fin | |||||||
| 216/Flat | |||||||
| M15 | |||||||
| Insertion Type | |||||||
| Barbed Type |
SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
Electronics | PTFE | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | |
Phamarmical | 0.22μm | 222/Flat | 5'' | PBT | Interface lining steel | EPDM | |
Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Fully lining | Viton | |
Beverage | 1.0μm | 226/Flat | 20'' | PFA | Skeleton lining | TEV | |
3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
10μm | 215/Fin | 40'' | GF | PTFE | |||
0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
M20 | Metal-graphite Wound | ||||||
M30 | |||||||
216/Fin | |||||||
216/Flat | |||||||
M15 | |||||||
Insertion Type | |||||||
Barbed Type |
What is the benefit if you use LOONG filtration membrane filter in Microelectronics industry?
As semiconductor process nodes shrink to 3nm, 2nm, and beyond, feature sizes and 3D architectures grow exponentially complex—turning even sub-10nm particles into yield-killers. LOONG’s filtration technologies are engineered to meet these microscopic battles head-on. Across key processes—from CMP slurry circulation to photoresist filtration, and acid/base etchant purification—our solutions target and remove particles, colloids, and chemical impurities at the nanoscale. Leveraging next-gen membrane materials (PTFE, PES) and ultra-high-purity manufacturing, we thrive in the harshest environments.
What are the advantages of pleated filter cartridges?
Pleated designs offer larger surface area, longer service life, higher flow rates, and reduced pressure drop compared to standard wound cartridges.
Can your filters handle high-temperature or corrosive environments?
Yes, we offer filter cartridges made from PTFE, PES, stainless steel, and other materials resistant to high temperatures, acids, alkalis, and aggressive chemicals.
Can LOONG’s filter cartridges fit in standard filter housings?
Yes, LOONG’s filter cartridges can fit in most standard filter housings and systems. They are typically placed inside a housing, capsule, or casing.
What kind of fluids can be filtered with LOONG’s filter elements?
LOONG’s filter elements can remove solid contaminants and microorganisms from water, oils, solvents, fuels, aqueous solutions and other process fluids.
What is the benefit if you use LOONG filtration membrane filter in Microelectronics industry?
As semiconductor process nodes shrink to 3nm, 2nm, and beyond, feature sizes and 3D architectures grow exponentially complex—turning even sub-10nm particles into yield-killers. LOONG’s filtration technologies are engineered to meet these microscopic battles head-on. Across key processes—from CMP slurry circulation to photoresist filtration, and acid/base etchant purification—our solutions target and remove particles, colloids, and chemical impurities at the nanoscale. Leveraging next-gen membrane materials (PTFE, PES) and ultra-high-purity manufacturing, we thrive in the harshest environments.
What are the advantages of pleated filter cartridges?
Pleated designs offer larger surface area, longer service life, higher flow rates, and reduced pressure drop compared to standard wound cartridges.
Can your filters handle high-temperature or corrosive environments?
Yes, we offer filter cartridges made from PTFE, PES, stainless steel, and other materials resistant to high temperatures, acids, alkalis, and aggressive chemicals.
Can LOONG’s filter cartridges fit in standard filter housings?
Yes, LOONG’s filter cartridges can fit in most standard filter housings and systems. They are typically placed inside a housing, capsule, or casing.
What kind of fluids can be filtered with LOONG’s filter elements?
LOONG’s filter elements can remove solid contaminants and microorganisms from water, oils, solvents, fuels, aqueous solutions and other process fluids.
