FCTF/FCTFL/FETF/FETFL
Microelectronics, Fine Chemical
Membrane Filter Cartridges
PTFE
| Availability: | |
|---|---|
| Quantity: | |
• Ultra-High Purity Acid & Base Filtration
• Filtration of Highly Corrosive Solvents in Chemical Synthesis
• High-Temperature Fluid Filtration (>100°C)
• Catalyst Recovery
Compliance: REACH/RoHS; FDA 21 CFR 177.1550
• Semiconductor-Grade Acid & Base Filtration
• Photoresist and Solvent Filtration
• CMP Slurry Filtration
• High-Temperature Ultra-Pure Water & Chemical Filtration
• Chemical Delivery Systems
• Wafer Cleaning Solutions
• Lithium Battery Electrolyte Filtration
Compliance: SEMI Standards; High-Purity Testing; ISO Class 4 (Class 10) Cleanroom Manufacturing
• Ultra-High Purity Acid & Base Filtration
• Filtration of Highly Corrosive Solvents in Chemical Synthesis
• High-Temperature Fluid Filtration (>100°C)
• Catalyst Recovery
Compliance: REACH/RoHS; FDA 21 CFR 177.1550
• Semiconductor-Grade Acid & Base Filtration
• Photoresist and Solvent Filtration
• CMP Slurry Filtration
• High-Temperature Ultra-Pure Water & Chemical Filtration
• Chemical Delivery Systems
• Wafer Cleaning Solutions
• Lithium Battery Electrolyte Filtration
Compliance: SEMI Standards; High-Purity Testing; ISO Class 4 (Class 10) Cleanroom Manufacturing
• Unmatched Chemical Compatibility: Resists all aggressive chemicals, including acids, bases, oxidizers, and solvents.
• Excellent Thermal Stability: Withstands continuous high temperatures and steam sterilization (SIP).
• Ultra-Low Extractables: Ensures purity in microelectronics and pharmaceutical processes.
• Mechanical Strength: All-PFA structure offers robust support for high-pressure differentials.
| Membrane | Hydrophobic/Hydrophilic PTFE |
| Cage & Support & End Caps | PFA |
| O-rings/Gasket | TEV |
| Maximum Operating Temperature | 160 ℃ |
| Maximum Forward | 4.2 bar/60 ℃ |
| Differential Pressure | 3.2 bar/110 ℃ 1.5 bar/160 ℃ |
| Outer Diameter | 68 mm |
| Length | 10", 20", 30", 40" |
• Unmatched Chemical Compatibility: Resists all aggressive chemicals, including acids, bases, oxidizers, and solvents.
• Excellent Thermal Stability: Withstands continuous high temperatures and steam sterilization (SIP).
• Ultra-Low Extractables: Ensures purity in microelectronics and pharmaceutical processes.
• Mechanical Strength: All-PFA structure offers robust support for high-pressure differentials.
| Membrane | Hydrophobic/Hydrophilic PTFE |
| Cage & Support & End Caps | PFA |
| O-rings/Gasket | TEV |
| Maximum Operating Temperature | 160 ℃ |
| Maximum Forward | 4.2 bar/60 ℃ |
| Differential Pressure | 3.2 bar/110 ℃ 1.5 bar/160 ℃ |
| Outer Diameter | 68 mm |
| Length | 10", 20", 30", 40" |
| SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
| Electronics | Hydrophobic PTFE | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | |
| Phamarmical | Hydrophilic PTFE | 0.22μm | 222/Flat | 5'' | PBT | Interface lining steel | EPDM |
| Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Fully lining | Viton | |
| 1.0μm | 226/Flat | 20'' | PFA | Skeleton lining | TEV | ||
| 3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
| 10μm | 215/Fin | 40'' | GF | PTFE | |||
| 0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
| M20 | Metal-graphite Wound | ||||||
| M30 | |||||||
| 216/Fin | |||||||
| 216/Flat | |||||||
| M15 | |||||||
| Insertion Type | |||||||
| Barbed Type |
| SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
| Electronics | Hydrophobic PTFE | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | |
| Phamarmical | Hydrophilic PTFE | 0.22μm | 222/Flat | 5'' | PBT | Interface lining steel | EPDM |
| Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Fully lining | Viton | |
| 1.0μm | 226/Flat | 20'' | PFA | Skeleton lining | TEV | ||
| 3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
| 10μm | 215/Fin | 40'' | GF | PTFE | |||
| 0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
| M20 | Metal-graphite Wound | ||||||
| M30 | |||||||
| 216/Fin | |||||||
| 216/Flat | |||||||
| M15 | |||||||
| Insertion Type | |||||||
| Barbed Type |

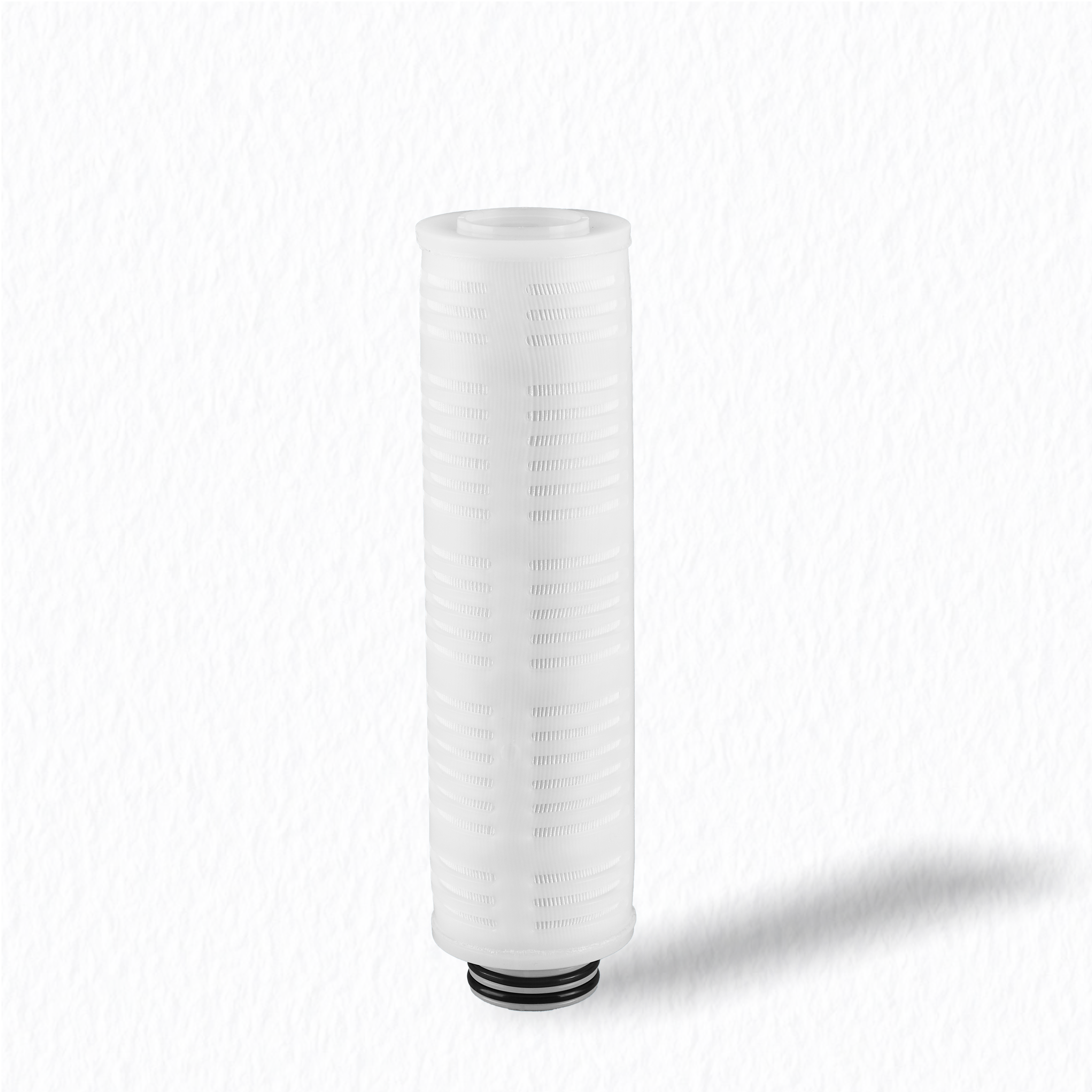

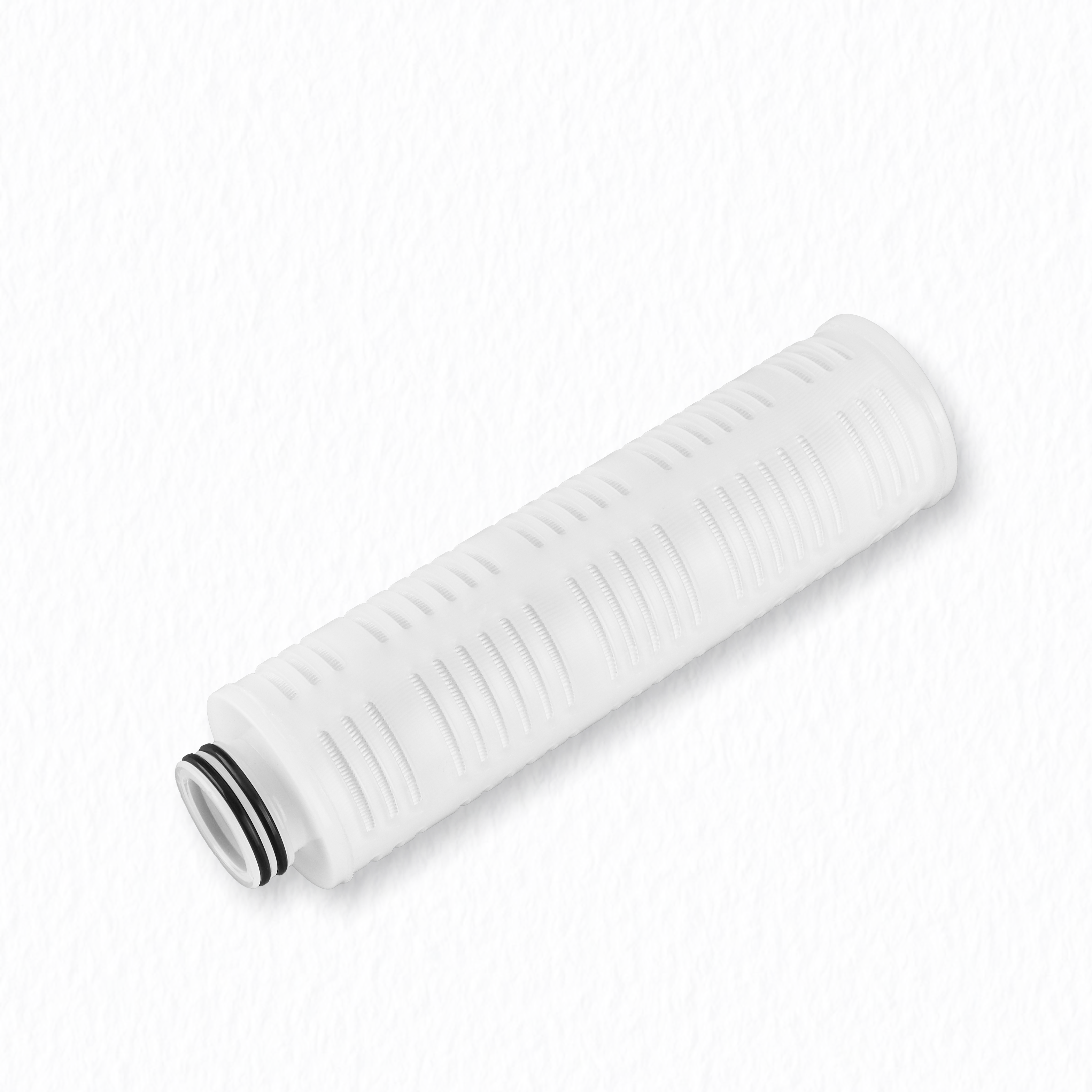

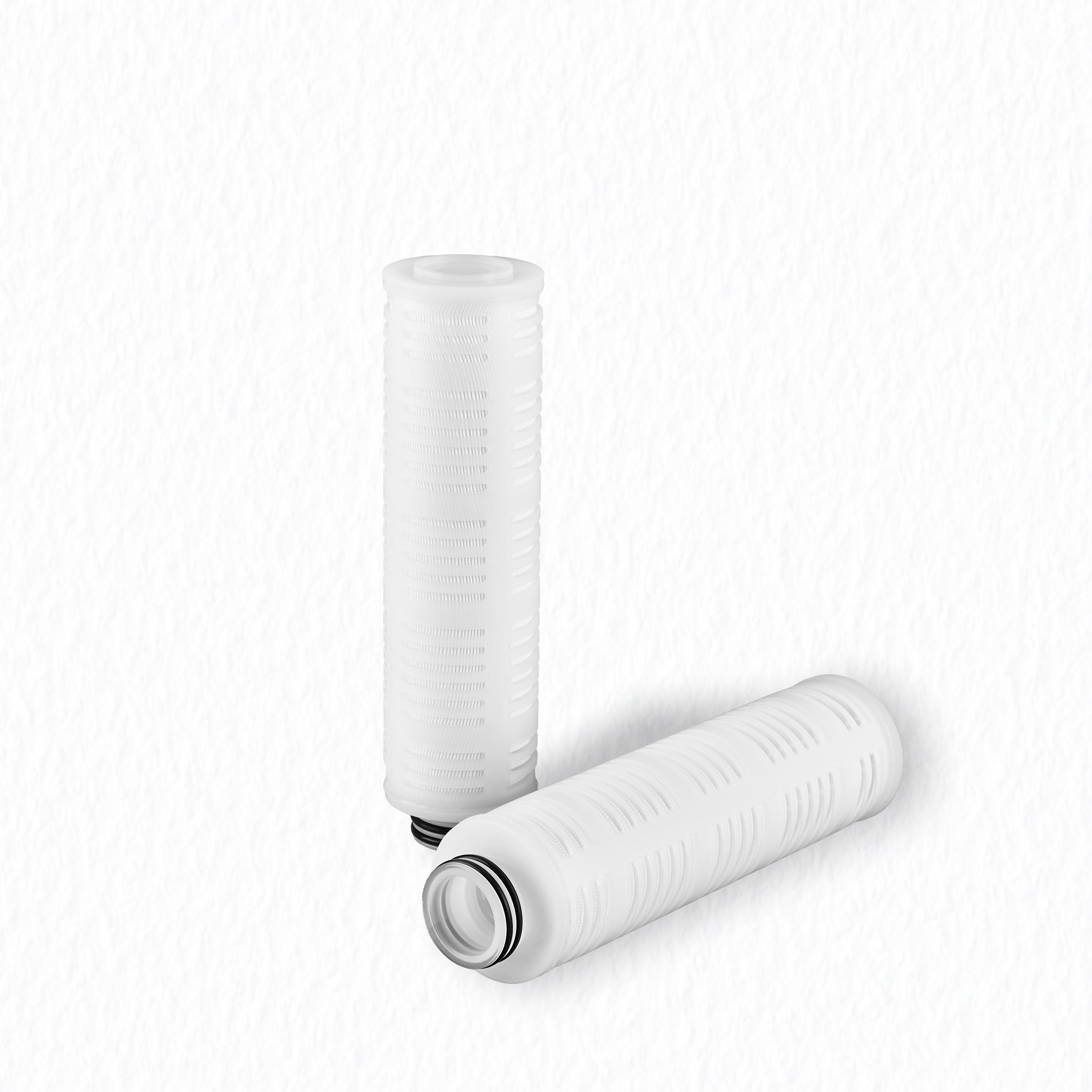

LOONG Filtration’s All-Teflon PTFE Filter Cartridges feature a premium all-fluoropolymer construction (PFA/PTFE), offering unmatched chemical compatibility and thermal stability. These filters are binder-free and surfactant-free, designed to resist aggressive acids, bases, and highly corrosive solvents. This makes them the ultimate high-purity filtration solution for the fine chemical and semiconductor industries.
To meet the rigorous standards of the microelectronics industry, LOONG Filtration manufactures its semiconductor-grade PTFE filter cartridges in ISO Class 4 (Class 10) cleanroom environments. Each filter undergoes high-purity testing to ensure extremely low extractable levels. This ensures the highest safety levels for wafer cleaning solutions, photoresist filtration, and chemical delivery systems (CDS)
Yes. The LOONG Filtration All-Teflon PTFE Filter Cartridge is specifically optimized to handle the corrosive and high-permeability nature of lithium battery electrolytes. Its all-fluoropolymer structure maintains mechanical integrity during long-term contact with aggressive chemical components, capturing fine particles to significantly enhance battery safety and electrochemical performance.
LOONG Filtration maintains strict quality control, ensuring our PTFE filter elements are fully compliant with FDA 21 CFR 177.1550 regulations for food and pharmaceutical contact. Additionally, our products are REACH and RoHS certified. This compliance ensures that our filtration solutions meet global environmental and safety requirements for high-purity industrial applications.
LOONG Filtration provides a comprehensive range of precision micron ratings to meet diverse industrial needs. Our All-Teflon PTFE Filter Cartridges are available in pore sizes ranging from 0.05 μm to 10 μm. This versatility allows for precise particle retention in applications such as catalyst recovery in fine chemicals and ultra-pure water treatment in microelectronics.
How do we get the best shipment scheme of filtration product?
After we get the goods list, total volume and comparedfreight will be calculated with the different shipping companies for the best scheme. For more details welcome to send your requirements to us:sales@LOONGfiltration.com
How do we get your filter catalog and price list?
Our professional engineer team is ready to help you solve the problem and provide professional solutions once they receive the message, and reply within 24 hours. Please send your requirements to us:sales@LOONGfiltration.com
How can LOONG Filtration ensure the quality of products?
LOONG Filtration has sent our products to authoritative organizations to do tests, and you can check all the certificates on our product quality page.
Can your filters handle high-temperature or corrosive environments?
Yes, we offer filter cartridges made from PTFE, PES, PTFE,stainless steel, and other materials resistant to high temperatures, acids, alkalis, and aggressive chemicals.
What are the key factors in selecting the right filter cartridge?
Key factors include micron rating, flow rate, chemical compatibility, operating pressure, temperature, and the type of contaminants to be removed. Our engineers can help you choose the optimal filter element for your application.
LOONG Filtration’s All-Teflon PTFE Filter Cartridges feature a premium all-fluoropolymer construction (PFA/PTFE), offering unmatched chemical compatibility and thermal stability. These filters are binder-free and surfactant-free, designed to resist aggressive acids, bases, and highly corrosive solvents. This makes them the ultimate high-purity filtration solution for the fine chemical and semiconductor industries.
To meet the rigorous standards of the microelectronics industry, LOONG Filtration manufactures its semiconductor-grade PTFE filter cartridges in ISO Class 4 (Class 10) cleanroom environments. Each filter undergoes high-purity testing to ensure extremely low extractable levels. This ensures the highest safety levels for wafer cleaning solutions, photoresist filtration, and chemical delivery systems (CDS)
Yes. The LOONG Filtration All-Teflon PTFE Filter Cartridge is specifically optimized to handle the corrosive and high-permeability nature of lithium battery electrolytes. Its all-fluoropolymer structure maintains mechanical integrity during long-term contact with aggressive chemical components, capturing fine particles to significantly enhance battery safety and electrochemical performance.
LOONG Filtration maintains strict quality control, ensuring our PTFE filter elements are fully compliant with FDA 21 CFR 177.1550 regulations for food and pharmaceutical contact. Additionally, our products are REACH and RoHS certified. This compliance ensures that our filtration solutions meet global environmental and safety requirements for high-purity industrial applications.
LOONG Filtration provides a comprehensive range of precision micron ratings to meet diverse industrial needs. Our All-Teflon PTFE Filter Cartridges are available in pore sizes ranging from 0.05 μm to 10 μm. This versatility allows for precise particle retention in applications such as catalyst recovery in fine chemicals and ultra-pure water treatment in microelectronics.
How do we get the best shipment scheme of filtration product?
After we get the goods list, total volume and comparedfreight will be calculated with the different shipping companies for the best scheme. For more details welcome to send your requirements to us:sales@LOONGfiltration.com
How do we get your filter catalog and price list?
Our professional engineer team is ready to help you solve the problem and provide professional solutions once they receive the message, and reply within 24 hours. Please send your requirements to us:sales@LOONGfiltration.com
How can LOONG Filtration ensure the quality of products?
LOONG Filtration has sent our products to authoritative organizations to do tests, and you can check all the certificates on our product quality page.
Can your filters handle high-temperature or corrosive environments?
Yes, we offer filter cartridges made from PTFE, PES, PTFE,stainless steel, and other materials resistant to high temperatures, acids, alkalis, and aggressive chemicals.
What are the key factors in selecting the right filter cartridge?
Key factors include micron rating, flow rate, chemical compatibility, operating pressure, temperature, and the type of contaminants to be removed. Our engineers can help you choose the optimal filter element for your application.
