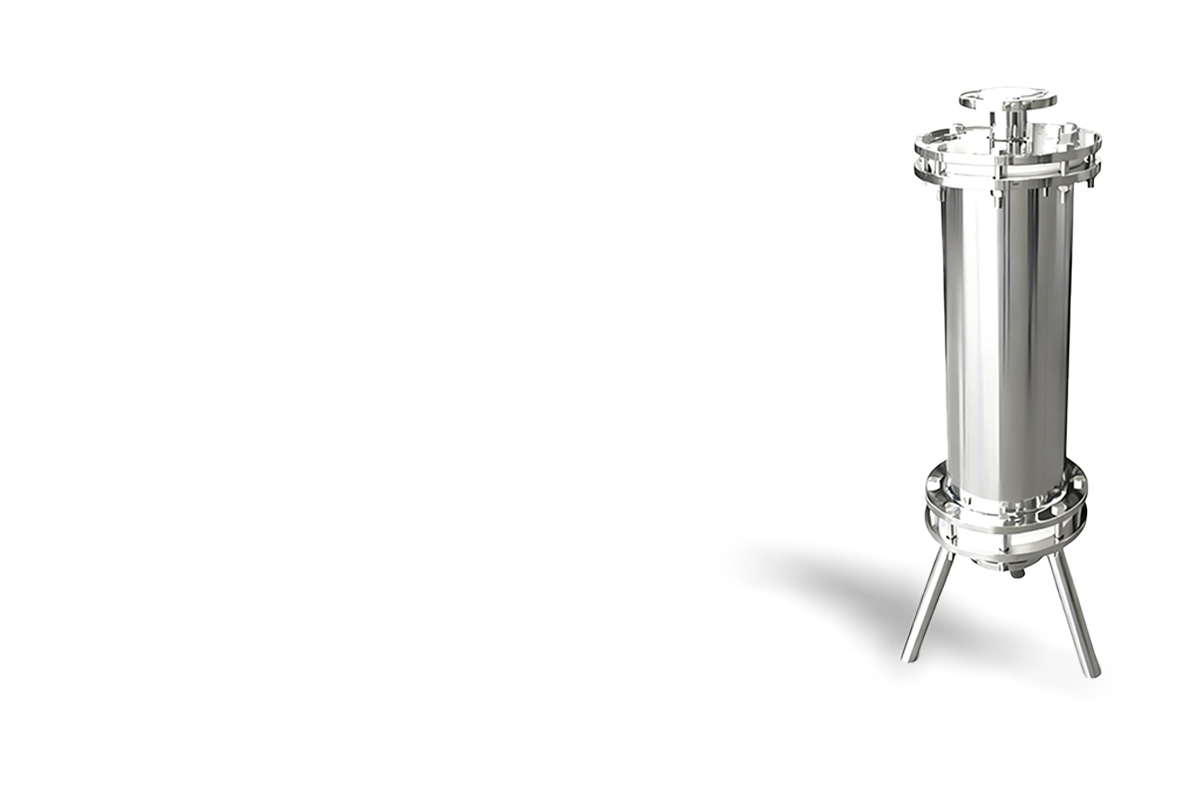

Complete PTFE Fluoropolymer Lining Stainless
Steel Filter Housing for Extreme Corrosive Applications

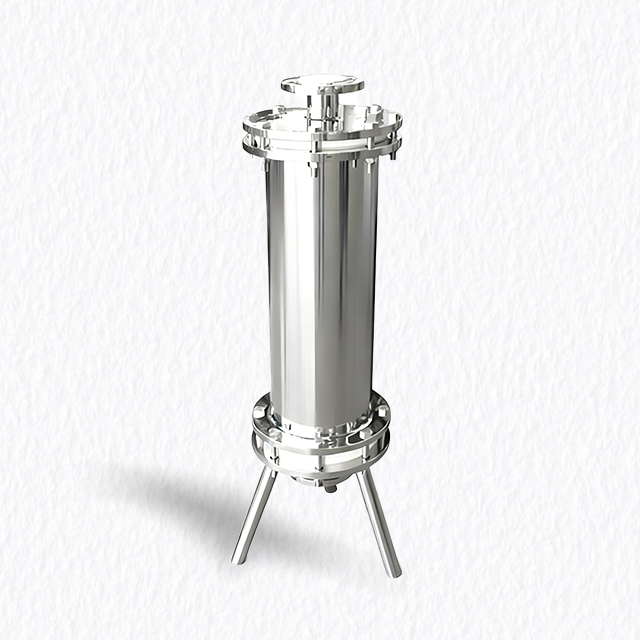

This Stainless Steel Filter Housing with PTFE Lining features a dual-protection design with
a robust steel shell fully lined with PTFE, offering both structural strength and complete
corrosion resistance. It safely handles highly aggressive media such as concentrated
sulfuric acid and caustic soda. Each unit undergoes spark and hydrostatic pressure
testing to ensure lining integrity, providing reliable filtration in demanding chemical processes.
Precision filtration of strong acids including sulfuric, hydrochloric and nitric acid
Safe filtration of caustic soda, liquid chlorine and other strong alkaline media
Process filtration of corrosive intermediates in esterification, sulfonation reactions
Continuous filtration of high concentration plating solutions and chemical baths
Purification filtration of corrosive pharmaceutical intermediates
Processing of chlorine/fluorine containing raw materials and product refinement
Complete Corrosion Protection
Full PTFE lining creates an effective barrier against most strong acids, alkalis and organic solvents
Reliable Quality Verification
Spark testing ensures defect-free lining combined with hydrostatic tests for structural integrity
Optimized Fluid Performance
Low friction coefficient of PTFE surface ensures smooth material flow, easy cleaning
Robust Dual-Layer Structure
Metal shell provides mechanical strength while plastic lining ensures chemical stability
Maintains performance from -100°C to +150°C, adapting to temperature fluctuations
Housing | Stainless Steel or Carbon Steel Material |
Clamp/Seal | PTFE |
Max. Temperature | 150 ℃ |
Max. Differential Pressure | 8 bar |
Inlet/Outlet | Flange |
Gauge port | Thread |
Cartridge Connectio | 222/Fin, 226/Fin |
MATERIAL | LINING | NO. of FILTERS | CONNECTION | LENGTH(IN) | SEAL | INLET/OUTLET |
304 | Without | 1 | 222 | 10'' | Silicone | Tri-Clamp DN25 |
316 | PTFE | 3 | 226 | 20'' | EPDM | Tri-Clamp DN40 |
WCB(Mild Steel) | FPA | 4 | M20 | 30'' | Viton | Tri-Clamp DN50 |
PPH(Homopolymer PP) | Fluorine | 7 | 3M | 40'' | TEV | Flange DN25 |
Butyronitrile | 25 | PARKER | Butyronitrile | Flange DN40 | ||
PE | 150 | PALL | PTFE | Flange DN50 | ||
PHOSPHOR | Flange DN80 | |||||
38-5 | Flange DN150 | |||||
DIN Flange DN40 |
What is a PTFE-lined stainless steel filter housing mainly used for?
A PTFE-lined filter housing is designed for filtration of highly corrosive process fluids where conventional stainless steel alone may not provide sufficient chemical resistance. Typical applications include concentrated acids, chlor-alkali media, organic synthesis, electroplating solutions, corrosive pharmaceutical intermediates, and pesticide or dye manufacturing processes.
Why use PTFE lining instead of an unlined stainless steel housing?
The metal shell provides mechanical strength and pressure resistance, while the PTFE lining isolates the process fluid from the metal surface. This dual-layer construction improves resistance to aggressive acids, alkalis, and many organic chemicals, making it suitable for processes where corrosion control and fluid purity are important.
Is this filter housing suitable for strong acids, alkalis, and organic solvents?
It is designed for highly corrosive chemical service, but final compatibility depends on the exact chemical, concentration, temperature, pressure, contact time, and all wetted materials. Compatibility should therefore be confirmed against the actual process conditions, especially for concentrated acids, oxidizing media, or aggressive solvent mixtures.
How is the integrity of the PTFE lining verified?
The lining can be checked using spark testing to identify defects or discontinuities, while hydrostatic pressure testing can be used to verify the structural integrity of the completed housing. These checks help confirm that both the corrosion-resistant lining and the pressure-bearing shell are suitable before service.
What operating limits should be considered for this PTFE-lined filter housing?
The listed maximum operating temperature is 150°C, and the maximum differential pressure is 8 bar. Actual allowable conditions also depend on the housing material, PTFE lining, cartridge configuration, connection design, and process fluid. Temperature, pressure, and chemical exposure should always be evaluated together.
How do I select the correct PTFE-lined filter housing configuration?
Selection should consider process fluid, chemical concentration, flow rate, operating temperature and pressure, required cartridge quantity, cartridge length, connection type, and inlet/outlet size. The housing can be configured for different cartridge arrangements and connection options, so providing complete process conditions is the most reliable way to determine the correct specification.
