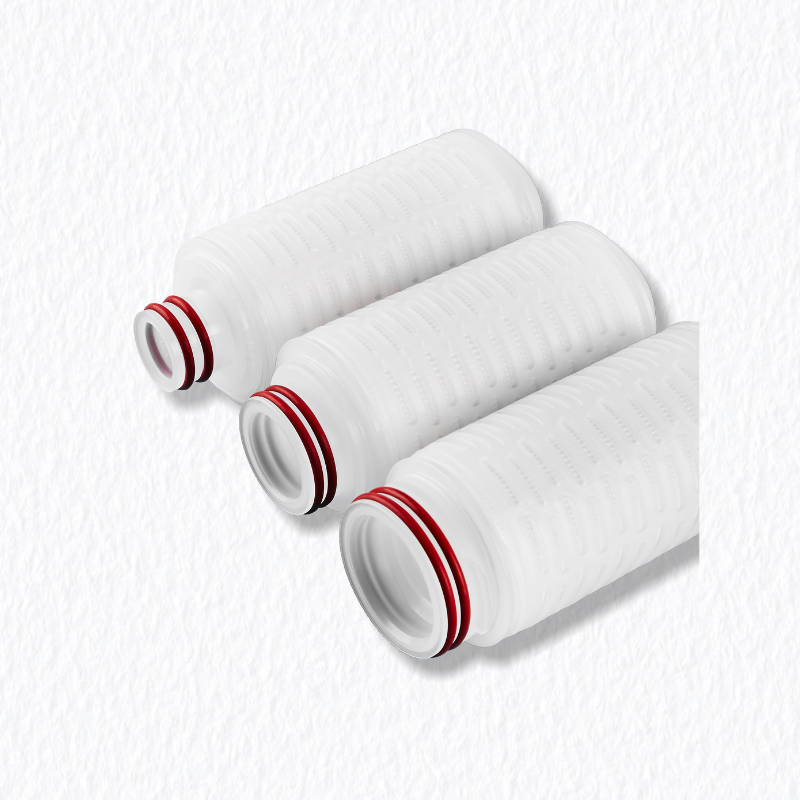

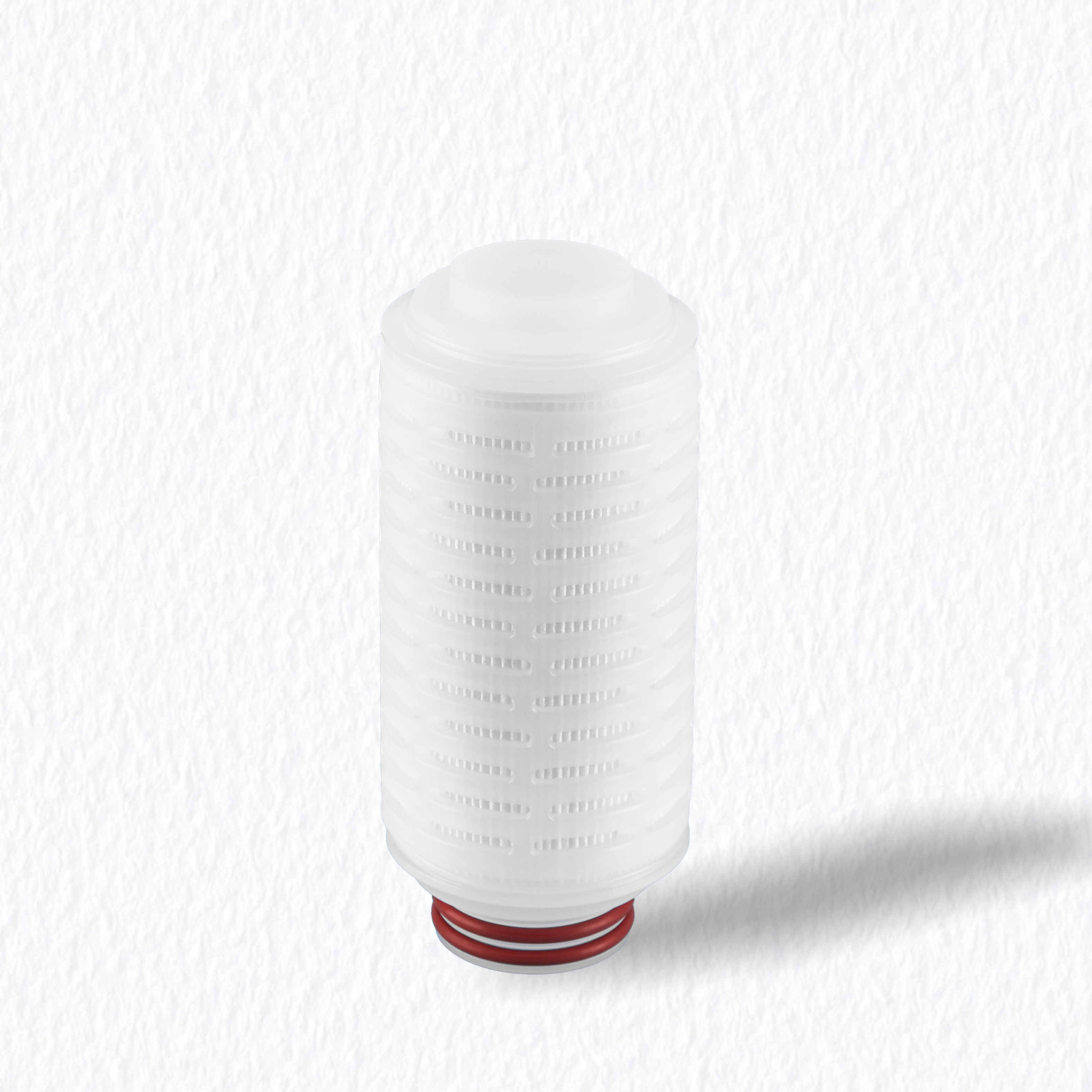

0.01µm Hydrophobic PTFE Filter Element for Sterilization

Model:
FBT001/FPT001
Applications:
Pharma&Biotech, Food & Beverage
Catagory:
Membrane Filter Cartridges
Filter Media:
PTFE

Availability:

Quantity:



Inquire Add to Basket

APPLICATIONS

FEATURES

ORDERING INFORMATION

DOWNLOAD

FAQ

0.01 Hydrophobic PTFE Filter Element for Sterile Gas Filteration-GMP Compliant,High Efficiency

The high-efficiency 0.01µm PTFE Filter Element is built with an authentic hydrophobic PTFE membrane for sterile, GMP-compliant gas filtration. Its strong hydrophobicity prevents water ingress to protect downstream processes. The membrane ensures absolute retention of particles and microorganisms above 0.01 microns, with each cartridge 100% integrity tested to guarantee reliability in critical pharmaceutical and biotech applications.

FOOD & BEVERAGE

Compressed Air & Gas Filtration

• Sterile Air for Product Contact (Carbonation, Packaging & Aeration)

• Clean Instrument Air for Process Protection

Sterile Tank Vent Filtration

• Finished Product & Ingredient Storage Tank Venting

• Blending & Holding Tank Protection During Transfer

Fermentation Air & Gas Filtration

• Sterile Inlet Air for Aerobic Fermentation

• Oxygen/Air Mixture Sterilization for Process Optimization

Compliance: FDA 21 CFR 177.1550, EC 1935/2004

Recommend Series: FBT001

Pore Size (µm): 0.01

Top 10 China gas and air filter cartridge supplier

FINE CHEMICAL

Compressed Air & Gas Filtration

• Sterile Air for Aseptic Processing Environments

• Process Gas Sterilization for Manufacturing

Sterile Tank Vent Filtration

• Sterile Venting for Bioreactors & Fermenters

• Bulk Drug Substance & Intermediate Solution Protection

• Vent Filtration during Fluid Transfer Operations

Fermentation Tank Air Filtration

• Sterile Inlet Air for Large-Scale Bioprocessing

• Optimized Gas Composition for Enhanced Cell Growth

Compliance: USP Class VI, ISO 13485, cGMP, FDA (DMF)

Recommend Series: FPT001

Pore Size (µm): 0.01

BENEFITS OF 0.01µm HYDROPHOBIC PTFE FILTER ELEMENT

• Hydrophobic PTFE membrane

• High interception rate

• High flow rates and low pressure drop

• The gas interception accuracy is 0.01 μm

MATERIALS OF CONSTRUCTION

Membrane	Hydrophobic PTFE
Cage & Support & End Caps	PP
O-rings/Gasket	Silicone/Viton/EPDM/TEV

PERFORMANCE CHARACTERISTICS

PP	＜60 ℃
PP with Stainless Steel Lined End Cap	＜85 ℃
PP with Stainless Steel Lining	＜95 ℃
Positive/Reverse Pressure Resistance	4 bar/2 bar (23 ℃)
Steam Sterilization	123 ℃@30 min(for FPT001 Series)

DIMENSIONS

Outer Diameter	68 mm/70 mm
Length	10", 20", 30", 40"

BIOSAFETY (FOR FPT001 SERIES)

Endotoxin	＜0.25 EU/ml
Extractable	≤50 mg/10"

INTEGRITY TEST (BP, 95 %ETHANOL@23 ℃)

0.01um

≥1.1bar

SERIES	MATERIAL	RATING(μm)	END CAP	LENGTH(in)	SUPPORT	PORT	SEAL
Phamarmical	PTFE	0.1μm	222/Fin	2.5''	PP		Silicone
Beverage		0.22μm	222/Flat	5''	PBT	Interface lining steel	EPDM
		0.01μm	226/Fin	10''	PVDF	Fully lining	Viton
		1.0μm	226/Flat	20''	PFA	Skeleton lining	TEV
		3.0μm	DOE/Flat	30''	PE	Skeleton lining	Butyronitrile
		10μm	215/Fin	40''	GF		PTFE
		0.22+0.22μm	215/Flat				PTFE gasket (soft)
			M20				Metal-graphite Wound
			M30
			216/Fin
			216/Flat
			M15
			Insertion Type
			Barbed Type

SERIES	MATERIAL	RATING(μm)	END CAP	LENGTH(in)	SUPPORT	PORT	SEAL
Electronics	PTFE	0.1μm	222/Fin	2.5''	PP		Silicone
Phamarmical		0.22μm	222/Flat	5''	PBT	Interface lining steel	EPDM
Chemical		0.01μm	226/Fin	10''	PVDF	Fully lining	Viton
Beverage		1.0μm	226/Flat	20''	PFA	Skeleton lining	TEV
		3.0μm	DOE/Flat	30''	PE		Butyronitrile
		10μm	215/Fin	40''	GF		PTFE
		0.22+0.22μm	215/Flat				PTFE gasket (soft)
			M20				Metal-graphite Wound
			M30
			216/Fin
			216/Flat
			M15
			Insertion Type
			Barbed Type

0.0lum Hydrophobic PTFE Filter Element for Sterilization from LOONG Filtration.pdf

Do you offer validation support for regulated industries?

Yes, we provide documentation and technical support for validation processes in industries like pharmaceuticals, life sciences, and food & beverage to ensure compliance and traceability.

How can LOONG Filtration ensure the quality of products?

LOONG Filtration has sent our products to authoritative organizations to do tests, and you can check all the certificates on our product quality page.

Is one-stop shopping at LOONG filtration possible?

LOONG Filtration is dedicated to provide one-stop shopping experience, to simplify customers' purchasing process. We have a wide variety of products covering a wide range offields, so we believe you can find what you need.

What are the industries that use LOONG’s filter cartridges?

LOONG’s filter cartridges find applications in a wide range of industries, including food and beverage, micro-electronics, life and science, industry,water treatment and laboratory use.

How often should filter cartridges be replaced?

Replacement intervals depend on operating conditions, contaminant load, and pressure drop. Regular monitoring and our technical support can help optimize maintenance schedules and reduce downtime.
