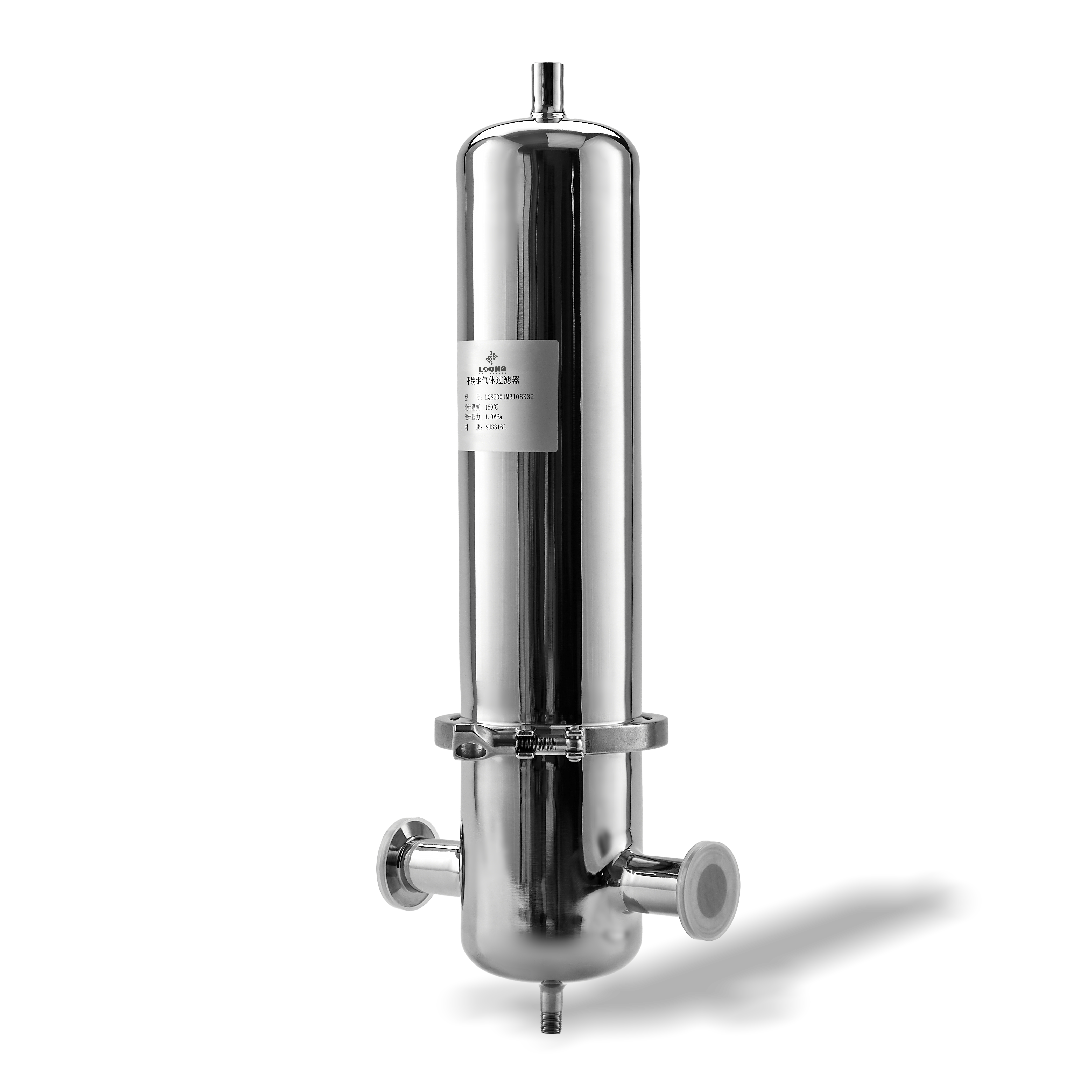

Multi-Cartridge Precision Gas Purification Stainless Steel Gas Filter Housing


This high-purity Stainless Steel Gas Filter Housing is constructed of SUS316L/SUS304 stainless steel with a mirror-polished interior to minimize contamination risk. Compatible with PTFE, glass fiber, and stainless steel filter cartridges, it achieves filtration down to 0.01 μm for reliable particle and bacteria removal. The modular design enables quick cartridge replacement, making it ideal for sterile gas applications in biopharmaceutical fermentation, pharmaceutical processes, and electronics manufacturing.


APPLICATIONS

•Biopharmaceutical Fermentation: Provides sterile inlet air for fermentation processes, preventing contamination and improving yield

•Pharmaceutical Clean Gas: Supplies purified gas for sterile manufacturing environments, complying with GMP requirements

•Electronic Specialty Gases: Filters high-purity specialty gases in semiconductor manufacturing to protect precision processes

•Food & Beverage Processing: Purifies process gases for fermented beverages and food packaging applications

•Chemical Process Gases: Treats various reaction gases, protective gases and carrier gases to ensure chemical reaction purity



BENEFITS OF STAINLESS STEEL GAS FILTER HOUSING

• Superior Surface Treatment

Mirror polishing (Ra≤0.6μm) minimizes gas flow resistance and prevents particle adhesion and bacterial growth

• Flexible Cartridge Compatibility

Supports PTFE, glass fiber, and metal cartridges for various temperature and application requirements

• Convenient Maintenance Design

Quick-open structure enables fast cartridge replacement, reducing downtime and maintenance costs

• Precise Filtration Control

Graded filtration technology provides targeted removal of particles and microorganisms based on gas purity specifications


MATERIALS OF CONSTRUCTION

Housing
SUS304/316L stainless steel
Seal
Silicone/EPDM/Viton/TEV


OPERATING CONDITIONS

Max.  Temperature
150 ℃
Max. Differential Pressure
8 bar


CONNECTION

Inlet/Outlet
Flange/Tri-Clamp/Thread
Gauge port
Thread
Cartridge connection
222/226/DOE





MATERIAL LINING NO. of FILTERS CONNECTION LENGTH(IN) SEAL INLET/OUTLET
304 Without 1 222 10'' Silicone Tri-Clamp DN25
316 PTFE 3 226 20'' EPDM Tri-Clamp DN40
WCB（Mild Steel） FPA 4 M20 30'' Viton Tri-Clamp DN50
PPH（Homopolymer PP） Fluorine 7 3M 40'' TEV Flange DN25

Butyronitrile 25 PARKER
Butyronitrile Flange DN40

PE 150 PALL
PTFE Flange DN50



PHOSPHOR

Flange DN80



38-5

Flange DN150






DIN Flange DN40

SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' SilFlange DN25icone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



download Stainless Steel Air&Gas Filter Housing from LOONG Filtration.pdf


Can water treatment filters (such as bag filters, cartridge filters) be interchanged with air filters?

Absolutely not! Their structural design, sealing form, material selection, and performance testing standards are completely different. Mixing them will lead to low efficiency, equipment damage, and even safety accidents.


Do you produce housings with flanges?

Yes, LOONG Filtration has a series of special housings with flange connections and has rich experience in the following flange types:

• ASME/ANSI B16.5 – 1996 – Pipe Flanges and Flanged Fittings

• British Standard BS 4504 – Part 3.1: 1989 – Circular Flanges for Pipes, Valves, and Fittings

• SAE J 518 C – SAE Flange Standard


What certifications can your filters provide?

Typical certifications for LOONG Filtration filters include material certificates conforming to EN 10204-3.1 standard, qualification certificates, pressure test certificates, leak test certificates, and certificate of origin.
