FCV/FPV/FEV
Pharma&Biotech, Microelectronics, Fine Chemical
Membrane Filter Cartridges
PVDF
| Availability: | |
|---|---|
| Quantity: | |
High Flow, Low Protein Binding for Bio
/Pharma & Chemical Processing

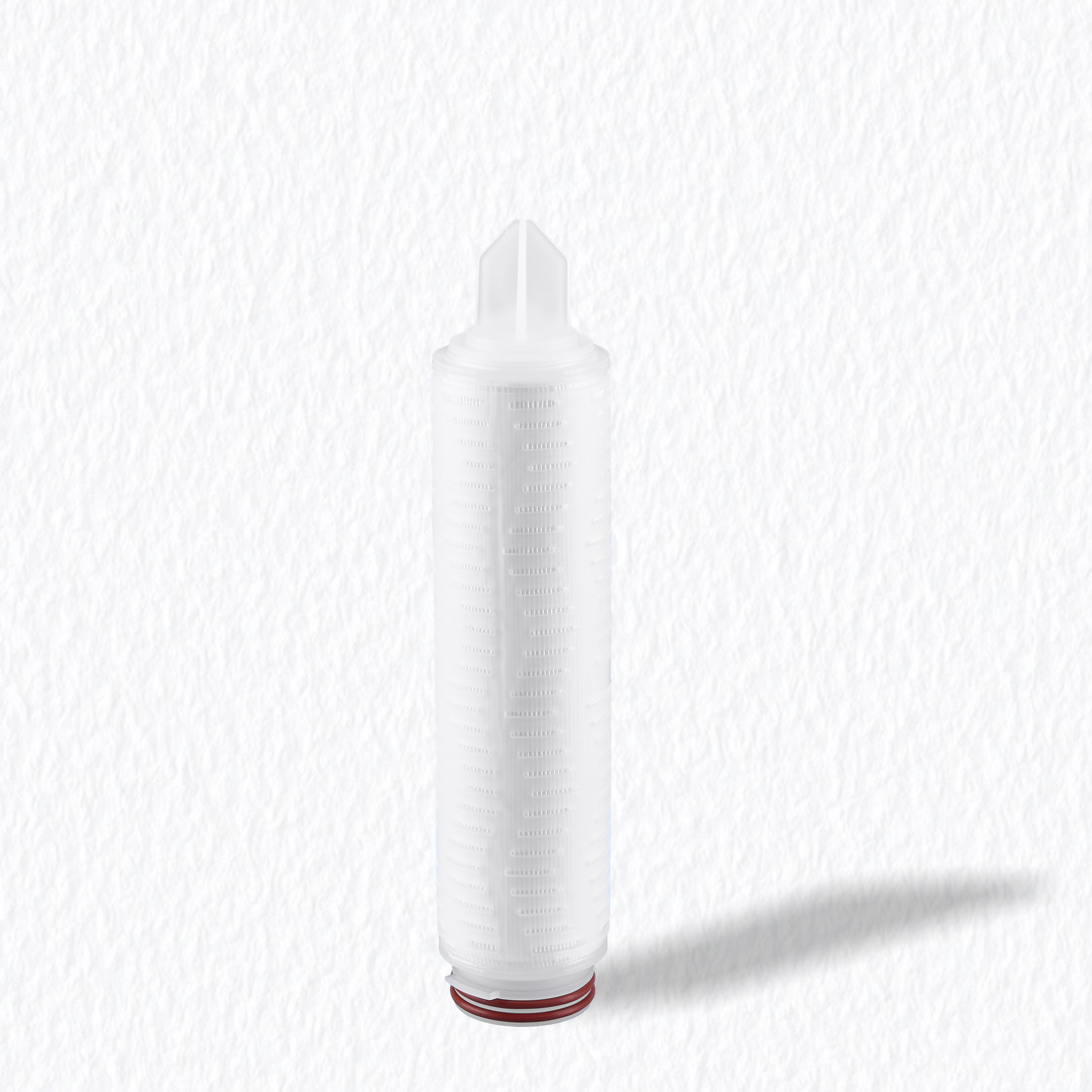

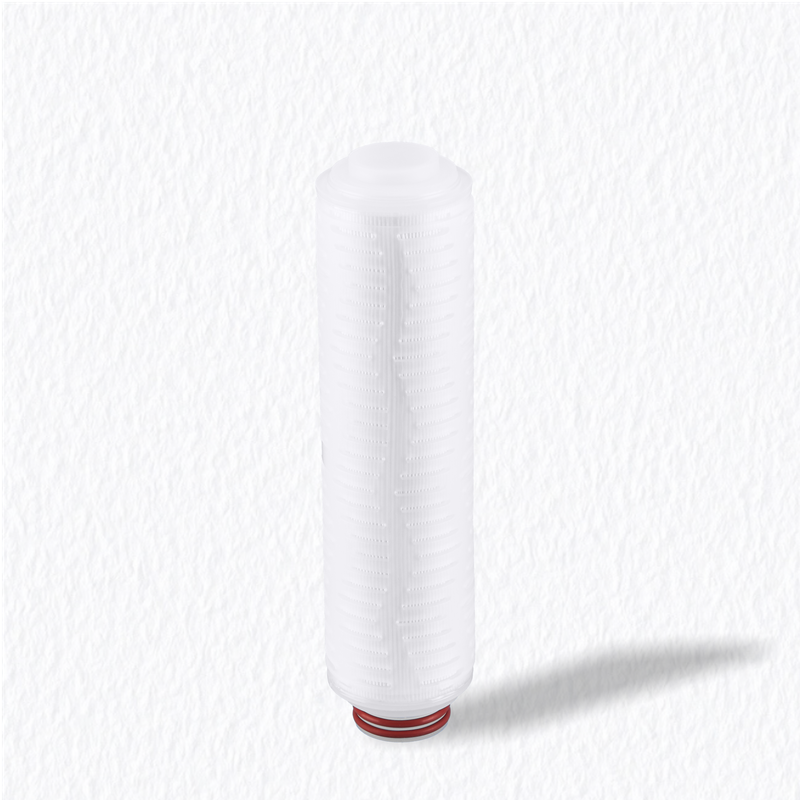

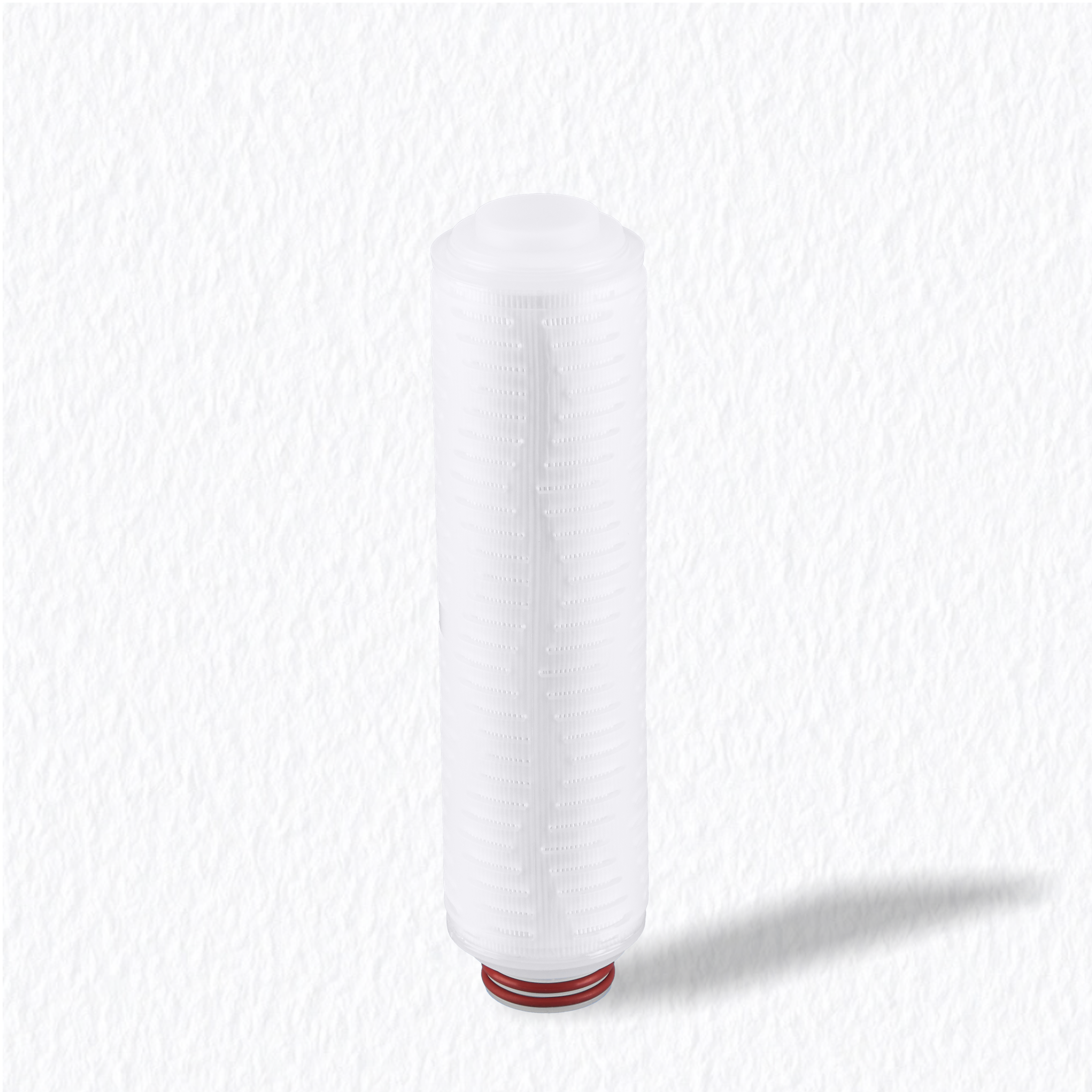

The Hydrophobic PVDF Filter Cartridge combines high flow rates,
superior throughput, and cost-efficient operation. Its PVDF
membrane offers low protein binding for higher product recovery
in biological processes, along with broad chemical resistance for
industrial applications. With validated sterile filtration performance,
it is widely used in biopharmaceutical venting, solvent purification,
and high-purity electronic chemical processing.
• Broad-Spectrum Organic Solvent Filtration
• Hydrophobic Industrial Gas Filtration
• Mineral Acid Filtration at Moderate Conditions
• Filtration for Solvent Recovery & Recycling
• Sterile Venting for Fermentation Processes
• Process Solvent Filtration in API Synthesis
• Final Solvent Filtration for Critical API Processes
• Pre-filtration of Biological Solutions
• Filtration for Solvent-Containing Biologics
• Organic Solvent Filtration for Photoresist & Cleaning
• Pre-filtration of Acidic Solutions for Final Polishing
• Pre-filtration in Electronic-Grade UPW Systems
• CMP Slurry Filtration for Specific Applications
• Filtration for Solvent Recovery & Recycling Processes
Multi-Industry Compatibility
Suitable for bio/pharma, fine chemical, and microelectronics applications
Enhanced Product Recovery
Low protein adsorption preserves valuable biological products
Rapid Processing
High flow rates reduce processing time and increase efficiency
Cost-Effective Performance
Superior value compared to other fluoropolymer options
MEMBRANE | Hydrophobic PVDF |
CAGE & SUPPORT & END CAPS & DRAINAGE | PP |
O-RINGS/GASKET | Silicone/Viton/EPDM/TEV |
PP | <60 ℃ |
PP WITH STAINLESS STEEL LINED END CAP | <85 ℃ |
PP WITH STAINLESS STEEL LINING | <95 ℃ |
POSITIVE/REVERSE PRESSURE RESISTANCE | 4 bar/2 bar (23 ℃) |
STEAM STERILIZATION | 123 ℃@30 min(for FPV Series) |
OUTER DIAMETER | 68 mm/70mm |
LENGTH | 10", 20", 30", 40" |
0.1 μm | ≥0.4 bar |
0.22 μm | ≥0.3 bar |
ENDOTOXIN | <0.25 EU/ml |
EXTRACTABLE | ≤50 mg/10" |
SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | SEAL | PORT |
Electronics | PVDF | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | Interface lining steel |
Phamarmical | 0.22μm | 222/Flat | 5'' | PBT | EPDM | Fully lining | |
Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Viton | Skeleton lining | |
1.0μm | 226/Flat | 20'' | PFA | TEV | |||
3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
10μm | 215/Fin | 40'' | GF | PTFE | |||
0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
M20 | Metal-graphite Wound | ||||||
M30 | |||||||
216/Fin | |||||||
216/Flat | |||||||
M15 | |||||||
Insertion Type | |||||||
Barbed Type |
What is a hydrophobic PVDF filter cartridge mainly used for?
A hydrophobic PVDF filter cartridge is mainly used for gas, vent, solvent, and chemically demanding filtration applications. Its naturally hydrophobic membrane resists wetting by water while providing good chemical compatibility, making it suitable for pharmaceutical venting, fine chemical processing, microelectronics, solvent purification, and other processes requiring reliable particle retention.
What is the difference between hydrophobic PVDF and hydrophilic PVDF filter cartridges?
Hydrophobic PVDF naturally repels water and is generally better suited for gas, vent, and non-aqueous filtration. Hydrophilic PVDF can be readily wetted by water-based fluids and is more appropriate for aqueous liquid filtration. The correct choice depends mainly on the process fluid, required retention performance, and whether direct water wettability is needed.
Can hydrophobic PVDF be used for solvent and chemical filtration?
Yes, hydrophobic PVDF offers broad compatibility with many acids, bases, and organic solvents, making it suitable for a range of fine chemical and industrial filtration processes. However, compatibility should be confirmed according to the exact chemical, concentration, operating temperature, exposure time, seal material, and complete cartridge construction before use.
How do I choose the right micron rating for a hydrophobic PVDF filter cartridge?
The correct micron rating depends on the required particle or microbial retention, contamination load, flow rate, process cleanliness target, and downstream requirements. Fine grades such as 0.22 μm are commonly selected for tighter retention, while larger pore sizes may be used for clarification or prefiltration. Selection should also consider pressure drop and required throughput.
Can the hydrophobic PVDF filter cartridge be steam sterilized?
For the listed FPV Series, the specified steam sterilization condition is 123°C for 30 minutes. Actual sterilization suitability depends on the complete cartridge configuration, support structure, seal material, sterilization cycle, and number of repeated exposures. The selected cartridge should therefore be confirmed against the intended sterilization procedure.
When should a hydrophobic PVDF filter cartridge be replaced?
Replacement should be based on validated process limits rather than a fixed operating time. Typical indicators include increasing differential pressure, reduced gas or liquid flow, longer processing time, or failure to meet required retention performance. Actual service life depends on contamination load, pore size, chemical exposure, operating temperature, and sterilization history.
