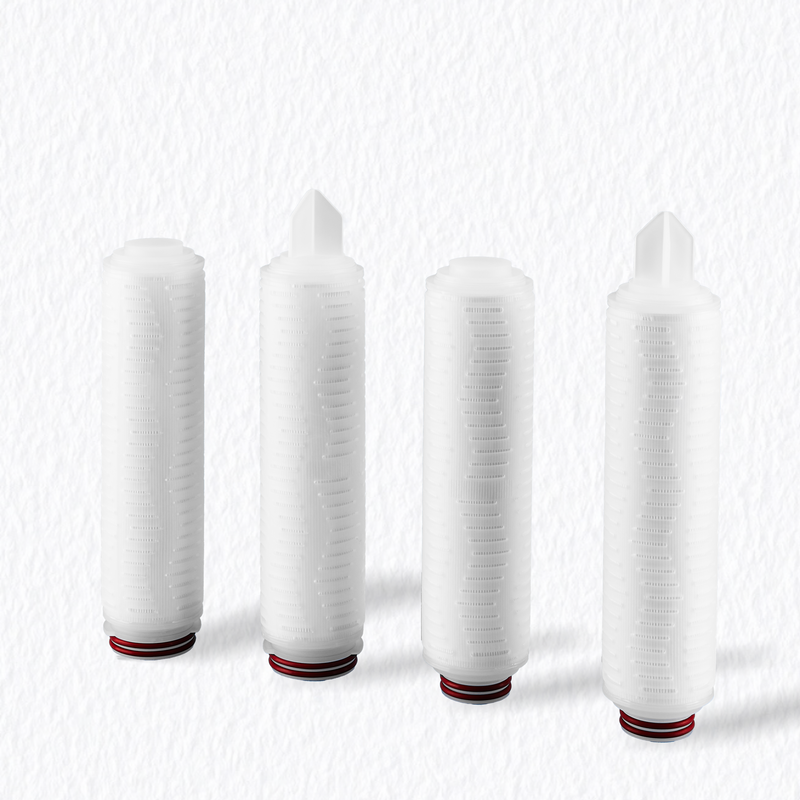

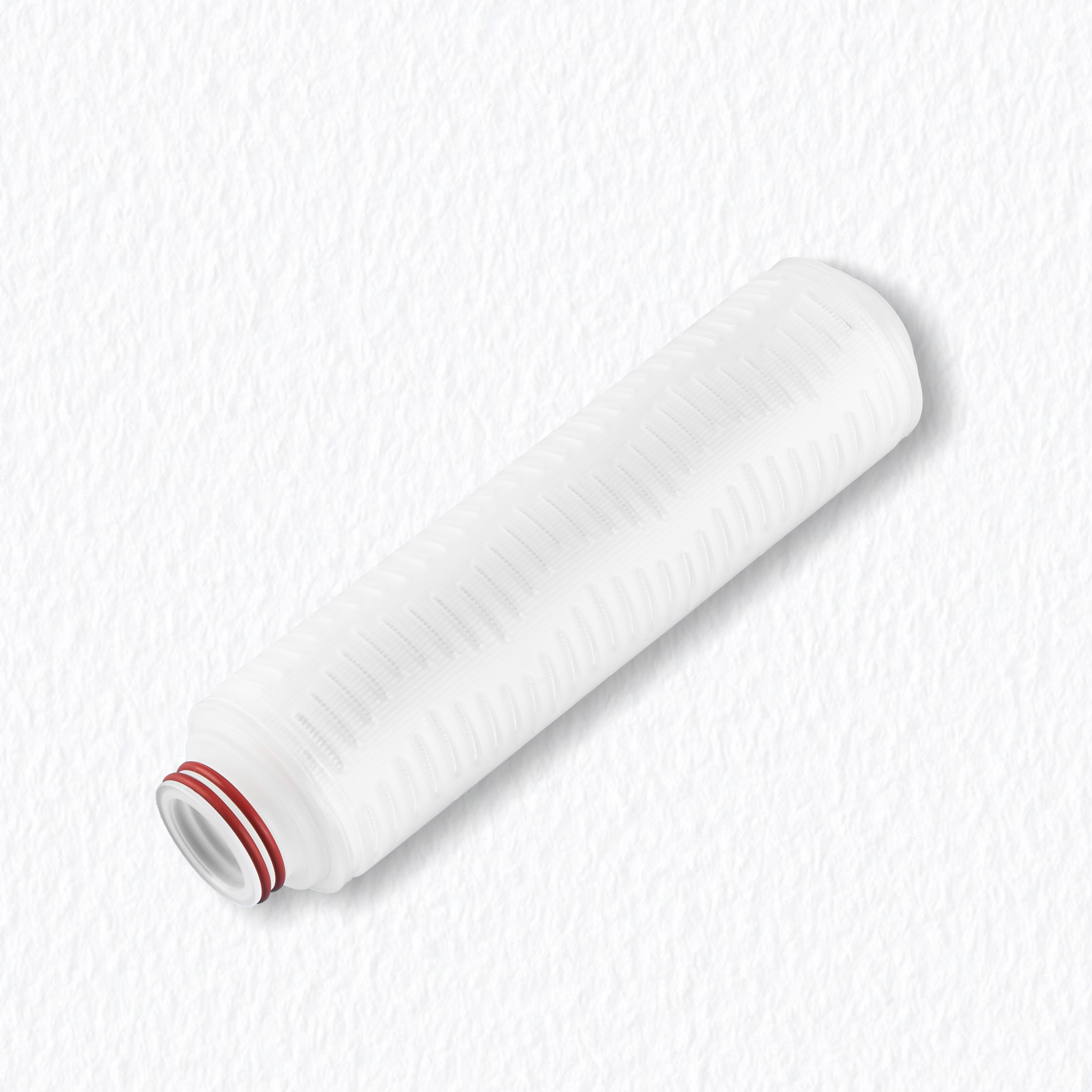

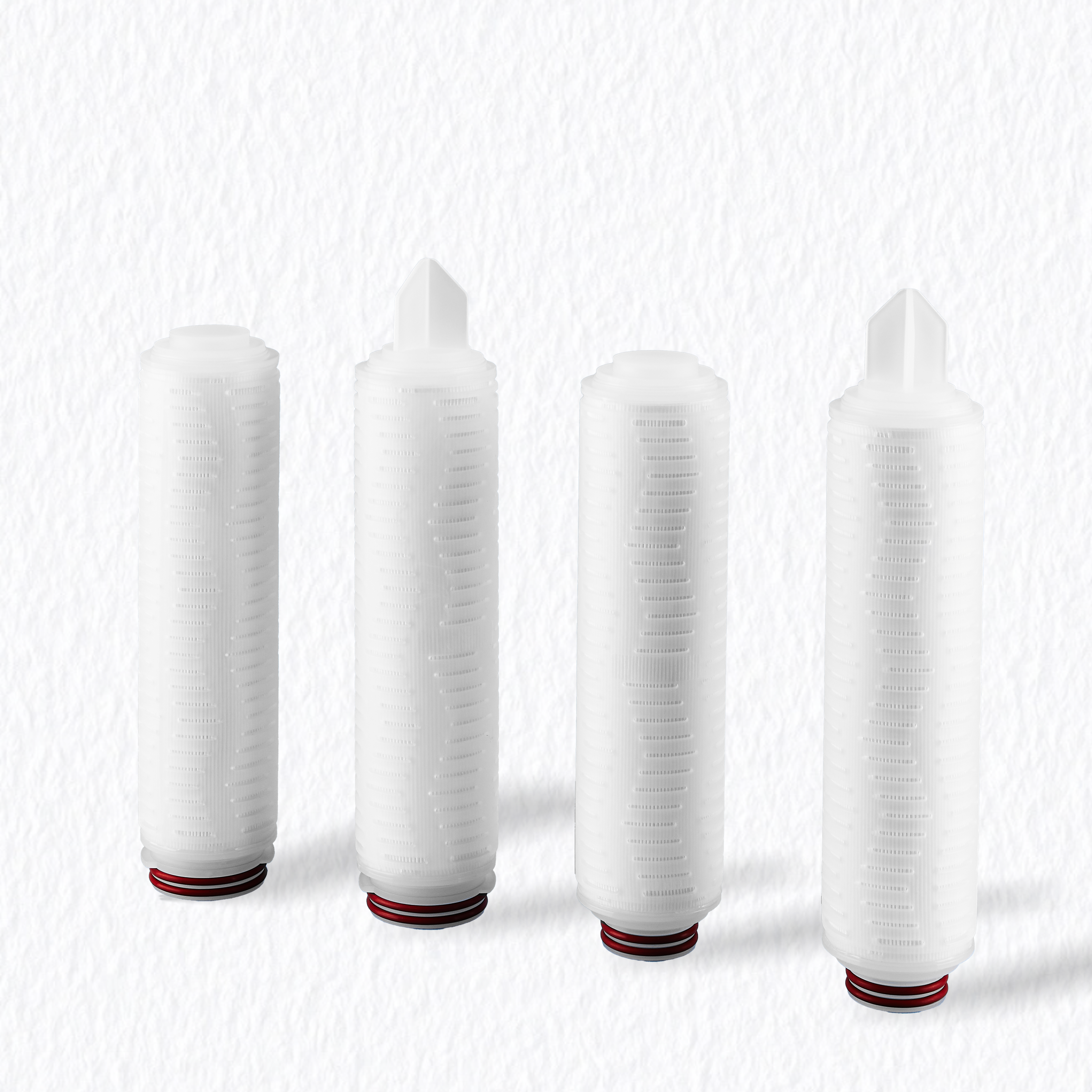

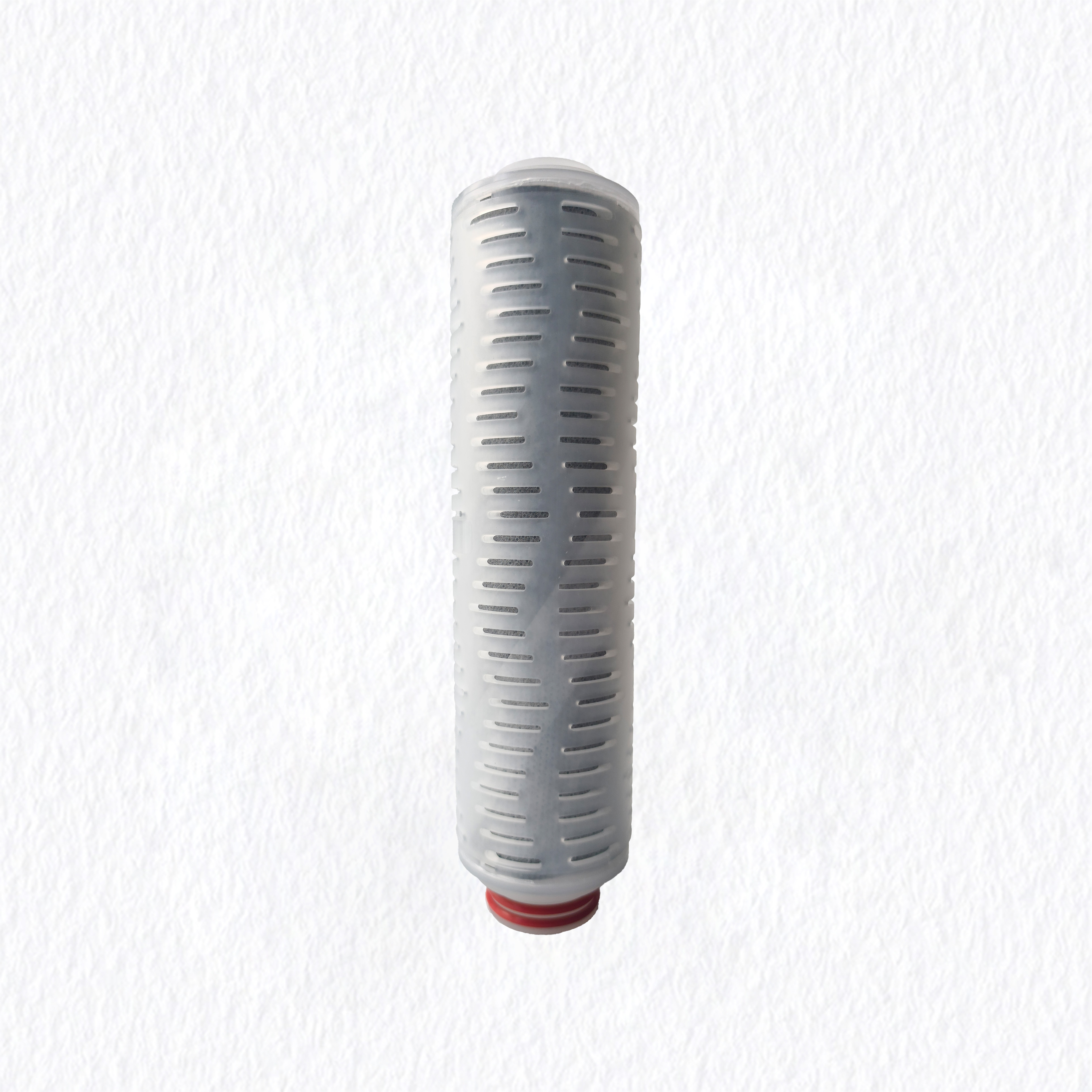

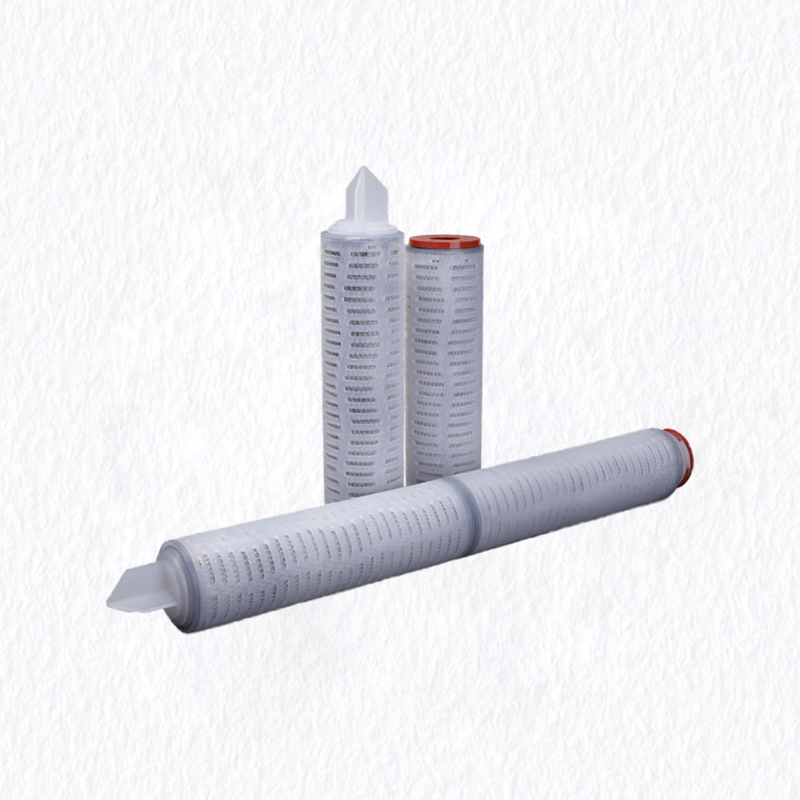

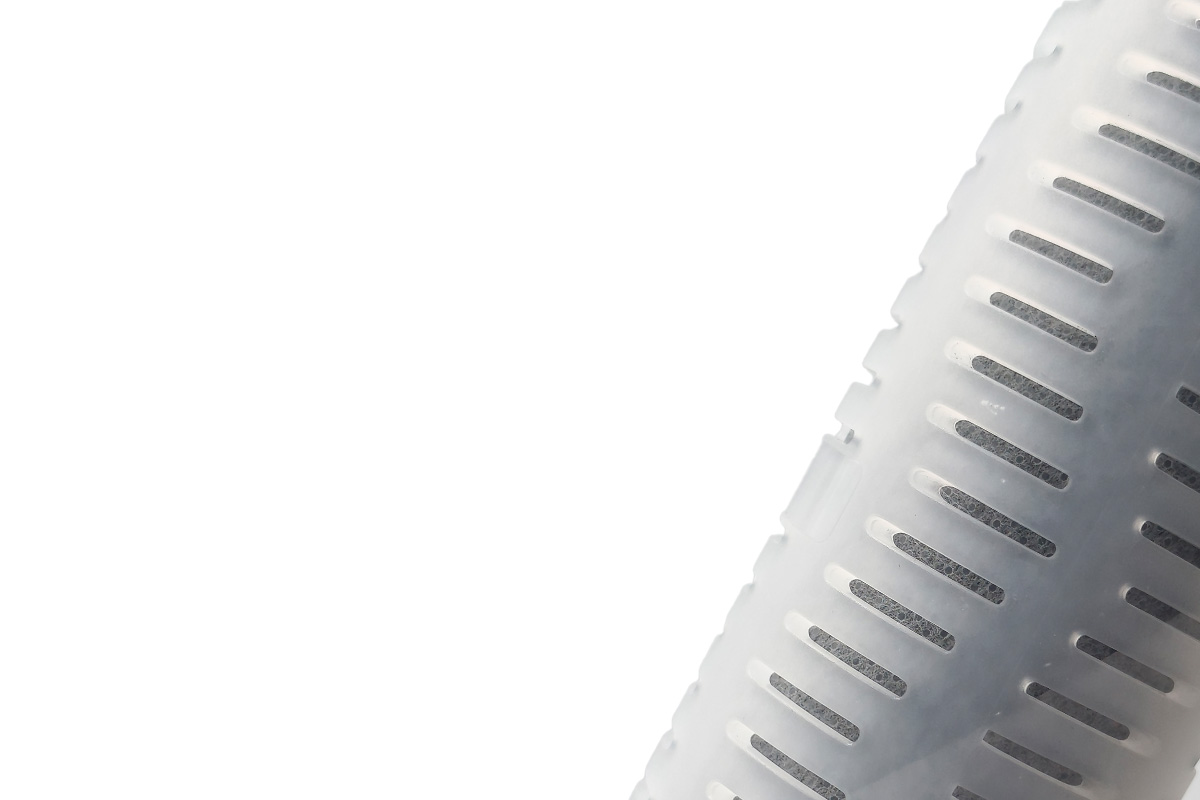

Activated Carbon Fiber Filter Cartridge - Color Removal, Endotoxin Adsorption for Food, Pharma & Electronics
The Activated Carbon Fiber Filter Cartridge combines activated carbon fibers with a polypropylene structure to deliver integrated mechanical filtration and superior adsorption. It effectively removes chlorine, pigments, heavy metals, bacteria, and endotoxins from fluids, providing reliable purification for food & beverage, pharmaceutical, chemical, and microelectronics applications. With high adsorption capacity and consistent performance, it ensures efficient decolorization and contaminant removal in demanding environments.
FOOD & BEVERAGE
• Chlorine, Off-Flavor & Color Adjustment for Beer
• Decolorization & Purification of Wine
• Chlorine Removal & Taste Improvement for Mineral Water
• Dechlorination & Decolorization of Water and Syrups
• Decolorization & Purification of Edible Oil· Decolorization of Sugar Syrups & Artificial Sweeteners
• Purification of Spirits & Liquors
Compliance: FDA 21 CFR 177.2460, NSF/ANSI 42 & 61, EC 1935/2004

FINE CHEMICAL
• Dechlorination of Process Water
• Odor Removal from Chemical Products
• Purification of Organic Solvents
• Adsorption & Recovery of Precious Metal Catalysts
• Organic Pollutant & Color Removal from Wastewater
• Purification of Chemical Intermediates
Recommend Series: FCA
Pore Size (µm): 1.0 • 3.0 • 5.0
PHARMA&BIOTECH
• Endotoxin & Pyrogen Removal from Solutions
• Dechlorination of Purified Water & WFI
• Odor Removal from Pharmaceutical Products
• Pretreatment for Pharmaceutical Water Systems
• Purification of Active Pharmaceutical Ingredients
• Purification of Recovered Solvents
• Decolorization of Pharmaceutical Solutions
Compliance: USP Class VI, ISO 13485, GMP
MICROELECTRONICS
• Residual Chlorine Removal for RO Membrane Protection
• Odor & Organic Contaminant Removal from Process Water
• TOC Reduction in UPW Systems
• Organic Contaminant Removal from Process Water
• Purification of Electronic-Grade Chemicals
• Purification of Process Gases
Compliance: SEMI Standard
Activated Carbon Fiber Filter Cartridge - Color Removal, Endotoxin Adsorption for Food, Pharma & Electronics
The Activated Carbon Fiber Filter Cartridge combines activated carbon fibers with a polypropylene structure to deliver integrated mechanical filtration and superior adsorption. It effectively removes chlorine, pigments, heavy metals, bacteria, and endotoxins from fluids, providing reliable purification for food & beverage, pharmaceutical, chemical, and microelectronics applications. With high adsorption capacity and consistent performance, it ensures efficient decolorization and contaminant removal in demanding environments.
FOOD & BEVERAGE
• Chlorine, Off-Flavor & Color Adjustment for Beer
• Decolorization & Purification of Wine
• Chlorine Removal & Taste Improvement for Mineral Water
• Dechlorination & Decolorization of Water and Syrups
• Decolorization & Purification of Edible Oil· Decolorization of Sugar Syrups & Artificial Sweeteners
• Purification of Spirits & Liquors
Compliance: FDA 21 CFR 177.2460, NSF/ANSI 42 & 61, EC 1935/2004

FINE CHEMICAL
• Dechlorination of Process Water
• Odor Removal from Chemical Products
• Purification of Organic Solvents
• Adsorption & Recovery of Precious Metal Catalysts
• Organic Pollutant & Color Removal from Wastewater
• Purification of Chemical Intermediates
Recommend Series: FCA
Pore Size (µm): 1.0 • 3.0 • 5.0
PHARMA&BIOTECH
• Endotoxin & Pyrogen Removal from Solutions
• Dechlorination of Purified Water & WFI
• Odor Removal from Pharmaceutical Products
• Pretreatment for Pharmaceutical Water Systems
• Purification of Active Pharmaceutical Ingredients
• Purification of Recovered Solvents
• Decolorization of Pharmaceutical Solutions
Compliance: USP Class VI, ISO 13485, GMP
MICROELECTRONICS
• Residual Chlorine Removal for RO Membrane Protection
• Odor & Organic Contaminant Removal from Process Water
• TOC Reduction in UPW Systems
• Organic Contaminant Removal from Process Water
• Purification of Electronic-Grade Chemicals
• Purification of Process Gases
Compliance: SEMI Standard
BENEFITS OF ACTIVATED CARBON FIBER FILTER CARTRIDGE
• Dual Functionality: Combined mechanical filtration and chemical adsorption
• Broad Spectrum Removal: Effective against chlorine, colors, endotoxins, and heavy metals
• High Adsorption Capacity: Extended service life with consistent performance
• Food & Pharma Compliance: Suitable for sensitive applications
• Customizable Configurations: Available in various sizes and specifications
MATERIALS OF CONSTRUCTION
| Membrane | Activated Carbon Fiber |
| Cage & Support & End Caps | PP |
| O-rings/Gasket | Silicone/Viton/EPDM/TEV |
| Sealing Technology | Thermal Bonding, No Adhesives |
PERFORMANCE CHARACTERISTICS
| PP | <60 ℃ |
| PP with Stainless Steel Lined End Cap | <85 ℃ |
| PP with Stainless Steel Lining | <95 ℃ |
| Positive/Reverse Pressure Resistance | 4 bar/2 bar (23 ℃) |
DIMENSIONS
| Outer Diameter | 68 mm |
| Length | 10", 20", 30", 40" |
BENEFITS OF ACTIVATED CARBON FIBER FILTER CARTRIDGE
• Dual Functionality: Combined mechanical filtration and chemical adsorption
• Broad Spectrum Removal: Effective against chlorine, colors, endotoxins, and heavy metals
• High Adsorption Capacity: Extended service life with consistent performance
• Food & Pharma Compliance: Suitable for sensitive applications
• Customizable Configurations: Available in various sizes and specifications
MATERIALS OF CONSTRUCTION
| Membrane | Activated Carbon Fiber |
| Cage & Support & End Caps | PP |
| O-rings/Gasket | Silicone/Viton/EPDM/TEV |
| Sealing Technology | Thermal Bonding, No Adhesives |
PERFORMANCE CHARACTERISTICS
| PP | <60 ℃ |
| PP with Stainless Steel Lined End Cap | <85 ℃ |
| PP with Stainless Steel Lining | <95 ℃ |
| Positive/Reverse Pressure Resistance | 4 bar/2 bar (23 ℃) |
DIMENSIONS
| Outer Diameter | 68 mm |
| Length | 10", 20", 30", 40" |
| SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
| Electronics | Activated Carbon Fiber | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | |
| Phamarmical | 0.22μm | 222/Flat | 5'' | PBT | Interface lining steel | EPDM | |
| Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Fully lining | Viton | |
| Beverage | 1.0μm | 226/Flat | 20'' | PFA | Skeleton lining | TEV | |
| 3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
| 10μm | 215/Fin | 40'' | GF | PTFE | |||
| 0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
| M20 | Metal-graphite Wound | ||||||
| M30 | |||||||
| 216/Fin | |||||||
| 216/Flat | |||||||
| M15 | |||||||
| Insertion Type | |||||||
| Barbed Type |
| SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | PORT | SEAL |
| Electronics | Activated Carbon Fiber | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | |
| Phamarmical | 0.22μm | 222/Flat | 5'' | PBT | Interface lining steel | EPDM | |
| Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Fully lining | Viton | |
| Beverage | 1.0μm | 226/Flat | 20'' | PFA | Skeleton lining | TEV | |
| 3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
| 10μm | 215/Fin | 40'' | GF | PTFE | |||
| 0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
| M20 | Metal-graphite Wound | ||||||
| M30 | |||||||
| 216/Fin | |||||||
| 216/Flat | |||||||
| M15 | |||||||
| Insertion Type | |||||||
| Barbed Type |
Can LOONG’s filter elements be used for pre-filtration, membrane filtration, and final filtration? How do I select them accordingly?
Yes, LOONG’s filter elements can be used for pre-filtration to final filtration stages. They can be selected based on the pore size of the filter cartridge, the filtration media or membrane and the format of construction.
Can your filters handle high-temperature or corrosive environments?
Yes, we offer filter cartridges made from PTFE, PES, stainless steel, and other materials resistant to high temperatures, acids, alkalis, and aggressive chemicals.
Can LOONG’s filter cartridges fit in standard filter housings?
Yes, LOONG’s filter cartridges can fit in most standard filter housings and systems. They are typically placed inside a housing, capsule, or casing.
How to store the filter cartridge?
• Store at a temperature between 5 and 30 °C (4l and 86 °F) in dry conditions
• Do not expose direct sunlight, radiation or direct weather conditions
• Store in original shipping bag and boxingExercise care during handling to avoid physical damage.
• Ensure shipping bags and any seals are intact prior to use. Plastics can be damaged if roughlyhandled, particularly at sub-zero temperatures. Thermal shock by quickly raising the temperature from subzero conditions should also be avoided.
• Visual inspection of packaging and product and, where appropriate.integritytesting is recommended prior to use. Do not use damaged articles.
For conditions outside the above or questions related to correct storage, please contact LOONG for further advice.
Can LOONG’s filter elements be used for pre-filtration, membrane filtration, and final filtration? How do I select them accordingly?
Yes, LOONG’s filter elements can be used for pre-filtration to final filtration stages. They can be selected based on the pore size of the filter cartridge, the filtration media or membrane and the format of construction.
Can your filters handle high-temperature or corrosive environments?
Yes, we offer filter cartridges made from PTFE, PES, stainless steel, and other materials resistant to high temperatures, acids, alkalis, and aggressive chemicals.
Can LOONG’s filter cartridges fit in standard filter housings?
Yes, LOONG’s filter cartridges can fit in most standard filter housings and systems. They are typically placed inside a housing, capsule, or casing.
How to store the filter cartridge?
• Store at a temperature between 5 and 30 °C (4l and 86 °F) in dry conditions
• Do not expose direct sunlight, radiation or direct weather conditions
• Store in original shipping bag and boxingExercise care during handling to avoid physical damage.
• Ensure shipping bags and any seals are intact prior to use. Plastics can be damaged if roughlyhandled, particularly at sub-zero temperatures. Thermal shock by quickly raising the temperature from subzero conditions should also be avoided.
• Visual inspection of packaging and product and, where appropriate.integritytesting is recommended prior to use. Do not use damaged articles.
For conditions outside the above or questions related to correct storage, please contact LOONG for further advice.
