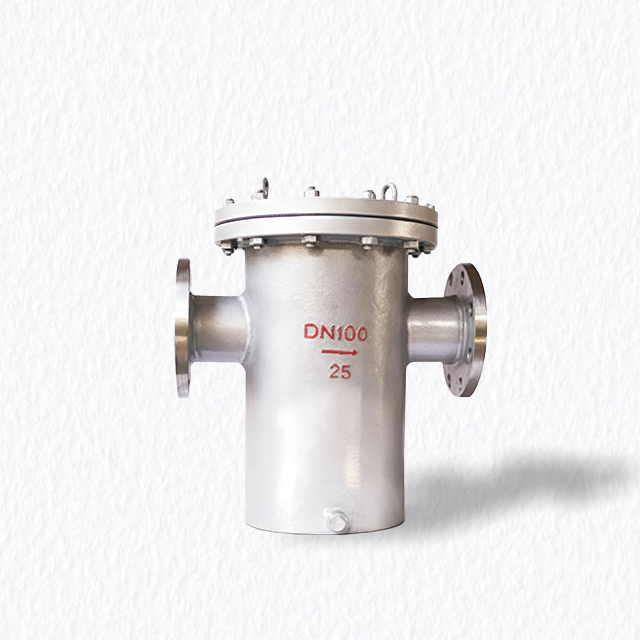

Basket Filter Housing
Basket Filter Housing Basket Filter Housing

loading

Basket Filter Housing

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LPB

  • Fine Chemical

  • Filter Housings

  • Metal

Availability:
Quantity:
Inquire Add to Basket


High Capacity Industrial Pipeline Basket Filter Housing for Heavy Contaminant Loads


This Pipeline Basket Filter Housing is designed for high-flow, high-contaminant pipeline applications. Its basket design provides 2–3 times the filtration area of standard pipeline filters, extending service life and reducing maintenance. The product contact surface is polished to Ra 0.4 μm for sanitary compliance, and bolt-cover or quick-release connections are available for flexible operation. A cost-effective solution for chemical, petroleum, and food industry fluid processing.


APPLICATIONS

• Petrochemical Processing: Pre-treatment and process filtration of crude oil, refined products and various hydrocarbons

• Basic Chemical Production: Handling corrosive chemicals including caustic soda and sulfuric acid for downstream equipment protection

• Cryogenic Process Systems: Contaminant removal and system protection for cryogenic media like liquid oxygen and ammonia

• Food & Beverage Processing: Clarification filtration and quality assurance for sanitary products including beer and dairy

• Pharmaceutical Industry: Pre-treatment and precision filtration of pharmaceutical solutions and syrups

• Industrial Water Treatment: Primary filtration and system protection for cooling water and processing water



BENEFITS OF BASKET FILTER HOUSING

• Superior Flow Capacity

Oversized filtration area minimizes system pressure drop while maintaining high flow rates

• Extended Service Intervals

Deep basket design provides substantial contaminant holding capacity, significantly prolonging operation cycles

• Effortless Maintenance

Innovative quick-open design enables fast access for cleaning and inspection, minimizing downtime

• Broad Application Range

Suitable for diverse industrial applications from sanitary materials to highly corrosive media

• Precision Surface Finish

Multi-stage polishing ensures smooth contact surfaces, preventing material buildup and bacterial growth



MATERIAL LINING NO. of FILTERS CONNECTION LENGTH(IN) SEAL INLET/OUTLET
304 Without 1 222 10'' Silicone Tri-Clamp DN25
316 PTFE 3 226 20'' EPDM Tri-Clamp DN40
WCB（Mild Steel） FPA 4 M20 30'' Viton Tri-Clamp DN50
PPH（Homopolymer PP） Fluorine 7 3M 40'' TEV Flange DN25

Butyronitrile 25 PARKER
Butyronitrile Flange DN40

PE 150 PALL
PTFE Flange DN50



PHOSPHOR

Flange DN80



38-5

Flange DN150






DIN Flange DN40


SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' SilFlange DN25icone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



download Basket Filter Housing from LOONG Filtration.pdf


What are the advantages and disadvantages of cleanable metal filter screens (such as basket filters)?

• Advantages: Long service life, reusable, low long-term cost, and resistance to high temperature and high pressure.

• Disadvantages: High initial investment; filtration performance may decrease slightly after cleaning (especially for precision filtration); manual cleaning is required, increasing maintenance workload.


What is the maximum working pressure of your filter housings and systems?

LOONG Filtration's industrial-grade filter housings are available in 150psi specifications, which can match most working conditions. If you have special requirements, please contact us, and we will customize the product for you.



Can you provide CAD drawings?

LOONG Filtration can provide 3D and 2D CAD drawings in various formats. Please inform us of your specific requirements.
