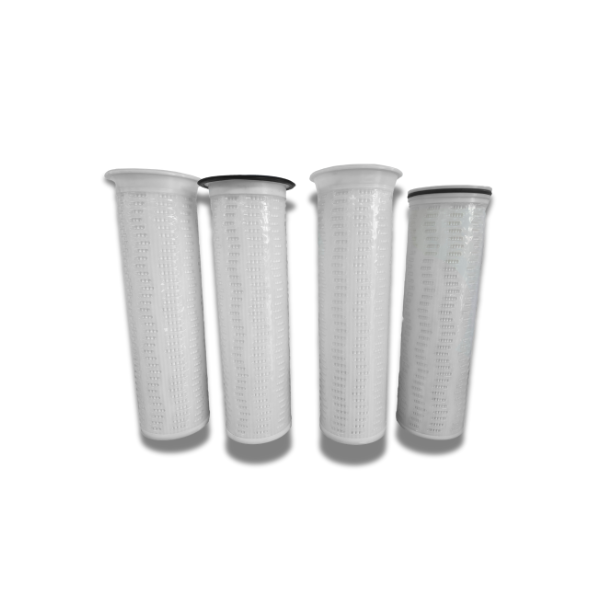

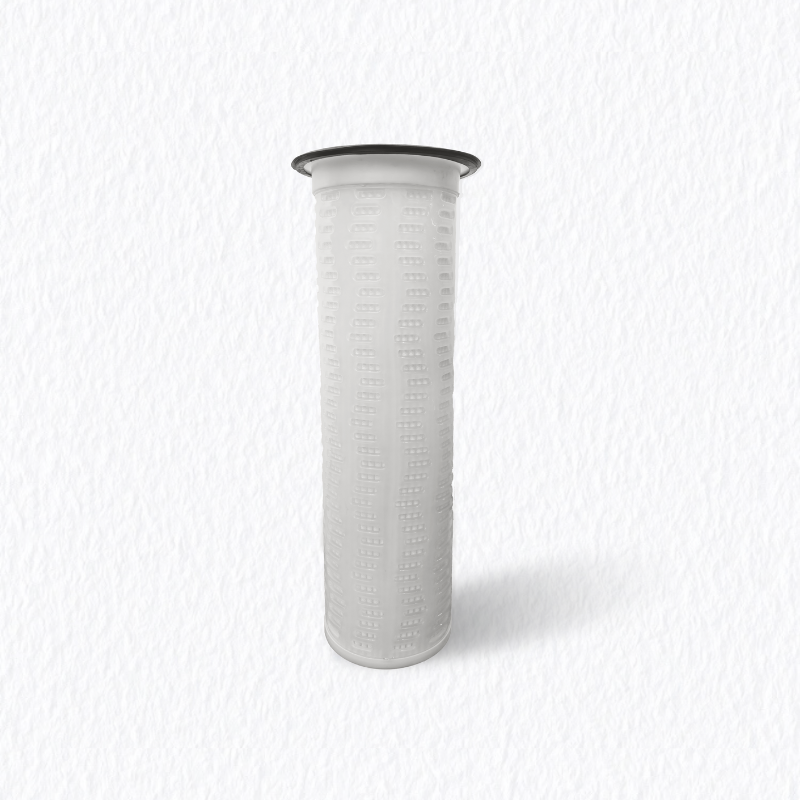

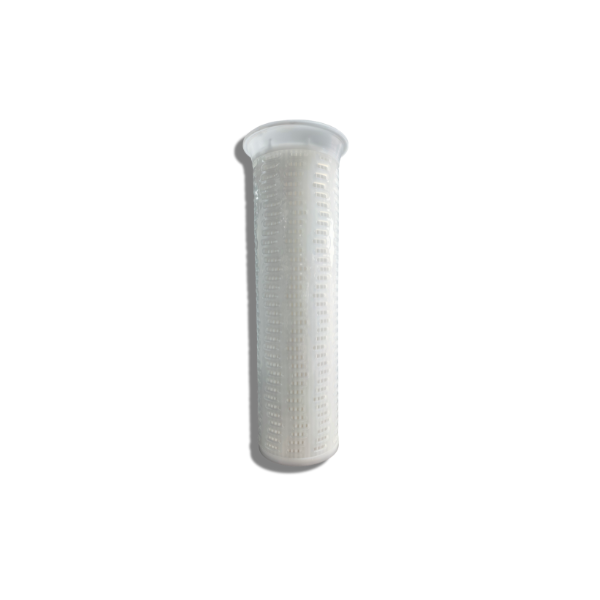

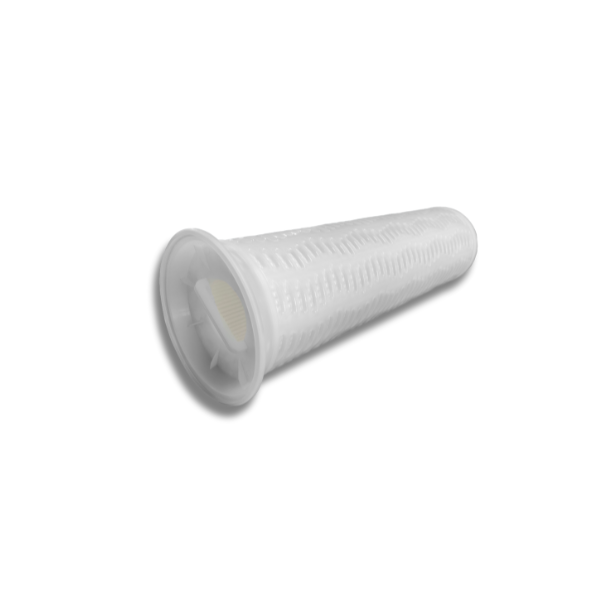

Bag Pleated Filter Cartridge
Bag Pleated Filter Cartridge Bag Pleated Filter Cartridge
Bag Pleated Filter Cartridge Bag Pleated Filter Cartridge
Bag Pleated Filter Cartridge Bag Pleated Filter Cartridge
Bag Pleated Filter Cartridge Bag Pleated Filter Cartridge

loading

Bag Pleated Filter Cartridge

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • HFD

  • Pharma&Biotech, Microelectronics, Food & Beverage, Fine Chemical, Water Treatment

  • Filter Bag

  • PTFE, PP

Availability:
Quantity:


Bag Pleated Filter Cartridge - Direct Filter Bag Replacement with 0.1μm Precision


This series of Bag  Pleated Filter Cartridge perfectly combines the high precision of pleated filters with the installation convenience of bag filters. It achieves seamless integration with existing bag filter housings, with interface dimensions fully compatible with traditional bag filters. Users can upgrade filtration precision to 0.1μm without replacing equipment. Particularly suitable for battery-grade, electronic-grade and other high-standard filtration applications.

Bag-Type Pleated Filter


APPLICATIONS

Industrial Wastewater Reclamation & Reuse: Ideal for pre-filtration and clarification in municipal and industrial water recycling systems, effectively handling variable and high-particulate loads.

 Food & Beverage:Beverage clarification (juices, wines & beverages),food ingredient purification (edible oils, syrups & dairy products).

 Fine Chemicals:High-value chemicals purification,precision filtration of process fluids.
 Water Treatment:Final filtration for industrial water,pretreatment for process water.
 Microelectronics:High-purity filtration for electronic chemicals,precision purification for battery materials.
 Pharma & Biotech:Clarification & sterilization for biologics,filtration of herbal extracts.



BENEFITS OF BAG PLEATED FILTER CARTRIDGE

 Exceptional Filtration Precision

Micro-fiber membrane with absolute pore size technology delivers reliable 0.1μm precision filtration

 Pure Filtration Quality

Non-fiber releasing and low extractables meet electronic-grade, battery-grade high purity requirements

 Superior Dirt Holding Capacity

Multi-gradient staged filtration structure provides super contaminant capacity, extending service life

 Optimized Flow Characteristics

Pleated structure creates super filtration area, achieving 4x flow rate increase in same size

 Perfect Equipment Compatibility

Patented interface design fully matches traditional bag filters, requiring no equipment modification


MATERIALS OF CONSTRUCTION

Membrane
Microfiber PP/PTFE
Cage & Support & End Caps
PP
Drainage
PP


PERFORMANCE CHARACTERISTICS

Working temperature
PP support<60℃
PP,GF reinforced support<85℃



SERIES MATERIAL RATING(μm) LENGTH(in) SUPPORT
HFD PP 0.1μm 20'' PP

PTFE 0.22μm 30'' GF


0.4μm 40''


0.8μm 60''


1.0μm



1.2μm



3.0μm



5.0μm



10.0μm



20.0μm

SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




What is the difference between bag pleated filer cartridge and filter bag?

Bag pleated filter cartridges combine the high flow rate of high-flow filter cartridges with the ease of installation of filter bags. Current filter bags suffer from low retention efficiency and poor filtration performance, especially for battery-grade and electronic-grade products, which cannot meet the filtration standards of conventional filter bags. Bag-type pleated filter cartridges, however, can achieve a filtration precision as low as 0.1μm.


Why LOONG Filtration design this kind of bag pleated filter cartridge?

Current filter bags have low retention efficiency and poor filtration effect, making it difficult to meet customers' filtration needs. However, customers want to improve filtration efficiency without replacing bag filters. Therefore, LOONG Filtration has developed this filter cartridge for this type of customer.


Are the interfaces of bag pleated filter cartridges and filter bags the same?

Yes, and the installtion way is totally same with filer bag.


What type of filter is used in bag pleated filter cartridges?

Same with filter bag, so customer no need to replace the new filter.


Is one-stop shopping at LOONG filtration possible?

LOONG Filtration is dedicated to provide one-stop shopping experience, to simplify customers' purchasing process. We have a wide variety of products covering a wide range offields, so we believe you can find what you need.
