YBFN
Pharma&Biotech, Microelectronics, Food & Beverage, Fine Chemical
Filter Bag
Nylon
| Availability: | |
|---|---|
| Quantity: | |

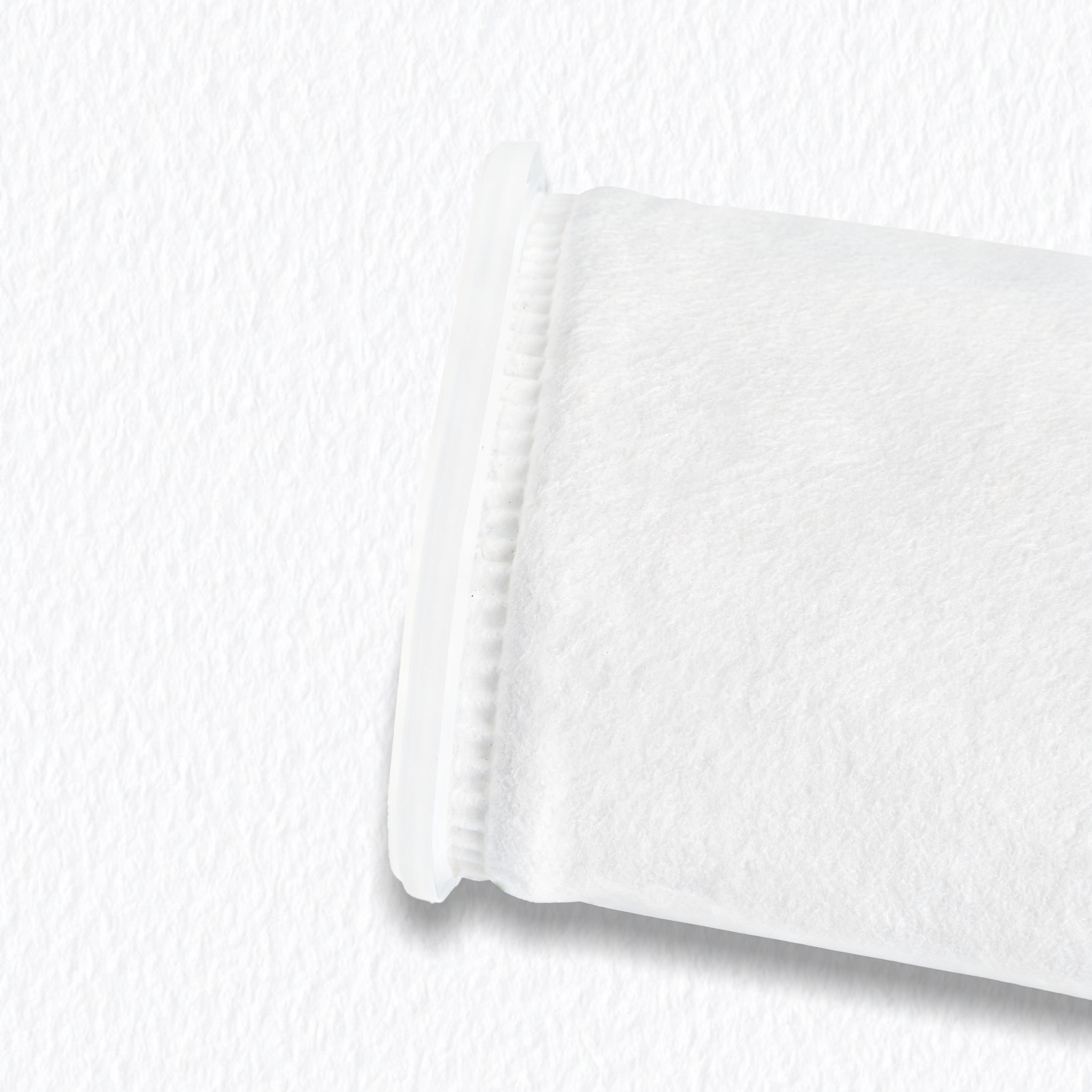

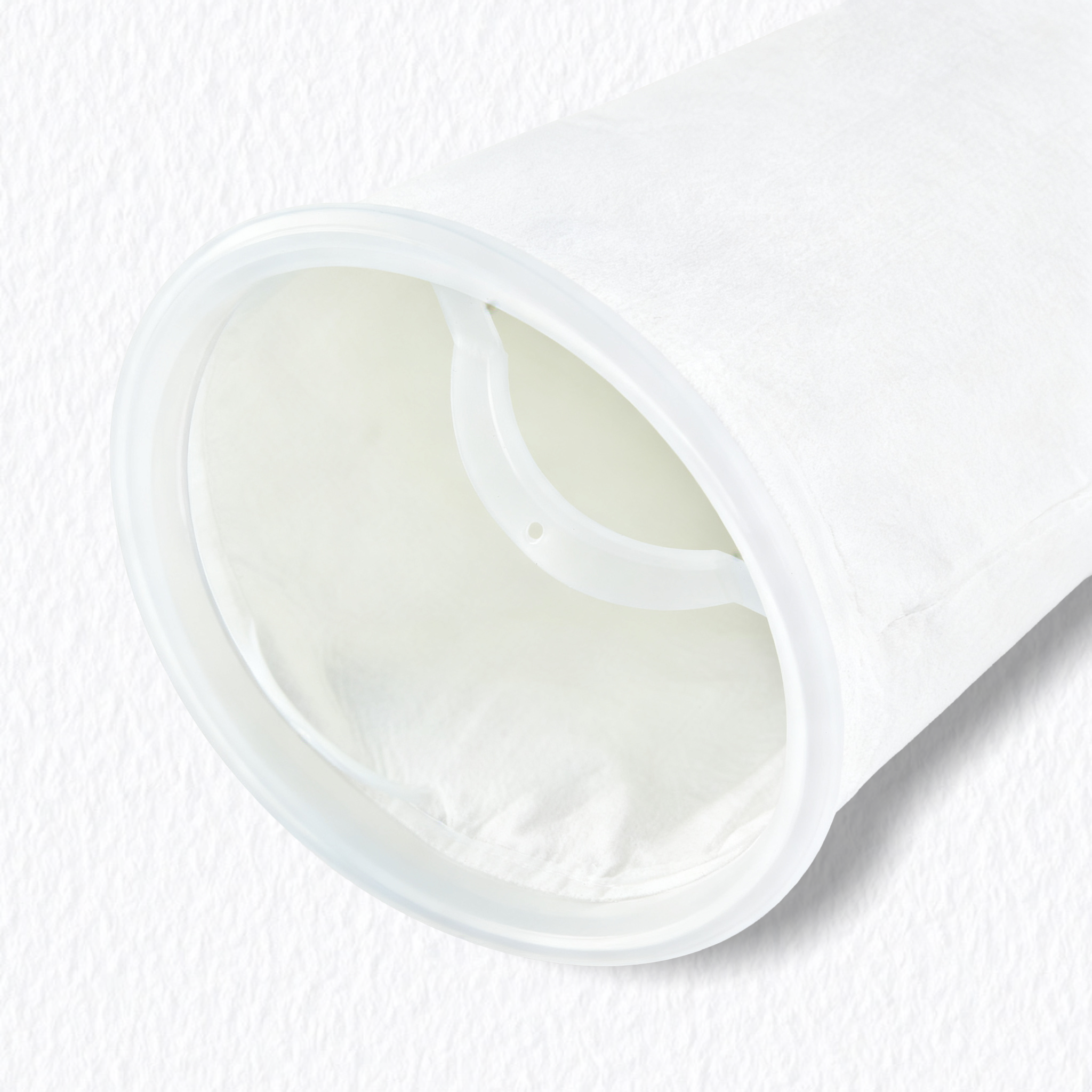

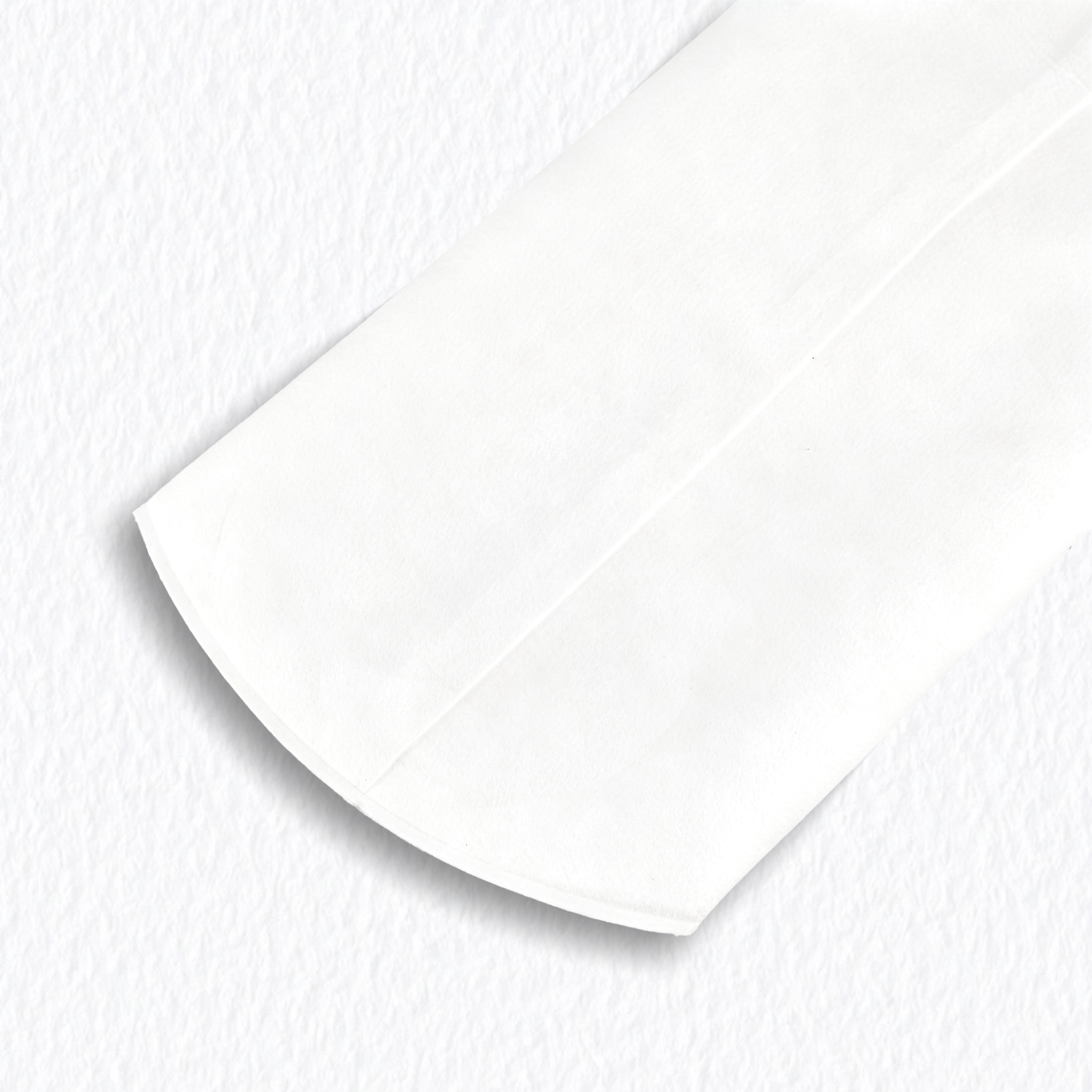

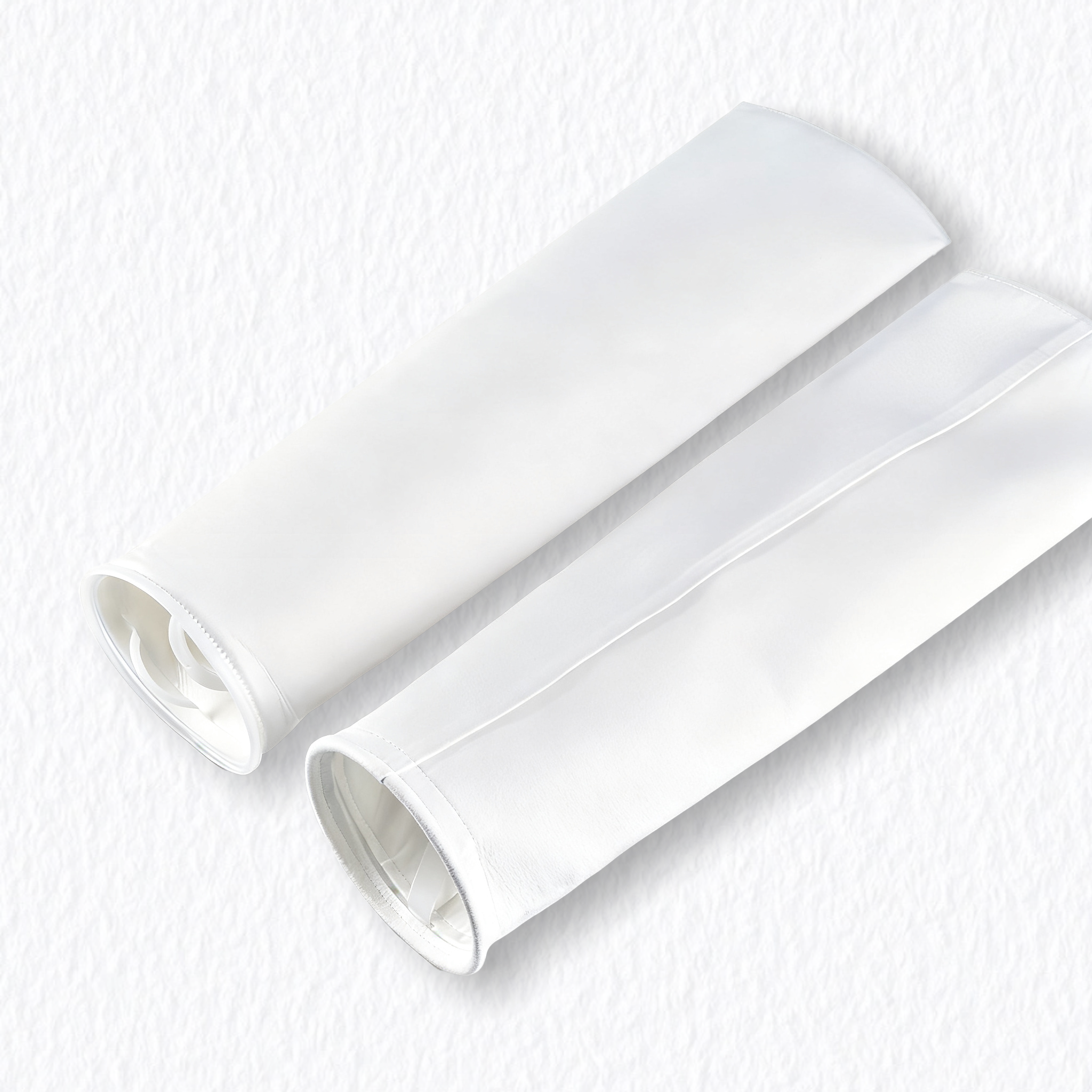

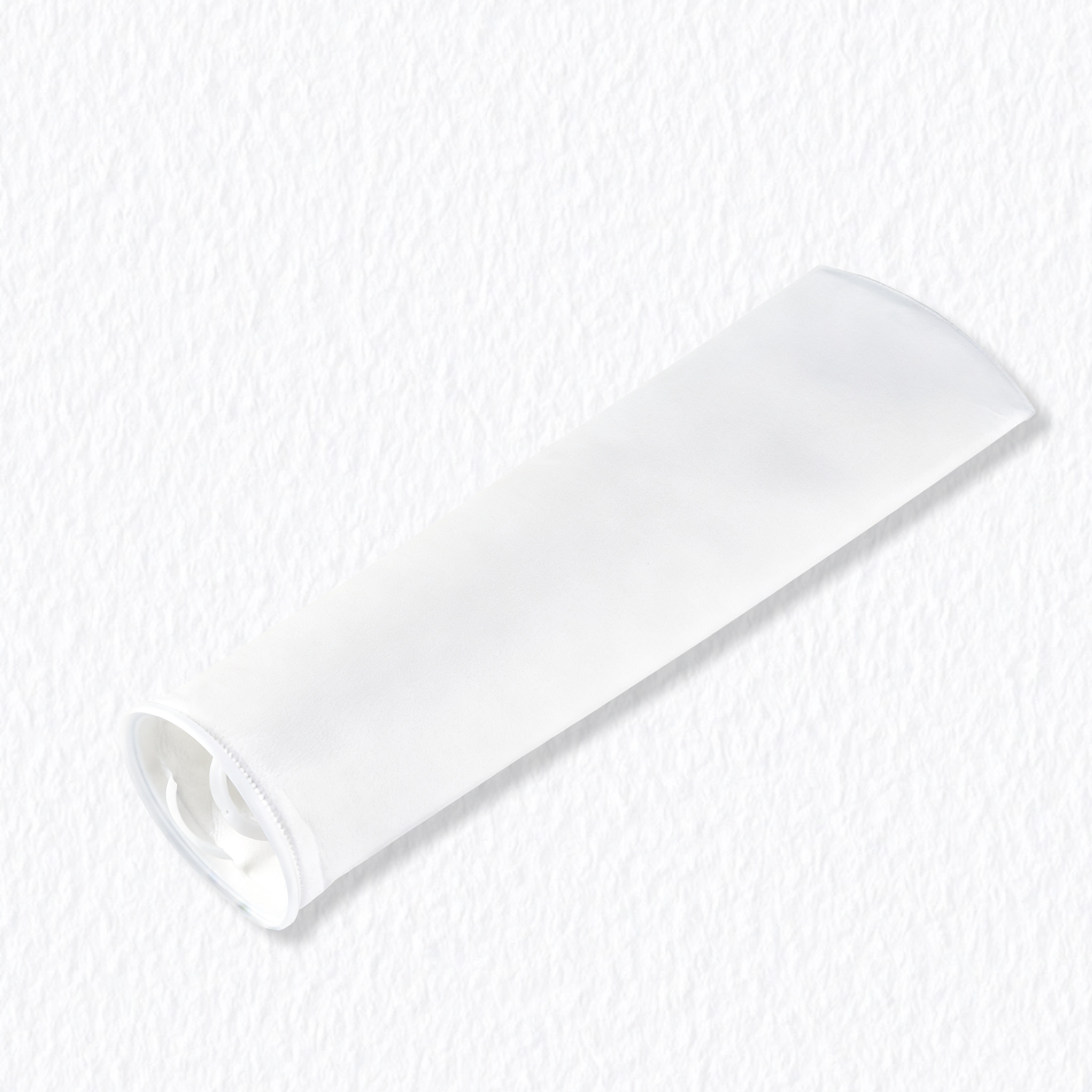

Industrial Monofilament Nylon Filter Bags for Food Grade, Paint & General Industrial Model
This series of Nylon Filter Bags features a stable pore structure designed for specialized hard particle filtration. Available in three application-specific grades: a paint and ink industry model that captures free silicon and oils; an FDA-compliant Nylon 66 version for food and pharmaceutical use; and a general-purpose model for standard industrial particle removal. Each grade is precision-engineered to deliver optimized performance in its target application.
APPLICATIONS
• Food & Beverage Industry: FDA-compliant models for filtering edible oils, syrups, beverages, and process water, ensuring safety and hygiene.
• Pharmaceutical & Biotech: Suitable for pre-filtration of process water and pharmaceutical solutions, adhering to relevant hygienestandards.
• General Industrial Fluids: Used for filtering coolants, cutting fluids, plating solutions, etc., to remove abrasive particulate contaminants and protect equipment.
• Electronics Industry Solvent Filtration: For filtering high-purity solvents to prevent particulate contamination of sensitive components.
Industrial Monofilament Nylon Filter Bags for Food Grade, Paint & General Industrial Model
This series of Nylon Filter Bags features a stable pore structure designed for specialized hard particle filtration. Available in three application-specific grades: a paint and ink industry model that captures free silicon and oils; an FDA-compliant Nylon 66 version for food and pharmaceutical use; and a general-purpose model for standard industrial particle removal. Each grade is precision-engineered to deliver optimized performance in its target application.
APPLICATIONS
• Food & Beverage Industry: FDA-compliant models for filtering edible oils, syrups, beverages, and process water, ensuring safety and hygiene.
• Pharmaceutical & Biotech: Suitable for pre-filtration of process water and pharmaceutical solutions, adhering to relevant hygienestandards.
• General Industrial Fluids: Used for filtering coolants, cutting fluids, plating solutions, etc., to remove abrasive particulate contaminants and protect equipment.
• Electronics Industry Solvent Filtration: For filtering high-purity solvents to prevent particulate contamination of sensitive components.
• Stable Pore Structure & Precision Filtration
The monofilament woven construction ensures uniform and stable pore sizes without fiber migration, providing reliable retention of hard particles with consistent accuracy.
• Excellent Abrasion Resistance & Long Life
Nylon material offers outstanding mechanical strength and abrasion resistance, making it particularly suitable for filtering fluids with hard particles and ensuring a long service life.
• Targeted Solutions for Specific Needs
Availability of specialized models (e.g., for capturing silicon and oils in paint) addresses the unique filtration challenges of specific industries.
• Safe & Compliant Food-Grade Option
Select models are made from FDA-compliant Nylon 66 material, being non-toxic and tasteless, ensuring safety for use in hygiene-critical industries like food and pharmaceuticals.
MATERIALS OF CONSTRUCTION
| Material | Nylon |
| Seal | PP/PE/Nylon/SS304/SS316L/Galvanized |
• Stable Pore Structure & Precision Filtration
The monofilament woven construction ensures uniform and stable pore sizes without fiber migration, providing reliable retention of hard particles with consistent accuracy.
• Excellent Abrasion Resistance & Long Life
Nylon material offers outstanding mechanical strength and abrasion resistance, making it particularly suitable for filtering fluids with hard particles and ensuring a long service life.
• Targeted Solutions for Specific Needs
Availability of specialized models (e.g., for capturing silicon and oils in paint) addresses the unique filtration challenges of specific industries.
• Safe & Compliant Food-Grade Option
Select models are made from FDA-compliant Nylon 66 material, being non-toxic and tasteless, ensuring safety for use in hygiene-critical industries like food and pharmaceuticals.
MATERIALS OF CONSTRUCTION
| Material | Nylon |
| Seal | PP/PE/Nylon/SS304/SS316L/Galvanized |
| SERIES | MATERIAL | RATING(μm) | SIZE | LENGTH(in) | SEAL | LAYER |
| Electronics | Nylon | 1.0μm | φ180X430 | 2.5'' | PP | Single |
| Phamarmical | 3.0μm | φ180X810 | 5'' | PE | Double | |
| Chemical | 5μm | φ105X230 | 10'' | Nylon | ||
| Beverage | 50μm | φ105X380 | 20'' | 304 | ||
| φ150X560 | 30'' | 316L | ||||
| None Stand | 40'' | Galvanized |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | SIZE | LENGTH(in) | SEAL | LAYER |
| Electronics | Nylon | 1.0μm | φ180X430 | 2.5'' | PP | Single |
| Phamarmical | 3.0μm | φ180X810 | 5'' | PE | Double | |
| Chemical | 5μm | φ105X230 | 10'' | Nylon | ||
| Beverage | 50μm | φ105X380 | 20'' | 304 | ||
| φ150X560 | 30'' | 316L | ||||
| None Stand | 40'' | Galvanized |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
What are the industries that use LOONG’s filter cartridges?
LOONG’s filter cartridges find applications in a wide range of industries, including food and beverage, micro-electronics, life and science, industry,water treatment and laboratory use.
What certifications do LOONG Filtration company and filter cartridge hold?
Our products are tested and certified by authoritative agencies, complying with ISO, FDA, ROHS, and GMP standards where applicable. Certificates are available on our website.
Do you accept OEM/ODM for filtration products?
Yes, OEM/ODM is available. Send your detailed requirements to us.We are analyse it and provide professional solutions and proposals for your choice and help design appropriate filters.
What's the after-sale service?
When you receive the product, we will provide a video guide to help you install it. We can perform a labexamination of the product after you use it in order to produce a more effective and targeted product. In addition to this, we offer a guarantee if the product is not damaged by any external forces.
How can LOONG Filtration ensure the quality of products?
LOONG Filtration has sent our products to authoritative organizations to do tests, and you can check all the certificates on our product quality page.
What are the industries that use LOONG’s filter cartridges?
LOONG’s filter cartridges find applications in a wide range of industries, including food and beverage, micro-electronics, life and science, industry,water treatment and laboratory use.
What certifications do LOONG Filtration company and filter cartridge hold?
Our products are tested and certified by authoritative agencies, complying with ISO, FDA, ROHS, and GMP standards where applicable. Certificates are available on our website.
Do you accept OEM/ODM for filtration products?
Yes, OEM/ODM is available. Send your detailed requirements to us.We are analyse it and provide professional solutions and proposals for your choice and help design appropriate filters.
What's the after-sale service?
When you receive the product, we will provide a video guide to help you install it. We can perform a labexamination of the product after you use it in order to produce a more effective and targeted product. In addition to this, we offer a guarantee if the product is not damaged by any external forces.
How can LOONG Filtration ensure the quality of products?
LOONG Filtration has sent our products to authoritative organizations to do tests, and you can check all the certificates on our product quality page.
