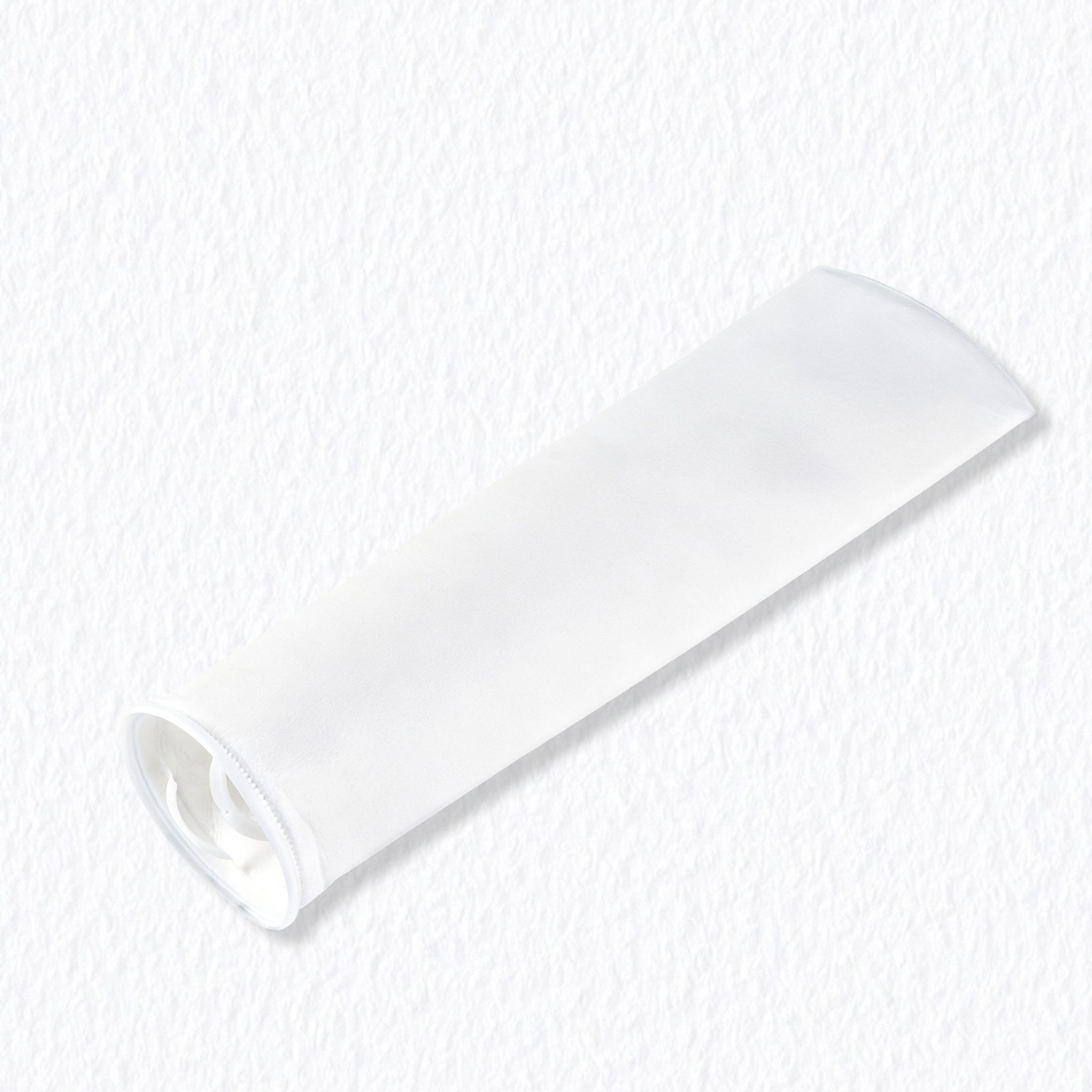

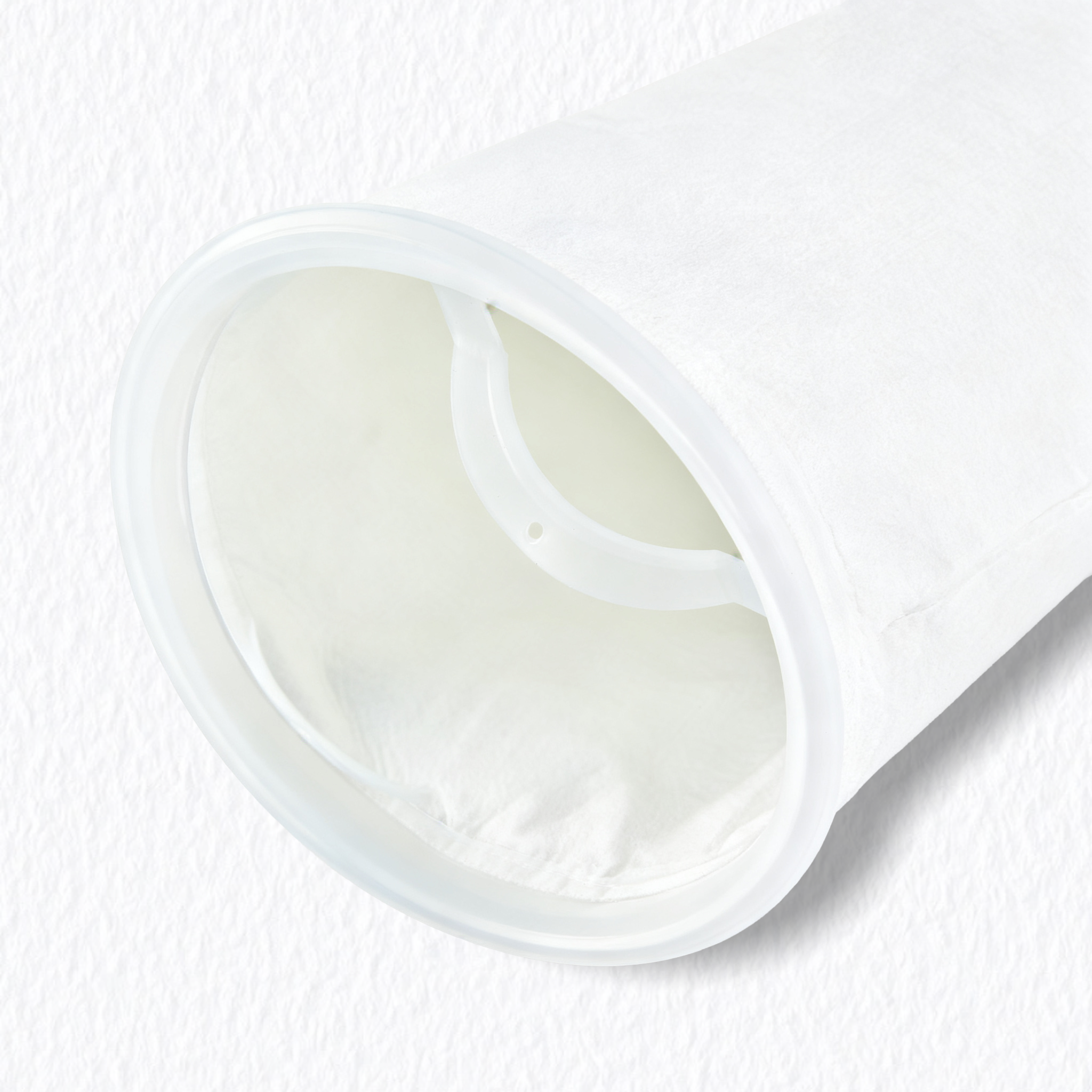

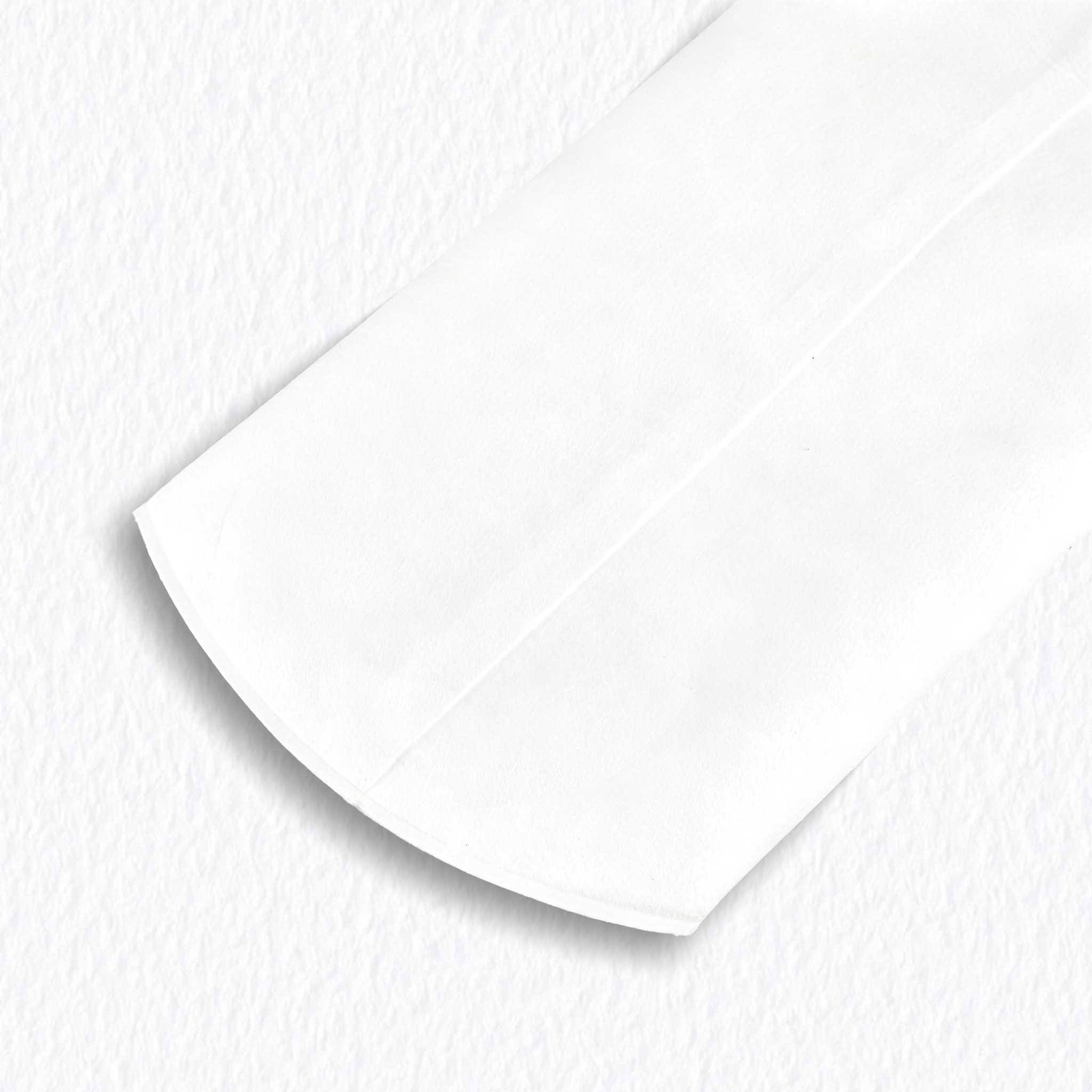

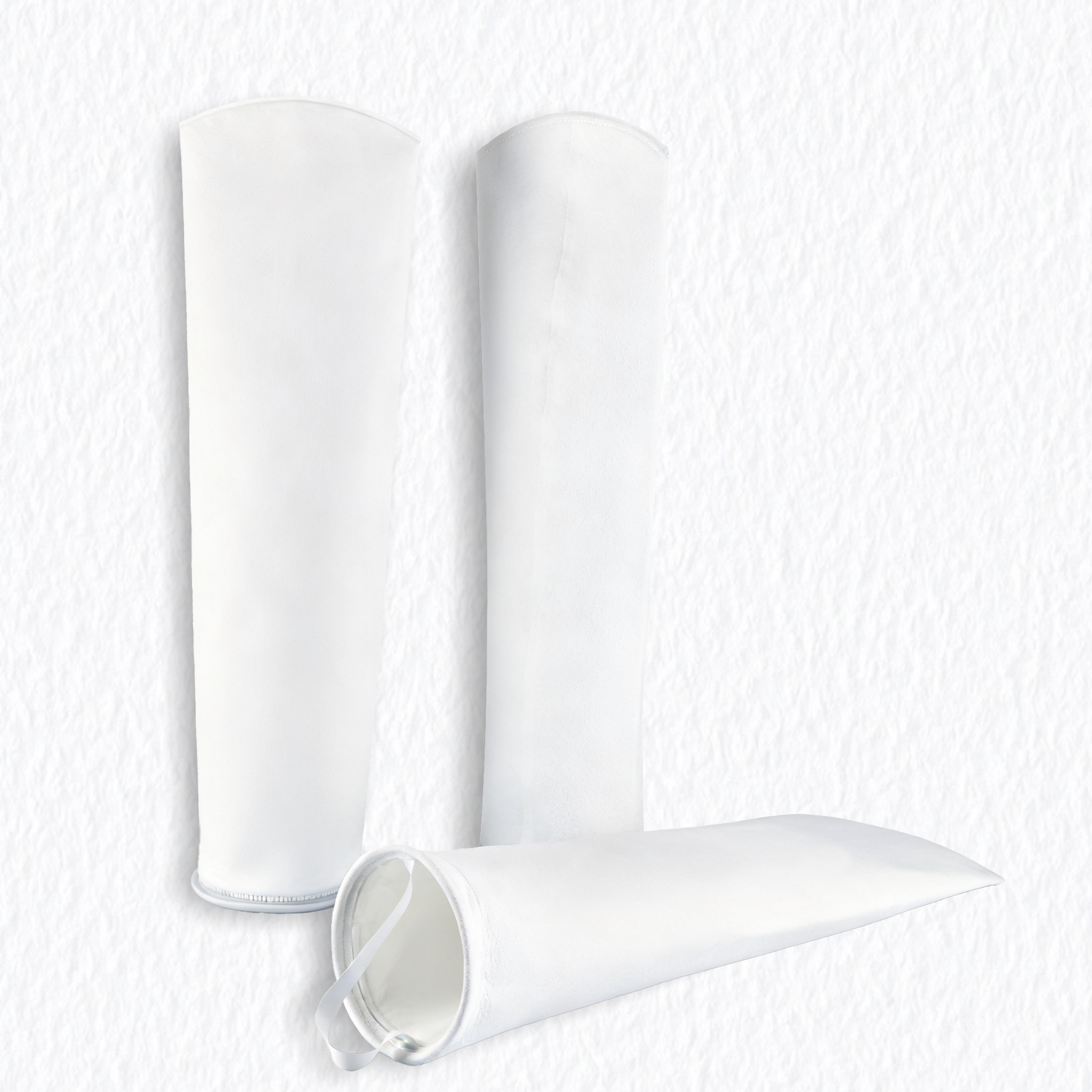

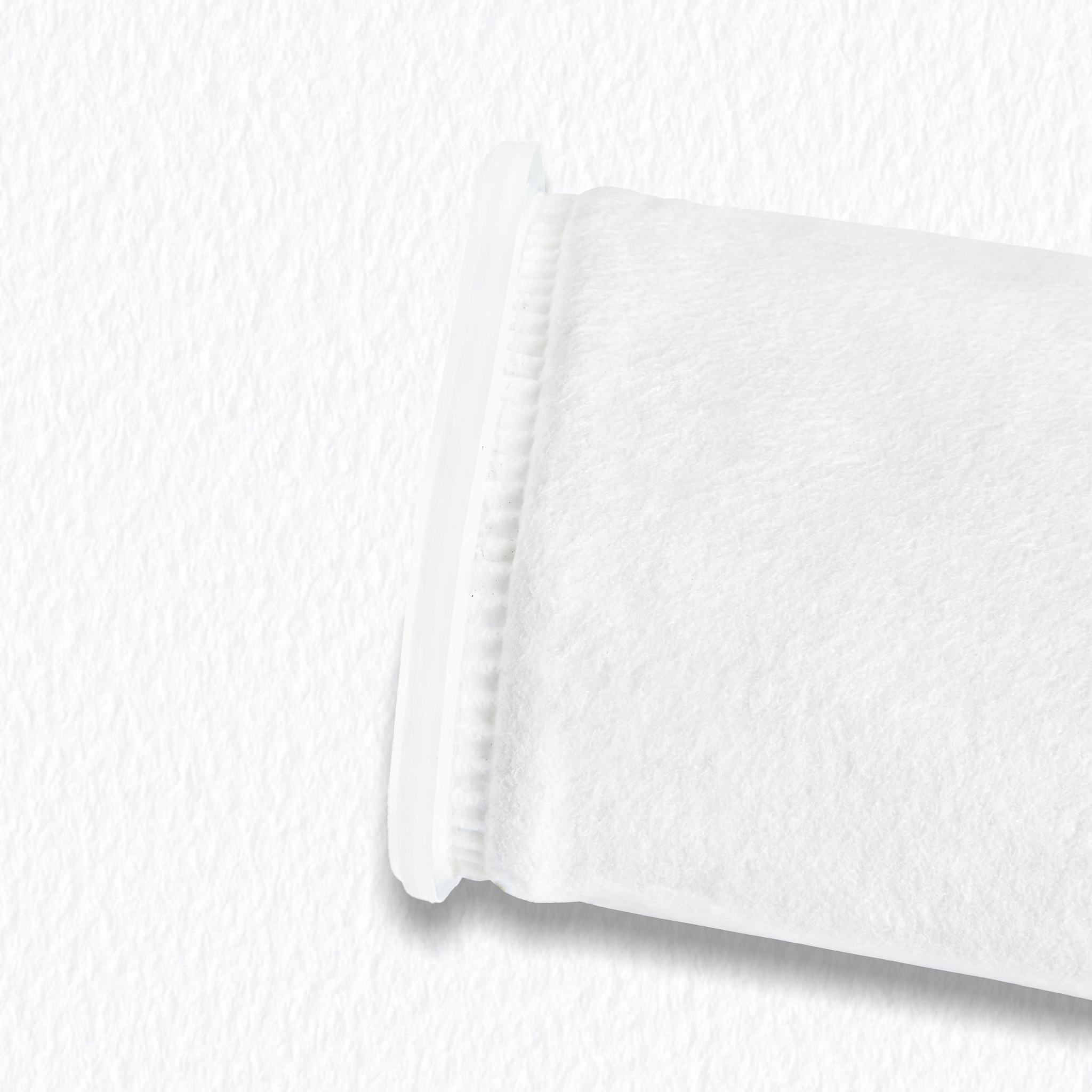

Polypropylene (PP) Depth Filter Bag
Polypropylene (PP) Depth Filter Bag Polypropylene (PP) Depth Filter Bag
Polypropylene (PP) Depth Filter Bag Polypropylene (PP) Depth Filter Bag
Polypropylene (PP) Depth Filter Bag Polypropylene (PP) Depth Filter Bag
Polypropylene (PP) Depth Filter Bag Polypropylene (PP) Depth Filter Bag
Polypropylene (PP) Depth Filter Bag Polypropylene (PP) Depth Filter Bag

loading

Polypropylene (PP) Depth Filter Bag

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • YBFP

  • Pharma&Biotech, Microelectronics, Food & Beverage, Fine Chemical, Water Treatment

  • Filter Bag

  • PP

Availability:
Quantity:
Inquire Add to Basket


High Dirt Capacity, Low Pressure Drop Polypropylene (PP) Depth Filter Bag for Liquids


This series of Filter Bags are produced using a melt-blown process to form a lofty three-dimensional structure, enabling gradient depth filtration that captures particles of varying sizes both on the surface and within the media. The surface is thermally sintered to secure fibers in place, preventing migration and secondary contamination while maintaining high permeability. As a result, the bags deliver high dirt-holding capacity, consistent retention efficiency, low pressure drop, and extended service life—without the pore-clogging issues common with calendered filter media.


APPLICATIONS

• Chemical Liquid Filtration: Ideal for filtering various acid/alkali solutions, organic solvents, and chemical intermediates in the chemical and pharmaceutical industries for purification.

• Industrial Water Treatment: Used in pre-treatment systems, cooling water, and wastewater treatment to remove suspended solids, sediments, and impurities.

• Plating & Surface Treatment: Effective in filtering plating baths, electroless plating solutions, and pre-treatment liquids for coating, extending bath life and ensuring product quality.

• Food & Beverage Industry: Suitable for filtering syrups, edible oils, beverages, and process water where high standards of hygiene and safety is required.






BENEFITS OF POLYPROPYLENE (PP) DEPTH FILTER BAG

• High-Efficiency Depth Filtration & Capacity

The three-dimensional, lofty structure offers a large contaminant adsorption capacity. The gradient filtration mechanism ensures high efficiency and a dirt-holding capacity far superior to surface filters.

• Superior Fiber Locking Technology

The heat sintering treatment securely bonds the fibers, completely eliminating fiber shedding and ensuring filtrate purity with no risk of secondary contamination.

• Low Operating Pressure Drop & High Flow Rate

The unique manufacturing process prevents pore clogging, resulting in low fluid resistance, reduced system energy consumption, and faster flow rates at comparable filtration ratings.

• Excellent Chemical Compatibility

The Polypropylene (PP) material offers good resistance to a wide range of chemicals, including acids, alkalis, and solvents, making it suitable for diverse applications.


MATERIALS OF CONSTRUCTION

Material
PP
Seal PP/PE/Nylon/SS304/SS316L/Galvanized




SERIES MATERIAL RATING(μm) SIZE LENGTH(in) SEAL LAYER
Electronics PP 1.0μm φ180X430 2.5'' PP Single
Phamarmical PP Coating 3.0μm φ180X810 5'' PE Double
Chemical
5μm φ105X230 10'' Nylon
Beverage
50μm φ105X380 20'' 304



φ150X560 30'' 316L



None Stand 40'' Galvanized
SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



download PP FILTER BAG from LOONG Filtration.pdf


Is one-stop shopping at LOONG filtration possible?

LOONG Filtration is dedicated to provide one-stop shopping experience, to simplify customers' purchasing process. We have a wide variety of products covering a wide range offields, so we believe you can find what you need.


What are the materials that are used in the construction of filter media or membrane?

Cotton, cellulose, glass fiber, polypropylene, nylon, polyphenylene sulfide (PSS) and a variety of polymeric materials are used in the construction of filter media or membrane.


What kind of fluids can be filtered with LOONG’s filter elements?

LOONG’s filter elements can remove solid contaminants and microorganisms from water, oils, solvents, fuels, aqueous solutions and other process fluids.


How often should filter cartridges be replaced?

Replacement intervals depend on operating conditions, contaminant load, and pressure drop. Regular monitoring and our technical support can help optimize maintenance schedules and reduce downtime.


Do you provide technical support and training?

Absolutely. Our engineers offer ongoing support, installation guidance, and training to help you maximize filter performance and operational efficiency.


CONNECT NOW FOR A QUICK REPLY

Have a quiry? Contact us now and we'll get back to you promptly.
INQUIRY

RELATED PRODUCTS

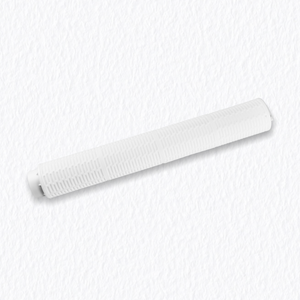

Ultra-Heat Resistant Large Flow Filter Cartridge
Ultra-Heat Resistant Large Flow Filter Cartridge

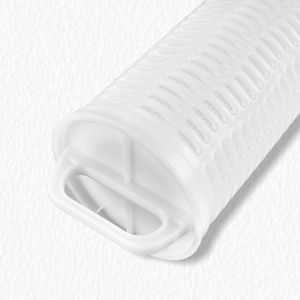

High Flow Pleated Filter Cartridge
High Flow Pleated Filter Cartridge

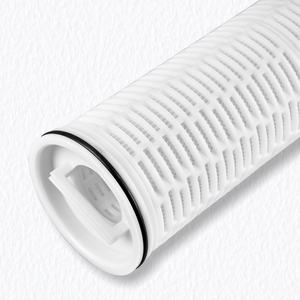

Close-up of Ultra-High Dirt Capacity Filter Cartridge showing nanofiber PP pleated media and high-quality O-ring seal for industrial wastewater filtration.
Ultra-High Dirt Capacity Filter Cartridge - 3X Longer Life
Melt Blown Filter Cartridge LOONG Filtration
Melt Blown Filter Cartridge
Sintered Filter Cartridge LOONG Filtration
Sintered Filter Cartridge

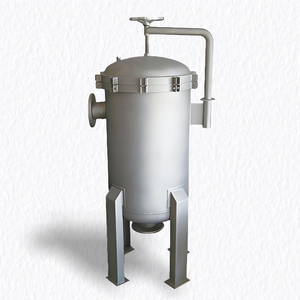

Stainless Steel Bag Filter Housing
