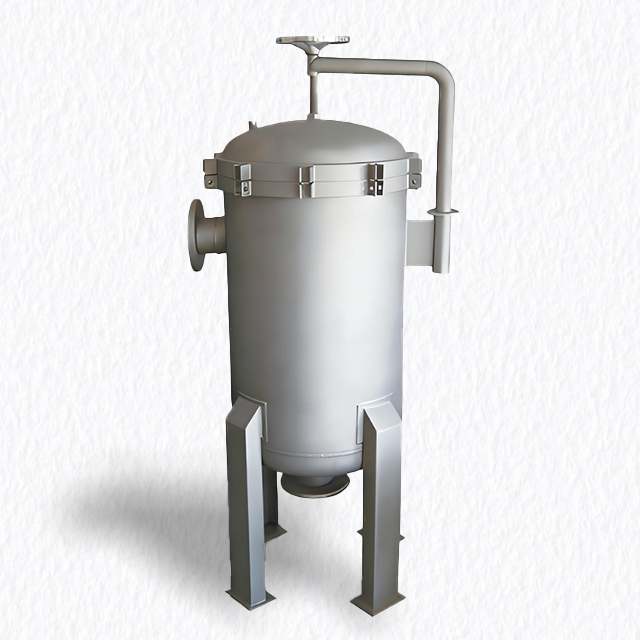

High Capacity Stainless Steel Bag Filter
Housing for Chemical Process Applications
This Stainless Steel Bag Filter Housing (304/316L) utilizes heat-sealed filter bags
and a leak-proof seal for reliable containment. Its multi-bag design increases
filtration area and dirt-holding capacity, while optional internal coatings enhance
corrosion resistance. Compatible with single or multiple bags—including functional
types like activated carbon—it supports flexible configurations for impurity removal
and fluid refinement in fine chemical processing.
Clarification filtration for various fine chemicals, ensuring product purity and quality consistency
Filtration of impurities in electroplating baths, extending solution life and improving coating quality
Removal of particulate matter in paint and ink production, ensuring product fineness and uniformity
Precision filtration during pharmaceutical intermediate synthesis, preventing impurity interference
Preliminary filtration of high-concentration wastewater, reducing load on downstream treatment systems
Enhanced Filtration Efficiency
Multi-bag parallel design offers large filtration area, enabling high-speed processing and extended operation with reduced downtime
Reliable Sealing Performance
Unique structural design combined with quality sealing materials ensures leak-free operation under high pressure, guaranteeing operational safety
Superior Corrosion Resistancey
Optional internal coating or lining significantly enhances equipment durability against highly corrosive chemical media
Flexible Configuration Options
Supports flexible single to multi-bag arrangements, compatible with various bag types including plastic and metal ring designs
Optimized cover opening mechanism allows quick and easy bag replacement, significantly reducing maintenance time and labor costs
Housing |
SUS304/316L stainless steel |
Screen Holder |
304/316L Stainless Steel |
Seal |
Silicone/EPDM/Viton/TEV |
Max. Temperature |
150 ℃ |
Max. Differential Pressure |
8 bar |
Inlet/Outlet |
Flange/Tri-Clamp/Thread |
Gauge port |
Thread |
MATERIAL |
LINING |
NO. of FILTERS |
CONNECTION |
LENGTH(IN) |
SEAL |
INLET/OUTLET |
304 |
Without |
1 |
222 |
10'' |
Silicone |
Tri-Clamp DN25 |
316 |
PTFE |
3 |
226 |
20'' |
EPDM |
Tri-Clamp DN40 |
WCB(Mild Steel) |
FPA |
4 |
M20 |
30'' |
Viton |
Tri-Clamp DN50 |
PPH(Homopolymer PP) |
Fluorine |
7 |
3M |
40'' |
TEV |
Flange DN25 |
Butyronitrile |
25 |
PARKER |
Butyronitrile |
Flange DN40 |
||
PE |
150 |
PALL |
PTFE |
Flange DN50 |
||
PHOSPHOR |
Flange DN80 |
|||||
38-5 |
Flange DN150 |
|||||
DIN Flange DN40 |
What is the Stainless Steel Bag Filter Housing mainly used for?
The Stainless Steel Bag Filter Housing is designed for high-capacity liquid filtration in chemical and industrial processes. Typical applications include fine chemical production, electroplating solution recycling, paint and ink purification, pharmaceutical intermediate filtration, and industrial wastewater pretreatment where relatively high contaminant loads need to be removed efficiently.
How do I choose between a single-bag and multi-bag filter housing?
The correct configuration depends mainly on required flow rate, contaminant loading, allowable pressure drop, batch volume, and desired bag replacement frequency. Single-bag housings are suitable for lower-flow systems, while multi-bag configurations provide a larger total filtration area for higher throughput and longer operating cycles.
What types of filter bags can be used in this housing?
The housing can be configured with different filter bag materials and functional media depending on the process. Besides conventional particle-removal bags, specialized bag media such as activated carbon or other functional materials may be considered where adsorption or additional impurity removal is required. Final selection should match the fluid, filtration objective, and chemical compatibility requirements.
Is this bag filter housing suitable for corrosive chemical liquids?
The housing is available in SUS304 or SUS316L stainless steel, with optional internal coatings or linings for more demanding chemical environments. Suitability depends on the specific chemical, concentration, operating temperature, contact time, and seal material. All wetted materials should therefore be checked against the actual process fluid before final selection.
What operating limits should be considered for this bag filter housing?
The listed maximum operating temperature is 150°C, and the maximum differential pressure is 8 bar. Actual allowable conditions also depend on housing material, filter bag construction, seal material, connection type, and process fluid. Temperature and pressure should always be evaluated together when confirming the final configuration.
How do I select the correct Stainless Steel Bag Filter Housing for my process?
Selection should consider process fluid, required flow rate, contaminant concentration, filtration rating, operating temperature and pressure, bag quantity, housing material, internal lining, seal material, inlet/outlet size, and connection type. For high-solids or high-throughput applications, the required filtration area and expected bag change-out frequency should also be considered.
