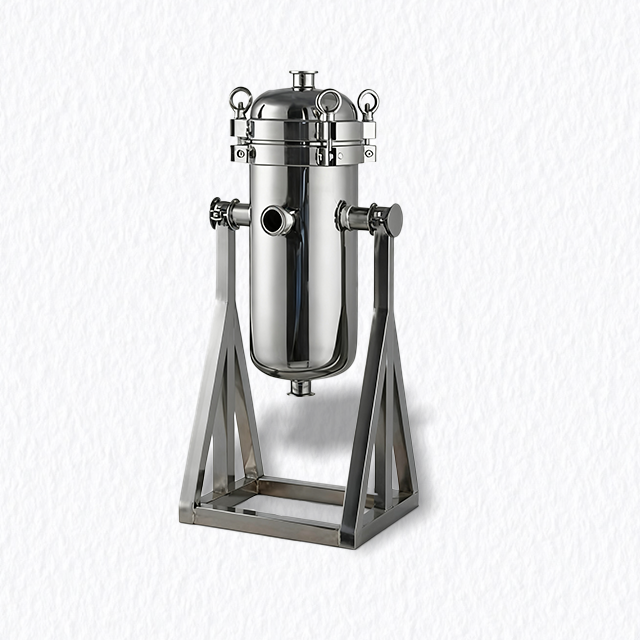

Swing-Type Titanium Rod Filter Housing
Swing-Type Titanium Rod Filter Housing Swing-Type Titanium Rod Filter Housing

loading

Swing-Type Titanium Rod Filter Housing

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LT

  • Pharma&Biotech, Food & Beverage, Fine Chemical

  • Filter Housings

  • Metal

Availability:
Quantity:
Inquire Add to Basket


180° Rotation Design Swing-Type Titanium Rod Filter GMP Standard for Pharmaceutical and Chemical Applications


This wing-Type Titanium Rod Filter Housing features a 304/316L stainless steel construction and high-temperature sintered titanium elements. Its 180° rotation design enables complete drainage and cleaning to prevent cross-contamination. The titanium elements, manufactured via powder metallurgy, provide strong corrosion resistance and mechanical strength, making them ideal for decarbonization filtration in large-scale infusion and injection production. GMP-compliant and compact, the system delivers reliable solid-liquid separation for food, pharmaceutical, and chemical applications.


APPLICATIONS

• Pharmaceutical Decarbonization: Activated carbon removal and liquid clarification in large infusion, injection, and eye drop production

• Pharmaceutical Intermediate Production: Filtration and purification of APIs and intermediates to ensure product quality

• Biotechnology Applications: Clarification filtration of fermentation broths and culture media, and cell harvesting

• Chemical Production: Solid-liquid separation and purification of corrosive chemicals including strong acids and alkalis

• Food & Beverage Processing: Precision filtration and impurity removal for juices, alcoholic beverages, and edible oils



BENEFITS OF SWING-TYPE TITANIUM ROD FILTER HOUSING

• Innovative Swing Design

180° rotation enables complete drainage and cleaning, eliminating residue and cross-contamination risks

• Superior Filter Element Performance

Sintered titanium elements combine high precision filtration with excellent corrosion and temperature resistance

• GMP Compliance

Entire system designed according to Good Manufacturing Practice standards, meeting pharmaceutical industry requirements

• Optimized Fluid Dynamics

Structure designed based on hydrodynamic principles ensures low resistance and high flow velocity

• Convenient Operation & Maintenance

Quick-disassembly design simplifies installation and maintenance procedures



MATERIAL LINING NO. of FILTERS CONNECTION LENGTH(IN) SEAL INLET/OUTLET
304 Without 1 222 10'' Silicone Tri-Clamp DN25
316 PTFE 3 226 20'' EPDM Tri-Clamp DN40
WCB（Mild Steel） FPA 4 M20 30'' Viton Tri-Clamp DN50
PPH（Homopolymer PP） Fluorine 7 3M 40'' TEV Flange DN25

Butyronitrile 25 PARKER
Butyronitrile Flange DN40

PE 150 PALL
PTFE Flange DN50



PHOSPHOR

Flange DN80



38-5

Flange DN150






DIN Flange DN40


SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' SilFlange DN25icone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



download Stainless Steel Titanium Rod Filter Housing from LOONG Filtration.pdf


If contaminants are found downstream of the filter, what could be the reasons?

Possible reasons include: damaged filter element (cracked or perforated); poor sealing between the filter element and the housing, resulting in "bypass"; introduction of new contaminants during installation; or selection of inappropriate filtration precision. Please contact LOONG Filtration, after sale service team will contact you asap.


What is the maximum working pressure of your filter housings and systems?

LOONG Filtration's industrial-grade filter housings are available in 150psi specifications, which can match most working conditions. If you have special requirements, please contact us, and we will customize the product for you.



Can you provide CAD drawings?

LOONG Filtration can provide 3D and 2D CAD drawings in various formats. Please inform us of your specific requirements.
