Candle Filter with Backwash System
Candle Filter with Backwash System Candle Filter with Backwash System

loading

Candle Filter with Backwash System

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LC

  • Fine Chemical

  • Filter Housings

  • Metal

Availability:
Quantity:
Inquire Add to Basket

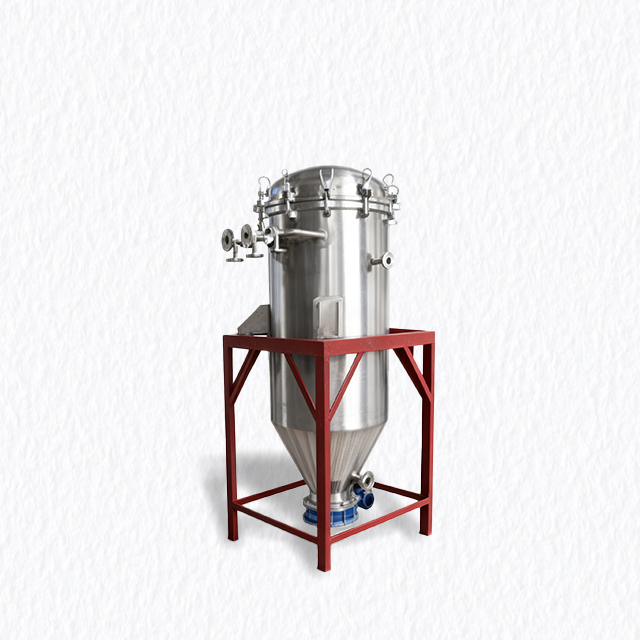

Closed Design Candle Filter Housing with Backwash System for High Solids & Viscous Materials


The Candle Filter Housing utilizes a multi-element, small-diameter tube design to provide extensive filtration area for high-solid or viscous fluids. It features pulse gas blow-back for efficient cake discharge and a closed-loop filtrate backwash to prevent contamination. Operating in a fully enclosed mode, it ensures leak-free clarification, slurry concentration, and solids recovery in fine chemical and biopharmaceutical processes.


APPLICATIONS

• Catalyst Recovery: Efficient recovery of precious metal catalysts, reducing production costs and improving economic returns

• Food & Beverage Refinement: Juice clarification, syrup filtration, edible oil refining, ensuring product quality and safety

• Biopharmaceutical Extraction: Fermentation broth processing, antibiotic separation, organic acid purification meeting pharmaceutical standards

• Chemical Intermediate Production: PTA particle recovery, resin purification, polyglycol filtration, enhancing chemical product quality

• Industrial Wastewater Treatment: High-concentration dyeing wastewater and chemical wastewater treatment for compliance and resource recovery

• Special Material Processing: Separation and concentration of viscous liquids, high-solid slurries, and fine particles



BENEFITS OF CANDLE FILTER WITH BACKWASH SYSTEM

• Optimized Filtration Design

Multiple small-diameter elements provide large surface area, enabling high throughput and extended operation cycles

• Advanced Cake Discharge

Pulse gas blow-back system effectively removes sticky filter cakes, significantly improving efficiency and regeneration

• Safe Enclosed Operation

Fully sealed structure ensures zero leakage and contamination, meeting modern environmental standards

• Pure Backwash System

Uses filtered liquid for cleaning, preventing cross-contamination and maintaining product quality

• Versatile Process Adaptation

Supports multiple operation modes including direct filtration, concentration, and washing for complex process needs




MATERIAL LINING NO. of FILTERS CONNECTION LENGTH(IN) SEAL INLET/OUTLET
304 Without 1 222 10'' Silicone Tri-Clamp DN25
316 PTFE 3 226 20'' EPDM Tri-Clamp DN40
WCB（Mild Steel） FPA 4 M20 30'' Viton Tri-Clamp DN50
PPH（Homopolymer PP） Fluorine 7 3M 40'' TEV Flange DN25

Butyronitrile 25 PARKER
Butyronitrile Flange DN40

PE 150 PALL
PTFE Flange DN50



PHOSPHOR

Flange DN80



38-5

Flange DN150






DIN Flange DN40


SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' SilFlange DN25icone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



download Candle Filter Housing from LOONG Filtration.pdf


What housing material options are available for filters?

LOONG Filtration's industrial-grade filter housings are made of T304 stainless steel (standard) or T-316 stainless steel. They can maintain stable operation for a long time without leakage risks even under long-term, high-temperature, and strong-corrosion working conditions.



What is the maximum working pressure of your filter housings and systems?

LOONG Filtration's industrial-grade filter housings are available in 150psi specifications, which can match most working conditions. If you have special requirements, please contact us, and we will customize the product for you.



Can you provide CAD drawings?

LOONG Filtration can provide 3D and 2D CAD drawings in various formats. Please inform us of your specific requirements.


CONNECT NOW FOR A QUICK REPLY

Have a quiry? Contact us now and we'll get back to you promptly.
INQUIRY

RELATED PRODUCTS

Titanium Rod Sintered Filter CartridgeSintered titanium powder filter cartridge for industrial liquid filtration
Titanium Rod Sintered Filter Cartridge
5-Layer SS Sintered Filter Cartridge
5-Layer SS Sintered Filter Cartridge
Industrial Stainless Steel Liquid Filter Housing Full View - Loong Filtration
SS Liquid Filter Housing
SS Filter Housing with PTFE Lining
SS Filter Housing with PTFE Lining

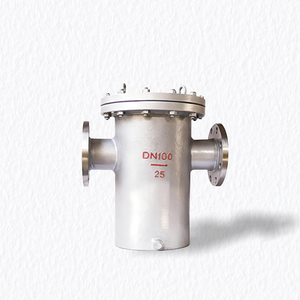

Basket Filter Housing
Basket Filter Housing

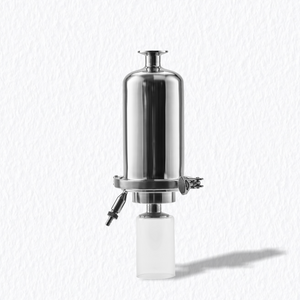

SS Pipeline Filter Housing
