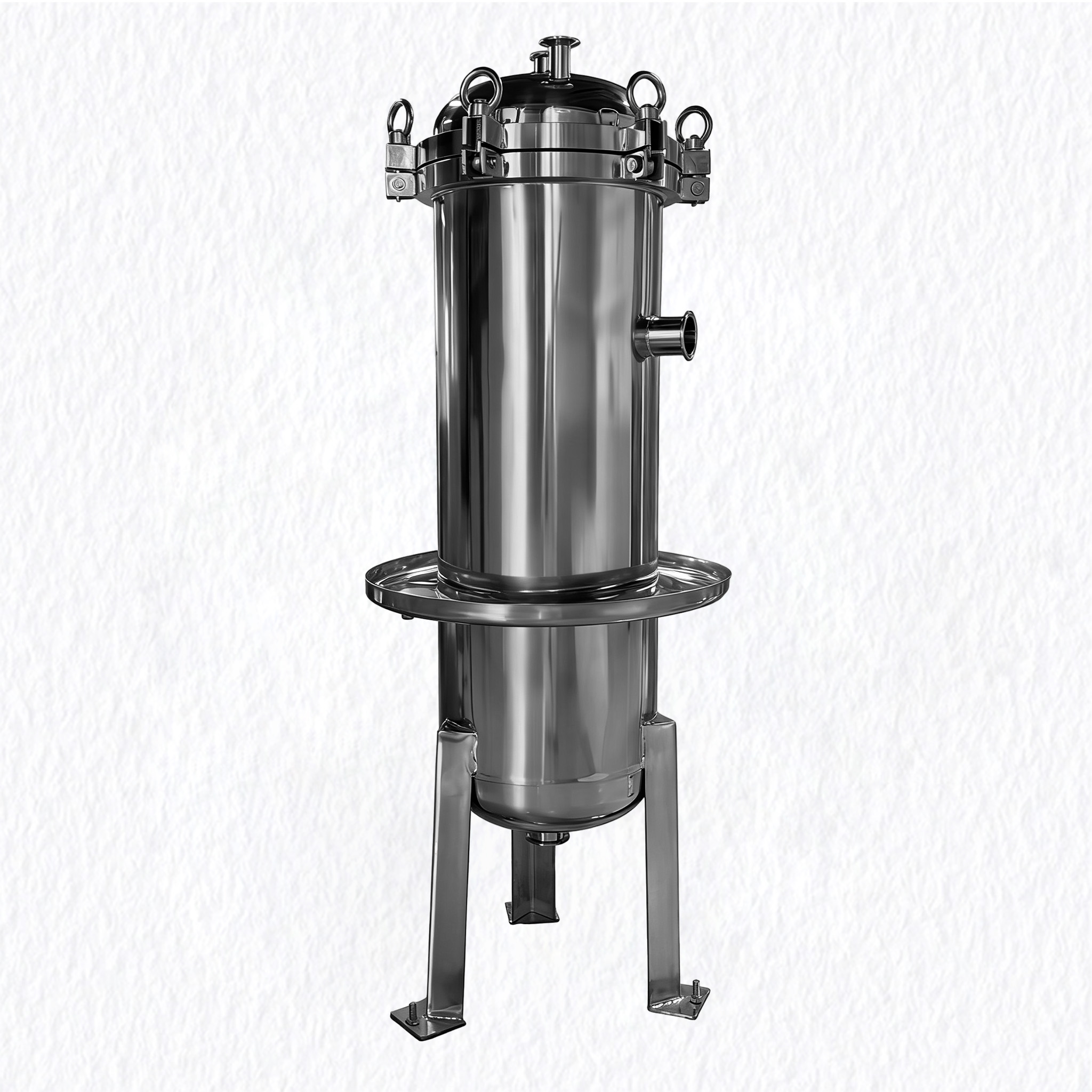

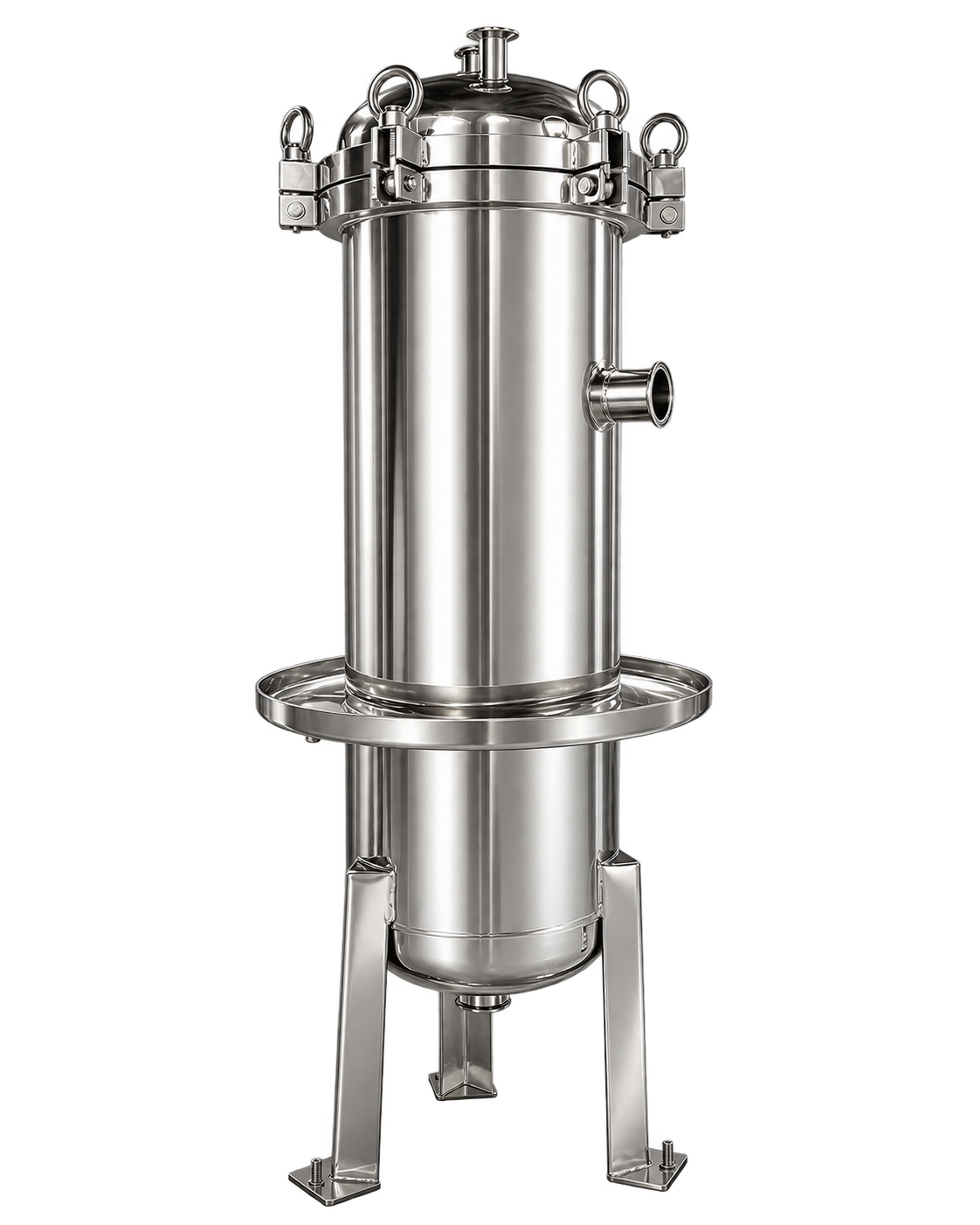

The Liquid Cooling Stainless Steel Filter made from SUS316L/304 with mirror polishing and passivation, it ensures no particle release. Paired with precision membrane cartridges, it achieves submicron retention, with optional magnetic rods (3/5/7) to capture ferrous particles. Compatible with water-based coolants, fluorinated fluids, and glycols – delivering clean fluid paths for component makers, coolant producers, and system integrators.
Submicron Particle Control: With high-precision membrane cartridges, effectively removes submicron suspended particles and colloids to protect sensitive components.
Optional Magnetic Adsorption: Can integrate 3/5/7 high-intensity magnetic rods to capture ferrous particles, significantly protecting pumps and cold plates.

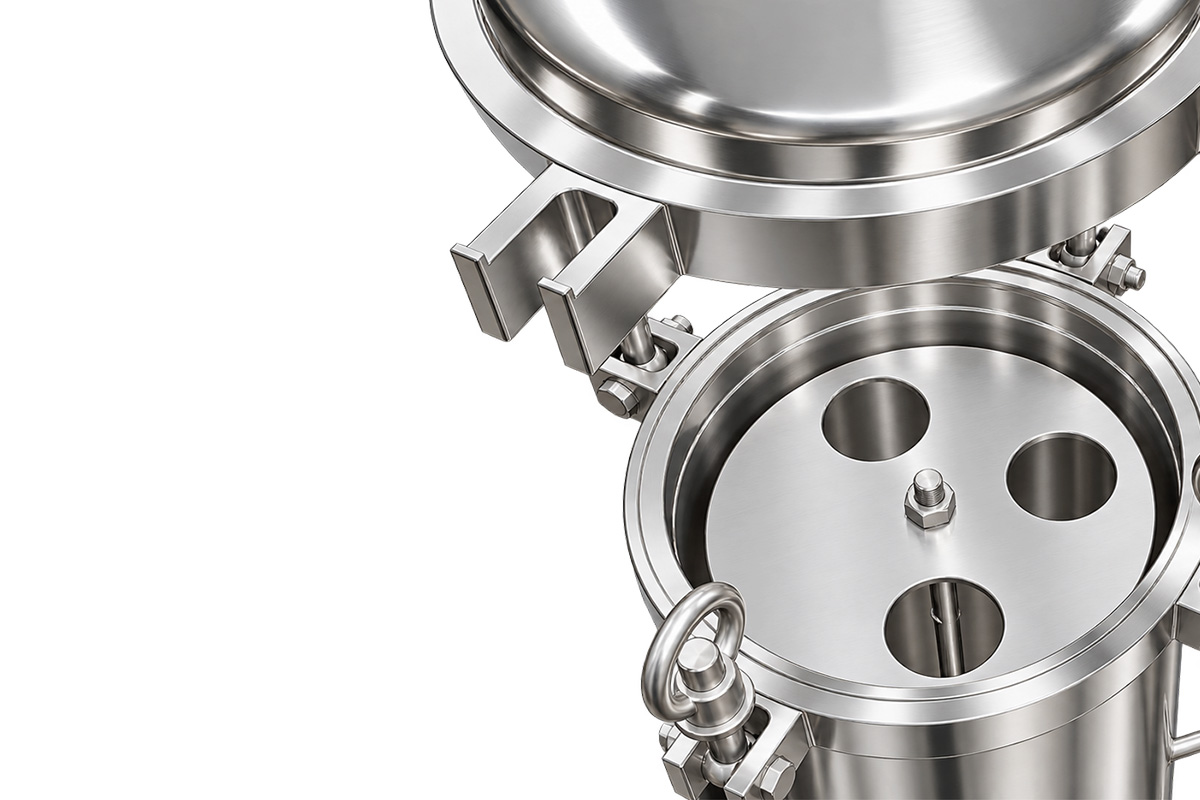

Ultimate Surface Cleanliness: Mirror polished and passivated inside and out – no dead legs, no particle shedding, meeting semiconductor-grade clean fluid path standards.
Broad Material & Fluid Compatibility: Available in 304/316L/2205/titanium, as well as coated or PTFE‑lined versions, compatible with DI water, fluorinated fluids, ethylene glycol, propylene glycol, and more.
Cooling System Component Manufacturing: In‑line filtration for cold plates, quick‑disconnects, pumps, and valves during ultra‑clean rinsing or final inspection.
Coolant Production & Filling: Removing particles and metallic debris during coolant blending, filtration, and filling to ensure finished fluid purity.
High‑Reliability Data Centers & Power Electronics: Continuous particle control for closed‑loop liquid cooling in servers, energy storage converters, and HVDC systems.
MATERIALS OF CONSTRUCTION
| Housing | SUS304/316L/2205 Stainless Steel，Stainless Steel Spraying/Fluoropolymer Lining |
| Seal | Silicone/EPDM/Viton/TEV |
| MATERIAL | LINING | NO. of FILTERS | CONNECTION | LENGTH(IN) | SEAL | INLET/OUTLET |
| 304 | Without | 1 | 222 | 10'' | Silicone | Tri-Clamp DN25 |
| 316 | PTFE | 3 | 226 | 20'' | EPDM | Tri-Clamp DN40 |
| WCB（Mild Steel） | FPA | 4 | M20 | 30'' | Viton | Tri-Clamp DN50 |
| PPH（Homopolymer PP） | Fluorine | 7 | 3M | 40'' | TEV | Flange DN25 |
| Butyronitrile | 25 | PARKER | Butyronitrile | Flange DN40 | ||
| PE | 150 | PALL | PTFE | Flange DN50 | ||
| PHOSPHOR | Flange DN80 | |||||
| 38-5 | Flange DN150 | |||||
| DIN Flange DN40 |
Q1: What level of filtration precision can this Liquid Cooling Stainless Steel Filter achieve?
A1: Paired with high-precision membrane cartridges, it achieves submicron retention, effectively removing submicron suspended particles and colloids to protect sensitive components.
Q2: What specific solution does this product offer for ferrous particles that easily damage pumps and cold plates in liquid cooling systems?
A2: It features an optional magnetic adsorption design that can integrate 3, 5, or 7 high-intensity magnetic rods to capture ferrous particles, significantly protecting pumps and cold plates.
Q3: What standard does this filter meet regarding surface cleanliness? Will it release any particles?
A3: The housing is mirror polished and passivated inside and out, ensuring a dead-leg free, non-particle releasing surface that meets semiconductor-grade clean fluid path standards.
Q4: What types of cooling media (coolants) are compatible with this liquid cooling filter?
A4: It features broad fluid compatibility, making it fully compatible with DI water, fluorinated fluids, ethylene glycol, propylene glycol, and more.
Q5: What custom options are available for housing materials and linings to handle highly corrosive fluids?
A5: The housing is available in SUS304, 316L, 2205, or titanium. It also offers coated or fluoropolymer/PTFE‑lined versions to withstand aggressive environments.
Q6: What are the typical applications of this filter in cooling system component manufacturing?
A6: It is used for in‑line filtration of cold plates, quick‑disconnects, pumps, and valves during ultra‑clean rinsing or final inspection.
Q7: What is the primary purpose of using this filter for coolant producers?
A7: It removes particles and metallic debris during coolant blending, filtration, and filling to ensure the finished fluid purity.
Q8: For data centers and power electronics, which scenarios is this product suitable for?
A8: It provides continuous particle control for closed‑loop liquid cooling in servers, energy storage converters, and HVDC systems.
Q9: According to the ordering information, what types of seal materials are available for this filter?
A9: The system offers multiple sealing options, including Silicone, EPDM, Viton, and TEV.
Q10: What types of inlet and outlet connections are supported by this filter housing?
A10: It supports sanitary Tri-Clamp connections (e.g., DN25/DN40/DN50) and various industrial Flange options (ranging from DN25 to DN150, including DIN Flange DN40).
