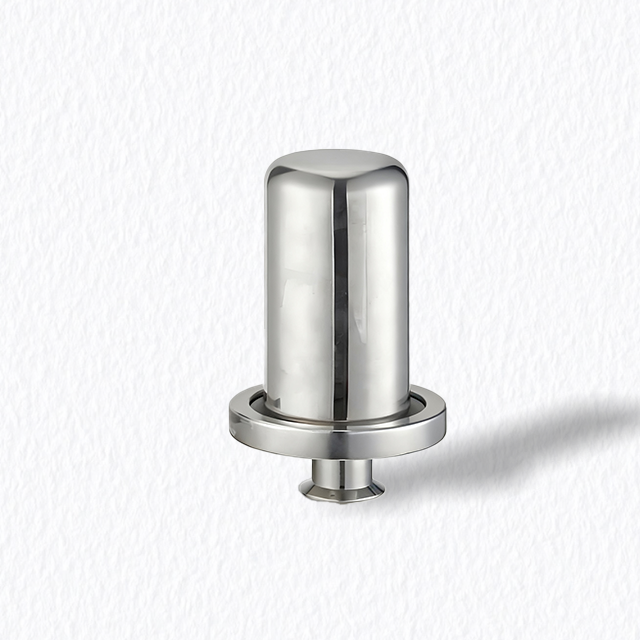

Stainless Steel Respirator
Stainless Steel Respirator Stainless Steel Respirator

loading

Stainless Steel Respirator

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

  • LH

  • Pharma&Biotech

  • Filter Housings

  • Metal

Availability:
Quantity:
Inquire Add to Basket


Pharmaceutical Grade Stainless Steel Respirator with SIP Capability


This Stainless Steel Respirator/Vent provides active protection for pharmaceutical and bioprocess storage tanks. Consisting of a 304/316L stainless steel enclosure and a hydrophobic filter cartridge, it efficiently removes particles and bacteria down to ≥0.01 μm during tank breathing. Designed with steam-in-place (SIP) capability for repeated sterilization, the compact unit mounts directly on tank vents to deliver GMP-compliant protection for WFI tanks, formulation vessels, purified water systems, and fermenters.


APPLICATIONS
•  Pharmaceutical Water Systems:Protects WFI and purified water tanks from microbial contamination during breathing, maintaining water quality stability

• Biofermentation Systems:Provides sterile ventilation for fermenters, preventing bacterial contamination and improving product yield

• Formulation & Mixing Systems:PInstalled on formulation tank tops to prevent airborne contamination during liquid level changes

• Biological Product Storage:Ensures purity and activity of biological intermediates and finished products during storage

• Clean Material Storage:Provides cleanliness-grade ventilation protection for various storage tanks in critical process areas



BENEFITS OF STAINLESS STEEL RESPIRATOR

• Reliable Microbial Barrier

Hydrophobic filter media effectively blocks airborne microorganisms and particles, ensuring stored product quality and safety

• In-Place Sterilization Capability

Full steam-in-place (SIP) design eliminates need for disassembly, maintaining sterile conditions during continuous operations

• Broad Material Compatibility

304/316L stainless steel construction adapts to various process environments, with corrosion resistance ensuring long-term reliability

• Easy Installation & Maintenance

Standardized connections and quick cartridge replacement significantly reduce maintenance time and operational complexity


MATERIALS OF CONSTRUCTION

Housing
SUS304/316L stainless steel
Seal
Silicone/EPDM/Viton/TEV


OPERATING CONDITIONS

Max.  Temperature
150 ℃
Max. Differential Pressure
8 bar


CONNECTION

Inlet/Outlet
Flange/Tri-Clamp
Cartridge connection
222/226/215






MATERIAL LINING NO. of FILTERS CONNECTION LENGTH(IN) SEAL INLET/OUTLET
304 Without 1 222 10'' Silicone Tri-Clamp DN25
316 PTFE 3 226 20'' EPDM Tri-Clamp DN40
WCB（Mild Steel） FPA 4 M20 30'' Viton Tri-Clamp DN50
PPH（Homopolymer PP） Fluorine 7 3M 40'' TEV Flange DN25

Butyronitrile 25 PARKER
Butyronitrile Flange DN40

PE 150 PALL
PTFE Flange DN50



PHOSPHOR

Flange DN80



38-5

Flange DN150






DIN Flange DN40

SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' SilFlange DN25icone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
D-HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L




SERIES MATERIAL RATING(μm) LENGTH(in) SEAL SUPPORT
HFA PP 0.45μm 20'' Silicone PP

GF 1.0μm 30'' EPDM GF

PBT 5.0μm 40'' Butyronitrile PBT

304 10μm 60'' Viton Outer Cage

316L



download Stainless Steel Respirator from LOONG Filtration.pdf


What housing material options are available for filters?

LOONG Filtration's industrial-grade filter housings are made of T304 stainless steel (standard) or T-316 stainless steel. They can maintain stable operation for a long time without leakage risks even under long-term, high-temperature, and strong-corrosion working conditions.



What is the maximum working pressure of your filter housings and systems?

LOONG Filtration's industrial-grade filter housings are available in 150psi specifications, which can match most working conditions. If you have special requirements, please contact us, and we will customize the product for you.



Can you provide CAD drawings?

LOONG Filtration can provide 3D and 2D CAD drawings in various formats. Please inform us of your specific requirements.
