An aggressive chemical can defeat a filter in ways that are not visible at installation. A membrane may swell, lose retention, shed extractables, or fail to wet correctly. An O-ring may soften, crack, or allow bypass. A support layer, cage, adhesive, or housing can become the real weak point even when the membrane itself looks suitable. Selecting a membrane filter cartridge for aggressive chemicals therefore requires an assembly-level compatibility review, not a material name on a purchase order. The right choice begins with the exact fluid, concentration, temperature, exposure time, and required filtration outcome.
Chemical compatibility must be checked for every wetted component: membrane, support layers, end caps, seals, core, housing, and flush fluid.
PTFE is frequently investigated for difficult acids, bases, oxidizers, and solvents, but hydrophobicity and wetting requirements still need attention.
PVDF, PES, nylon, and polypropylene each serve useful applications; none should be treated as universally compatible.
Pore rating answers a retention question, not a chemical-resistance question. Specify both independently.
A short, documented compatibility trial at real temperature and concentration is usually more valuable than a generic material chart alone.
Chemical resistance is a relationship between a material and a specific exposure. The same solvent can behave differently at room temperature and at elevated temperature. A dilute acid can be manageable while a concentrated grade at longer contact time may not be. Pulsating pressure, temperature cycling, prolonged static soak, and a cleaning or sanitization step can add further stress.
For filtration buyers, the practical implication is clear: describe the process rather than the chemical family. Include the complete stream composition, concentration range, expected contaminants, normal and maximum temperature, operating pressure, flow, exposure duration, and any cleaning agents. Identify whether the cartridge sees liquid continuously, intermittently, or only during a startup or flush. This information lets an application engineer evaluate the membrane filter cartridge as a system.
The required performance also matters. A solvent polishing duty, a corrosive bulk chemical prefilter, an analytical sample preparation stage, and a sterile vent application all have different needs. A filter that survives the chemistry may still be wrong if it binds product, cannot wet, creates too much pressure drop, or provides a retention rating that does not match the risk.

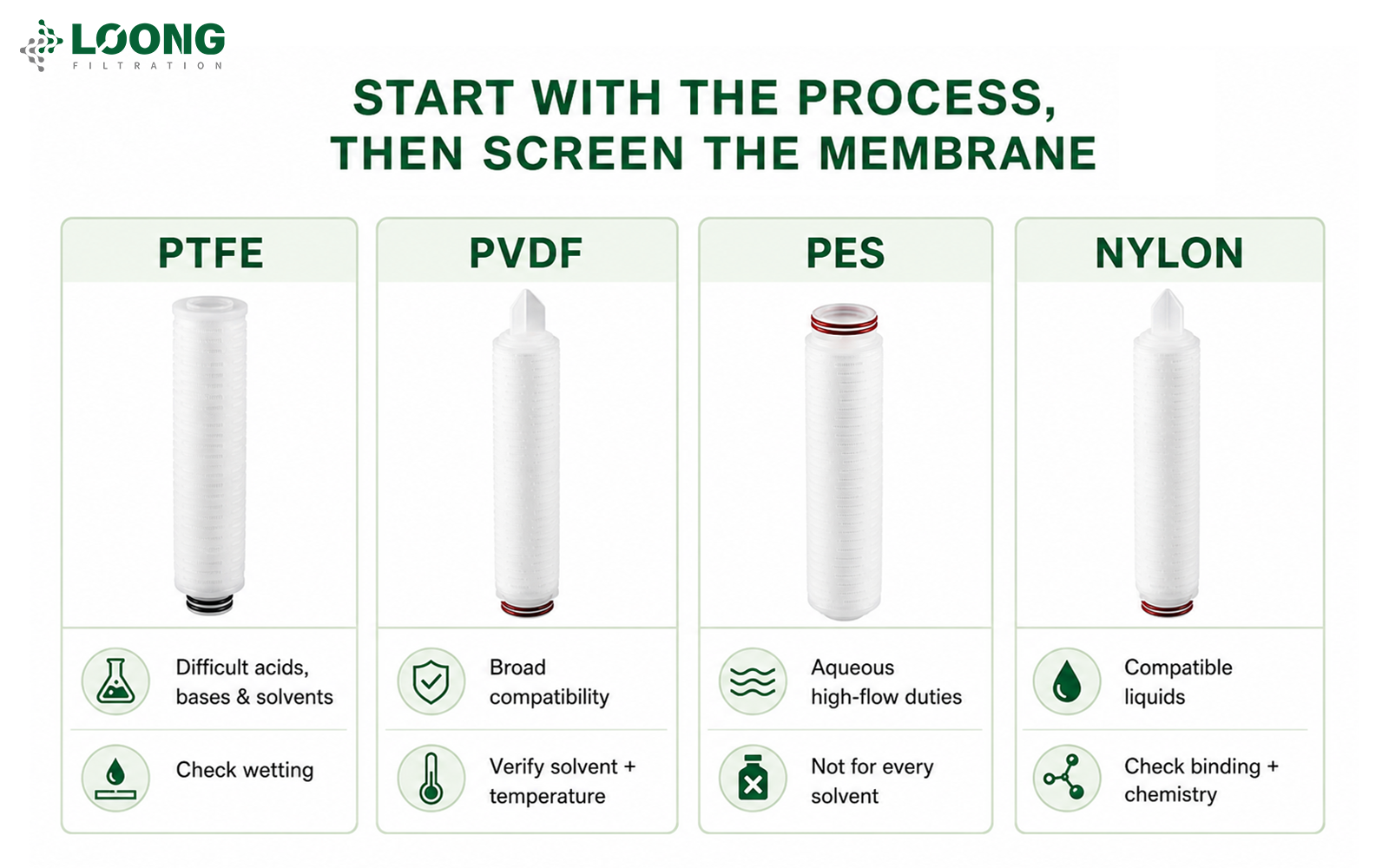

Membrane family | Common reason to evaluate it | Important selection caution | Typical process question |
PTFE | High inertness for many aggressive fluids, solvents, and demanding pH conditions | Native hydrophobicity can create aqueous wetting and pressure-drop issues | Is the membrane hydrophilic or hydrophobic, and is the wetting procedure validated? |
PVDF | Broad compatibility, mechanical robustness, and low-protein-binding relevance in some applications | Compatibility still varies with solvent, concentration, and temperature | Does the actual chemical and contact time match the cartridge construction data? |
PES | High-flow, hydrophilic filtration for suitable aqueous and high-purity duties | It is not a default choice for every solvent or extreme pH condition | Is the stream aqueous and within the supplier's stated compatibility envelope? |
Nylon | Naturally hydrophilic, versatile filtration for many compatible liquids | Some chemicals and product-binding concerns can rule it out | Does solvent compatibility and analyte recovery support its use? |
This is a decision framework, not a substitute for a compatibility chart. The material of the membrane is a first screen; it never concludes the selection by itself.
Begin with the safety data sheet, but go beyond it. Record the chemical name, concentration, pH, dissolved solids, temperature range, and likely impurities. Note whether the stream contains blends, surfactants, salts, catalysts, or residues from upstream production. Blended streams are especially important because a minor solvent component can govern compatibility.
Then document the operating pattern. A cartridge exposed to a solvent for a ten-minute transfer is not in the same condition as one that remains wetted for a weekend. A filter that sees 25 °C process liquid may subsequently see a hotter cleaning fluid. Include the worst credible scenario, not just the normal setpoint.
Finally, define the required filtration function. Is the target coarse particulate removal, final clarification, microbial control, venting, or protection of an analytical instrument? The answer drives the required pore rating, flow, and validation evidence. It also helps determine whether a depth prefilter should sit ahead of the membrane.

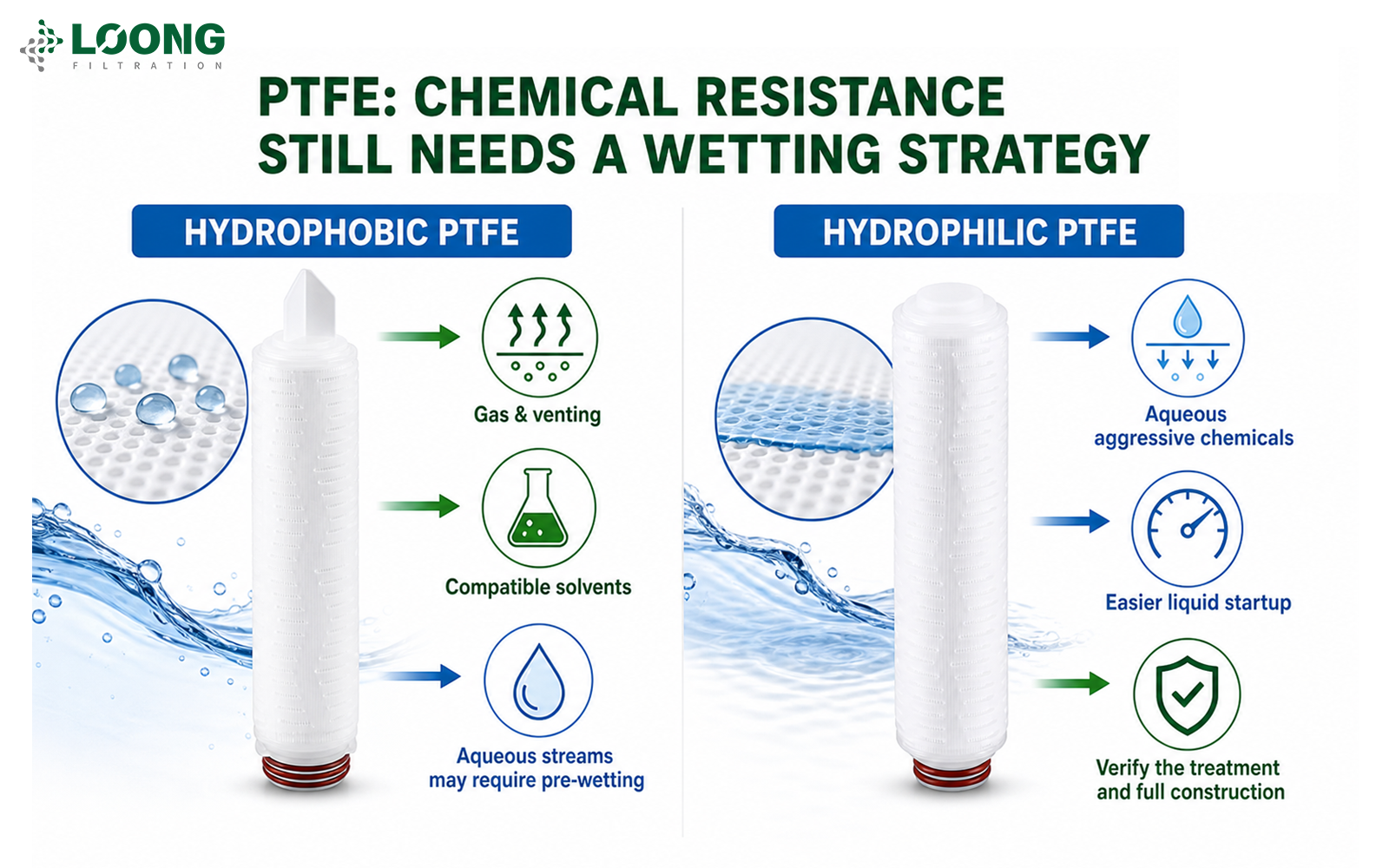

PTFE is a common starting point for aggressive chemical filtration because fluoropolymer structures can offer strong resistance to many acids, bases, oxidizers, and organic solvents. A fully fluoropolymer PTFE filter cartridge can be particularly relevant when the process team needs to evaluate not only the membrane but also the support and sealing materials for corrosive duty.
However, native PTFE is hydrophobic. In an aqueous process, a hydrophobic membrane can resist wetting and generate high initial back pressure. Forcing water through without a suitable wetting procedure risks uneven flow and misleading filter performance. A hydrophilic PTFE option or a validated compatible pre-wet may be needed, depending on the fluid and process controls. Conversely, hydrophobic PTFE can be advantageous for certain gas and venting applications where water repellence is desired.
PVDF is often considered when an application needs a robust membrane with useful chemical resistance and low protein binding. The hydrophobic PVDF filter cartridge is presented for venting, solvent purification, and high-purity chemical uses. Those use cases illustrate why the exact state of the membrane—hydrophobic or hydrophilic—matters as much as the polymer name.
Do not assume that PVDF is automatically the safer option for every solvent. Check the actual formulation, contact time, operating temperature, and any additives. In product-recovery work, add an adsorption or recovery test to the trial protocol. Chemical resistance and low binding are related to specific conditions, not blanket guarantees.
Hydrophilic PES membranes can be an effective choice for aqueous, high-throughput, fine-filtration duties within their stated chemical limits. For example, LOONG FILTRATION lists a hydrophilic PES pleated filter cartridge for fine filtration applications. Its natural wettability can simplify water-based startup compared with hydrophobic media.
Nylon can also be valuable for compatible solvents and analytical or fine chemical work because it is naturally hydrophilic and versatile. Yet neither PES nor nylon should be placed into an aggressive chemical line by default. A strong base, an oxidizing agent, a ketone, or prolonged high-temperature contact may change the correct choice. Treat supplier compatibility documentation as an input to a verified process trial.
After screening material, specify what must be retained. A nominal rating can be appropriate for a protective prefilter; a critical polishing step may require an absolute rating or a documented retention standard. The requirement should state the target contaminant, size or quality risk, required removal performance, and the acceptable pressure drop at normal flow.
Avoid the common mistake of specifying the finest pore size “for safety.” A finer membrane can increase initial pressure drop, reduce throughput, and block prematurely if the upstream stream carries a high solids load. A staged train is normally more rational: remove bulk solids with a compatible depth or pleated prefilter, then use the membrane filter cartridge for the final retention duty. This protects both operating stability and filter cost.
For liquid streams with variable contamination, assess the maximum loading, not only the average. If the upstream process has occasional precipitates, corrosion products, or catalyst fines, capture those excursions in the design basis. Membrane capacity is typically governed by the actual foulant profile, not just the reported micron rating.

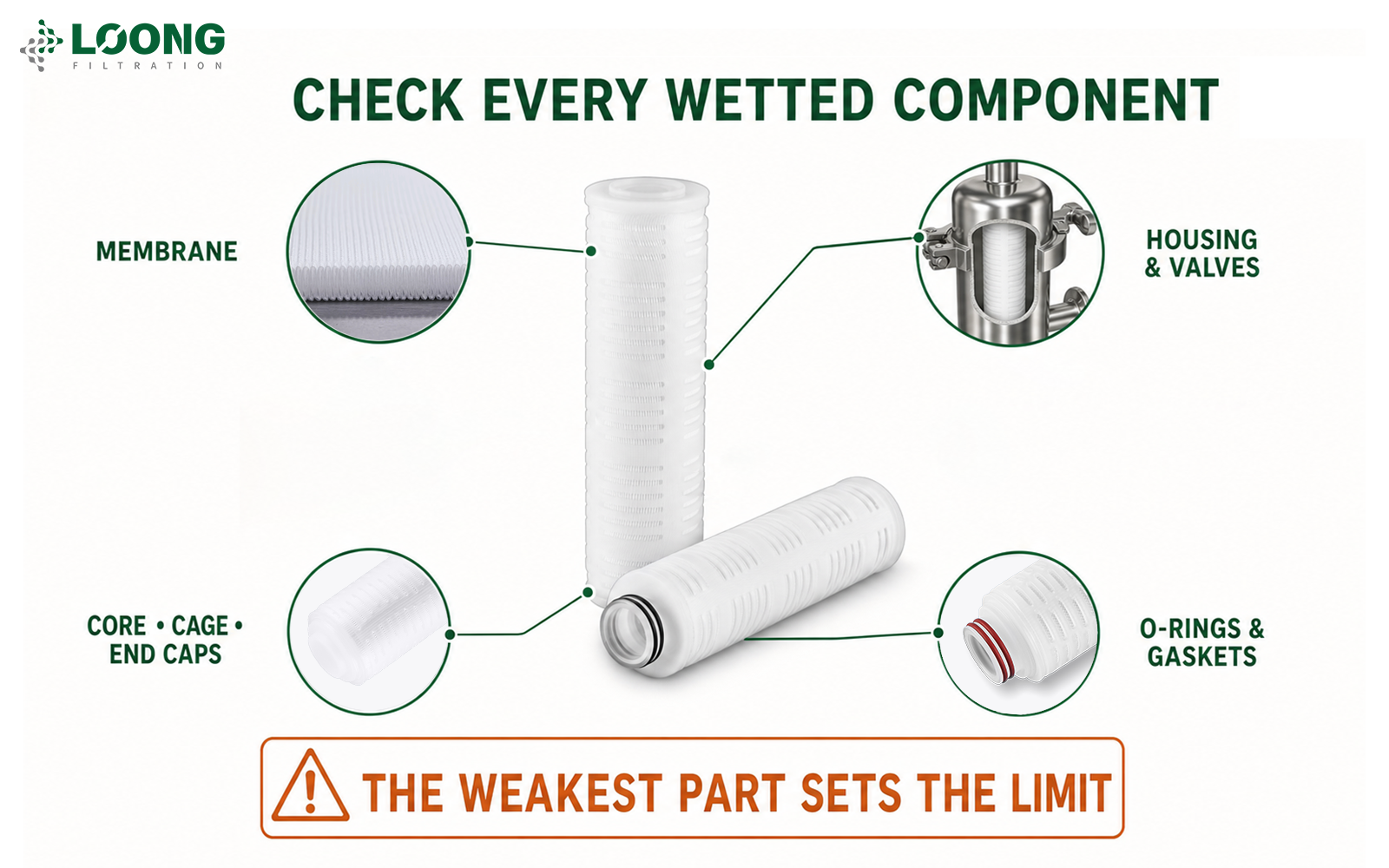

The membrane often receives all the attention, but an aggressive chemical line is only as compatible as its weakest wetted part. The technical review should include the following items in the purchase specification:
Membrane polymer and any surface treatment.
Upstream and downstream support layers, drain layers, and protective media.
Core, cage, end caps, adapters, and thermal bonding method.
O-rings, gaskets, and any adhesives or potting compounds.
Filter housing body, connections, valves, vents, and pressure gauges.
Flush liquid, cleaning chemical, storage solution, and sanitation method.
This list is not bureaucracy. Seal damage can permit unfiltered bypass even while the membrane looks intact. An incompatible support layer can deform and alter flow distribution. A housing can introduce corrosion products that undermine the very purity target the cartridge was selected to protect. For high-risk applications, require the supplier to confirm the full wetted construction rather than providing a membrane-only statement.
Chemical compatibility at ambient temperature cannot be assumed at process temperature. Higher temperature can accelerate swelling, permeation, oxidation, and extractable release. Pressure also matters because a softened or weakened component may distort under differential pressure before it visibly fails.
Set both normal and maximum limits for temperature, inlet pressure, differential pressure, and flow. Include startup and shutdown events. If the system is batch-operated, define how long the cartridge remains wetted between batches. If it is cleaned in place, include the chemical and temperature profile for each cycle. The final selection must tolerate the entire exposure history, not merely the main production step.
For difficult applications, run a representative test through several cycles. Monitor flow at a fixed pressure, differential pressure at a fixed flow, particle or impurity removal, visual condition, and any change in the filtrate. Post-test inspection can reveal swelling, discoloration, seal changes, or structural damage that a short flow test misses.
A well-selected membrane can still perform poorly in an unsuitable system. Confirm that the housing accepts the cartridge's end connection, length, and seal type. Ensure the vent, drain, and orientation support complete wetting and controlled air removal. Consider hold-up volume when product is costly, toxic, or sensitive to cross-contamination.
For high-solids or unpredictable feeds, add prefiltration. A depth filter removes particles through a structured matrix; a membrane is then reserved for the finishing step. LOONG FILTRATION's membrane filter cartridge range covers application-specific options, while its depth and pleated lines can support a staged approach. The filtration train should be justified by data: a longer membrane life is useful only if the upstream stage does not introduce unacceptable loss, complexity, or incompatibility.
When the duty involves electronics chemicals, pharmaceuticals, or analytical operations, account for flushing and extractables in the validation plan. Establish how many bed volumes or what condition defines a complete flush. Sample the early filtrate if trace contaminants could affect quality. Clean handling and controlled assembly are especially important because aggressive chemical streams can magnify the impact of small contamination events.

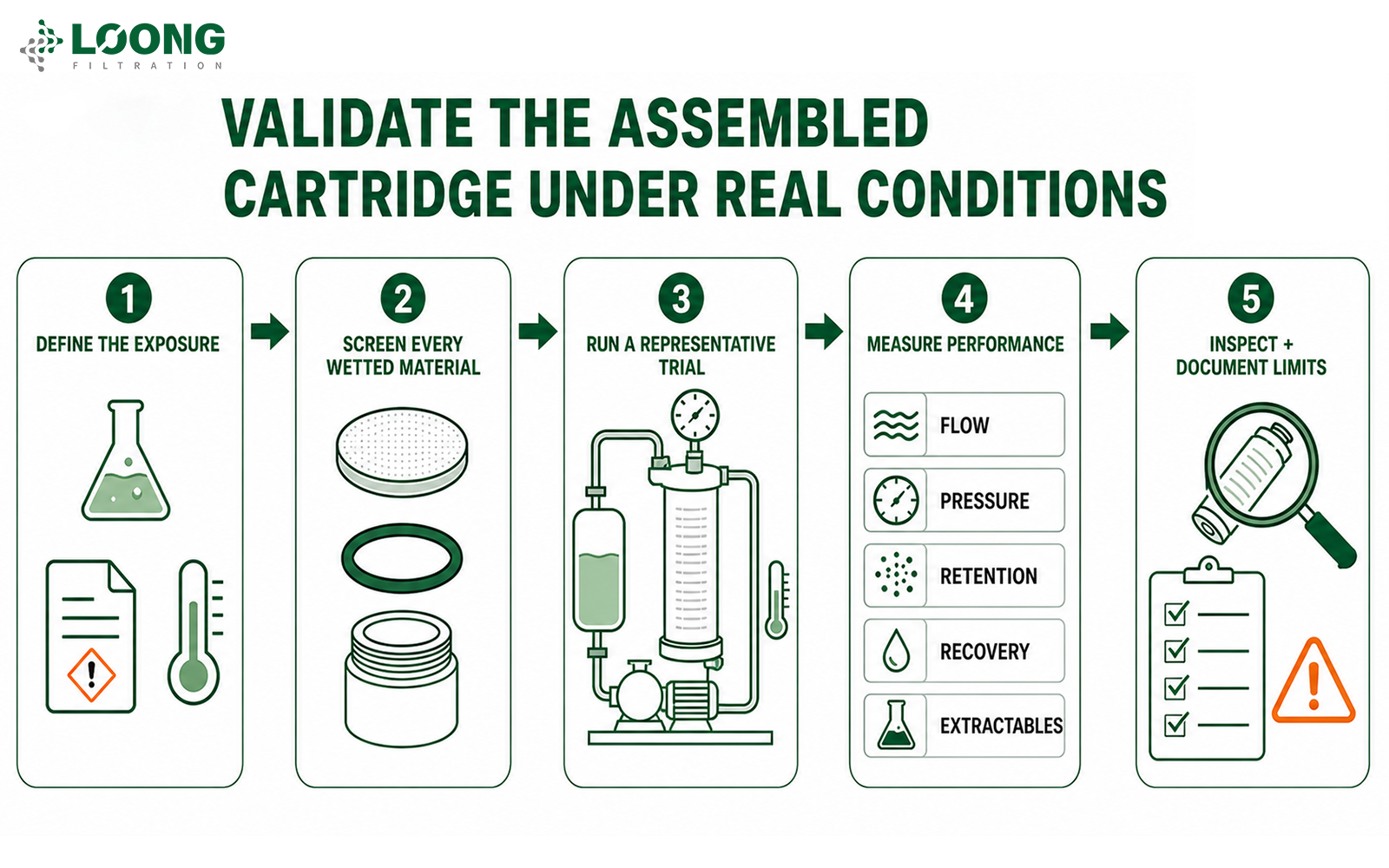

Run the selection as a controlled comparison, not an informal pass/fail test. Select a small number of credible media and full-cartridge constructions. Use actual process liquid at the high end of intended concentration and temperature wherever safely practical. Operate at representative flux or flow, not an artificially low laboratory flow.
Collect samples before and after filtration for the relevant quality attributes. These may include particle counts, color, assay, water content, ionic contamination, or a process-specific impurity. Record inlet and outlet pressure, flow, temperature, and runtime. Where recovery matters, calculate a mass balance. Where adsorption is possible, sample over time rather than relying only on the first filtrate.
At the end of the trial, review the cartridge and seals. Compare pressure-rise behavior, retained contaminant, flow stability, and filtrate results. Select the material that meets the quality target with adequate operating margin. Then document the limits as a purchasing and operating specification so the production configuration remains aligned with the trial result.
Do not copy a cartridge material from a line that filters a vaguely similar chemical. A difference in concentration, temperature, or additive package can change compatibility. Do not rely on a chemical name without identifying the actual commercial formulation. And do not omit the O-ring material from the request for quotation.
Avoid using a hydrophobic membrane for an aqueous liquid without a defined wetting strategy. Also avoid using a high-retention final membrane as the first filter on a dirty stream. Both choices can create pressure issues that look like a membrane defect but are actually design errors.
Most importantly, never treat a compatibility chart as the final qualification. Charts are useful screens, but they cannot reproduce every combined stress in a real process. LOONG FILTRATION should be given the complete stream and operating profile so the recommended cartridge can be assessed as part of a controlled filtration system.
The right membrane filter cartridge for aggressive chemicals is selected by evidence, not by a one-word material preference. Define the complete chemical exposure, compare membrane candidates with their wetting behavior and product interaction in mind, specify retention separately, and verify every wetted component. Then test the assembled solution at representative operating conditions. This approach reduces the risk of premature failure, bypass, extractables, and lost throughput. LOONG FILTRATION can help translate the process profile into a compatible cartridge-and-housing configuration for a defensible trial.
No. PTFE is often a strong candidate for difficult acids, bases, and solvents, but the correct choice also depends on wetting, pore rating, flow, product recovery, seals, and the full cartridge construction. A different membrane may be more suitable for a compatible aqueous or product-sensitive process.
Provide the full chemical composition, concentration, pH, temperature range, flow, pressure, exposure time, filtration target, expected solids load, cleaning chemistry, and preferred cartridge connection. Include the worst operating case and any downstream quality constraints.
O-rings create the seal that prevents unfiltered liquid from bypassing the membrane. If the elastomer swells, hardens, cracks, or loses compression, the filtration performance can be compromised even though the membrane is chemically compatible.
Possibly, but only after verifying the complete exposure sequence. Compatibility with each chemical individually does not automatically prove compatibility with alternating exposure, blended solvents, temperature changes, or the required cleaning procedure.
Use one when the stream contains enough particles, gels, or precipitates to cause rapid membrane fouling. The prefilter should be chemically compatible and selected to remove the appropriate bulk contaminant without taking on the final retention duty.
Perform a documented trial using representative process liquid and operating conditions. Verify retention, flow, pressure rise, product recovery, extractables where relevant, and post-exposure cartridge integrity. Convert the successful conditions into written operating and change-control limits.
