Pharma&Biotech
Membrane Filter Cartridges
Mixed cellulose (MCE)
| Availability: | |
|---|---|
| Quantity: | |
High Throughput, Low Protein
Binding for Biopharmaceutical Prefiltration

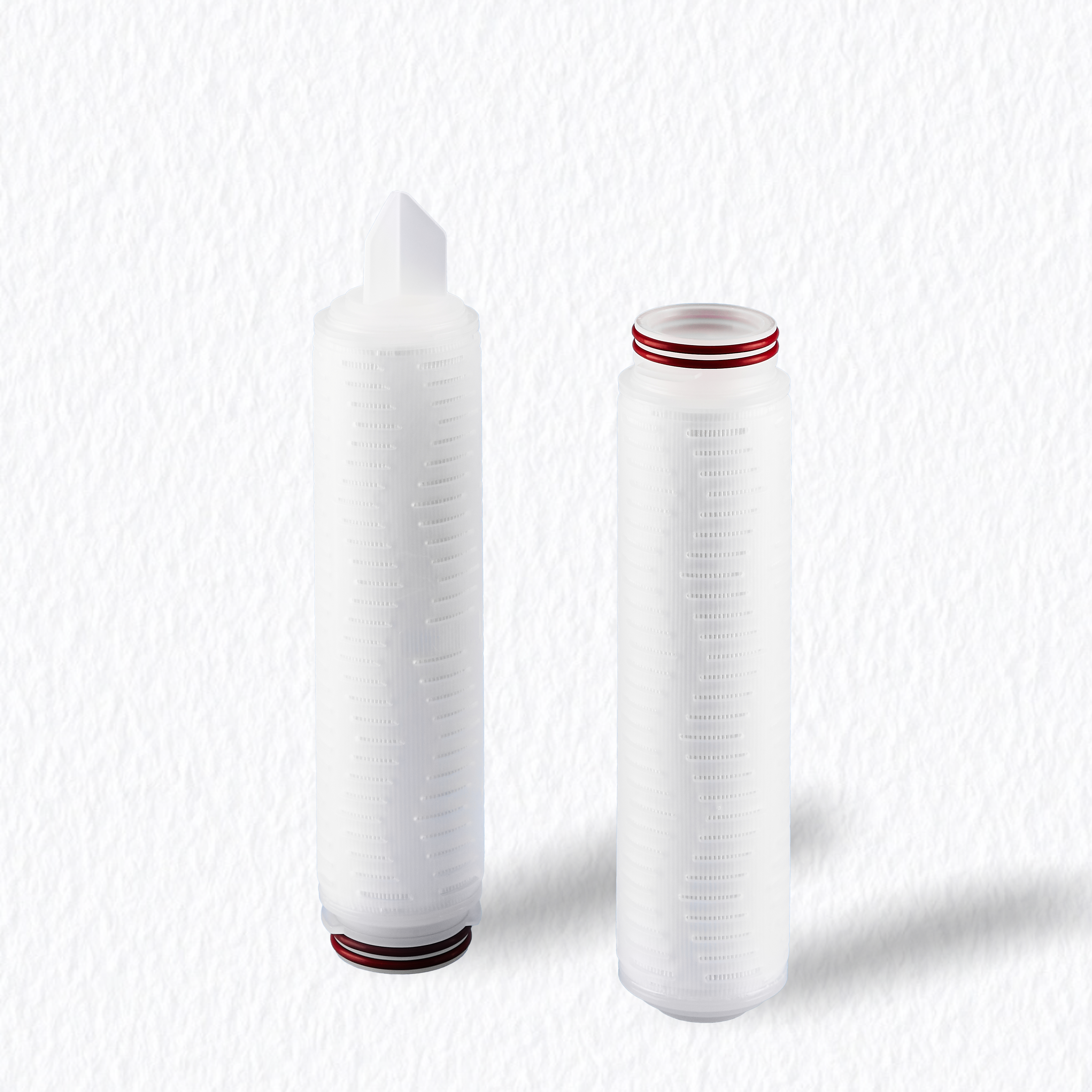

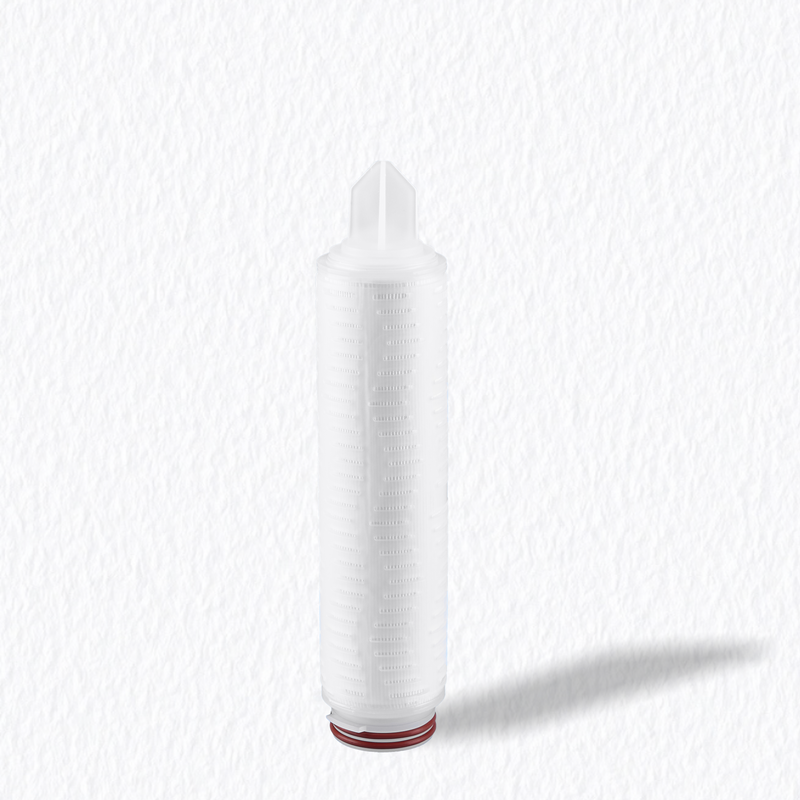

The hydrophilic Mixed Cellulose Ester (MCE) Membrane Filter Cartridge
delivers high throughput and low protein adsorption, maximizing recovery
in sensitive bioprocessing. Ideal for prefiltration of vaccines, blood products,
and biopharmaceutical intermediates, it is manufactured in a cleanroom
environment and undergoes integrity testing and high-purity water flushing
to minimize extractables. Suited for both laboratory and industrial scale, it
ensures consistent performance in critical biological applications.
• Prefiltration of Biologicals - for Vaccines & Protein Solutions
• Diagnostic Reagent Filtration - for Tissue Culture Media & Buffers
• Serum Clarification - for Gross Particulate Removal
• Analytical Sample Preparation - for HPLC with Low Protein Binding
• Vent Filtration - for Non-Critical Tank Venting
• Lab-Scale Sterilization - for R&D of Compatible Solutions
Low Protein Adsorption
Maximizes recovery of valuable biological products
High Flow Rates
Optimized membrane structure for efficient processing
Ready-to-Use Hydrophilicity
No pre-wetting required for aqueous solutions
Cleanroom Manufactured
Produced in controlled environment for consistency
MEMBRANE | Mixed Cellulose Ester (MCE) |
CAGE & SUPPORT & END CAPS & DRAINAGE | PP |
O-RINGS/GASKET | Silicone/Viton/EPDM/TEV |
PP | <60 ℃ |
PP WITH STAINLESS STEEL LINED END CAP | <85 ℃ |
PP WITH STAINLESS STEEL LINING | <95 ℃ |
POSITIVE/REVERSE PRESSURE RESISTANCE | 4 bar/2 bar (23 ℃) |
STEAM STERILIZATION | 123 ℃@30 min |
OUTER DIAMETER | 68 mm |
LENGTH | 10", 20", 30", 40" |
0.22 μm | ≥1 bar |
0.45 μm | ≥0.5 bar |
ENDOTOXIN | <0.25 EU/ml |
EXTRACTABLE | ≤50 mg/10" |
SERIES | MATERIAL | RATING(μm) | END CAP | LENGTH(in) | SUPPORT | SEAL | PORT |
Electronics | MCE | 0.1μm | 222/Fin | 2.5'' | PP | Silicone | Interface lining steel |
Phamarmical | 0.22μm | 222/Flat | 5'' | PBT | EPDM | Fully lining | |
Chemical | 0.01μm | 226/Fin | 10'' | PVDF | Viton | Skeleton lining | |
1.0μm | 226/Flat | 20'' | PFA | TEV | |||
3.0μm | DOE/Flat | 30'' | PE | Butyronitrile | |||
10μm | 215/Fin | 40'' | GF | PTFE | |||
0.22+0.22μm | 215/Flat | PTFE gasket (soft) | |||||
M20 | Metal-graphite Wound | ||||||
M30 | |||||||
216/Fin | |||||||
216/Flat | |||||||
M15 | |||||||
Insertion Type | |||||||
Barbed Type |
What is a mixed cellulose ester membrane filter cartridge mainly used for?
A mixed cellulose ester (MCE) membrane filter cartridge is mainly used for prefiltration and fine filtration of biological and pharmaceutical liquids where high throughput and low protein adsorption are important. It is suitable for applications such as vaccines, protein solutions, tissue culture media, buffers, diagnostic reagents, and other bioprocess fluids.
Why is MCE suitable for protein-containing biopharmaceutical liquids?
MCE membranes provide low protein adsorption compared with many conventional filtration materials, helping reduce product loss during filtration. This is especially useful for valuable biological products, protein solutions, and other sensitive bioprocess fluids where maintaining product recovery is important. Actual adsorption behavior should still be confirmed with the specific formulation and process conditions.
How do I choose the right micron rating for an MCE membrane filter cartridge?
The correct micron rating depends on the filtration objective, particle or microbial retention requirement, feed cleanliness, protein content, flow rate, and downstream process. A 0.45 μm grade may be used for clarification or prefiltration, while 0.22 μm is typically selected where finer retention is required. Final selection should balance retention, throughput, and differential pressure.
Does the MCE filter cartridge require pre-wetting before use?
The MCE membrane is hydrophilic and designed for direct use with aqueous solutions, so additional alcohol pre-wetting is generally not required. This can simplify preparation and reduce handling steps in biopharmaceutical processing. The cartridge should still be installed, flushed, and conditioned according to the validated procedure for the specific application.
Can the MCE membrane filter cartridge be steam sterilized?
The listed steam sterilization condition is 123°C for 30 minutes. Actual sterilization suitability depends on the cartridge configuration, support materials, seal selection, sterilization cycle, and number of repeated exposures. For validated biopharmaceutical processes, the complete cartridge configuration should be confirmed against the intended sterilization procedure.
When should an MCE membrane filter cartridge be replaced?
Replacement should be based on validated process limits rather than a fixed service interval. Typical indicators include increasing differential pressure, reduced flow rate, longer filtration time, or failure to meet required filtrate quality. Service life depends on contamination load, membrane rating, fluid composition, protein content, operating conditions, and sterilization history.
