Cloudy liquid is not always a simple particle problem. It may contain haze, colloids, color, odor, or fine solids. A lenticular filter helps solve these issues in a cleaner, enclosed way. In this article, you will learn what it is, how it works, and when it fits industrial liquid filtration.
Category | Details & Considerations |
Definition | A lenticular filter composed of stacked filter cells/discs, also referred to as a depth stack filter. |
Filtration Mechanism | Liquid is forced through thick filter media, where particles are trapped within the media depth (not just on the surface), enabling high dirt-holding capacity. |
Flow Path | Typically flows from the outer edge of the stack toward the center core, then exits through the filter housing outlet. |
Core Applications | Used for clarification, polishing, color removal, odor control, and as pre-filtration to protect downstream membrane or cartridge filters. |
Media Options | 1. Composite depth media: Ideal for complex or mixed-fluid applications. |
Operational Advantages | Offers a cleaner, easier-to-handle alternative compared to traditional open filter sheets, reducing operator exposure and setup time. |
Selection Criteria | Fluid type, particle load, micron rating, flow rate, housing size, and process conditions. |
A lenticular filter is a compact depth filtration module used to clarify liquids. It is made from several round filter cells stacked together around a central core. These cells are sealed inside a stainless steel or sanitary filter housing. The design gives a large filtration area in a relatively small footprint.
It is called “lenticular” because each filter cell has a lens-like round shape. In many industrial settings, people also call it a depth stack filter, stacked disc filter, or depth filter module. These terms usually describe the same core idea: stacked filter media that capture contaminants through depth filtration.
Unlike a simple surface filter, it does not only catch solids on the top layer. Its media has a thick porous structure. Liquid passes through this matrix, and particles are held at different levels inside it. This gives it strong dirt-holding capacity and stable clarification.
A lenticular filter is commonly used in wine, beer, fruit juice, spirits, edible oil, pharmaceutical liquids, biotech fluids, fine chemicals, cosmetics, and other process liquids. It is especially useful when the fluid is not just “dirty,” but complex.

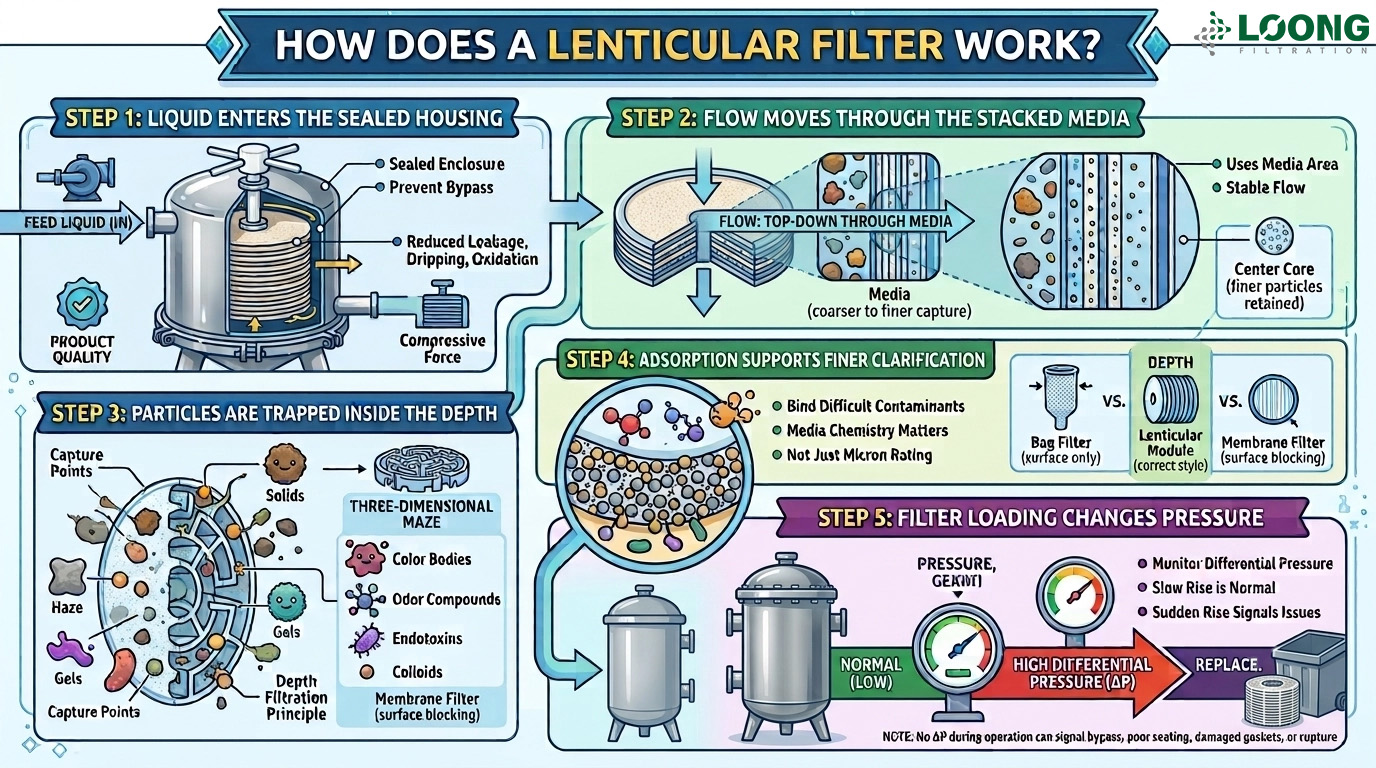

A lenticular filter works through depth filtration. The process looks simple from the outside, but several things happen inside the housing at once.
The feed liquid is pumped into the filter housing. The housing holds one or more lenticular modules in a compressed position. This compression matters because it helps prevent bypass. If the module is not seated well, unfiltered liquid may move around the media instead of passing through it.
The enclosed structure also helps reduce leakage, dripping, oxidation, and open handling. This is important for beverage, pharma, biotech, and fine chemical processes where product quality and hygiene matter.
In most lenticular filter systems, liquid flows from the outside of the disc stack toward the center core. As it moves through the filter media, larger solids are captured first. Smaller particles move deeper before they are retained.
This outside-to-inside flow path helps use the available media area. It also helps maintain a more stable flow compared with a filter that blocks quickly on the surface.
Depth filtration is the key working principle. The media works like a three-dimensional maze. Solids, haze-forming particles, gels, and colloids meet many capture points as they travel through the structure.
This gives a lenticular filter an advantage in liquids with mixed particle sizes. A bag filter may remove large solids well, but it may not polish fine haze. A membrane filter may remove very fine particles, but it can block fast if the feed is too loaded. A depth stack module fits between these stages.
Some contaminants are not easy to remove by size alone. Color bodies, odor compounds, endotoxin-related impurities, or colloids may need adsorption. Certain lenticular filter media include materials such as cellulose, diatomite, activated carbon, or resin. These media can help bind or hold difficult contaminants while liquid passes through.
This is why filter media selection is not only about micron rating. Two filters with the same rating may perform differently if their media chemistry is different.
As the filter captures more solids, flow resistance rises. Operators usually watch differential pressure across the housing. A slow pressure increase is normal. A sudden increase may suggest heavy solids, poor prefiltration, flow shock, or a wrong filter grade.
When pressure reaches the recommended limit, the module should be replaced, rinsed, or backflushed if the selected design allows it. For critical fluids, replacement is often safer than extended reuse.
Note：No differential pressure during operation can signal bypass, poor seating, damaged gaskets, or a ruptured filter path.
Not all lenticular filters serve the same purpose. Media type affects clarity, adsorption, product safety, flow rate, and service life.

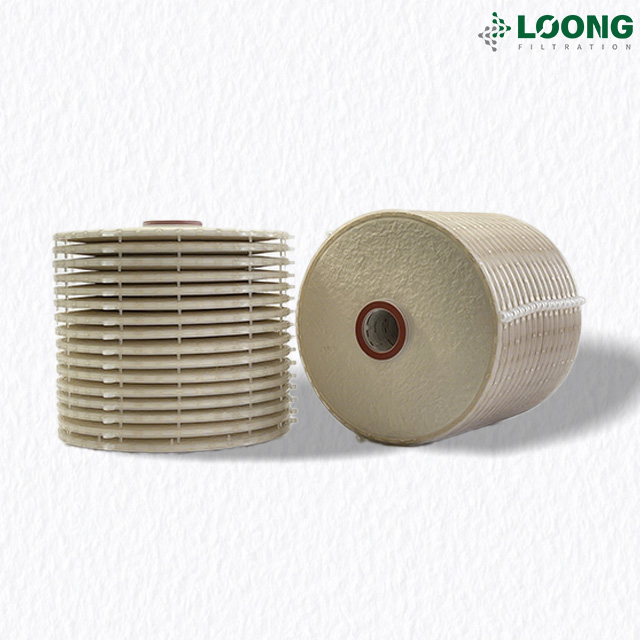

Composite depth media often combines cellulose, diatomite, and synthetic materials. This structure is built for high dirt-holding capacity and strong retention. It can handle high-viscosity, colloidal, and multi-component liquids better than many simple surface filters.
Application：
Wine clarification, beer polishing, edible oil clarification, fruit juices, spirits, antibiotic clarification, animal vaccine clarification, cell culture lysate, fine chemicals, and cosmetic fluids.

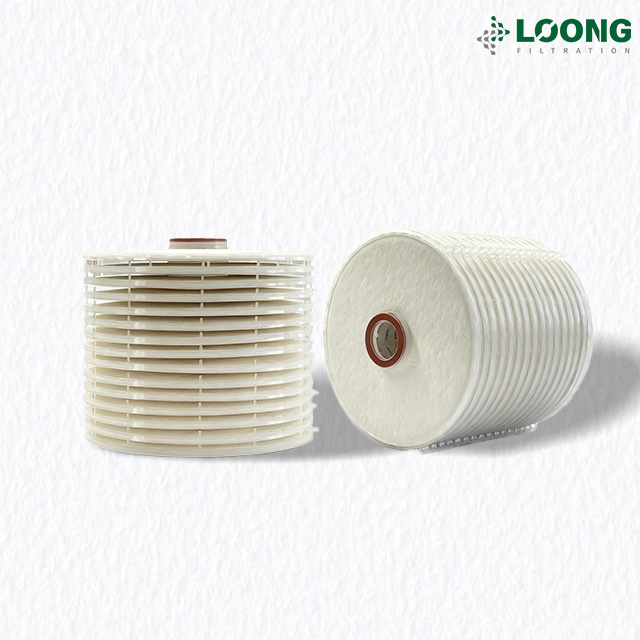

Pure cellulose depth media is designed for sensitive biological and high-purity process fluids. Its value is low extractables, good flow, and broad suitability for biological clarification.
Application：
Blood products, serum, antibody solutions, serum-containing culture media, peptide APIs, and other bio-fluids. In these cases, media cleanliness and consistency matter as much as particle removal.

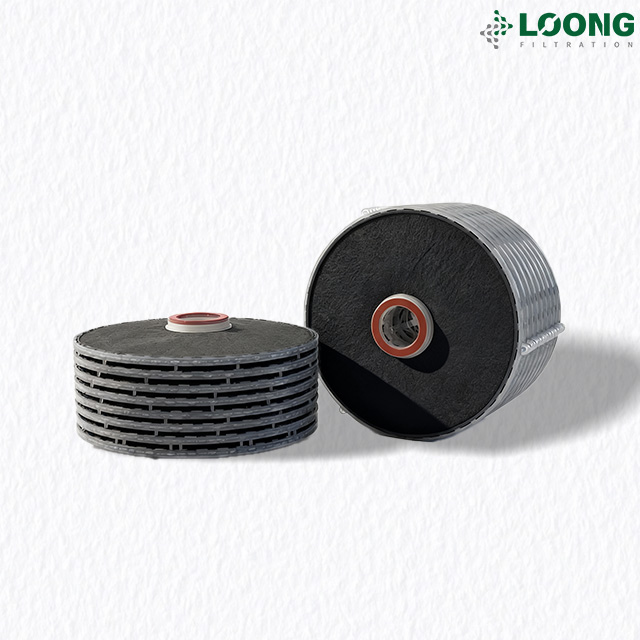

Activated carbon depth stack media is used when filtration must also handle color, odor, off-flavor, or certain adsorbable impurities. It combines depth filtration and carbon adsorption in one enclosed format.
Application：
Sweeteners, amino acids, wine, juice, spirits, pharmaceutical intermediates, fine chemical streams, and selected biopharma processes. A contained carbon module is cleaner than loose powdered carbon handling because it reduces carbon dust migration and simplifies operation.
Food & Beverage Processing
Common applications: wine, beer, cider, juice, spirits, edible oil, sweeteners.
Purpose: achieve clarity, flavor stability, and controlled particle removal.
Advantage: polishes liquids cleanly without the mess associated with open sheet filtration systems.
Pharmaceutical & Biotech Manufacturing
Typical fluids: serum-containing media, biological solutions, cell culture lysate, blood products, antibodies, peptide APIs, and process intermediates.
Core requirements: consistency, low extractables, and comprehensive documentation for compliance.
Fine Chemical & Cosmetic Production
Applications: particle removal, decolorization, odor control, and solvent clarification.
Recommended media: activated carbon depth media is particularly effective when color or odor is a critical factor.
Lenticular Filter vs Other Filtration Options
A lenticular filter is not the only choice. Its value becomes clearer when compared with other common filtration methods.
Filtration option | Best use | Main limitation | Where lenticular filter fits |
|---|---|---|---|
Filter sheet | Traditional clarification | Open handling and more dripping | Enclosed sheet-like depth filtration |
Bag filter | Coarse solids removal | Weak fine polishing | Better for haze and colloids |
Pleated cartridge | Surface or fine particle removal | Can block fast under high solids | Good prefilter before cartridges |
Membrane filter | Sterile or fine filtration | Sensitive to high particle load | Protects membrane life |
Precoat filtration | Heavy clarification | Filter aid handling and cleanup | Cleaner enclosed alternative |
Filter sheet can provide strong depth filtration, but it often requires open handling. Lenticular filter uses similar depth principles in a closed module, so it is cleaner and easier to change.
Bag filter is useful when large solids are the main issue. It is not ideal for fine haze, color, or colloids. lenticular filter is better when the goal is stable clarification or polishing.
Pleated cartridge or membrane filter can provide precise retention. Yet they can blind quickly if the feed has many solids. In many systems, a lenticular filter is placed before them to reduce particle load and protect final filtration.
Tip：Use a lenticular filter before membrane filtration when premature membrane blockage increases downtime or replacement cost.

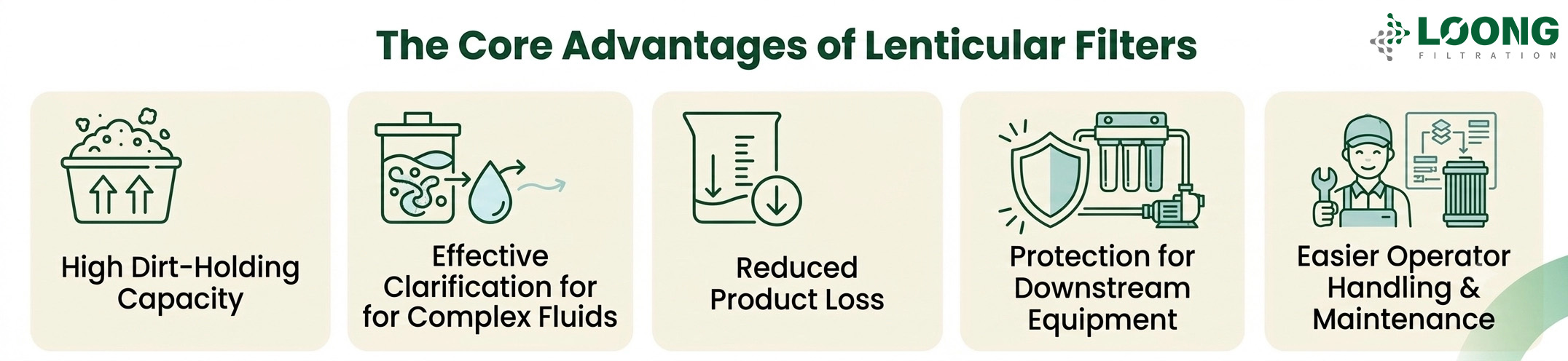

High Dirt-Holding Capacity
Contaminants are captured within the media depth, not just on the surface.
Allows the filter to hold more solids before flow drops.
Extends service cycles and reduces changeout frequency.
Effective Clarification for Complex Fluids
Handles multiple impurity types: particles, haze, colloids, gels, and color bodies.
Combines mechanical capture and adsorption, depending on the media selected.
Reduced Product Loss
Enclosed housing minimizes dripping and open exposure.
Smooth housing design improves liquid recovery during draining or cleaning.
Particularly beneficial for beverages and high-value process liquids, improving overall yield.
Protection for Downstream Equipment
Removes solids early, reducing the load on sensitive and costly downstream components.
Extends the life of membrane cartridges, sterile filters, and polishing cartridges.
Improves total system performance and reliability.
Easier Operator Handling & Maintenance
Sealed depth stack modules are simpler and cleaner to change than loose sheets, filter aid, or powdered carbon.
Supports cleaner workflows and faster maintenance with less operator exposure.
Start with the liquid itself. Is it thin or viscous? Does it contain hard particles, soft gels, colloids, color, odor, or biological materials? A clear water-like liquid needs a different media than a dense juice, fermented broth, serum solution, or chemical intermediate.
Next, choose the filtration stage. Coarse clarification may need a larger micron rating. Fine polishing needs a tighter grade. Pretreatment before membrane filtration should reduce solids without causing heavy product loss or slow flow.
Housing compatibility also matters. Lenticular filters are available in common module diameters such as 8-inch, 12-inch, and 16-inch formats. Cell count, stack height, gasket material, flow rate, and housing design must match the production line.
Process conditions should also be checked. Temperature, pressure, chemical compatibility, cleaning method, sanitation, product value, and compliance needs all affect selection. For food and pharma-related use, buyers should also ask about material safety, biosafety, and quality documentation.
Selection Factor | What to Check | Why it Matters |
Fluid type | Viscosity, solids, colloids, color, odor | Guides media choice |
Micron rating | Coarse, fine, or polishing stage | Controls clarity and flow |
Media type | Composite, carbon, cellulose, backflushable | Matches process goal |
Housing size | Diameter, layers, sealing, ports | Ensures fit and capacity |
Operating limits | Pressure and temperature | Protects media integrity |
Documentation | Food contact, biosafety, quality files | Supports audits and risk control |
A lenticular filter gives compact depth filtration for clarification, polishing, adsorption, and downstream protection. LOONG FILTRATION offers composite depth, activated carbon, pure cellulose, and backflushable filter modules for many process needs. Its products help improve clarity, reduce product loss, simplify maintenance, and support cleaner production through matched media, housing options, and technical service.
A: A lenticular filter is a stacked depth filter module for liquid clarification.
A: A lenticular filter traps particles inside thick media as liquid flows through.
A: It lowers particle load and helps protect final membrane filters.
A: Some types can be rinsed or backflushed, but critical processes often replace it.
A: Usually yes, but it may reduce downtime, waste, and final filter cost.
A: Poor seating, gasket damage, bypass, or media rupture may cause it.
