Did you know choosing the wrong filter membrane can ruin an entire production batch? Selecting between a Hydrophilic Filter and a Hydrophobic PTFE Filter is a critical decision for critical processes. This comprehensive guide covers their distinct surface chemistries, functional properties, and application suitability. You will learn exactly how to match the right PTFE membrane to your specific fluid or gas filtration needs.
● Hydrophobic PTFE Filter membranes naturally repel water and are ideal for gas filtration, venting, and aggressive organic solvent purification.
● A Hydrophilic Filter is modified to attract water, allowing seamless filtration of aqueous solutions without the need for pre-wetting.
● Choosing the wrong membrane leads to premature clogging, severe pressure drops, or incomplete filtration in industrial systems.
● Proper chemical compatibility, flow rate requirements, and fluid properties dictate the ideal PTFE configuration for your specific manufacturing process.

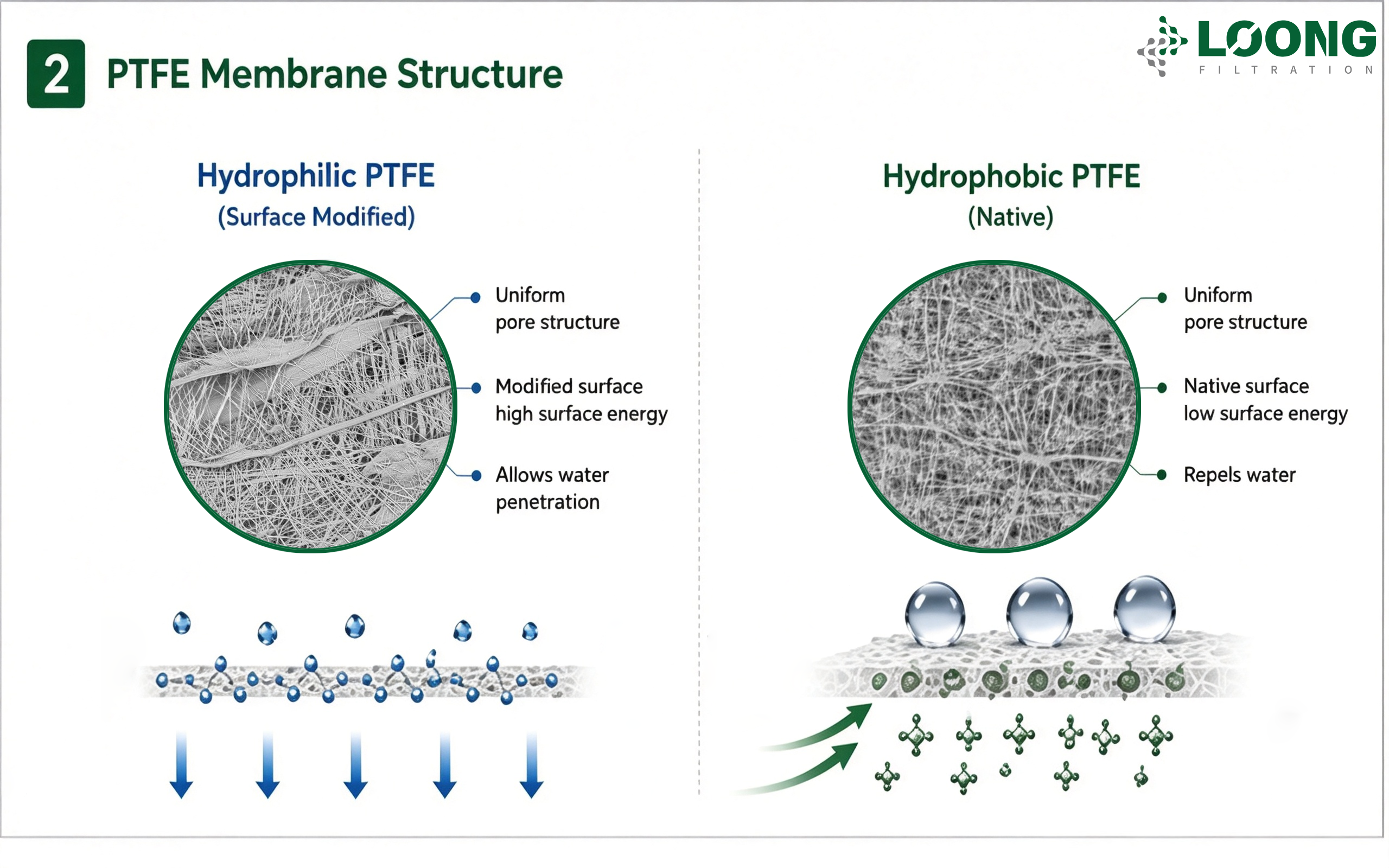

PTFE (Polytetrafluoroethylene) is a high-performance fluoropolymer known for its exceptional chemical resistance and thermal stability. In filtration applications, it is manufactured into a microporous membrane with a node-and-fibril structure that enables precise particle retention while maintaining high durability.

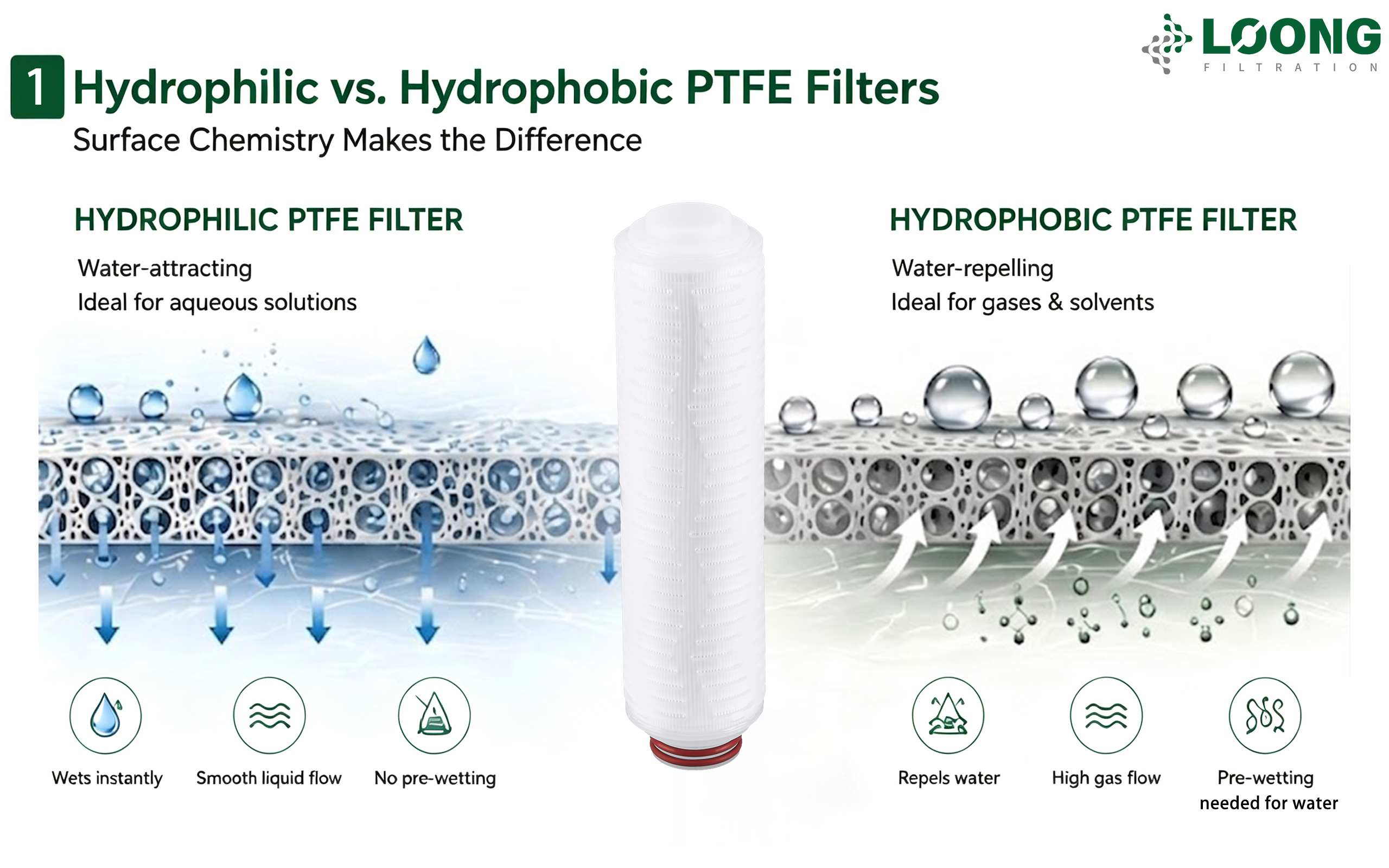

A key factor in Hydrophilic vs Hydrophobic PTFE Filters is surface energy. Although the base material is identical, the surface treatment determines how the membrane interacts with liquids and gases.
A Hydrophobic PTFE Filter naturally repels water due to low surface energy.
A Hydrophilic PTFE Filter is chemically modified to attract water and other polar liquids.
This difference in wettability defines whether a membrane is suitable for gas filtration, solvent handling, or aqueous processing.
A Hydrophilic PTFE Filter is engineered to allow immediate wetting by water-based solutions without pre-treatment. Once in contact with liquid, the membrane enables smooth and consistent flow through its pores.
This makes it highly suitable for processes requiring direct filtration of aqueous solutions.
Pharmaceutical sterile filtration
Biotech culture media preparation
Aqueous chemical processing
Laboratory sample filtration (HPLC preparation)
No pre-wetting required
High efficiency in water-based systems
Low protein adsorption
Improved workflow efficiency in sterile environments
Despite their advantages, Hydrophilic PTFE Filters are not ideal for non-polar solvents or gas venting systems. Surface treatments may degrade performance when exposed to certain organic chemicals over time.
Item | Hydrophilic PTFE Filter |
|---|---|
How It Works | Surface-modified PTFE membrane that allows immediate wetting by water-based solutions without pre-wetting. |
Key Applications | Pharmaceutical sterile filtration, biotech culture media preparation, aqueous chemical processing, and HPLC sample filtration. |
Main Advantages | No pre-wetting required; high efficiency in water-based systems; low protein adsorption; improved sterile workflow efficiency. |
Suitable Fluids | Aqueous solutions and other water-based liquids. |
Limitations | Not suitable for non-polar solvents or gas venting. Surface treatments may degrade when exposed to certain organic chemicals over time. |
A Hydrophobic PTFE Filter repels water and allows only gases or low-surface-tension liquids to pass. Water cannot penetrate the membrane unless pressure exceeds the bubble point threshold.
This makes it ideal for applications where moisture exclusion is critical.
Compressed air and gas filtration
Tank and container venting
Organic solvent filtration
Fermentation air inlet systems
Excellent moisture resistance
Strong chemical compatibility
High thermal stability
No pore blockage from humidity in gas systems
When used for aqueous filtration, a Hydrophobic PTFE Filter requires pre-wetting with alcohol (e.g., IPA), adding extra processing steps and operational cost.
The core distinction in Hydrophilic vs Hydrophobic PTFE Filters lies in surface energy:
Hydrophobic PTFE: low surface energy, water-repelling
Hydrophilic PTFE: modified high surface energy, water-attracting
Hydrophobic PTFE Filter: High gas flow, minimal liquid permeability without pre-wetting
Hydrophilic PTFE Filter: Stable liquid flow for aqueous solutions, restricted for non-polar fluids

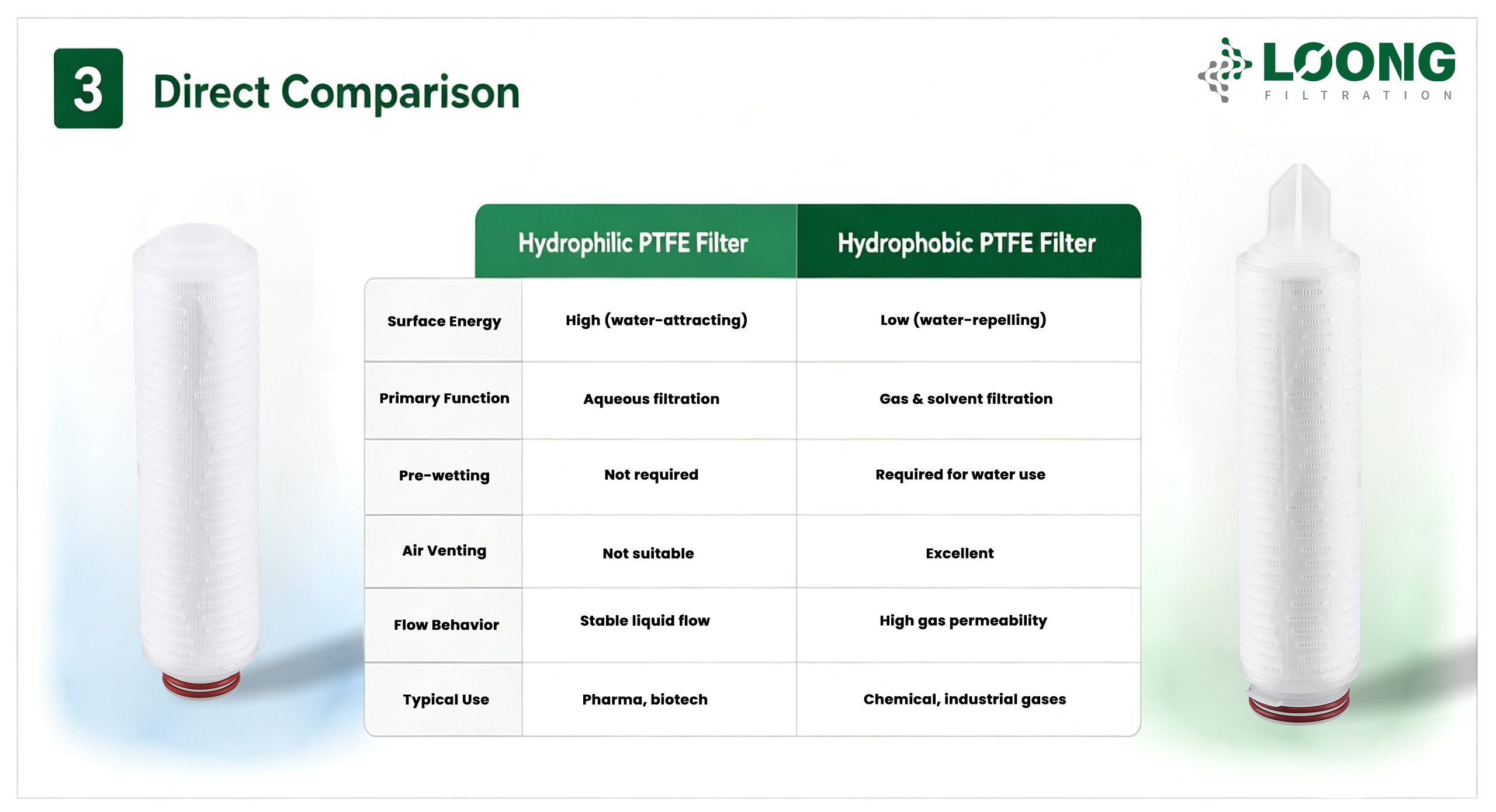

Feature | Hydrophilic PTFE Filter | Hydrophobic PTFE Filter |
|---|---|---|
Surface Energy | High (water-attracting) | Low (water-repelling) |
Primary Function | Aqueous filtration | Gas & solvent filtration |
Pre-wetting | Not required | Required for water use |
Air Venting | Not suitable | Excellent |
Flow Behavior | Stable liquid flow | High gas permeability |
Typical Use | Pharma, biotech | Chemical, industrial gases |
While a Hydrophilic PTFE Filter may have a higher upfront cost due to surface modification, it reduces operational complexity. Conversely, a Hydrophobic PTFE Filter is more cost-effective initially but may require additional handling steps in liquid-based systems.

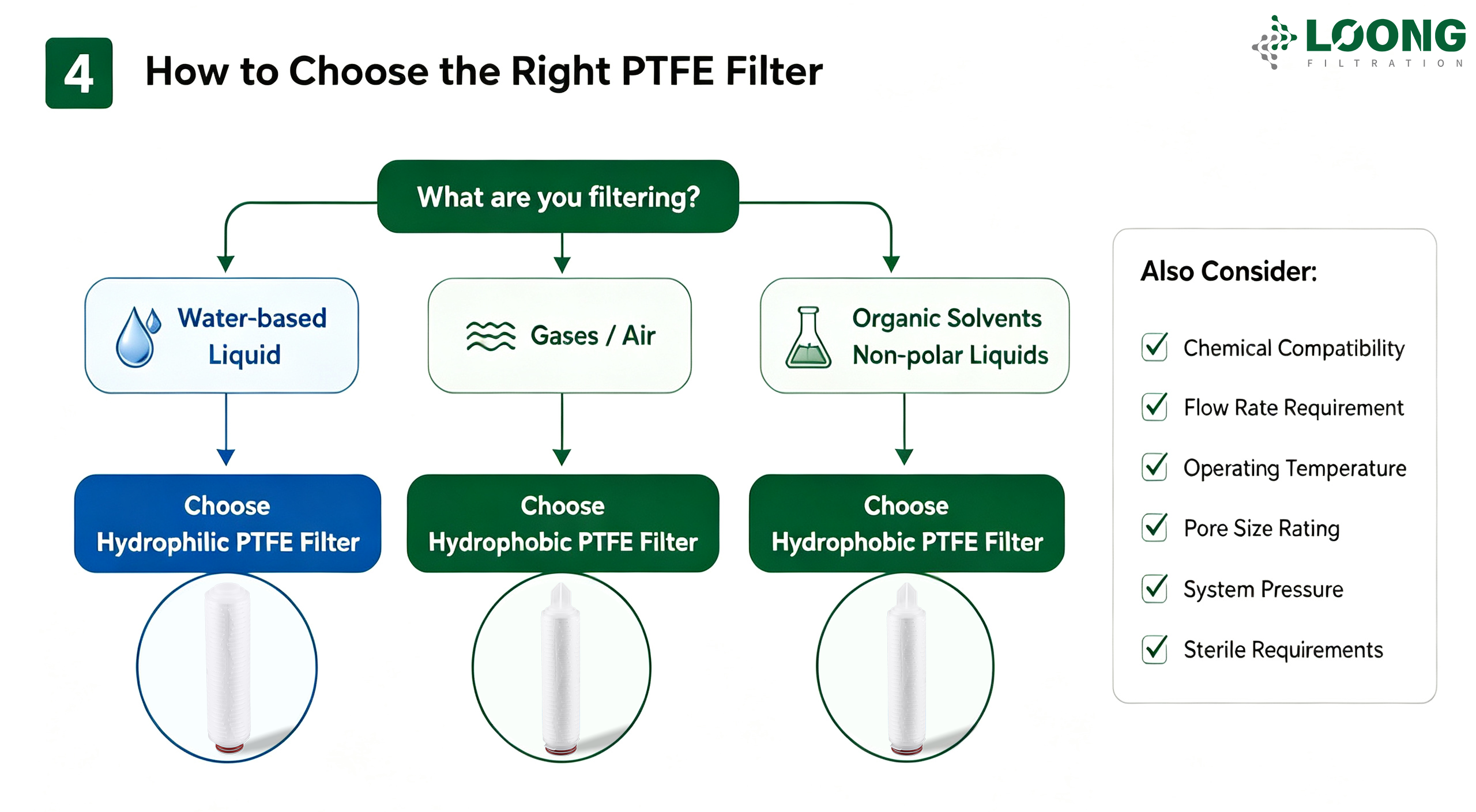

Selecting between Hydrophilic vs Hydrophobic PTFE Filters depends on three key factors:
Water-based liquids → Hydrophilic PTFE Filter
Organic solvents or gases → Hydrophobic PTFE Filter
Sterile filtration or biotechnology → Hydrophilic preferred
Venting or gas protection → Hydrophobic preferred
If pre-wetting and solvent handling increase production cost, a Hydrophilic PTFE Filter is often the better long-term choice for aqueous systems.
Proper handling ensures consistent performance for both Hydrophilic vs Hydrophobic PTFE Filters. Always use clean gloves and store filters in sealed packaging to avoid contamination.
Ensure correct housing alignment
Avoid membrane damage during installation
Pre-wet hydrophobic filters when required
Flush hydrophilic systems before use
Low flow rate → possible fouling or incorrect filter type
Air blockage → moisture contamination in hydrophobic systems
Liquid blockage → oil contamination in hydrophilic systems

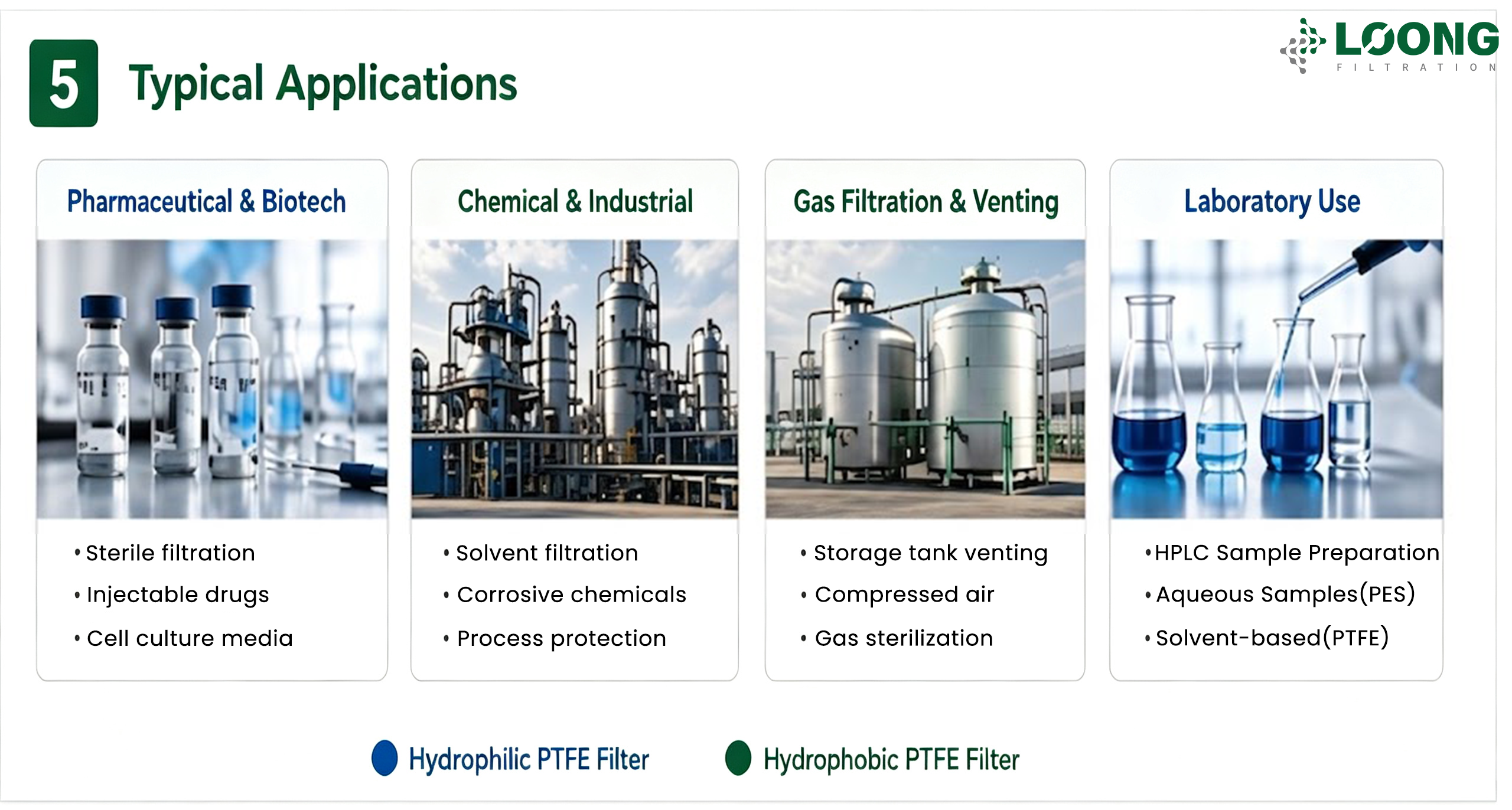

A Hydrophilic PTFE Filter is widely used in sterile drug manufacturing and biotech processes where contamination control is critical.
A Hydrophobic PTFE Filter is preferred for aggressive solvent handling and gas filtration systems in chemical plants.
Both Hydrophilic vs Hydrophobic PTFE Filters are used in labs depending on whether the application involves aqueous samples or organic solvent preparation.
Understanding Hydrophilic vs Hydrophobic PTFE Filters is essential for optimizing industrial filtration systems. A Hydrophilic PTFE Filter is ideal for efficient aqueous processing without pre-wetting, while a Hydrophobic PTFE Filter excels in gas filtration and solvent-resistant applications.
Selecting the correct membrane ensures higher productivity, reduced downtime, and improved product purity. By carefully evaluating fluid type, system requirements, and operational cost, you can confidently choose the most suitable PTFE filtration solution for your process.
Ultimately, mastering Hydrophilic vs Hydrophobic PTFE Filters allows industries to achieve greater efficiency, reliability, and long-term performance in critical filtration applications.
A: A Hydrophilic Filter attracts water for easy aqueous processing, while a Hydrophobic PTFE Filter repels water, making it ideal for gas venting applications.
A: The low surface energy of a Hydrophobic PTFE Filter resists water penetration, so you must pre-wet it with alcohol to lower surface tension.
A: No, because moisture in the air will wet a Hydrophilic Filter, blocking the pores and preventing air from passing through the vent line.
A: A Hydrophobic PTFE Filter is best because it offers native chemical resistance without specialized coatings that solvents might degrade over time.
