Choosing a high flow filter cartridge manufacturer is not simply a matter of comparing brand names. The cartridge must suit your liquid, flow rate, contaminant load and filtration target. If you are replacing an existing element, it must also match the housing, seal and flow direction. A small difference in end-cap design or overall length can turn a promising alternative into an expensive installation problem.

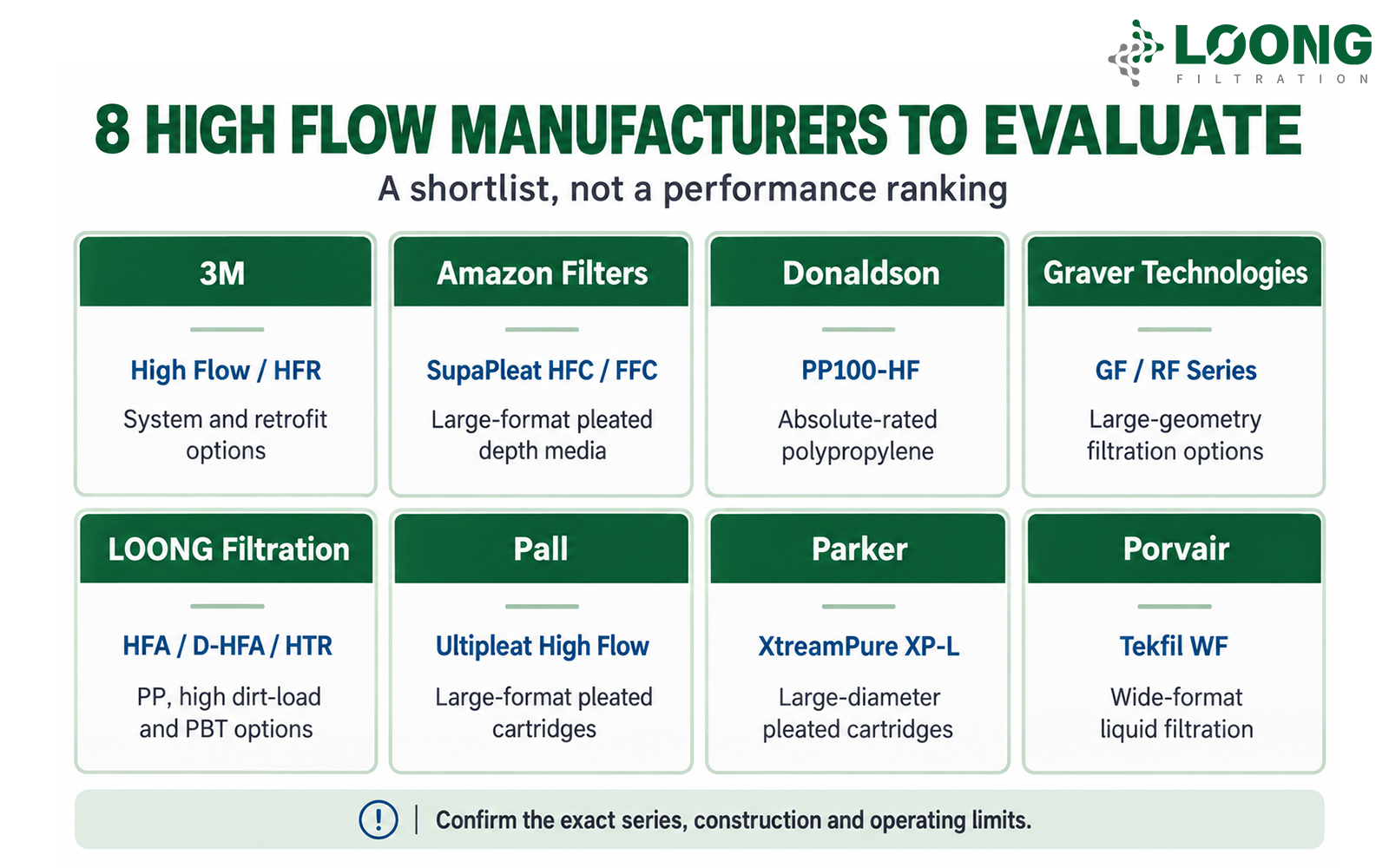

This guide introduces eight established manufacturers with identifiable high flow or large-format liquid filter cartridge ranges. It also explains what each company is known for and how to compare the options for your own process. The list is not a performance ranking, because a cartridge that works well in seawater desalination may not be the right choice for a food, chemical or high-purity water line.
A high flow filter cartridge uses a large-diameter, pleated design to place more filtration area inside one element. In many systems, this allows fewer cartridges and a smaller housing to handle the required flow. Fewer elements can also mean faster changeouts, less storage space for spares and lower disposal volume.
Those benefits depend on more than cartridge size. Pleat design, media structure, micron-rating method and clean pressure drop all affect real performance. Material compatibility is equally important. Polypropylene works well in many water and general industrial applications, while glass fiber, PTFE, PBT or other media may be more suitable when temperature, solvents or retention requirements change.
For an existing filtration system, begin with the current cartridge drawing and part number. Check the outside diameter, length, end connection, O-ring material and flow direction before comparing prices. For a new project, it is often better to evaluate the high flow filter cartridge and housing as one system.
LOONG Filtration supplies high flow filter cartridges for industrial water treatment, desalination, power generation, food and beverage processing, and chemical applications. Its range includes large-format PP cartridges for general liquid filtration, high dirt-holding designs for challenging feed water, and PBT options for applications involving higher temperatures or selected organic solvents.
The company also develops replacement cartridges for commonly used Pall-, 3M- and Parker-style high flow housings. This gives you a direct route when you want to reduce element cost or shorten lead times without replacing the full vessel. Fit still needs to be confirmed against the exact housing, so LOONG uses the existing part number, drawing and operating data to recommend the appropriate construction.
For common industrial water duties, the HFA high flow pleated filter cartridge provides an all-polypropylene option. When solids loading is the main concern, the D-HFA high dirt-capacity cartridge is designed to extend useful filtration area and service life. The HTR large-flow PBT cartridge covers more demanding temperature and chemical conditions. Matching high flow filter housings are available when you are building a new system rather than retrofitting an existing one.
3M is one of the best-known names in large-format industrial liquid filtration. Its High Flow system is built around a large pleated cartridge that can process a high volume of liquid while reducing the number of elements required in a vessel. The company also offers HFR retrofit cartridges for selected existing high flow systems.
3M is a useful benchmark when you are comparing system footprint, element count and documented pressure-drop performance. Make sure the quotation refers to an industrial High Flow or HFR product, however, because the 3M name is also used across other water-filtration products with very different sizes and duties.
Pall’s Ultipleat High Flow family is widely recognized in industrial filtration. Its large-diameter cartridge uses a crescent-shaped pleat arrangement and an inside-to-outside flow path. This design places a large media area inside one element and helps keep collected solids within the cartridge during removal.
Pall offers different media and retention ratings across the Ultipleat range, so the brand name alone is not enough to select a replacement. If you are comparing an alternative cartridge with a Pall element, use the full part number and confirm the media, length, seal and micron rating rather than relying only on the phrase “Pall compatible.”
Parker supplies several industrial liquid filtration ranges, including the XtreamPure XP-L large-diameter pleated cartridge. The design uses an inside-to-outside flow path and is intended to deliver high capacity with fewer elements than a traditional small-diameter cartridge system.
Parker can be a strong choice when you want an established filtration group with access to housings, elements and application support. When comparing a Parker replacement, check the precise product family. Parker’s filtration catalogue covers many different cartridge constructions, and not every high-capacity product uses the same interface.
Donaldson offers the PP100-HF, an absolute-rated polypropylene high flow cartridge for industrial and sanitary liquid applications. It is part of a wider process filtration portfolio that includes housings, conventional cartridges and modular filtration systems.
This range may suit projects that favor an all-polypropylene element and need clear retention information. As with any absolute-rated cartridge, compare the stated efficiency and test method as well as the micron number. Two products marked with the same micron rating can perform differently if their retention definitions are not the same.
Amazon Filters manufactures the SupaPleat family, including HFC and FFC large-format cartridges for high flow industrial processes. The range uses pleated depth media to combine high throughput with contaminant-holding capacity. The company also offers retrofit products and several construction options for different chemical and temperature conditions.
Amazon Filters is particularly relevant when your shortlist includes oil and gas, chemical processing or water-treatment applications. Its broad SupaPleat range makes exact series selection important. Ask for data for the proposed model rather than assuming that every SupaPleat cartridge has the same media, support structure or operating limit.
Graver Technologies offers large-geometry high flow cartridges, including GF Series products with microfiber glass media and RF Series options. These products are designed to handle higher liquid volumes with fewer elements, and selected models can retrofit competitive high flow housings.
The glass-fiber route makes Graver worth considering when polypropylene is not the preferred media or when the application calls for a different retention and compatibility profile. Confirm that the quoted efficiency data use a method comparable with the other cartridges on your shortlist.
Porvair Filtration Group supplies a wide range of process filters, including Tekfil WF wide-format cartridges for high flow applications. Porvair also serves high-purity, pharmaceutical, food and beverage, water, energy and general industrial markets through other cartridge and housing families.
Because the Porvair portfolio includes both liquid and gas filtration products, define the service clearly when requesting a quotation. For an industrial liquid project, focus on the appropriate large-format liquid cartridge and ask for pressure-drop, retention and compatibility data under conditions close to your process.

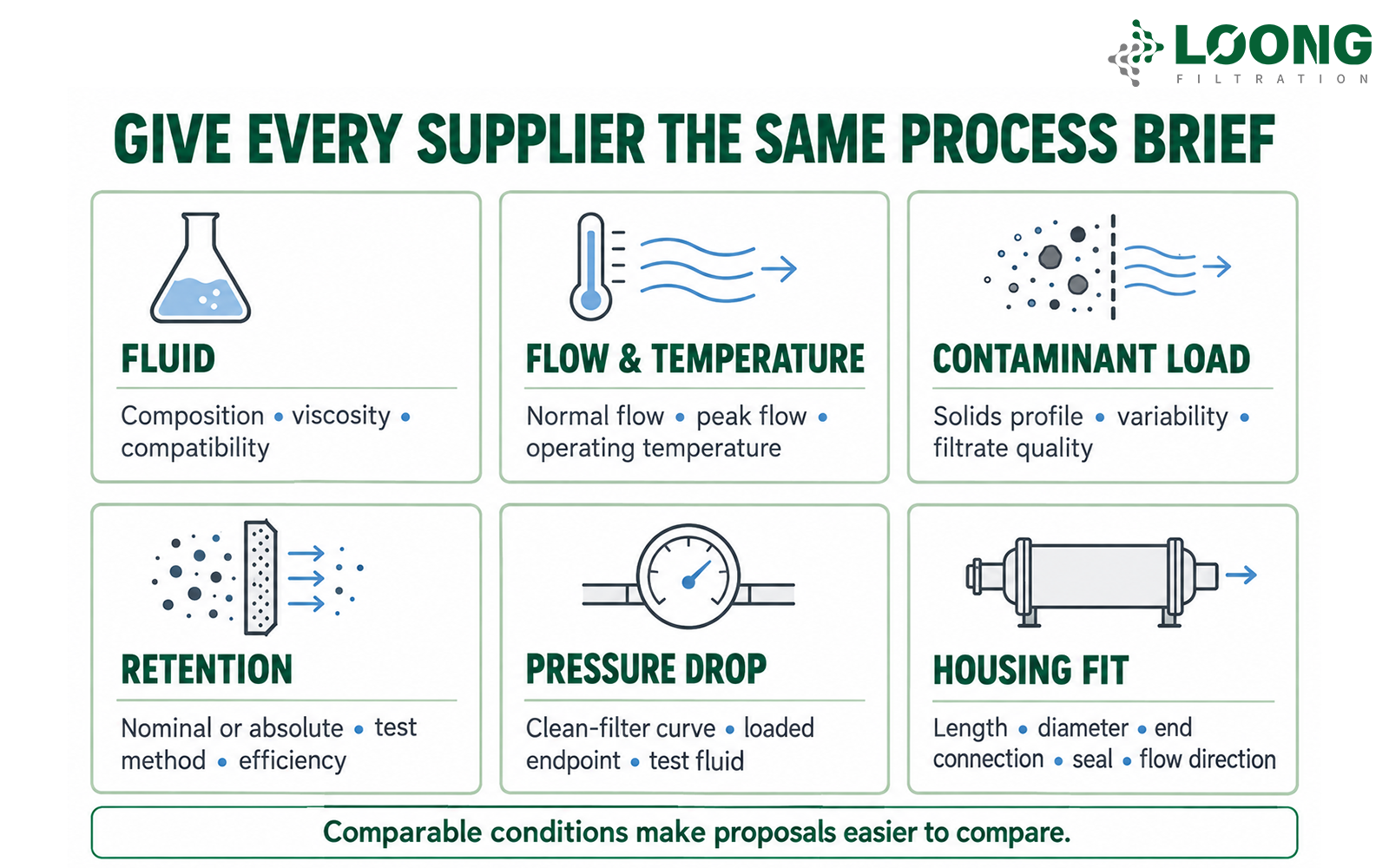

The most useful comparison begins with one common operating brief. Tell every supplier the liquid composition, normal and peak flow, temperature, viscosity, solids load and required filtrate quality. Include the clean differential pressure you can accept and the pressure at which the cartridge will be changed. When every manufacturer works from the same conditions, the proposals become much easier to compare.
Flow rate should never be considered on its own. A high maximum-flow figure may have been measured with clean water at a low viscosity, while your process may contain more solids or operate at a different temperature. Ask for a pressure-drop curve and find out what test fluid was used. This will show whether the cartridge can deliver the required flow without consuming too much available system pressure.
Retention data deserve the same attention. Nominal and absolute micron ratings are not interchangeable, and different manufacturers may use different efficiency thresholds. If the filter protects an RO membrane, nozzle, heat exchanger or sensitive downstream process, define the result you need rather than choosing a cartridge from its micron label alone.

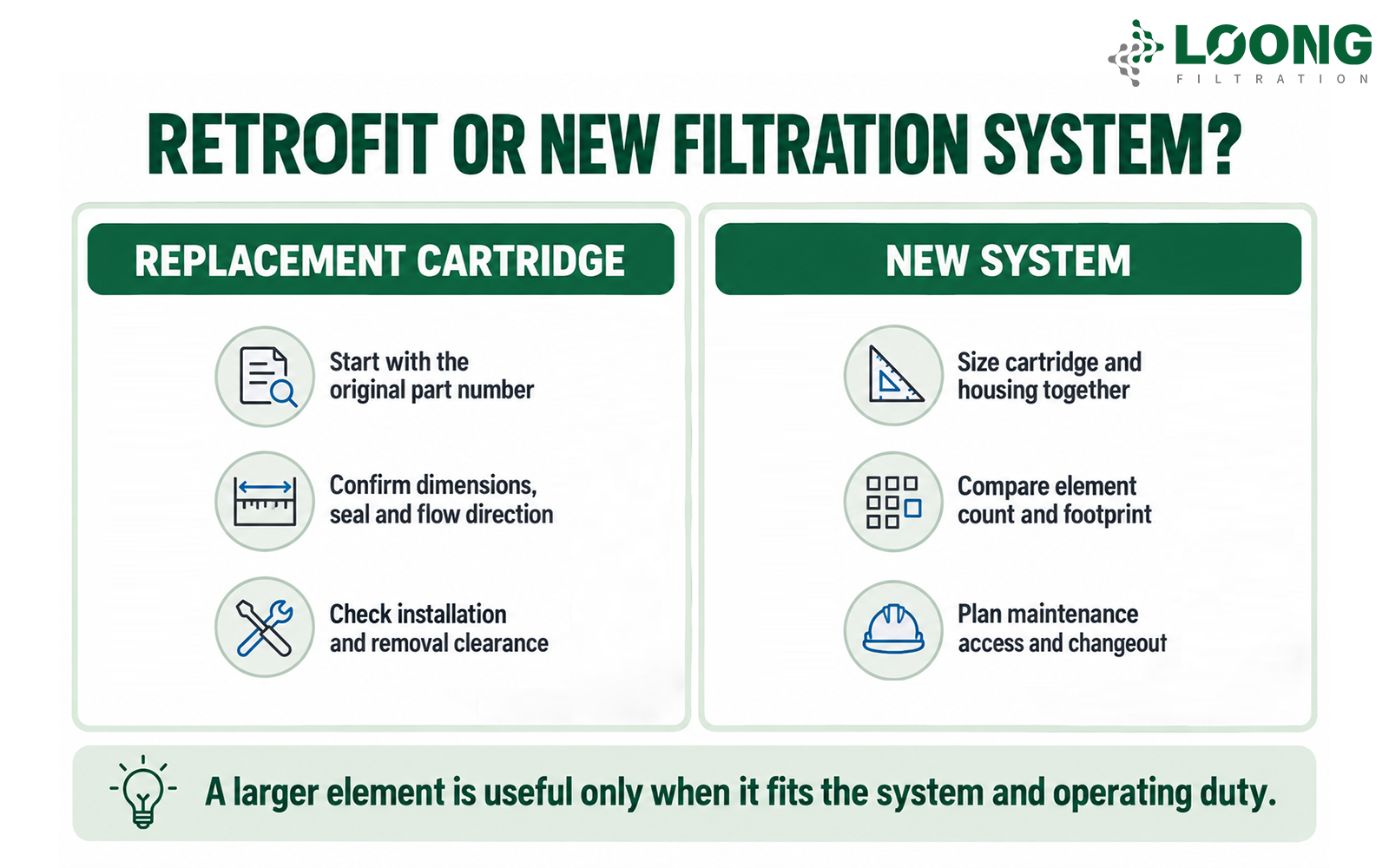

If the existing housing is in good condition, a compatible replacement high flow cartridge can reduce purchasing cost and avoid changes to the skid. Start with the original element code, but also provide a drawing or a sample when possible. The replacement needs to match the sealing surface, overall dimensions and flow direction. It also needs enough clearance for safe installation and removal.
A new filtration line gives you more freedom. You can compare cartridge count, vessel diameter, floor space and maintenance access together. A large cartridge may cost more per element, yet still lower total operating cost if it reduces the number of cartridges and shortens each shutdown. The right calculation includes the housing, spare inventory, labor, disposal and expected throughput between changeouts.
LOONG can support both paths. For retrofit projects, you can send the current part number and operating conditions for cross-reference review. For new systems, the team can match cartridge media and geometry with an appropriate housing and filtration stage. Its broader high flow filtration range covers Pall-, 3M- and Parker-style configurations, while custom options are available for projects with different lengths, seals or process requirements.

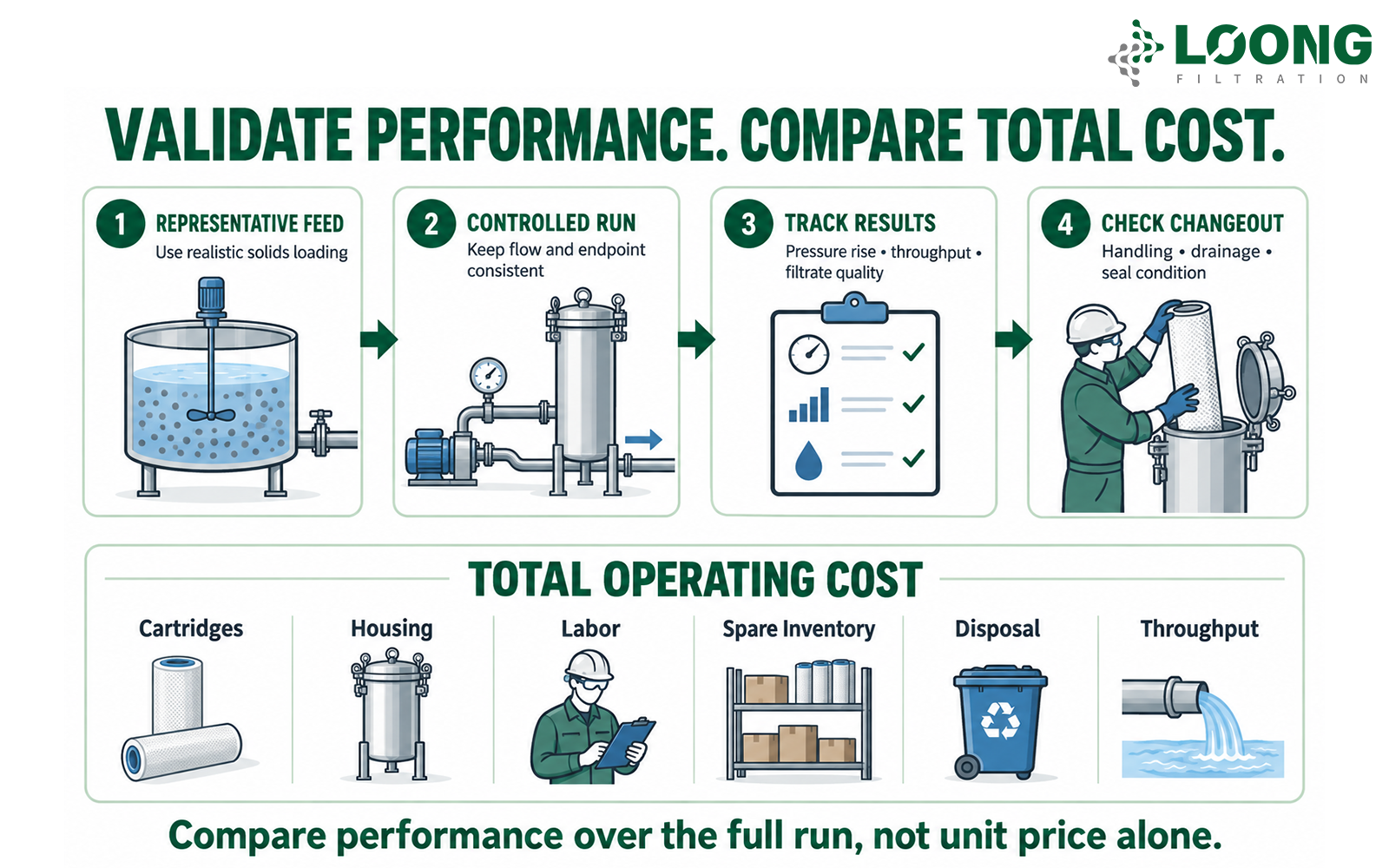

Catalogue data help you create a shortlist, but actual feed conditions determine service life. A well-planned trial shows how quickly differential pressure rises, how much liquid the cartridge processes and whether downstream quality stays within specification. Use a representative feed rather than the cleanest batch, and keep the flow and endpoint consistent when comparing products.
The trial should also include changeout. A cartridge may filter well but still be difficult to remove in a cramped vessel. Ask the maintenance team to check handling, drainage and the condition of the seal after use. These practical details often influence lifetime cost as much as the initial element price.
LOONG, 3M, Pall, Parker, Donaldson, Amazon Filters, Graver Technologies and Porvair all offer relevant options for high flow liquid filtration. The best manufacturer for your project is the one that can match the cartridge to your housing, fluid, retention target and operating limits while providing dependable documentation and supply.
If you are replacing an existing large-format cartridge, LOONG Filtration can review the current part number and recommend a corresponding construction. If you are planning a new system, share your flow, liquid, temperature, contaminant load and filtration target through the LOONG Filtration contact page. This gives the engineering team enough information to recommend a suitable cartridge and housing rather than offering a generic high flow product.
Provide the liquid type, flow rate, temperature, micron rating, operating pressure and current cartridge model. For replacements, include the housing model or cartridge drawing.
Compare filtration efficiency, pressure drop, expected service life, housing compatibility and replacement frequency. These factors provide a more useful cost comparison than unit price alone.
For a new filtration system, selecting the cartridge and housing together can simplify sizing and compatibility. Existing systems normally only require a correctly matched replacement cartridge.
Yes. Media, micron rating, length, end connection and seal material can be selected according to the liquid and operating conditions.
