Learn how liquid cooling filtration helps control particulate contamination in cooling loops and CDUs, and how to select filter cartridges for data center cooling systems.

As high-density computing continues to increase the thermal load of data center infrastructure, liquid cooling is being adopted for applications where conventional air cooling may no longer provide sufficient thermal management. Direct-to-chip (D2C) cooling and other liquid cooling architectures use circulating coolant to transfer heat away from processors, GPUs, and other high-power components.

However, moving from air to liquid introduces another important engineering consideration: coolant cleanliness.

Liquid cooling systems can contain narrow flow passages, heat exchangers, pumps, valves, quick-disconnects, and microchannel cold plates. Particles introduced during manufacturing, installation, commissioning, or system operation can accumulate in these components and affect flow or equipment reliability. ASHRAE guidance notes that the smallest flow path in a liquid cooling system can determine the maximum allowable particulate size and that filtration planning is therefore an important part of liquid-cooled electronics design.

Why Does Filtration Matter in Liquid Cooling Systems?

Contamination in a cooling loop can come from different sources.

During fabrication and installation, contaminants may include metal particles, welding residues, pipe scale, and other debris. During operation, corrosion products or wear particles may also enter the circulating fluid.

The impact depends on the system design and contaminant characteristics, but several areas require particular attention.

Protecting Small Flow Passages

Microchannel cold plates are designed with small passages to improve heat transfer performance. Because these passages are relatively narrow, particulate contamination can restrict flow or contribute to localized blockage. ASHRAE notes that liquid-cooled electronics commonly use microchannel cold plates and emphasizes the importance of filtration planning because of their small internal flow dimensions.

Protecting Heat Exchangers and Other Components

Particles can also accumulate in heat exchangers, valves, fittings, and other components of the cooling loop. Effective filtration can help control particulate loading before contaminants reach sensitive downstream components.

Maintaining Stable Flow Conditions

A filter should not simply capture particles. It must also be selected so that the associated pressure drop is compatible with the cooling system's required flow rate and pump capacity.

For this reason, liquid cooling filtration is a system-design issue rather than simply a matter of choosing the smallest available micron rating.

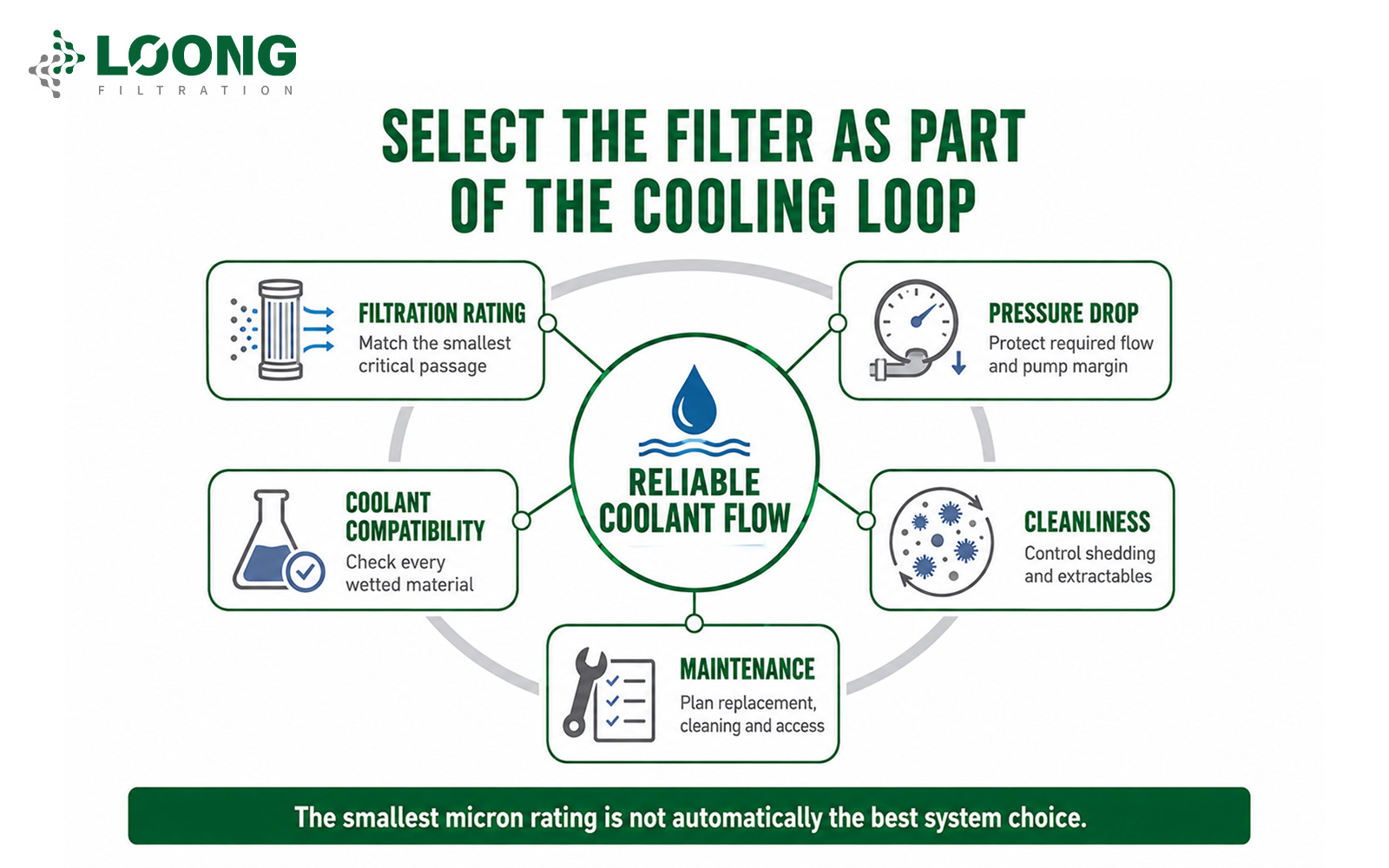

Key Filtration Considerations for Liquid Cooling

Selecting a filter for a liquid cooling system requires balancing particle retention, flow, pressure drop, coolant compatibility, and maintenance requirements.

1.Filtration Rating

The appropriate filtration rating depends on the smallest critical flow passage, the location of the filter, the required cleanliness level, and whether the system uses full-flow or side-stream filtration.

For example, Vertiv's published liquid cooling deployment guidelines specify that the strainer or filter rating should be selected in relation to the narrowest channel width in the liquid cooling system. The same guidance also distinguishes between full-flow and side-stream filtration approaches.

This means that there is no single micron rating that is suitable for every liquid cooling system.

Typical projects may use different filtration stages for commissioning, main-loop protection, and fine filtration.

2.Pressure Drop

Pressure drop is an important consideration because the cooling loop must maintain the required coolant flow.

A filter with unnecessarily high resistance can increase pump requirements, while an undersized filter may experience rapid pressure-drop increase as contaminants accumulate.

Filter selection should therefore consider:

• Required flow rate

• Initial differential pressure

• Contaminant loading

• Available filter area

• Allowable pressure drop

• Filter replacement or cleaning requirements

3.Coolant Compatibility

Filter materials must be compatible with the actual coolant and operating conditions.

Depending on the system, the coolant may be water-based, glycol-based, or another engineered coolant. Material compatibility should be verified for the complete filter construction, including:

• Filter media

• Support materials

• End caps

• O-rings and seals

• Housing materials

4.Cleanliness and Extractables

For sensitive cooling systems, filtration media and construction should also be evaluated for particulate shedding and extractables.

The objective is not simply to remove particles from the coolant, but to avoid introducing additional contamination into the loop.

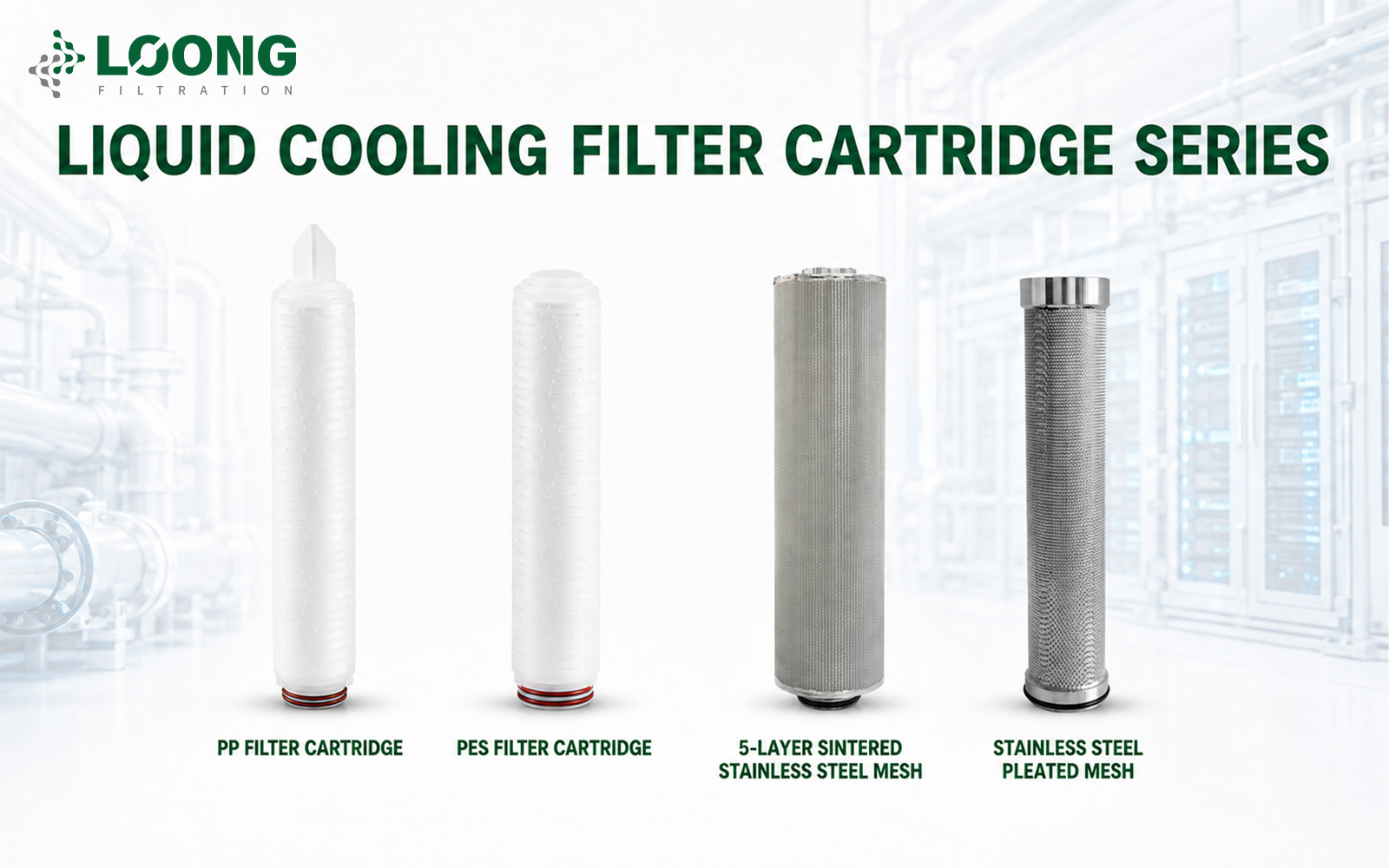

Filtration Technologies for Liquid Cooling Applications

Different stages of a liquid cooling system may require different filtration technologies.

Glass Fiber Filtration for System Flushing and Prefiltration

During commissioning or after maintenance, the coolant loop may contain a relatively high contaminant load.

LOONG's LC-Series Glass Fiber filter cartridge is designed with a multi-layer gradient glass fiber structure and is positioned on the company's liquid cooling product range as a primary filtration solution. The published application range includes approximately 10–50 μm filtration for particulates, metal shavings, welding residues, and oxides, making it suitable for higher dirt-load applications and system flushing.

Typical role:

System flushing → coarse particle removal → protection of downstream filters.

Polypropylene Filtration for Main Circulation

LOONG's LC-Series PP filter cartridge uses a fine-fiber polypropylene structure for liquid cooling applications.

The company's published liquid cooling information describes LC-Series PP cartridges as suitable for reducing particulate contamination in the approximately 1–10 μm range and for use in applications involving DI water and ethylene glycol-based coolants.

This makes PP filtration a candidate for applications where a balance between filtration performance, flow rate, service life, and operating cost is required.

Typical role:

Prefiltration / intermediate filtration → main circulation protection → downstream component protection.

PES Filtration for Fine Particle Control

For applications requiring finer particle control, LOONG's LC-Series PES filter cartridge is positioned for liquid cooling applications involving microchannel cold plates.

The published product information specifies 0.1–0.45 μm filtration and highlights hydrophilicity, low pressure drop, high flow characteristics, and low extractables.

The actual filtration rating should still be selected according to the cooling system's flow path, cleanliness target, and operating conditions.

Typical role:

Fine filtration → downstream protection → applications with high cleanliness requirements.

Nylon Filtration for Water-Based Cooling Applications

LOONG also offers an LC-Series Nylon membrane filter cartridge for liquid cooling.

According to the product information, the LC-Series Nylon cartridge is designed for high flow, low pressure drop, stable filtration performance, and compatibility with water-based coolants such as DI water and ethylene glycol. Published filtration ratings include 0.1, 0.22, 0.45, 1.0, 3.0, and 5.0 μm.

For specialized coolants, compatibility should be confirmed against the complete filtration assembly before selection.

Stainless Steel Filtration for Long-Term and Reusable Applications

For applications where mechanical strength, cleanability, and reusable filtration are important, stainless steel filter cartridges provide another option.

LOONG's SSF 5-layer stainless steel sintered filter cartridge is published for liquid cooling applications including fine filtration before cold plate branches and secondary-side CDU filtration. Its published filtration range is approximately 1–100 μm, with backwashing and cleaning capability.

The SBF stainless steel pleated filter cartridge is positioned for medium-precision filtration in CDU main loops and branches, with a commonly stated filtration range of 5–200 μm and a pleated structure designed to provide larger filtration area and higher dirt-holding capacity.

Typical role:

CDU main loop → branch filtration → reusable filtration → high mechanical strength applications.

Liquid Cooling Filter Housings and Filtration Components

Filter selection is only one part of liquid cooling filtration.

The housing, connections, sealing materials, pressure rating, installation position, and maintenance method must also be considered as part of the complete system.

LOONG Filtration currently lists several products specifically under its liquid cooling product portfolio, including:

• LY Liquid Cooling Stainless Steel Filter

• CDU-2Y / CDU-2P Inline Filter

• LYY Sanitary Y-Type Strainer

• LQ Stainless Steel Gas Filter for Liquid Cooling

These products are listed on LOONG's official product portfolio as dedicated liquid-cooling-related filtration equipment.

Where magnetic particle control is required, LOONG also offers a dedicated magnetic separator for liquid cooling applications. Its published application includes both primary and secondary liquid cooling loops for capturing ferrous particles and welding-related metal debris.

How to Select the Right Filter for a Cooling Loop

Rather than selecting a filter based only on the micron rating, engineers should consider the entire cooling loop.

These recommendations are starting points rather than universal specifications. Final selection should be based on the actual coolant, flow rate, pressure, temperature, filtration objective, contaminant characteristics, and equipment geometry.

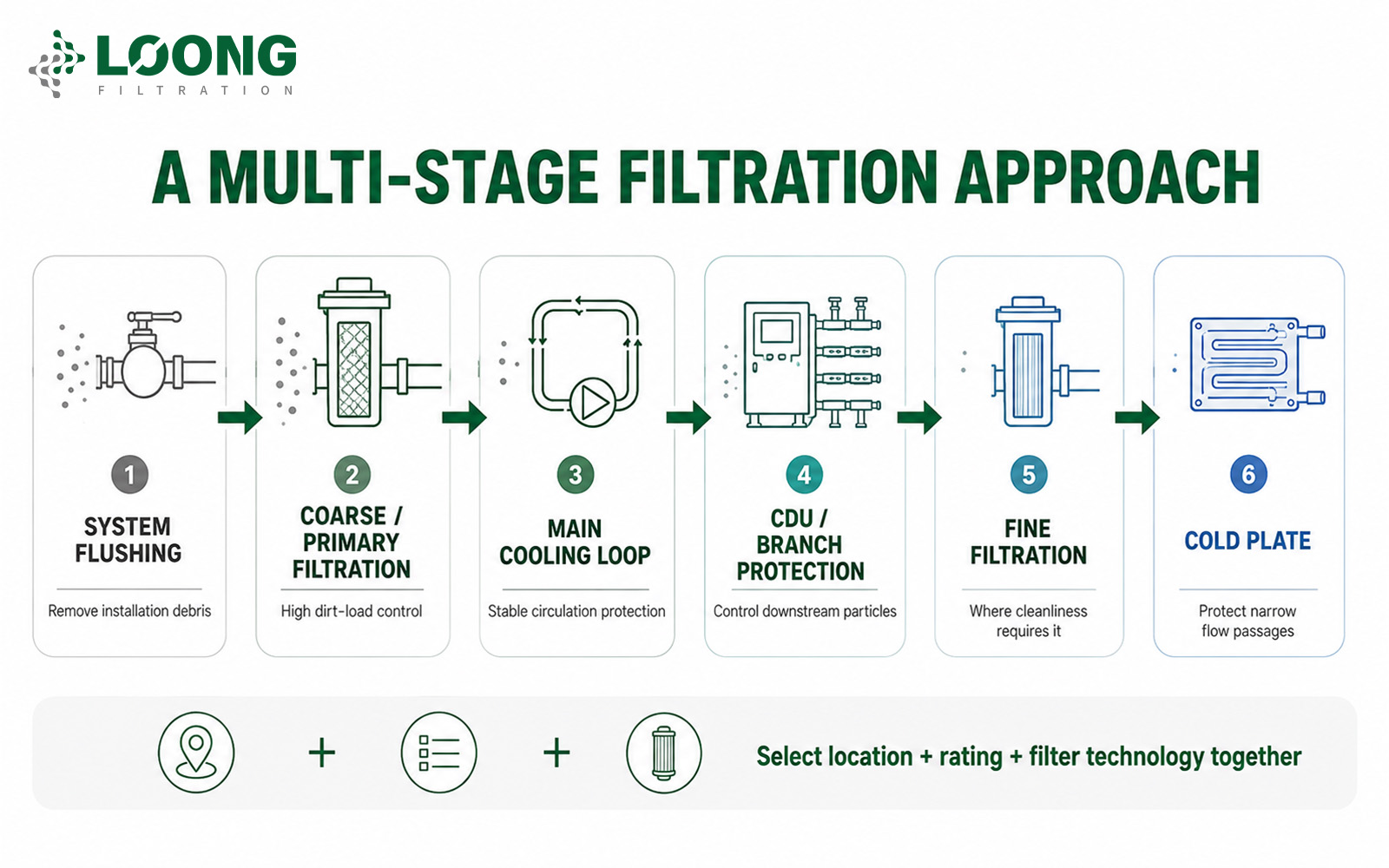

A Multi-Stage Filtration Approach for Liquid Cooling

For systems with different contaminant loads at different stages, a multi-stage filtration strategy may be more practical than relying on a single filter.

A typical design logic may look like:

System Flushing

↓

Coarse / Primary Filtration

↓

Main Cooling Loop Filtration

↓

CDU / Branch Protection

↓

Fine Filtration Where Required

↓

Cold Plate / Sensitive Component

The exact configuration depends on the cooling architecture.

For example, Vertiv's published engineering guidance describes both upstream strainers/filters and side-stream filtration as part of liquid cooling system design, demonstrating that filtration location and filtration method should be considered together rather than independently.

LOONG Filtration Solutions for Liquid Cooling Applications

LOONG Filtration has established a dedicated Data Center Liquid Cooling application category on its website, covering filtration solutions intended to help control particulate contamination in cooling loops and protect CDUs, cold plates, heat exchangers, and related components.

Our liquid cooling filtration portfolio includes membrane and depth-type filter cartridges, stainless steel filter cartridges, strainers, filter housings, and specialized filtration equipment.

The appropriate solution can be selected according to:

• Coolant type

• Contaminant characteristics

• Required filtration rating

• Flow rate

• Pressure drop

• Installation position

• Operating temperature

• Cleaning or replacement requirements

For OEM projects and system integrators, filter dimensions, interfaces, materials, and configurations can also be evaluated based on the actual equipment requirements.

Rather than applying one filter to every application, the objective is to match the filtration technology, filter rating, housing, and installation location to the cooling system.

How LOONG Filtration Can Support Your Liquid Cooling Project

Liquid cooling filtration is an engineering problem involving fluid quality, particle control, flow resistance, material compatibility, and equipment protection.

LOONG Filtration provides filter cartridges and filtration equipment for different stages of liquid cooling systems, from primary filtration and system flushing to finer particle control.

For a new cooling system, CDU, cold plate loop, or retrofit project, the most useful starting information includes:

Coolant → Flow Rate → Operating Temperature → Pressure → Particle Load → Required Filtration Rating → Filter Size / Connection

With these parameters, the filtration configuration can be evaluated according to the actual application rather than relying on a generic filter recommendation.

Frequently Asked Questions

What is liquid cooling filtration?

Liquid cooling filtration is the use of filters or strainers to control particulate contamination within a liquid cooling system. Depending on the system architecture, filtration may be used during commissioning, in the main circulation loop, at a CDU, or upstream of sensitive components such as cold plates.

Why is filtration important in liquid cooling systems?

Liquid cooling systems can contain relatively small internal flow passages, particularly in microchannel cold plates. Particles can restrict flow or accumulate in components, so filtration planning is an important part of maintaining coolant cleanliness and protecting the cooling system.

What micron rating should be used for a liquid cooling system?

There is no universal micron rating for all liquid cooling systems. The appropriate rating depends on the smallest critical flow passage, filter location, coolant, contaminant characteristics, required cleanliness level, and pressure-drop limit. Published liquid cooling engineering guidance recommends relating filtration rating to the narrowest channel in the system.

Which filter material is suitable for water-based liquid cooling?

For water-based cooling applications, PP, PES, Nylon, glass fiber, and stainless steel filtration technologies may all be considered depending on the filtration stage and required performance. LOONG's LC-Series includes PP, PES, GF, and Nylon options for liquid cooling applications.

Can stainless steel filters be used in liquid cooling systems?

Yes. Stainless steel filtration can be considered where mechanical strength, reusable filtration, and cleanability are important. LOONG's SSF and SBF products are both listed for liquid cooling applications, including CDU and cold-plate-related filtration.

How should a filter be selected for a CDU?

CDU filtration should be selected according to the CDU configuration, coolant loop, flow requirement, contaminant load, filtration objective, and the critical downstream flow passages. The filter should also be checked for pressure drop, material compatibility, connection type, and maintenance requirements.

Does liquid cooling filtration replace coolant management?

No. Filtration is only one part of coolant management. A complete liquid cooling strategy may also involve coolant chemistry control, corrosion control, flushing, cleanliness verification, leak management, and monitoring of temperature, pressure, and flow.
