Choosing between an activated carbon and cellulose depth filter starts with a simple question: is the process trying to remove suspended matter, or dissolved compounds as well? A cellulose depth filter is principally a clarification tool. Its fibrous matrix captures particles, gels, and haze through the thickness of the media. An activated carbon depth filter combines that depth-retention function with adsorption, making it useful when color, odor, selected organic impurities, or other dissolved contaminants must be reduced. Neither is universally better. The right choice depends on the feed, the quality target, the value of the product, and the control strategy around the filter.

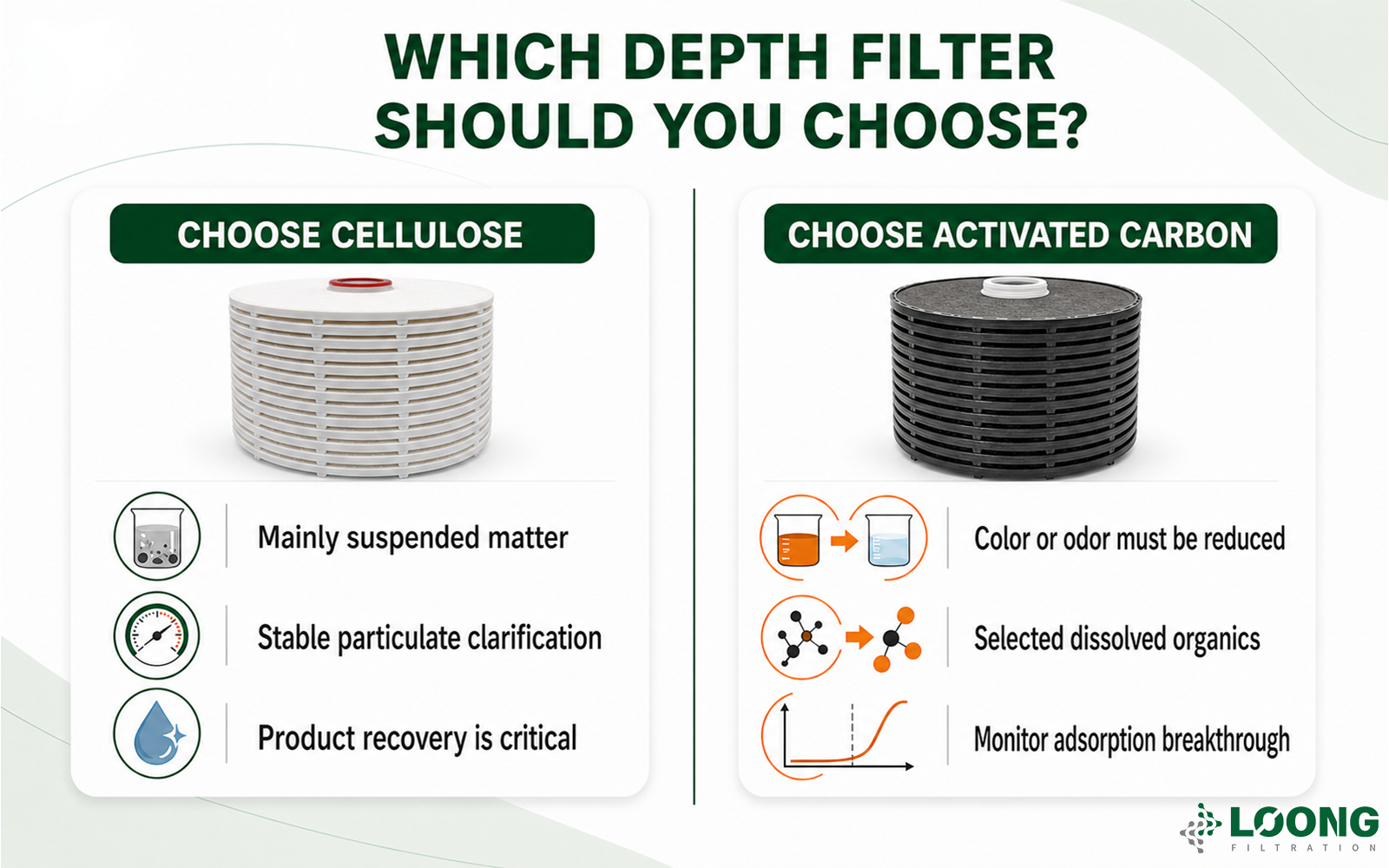

Choose a cellulose depth filter when the central job is particulate clarification and the process does not require meaningful adsorption.
Choose an activated carbon depth filter when clarification must occur alongside reduction of color, odor, or selected dissolved impurities.
Adsorption can also remove wanted components. Trial work should therefore measure yield and critical quality attributes, not only visual clarity.
A depth stack filter is usually more effective when the feed carries a broad particle-size distribution than when a surface membrane is used as the first clarification step.
Media selection is only part of the decision; pore grade, flow, pressure rise, hold-up volume, compatibility, and downstream polishing also matter.

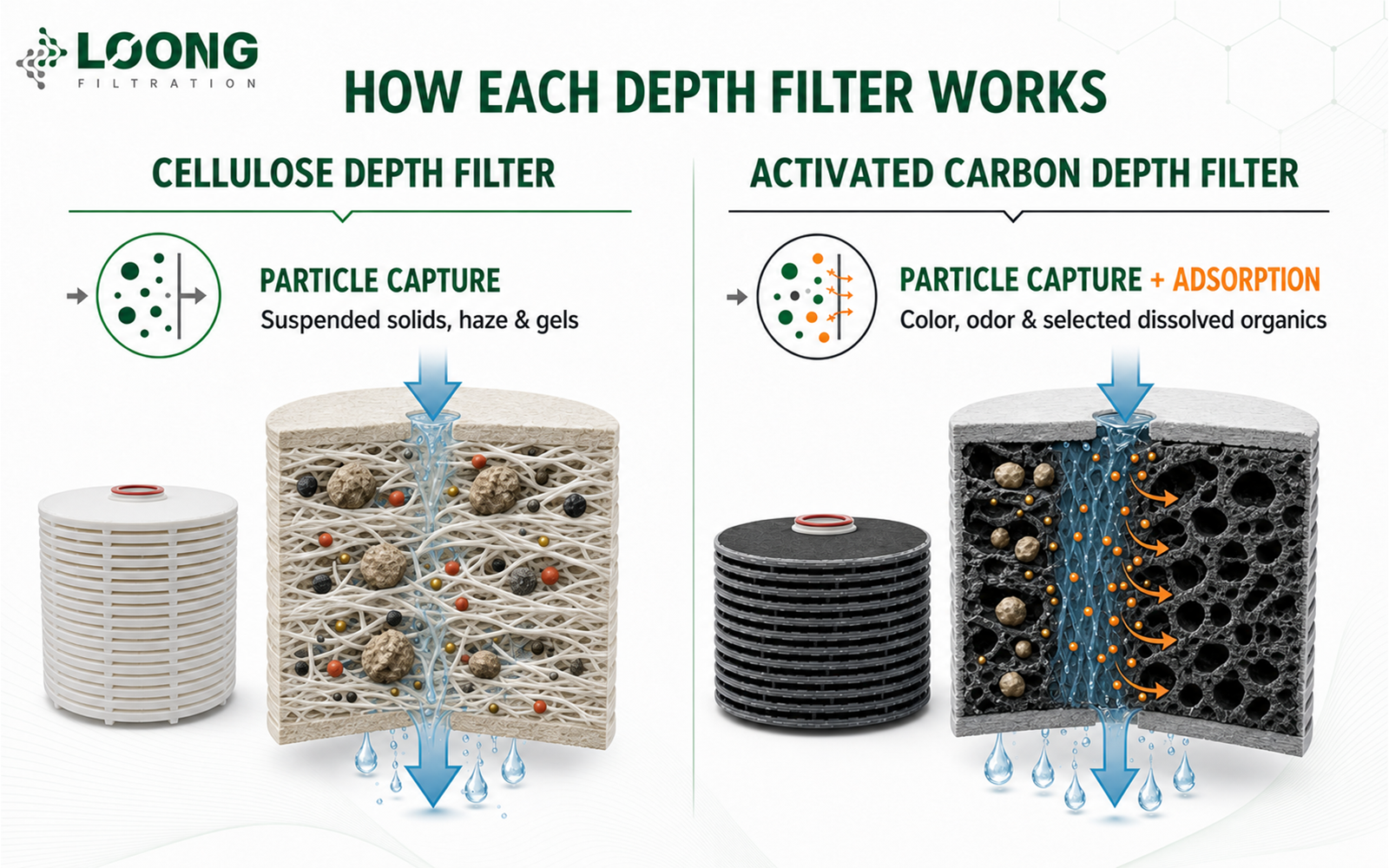

A conventional cellulose depth filter works by passing liquid through a three-dimensional, tortuous network. Larger particles tend to be captured nearer the upstream face, while progressively smaller particles are retained deeper in the structure. This graded loading lets the module accept a mixed solids burden more gracefully than a thin surface barrier. It is especially useful for turbid feeds, biological suspensions, precipitates, and process streams with soft gels that would blind a final membrane quickly.
An activated carbon depth filter has that same broad purpose of clarification, but the activated carbon introduces a different mechanism: adsorption. The carbon's internal pore structure presents a large accessible surface area where certain dissolved molecules can attach. In practical terms, this allows one closed module to address both particles and compounds responsible for color, odor, or unwanted organic carryover. The trade-off is that adsorption is chemistry-dependent and finite. Once accessible adsorption sites are occupied, the module's ability to reduce a target impurity declines even if differential pressure remains acceptable.
That distinction should shape the specification. If a buyer writes only “remove visible haze,” a cellulose medium may be the cleaner and more economical answer. If the requirement also says “reduce color body,” “control odor,” or “protect the final filter from dissolved foulants,” adsorption filtration needs to be evaluated. Do not infer adsorption duty from a micron rating; micron retention and dissolved-impurity uptake are separate performance questions.
Decision factor | Cellulose depth filter | Activated carbon depth filter |
|---|---|---|
Primary mechanism | Particle capture through a fibrous depth matrix | Particle capture plus adsorption on activated carbon |
Strong fit | Clarification, turbidity reduction, removal of suspended matter | Decolorization filtration, deodorization, reduction of selected dissolved organics alongside clarification |
Main process risk | Insufficient retention or early pressure rise if the grade is wrong | Loss of desired ingredients or premature adsorption exhaustion if chemistry is not tested |
Typical downstream role | Protects polishing or membrane stages from solids | Can protect downstream stages from solids and selected adsorbable contaminants |
Best selection evidence | Turbidity/solids profile, particle-size distribution, pressure-rise curve | Those same data plus impurity breakthrough, product recovery, and sensory or analytical results |
Change-out trigger | Differential pressure, flow loss, or filtrate-quality change | Differential pressure, flow loss, or target-impurity breakthrough—whichever comes first |
The table is deliberately not a “winner” table. The two media solve overlapping but different problems. A sound process may even use both: an activated carbon stage for an adsorption duty, followed by a cellulose or membrane polishing stage selected for final particle control.
Cellulose media earns its place when haze, cells, precipitated proteins, yeast, carbon fines from an upstream step, or other insoluble matter determines the filtration load. In those cases, the objective is to achieve a stable clarification result without adding an adsorption mechanism that could change the product composition. A well-chosen depth grade spreads contaminant retention through the media rather than creating a rapid cake only at the inlet face.
This matters in processes where product recovery is sensitive. If the desired molecule, flavor component, pigment, or active ingredient has any tendency to adsorb, a plain cellulose route can offer a more predictable mass balance. It is still important to validate extractables, compatibility, and product interaction; “cellulose” alone is not a complete process specification.
For bioprocess clarification, a pure cellulose depth stack filter module may be a relevant starting point where high-purity cellulose and low precipitation are required. The product page describes use in serum, serum-containing media, and peptide-API-related clarification. Those examples should guide an application discussion, not replace a process-specific compatibility and recovery study.
The wider lenticular filter range also includes composite media options. Composite grades can be useful where the feed demands a balance of loading capacity, clarity, and process economics. The grade should be matched to the actual feed profile; selecting the finest available grade first often shortens service life unnecessarily.
Cellulose depth filtration is often easier to control when the quality target is primarily particulate. Establish an incoming-turbidity or solids range, a flow window, a differential-pressure limit, and a clarity or particle-count acceptance criterion. That turns change-out into an evidence-based decision rather than a calendar event. It also creates a useful baseline before adding any adsorption media later.
Activated carbon is not a substitute for every purification method, but it can be highly effective when the impurity is adsorbable and the target is compatible with the process conditions. Typical reasons to investigate it include reducing unwanted color, odor, trace organic compounds, or certain process-derived impurities. In food and beverage, fine chemical, and biopharmaceutical operations, those benefits can reduce the burden on downstream polishing steps.
LOONG FILTRATION's activated carbon depth stack filter is presented as a combined carbon, cellulose, and positively charged resin module for adsorption and decolorization duties. That construction highlights a crucial principle: evaluate the entire media system, rather than treating “carbon” as a generic interchangeable ingredient. Carbon grade, particle containment, binder system, charge effects, and module geometry can all affect results.
Loose carbon treatment can introduce handling, cleanup, and downstream fine-removal requirements. A depth stack module can package adsorption and clarification in an enclosed format, simplifying the filtration train where that configuration fits the process. The practical benefit is not simply fewer steps; it is tighter control over carbon containment, hold-up, and operator exposure. Still, the system must have a validated flush and integrity of assembly procedure appropriate to the application.
If a final membrane has short life despite acceptable upstream turbidity, dissolved foulants or color bodies may be contributing. An activated carbon stage may help, but only after the team establishes a plausible mechanism. Measure the feed and filtrate around a trial module, inspect the final filter's fouling pattern, and compare operating time under the same production conditions. Adding carbon without that evidence can obscure the root cause and increase product loss.

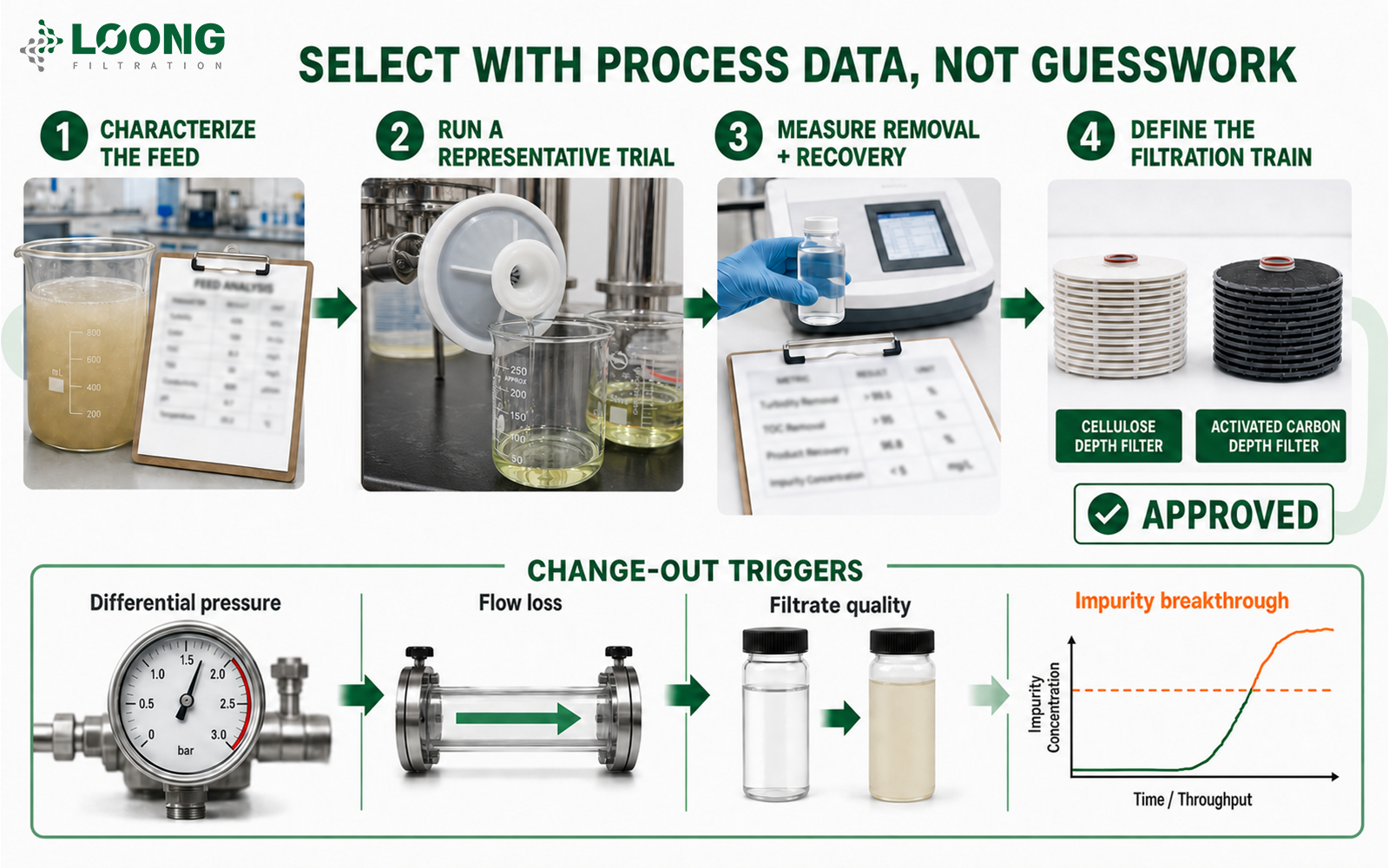

The fastest way to make the wrong choice is to select media from a generic application name. Instead, build the decision from the process data below.
List what must be reduced: turbidity, particle count, visible haze, color, odor, a named impurity, or a combination. State the required outlet condition and how it will be measured. “Clear liquid” is not sufficient for a critical process because it says nothing about soluble contaminants or fine-particle control.
Record pH, temperature, viscosity, flow, solids loading, particle character, and variability between batches. Add the concentration of any impurity proposed for adsorption. A nominal average is not enough: the highest solids and strongest color conditions often determine the usable run length.
For a cellulose depth filter, confirm that the target product is not retained unacceptably by the media. For activated carbon, perform a small-scale mass-balance study that tests both impurity reduction and yield. Analyze the first filtrate, a mid-run sample, and an end-of-run sample. This helps distinguish adsorption capacity from an initial conditioning effect.
High-solids liquid may need a coarse prefilter before a finer depth grade. A product requiring final bioburden or particulate control may need a downstream membrane. The LOONG FILTRATION depth filter portfolio is built around graded-density depth media, while its lenticular systems can combine depth filtration with a later membrane stage. Specify where each filter sits and what it is designed to protect.
Define the maximum permitted differential pressure, the minimum flow at a set pump condition, and the quality limits for the filtrate. For carbon media, add a breakthrough trigger for the adsorbed impurity. A module should not stay online merely because it still passes liquid; it must continue meeting the relevant quality requirement.

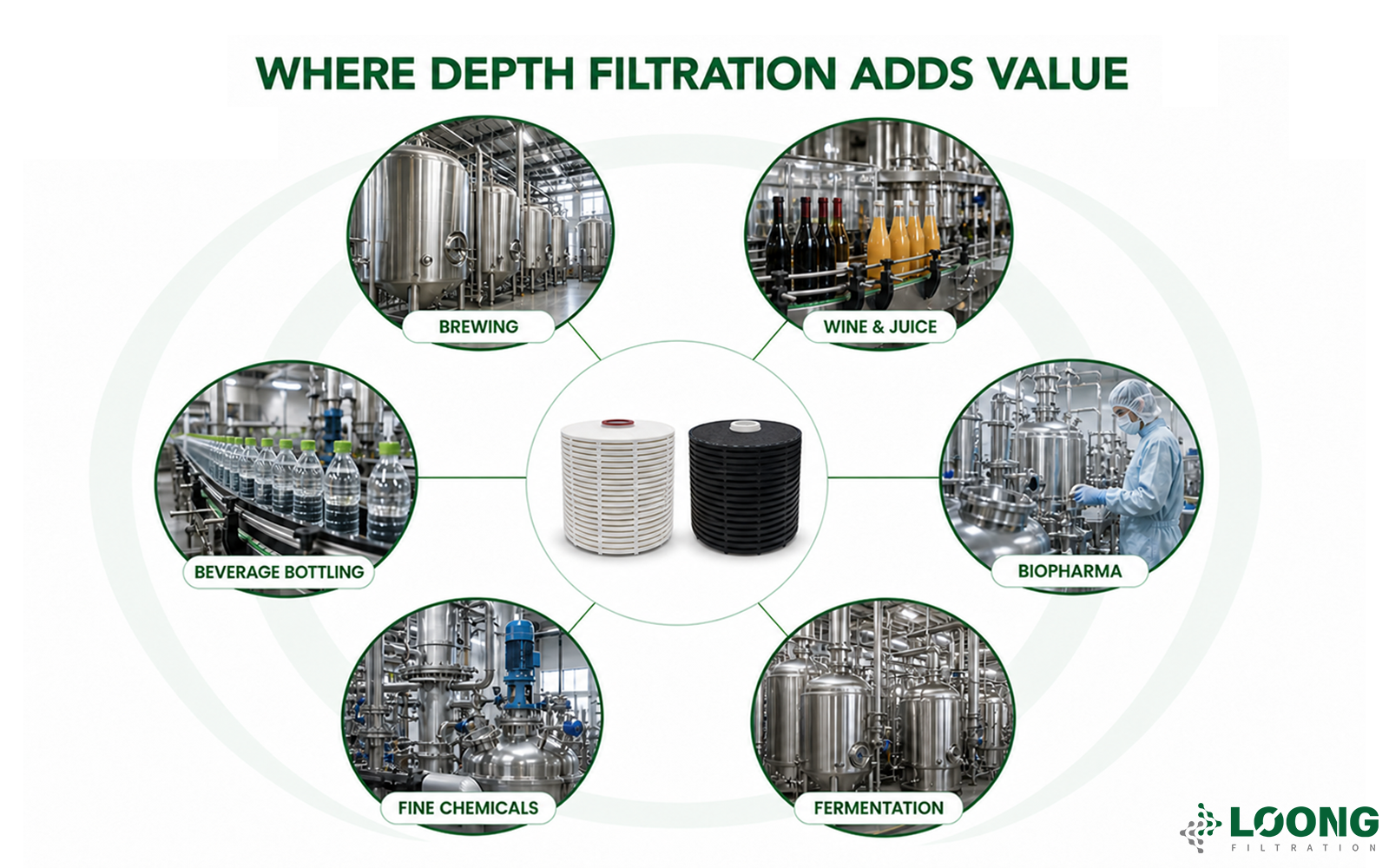

For a beverage stream with yeast, haze, and suspended solids but no color or odor correction requirement, cellulose depth filtration is normally the direct route to investigate. It can remove the solids burden before final polishing. If the same product has an off-note, color carryover, or an adsorbable impurity that must be reduced, an activated carbon depth filter may be evaluated, with particular attention to flavor and aroma recovery. Sensory and analytical testing must be part of the trial plan.
When clarifying a product-sensitive biological liquid, the priority is often high recovery and low disturbance to the product. A pure cellulose depth medium can be attractive because it focuses on particulate clarification. The process owner should confirm adsorption, extractables, flow decay, and downstream membrane protection under representative conditions. An activated carbon route may be appropriate only when there is a defined adsorption target and the recovery study demonstrates acceptable yield.
Fine chemical processes often present a mixed problem: catalyst fines or precipitates coexist with color bodies or organic by-products. This is a classic case for comparing both media. Start with the quality specification. If clarification alone achieves it, use the simpler depth route. If color reduction is necessary, test an activated carbon module and monitor both product yield and impurity breakthrough. A carbon treatment should be sized on adsorption performance, not only on pressure drop.
Choose a cellulose depth filter when your main need is robust particulate clarification with a simple, controllable filtration mechanism. Choose an activated carbon depth filter when the process requires that clarification plus evidence-based adsorption of color, odor, or selected dissolved impurities. The decision is not a material preference; it is a separation objective. Start with measurable feed and outlet data, test recovery alongside removal performance, and define the full filtration train. For projects that need both clarification and adsorption in a closed format, LOONG FILTRATION can support application-led evaluation of suitable depth stack configurations.
No. Activated carbon can reduce many color-causing compounds, but the result depends on the chemistry of the color body and the carbon-media interaction. If the color is carried by suspended particles, a cellulose depth filter may already provide sufficient improvement. Validate with representative samples.
Its principal function is mechanical depth retention of particles. Some incidental interaction with dissolved components may occur, but it should not be specified as a reliable adsorption step without data. Use a defined adsorptive medium when dissolved-impurity reduction is the actual requirement.
Often, yes, when final particle, microbial, or high-purity protection is required. The depth stage lowers the solids burden and can extend membrane life. The downstream membrane's material and rating should be selected for the final quality target.
Service life is constrained by both solids loading and adsorption capacity. A unit may need change-out because differential pressure rises, flow falls, or the target impurity begins to break through. The earliest applicable trigger should control the replacement decision.
Run a controlled trial with the real process liquid. Measure feed and filtrate concentrations, product recovery, color or odor where relevant, and performance over time. Bench results should be confirmed at a representative scale before setting production capacity.
Not necessarily. A very high solids load can justify a coarse upstream stage, while a critical final specification can require downstream polishing. A staged design is often more reliable and economical than forcing one module to perform every task.
