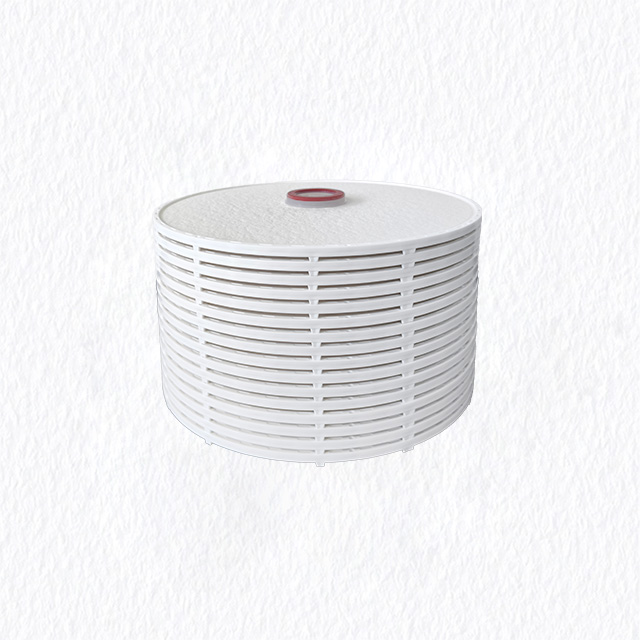

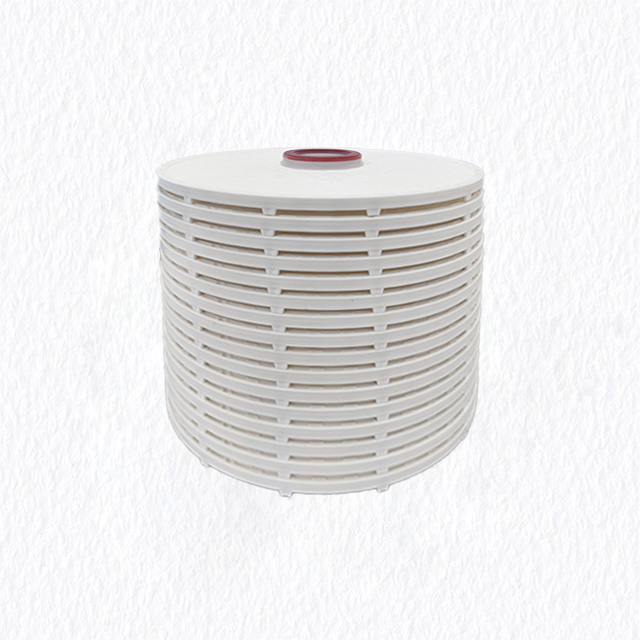

Composite Depth Lenticular Filters(Upgraded Version)
Composite Depth Lenticular Filters(Upgraded Version) Composite Depth Lenticular Filters(Upgraded Version)
Composite Depth Lenticular Filters(Upgraded Version) Composite Depth Lenticular Filters(Upgraded Version)

loading

Composite Depth Lenticular Filters(Upgraded Version)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • DKF-S

  • Pharma&Biotech, Food & Beverage

  • Depth Filters

  • Cellulose, Diatomite

Availability:
Quantity:



S Series Composite Depth Lenticular Filters – For High-Viscosity & Colloidal Fluid Filtration


The DKF-S Series Composite Depth Lenticular Filters are engineered with high-purity cellulose, inorganic filter aids, and resin, creating a highly porous three-dimensional filtration structure. Designed for high-viscosity, colloidal, and multi-component process fluids, the filters provide excellent dirt-holding capacity and reliable particle retention through a combination of physical interception and adsorption mechanisms.


Activated Carbon Depth Stack Filter for beverage




FOOD & BEVERAGE

Wine Clarification and Filtration

Edible Oil Clarification and Filtration

Antibiotic Clarification Filtration


Compliance: FDA 21 CFR 177.2440 & 1520; NSF/ANSI 42 & 61; EU 1935/2004

Recommend Series: DKF-C




Composite Depth Lenticular Filters in PHARMA&BIOTECH




PHARMA&BIOTECH

• Clarification and Filtration of Animal Vaccines

 Clarification and Filtration of Cell Culture Lysate


Compliance: USP Class VI, ISO 13485, cGMP, FDA (DMF)











Complete Depth Filtration Solutions Available


Composite Depth Lenticular Filters from LOONG Filtration


BENEFITS OF COMPOSITE DEPTH LENTICULAR FILTERS

Excellent Dirt-Holding Capacity: The optimized 3D channel structure provides high porosity and strong contaminant-loading capability.

Helps extend filtration cycles and reduce the frequency of filter replacement.

High Retention Performance: Combines physical particle interception with material adsorption for effective contaminant capture.

Well suited for colloidal solutions and complex process fluids.

Broad Fluid Compatibility: Designed for the pretreatment of process fluids with varying and complex compositions.

Good chemical compatibility supports reliable and safe filtration processes.

Effective Downstream Protection: Helps reduce the contaminant load on downstream precision filtration systems.

Supports stable filtration performance under demanding process conditions.

Consistent Process Quality: Manufactured under medical-grade production controls and compliant with ISO 13485.

Meets US FDA 21 CFR requirements for food-contact materials and USP <88> Class VI requirements.



MATERIALS OF CONSTRUCTIO

Filter materials
Cellulose, Diatomite, Synthetic
Core
PP
Support/Diversion layer
PP
O-rings/Gasket
Silicone/EPDM/Viton


PERFORMANCE CHARACTERISTICS

Max. Operating Temperature
<80 ℃
Max. Differential Pressure
2.5 bar (23 ℃)
1.0 bar (80 ℃)


BIOSAFETY

Endotoxin
<0.25 EU/ml
Biocompatibility
Compliant with USP <88> Class VI Plastic Biocompatibility Requirements





SERIES MATERIAL RATING(μm) END CAP OD(in) LAYER SEAL
DKF-S Cellulose 0.2um DOE/Flat 8'' 8 Silicone


0.45-1μm
12'' 12 EPDM


1.0-5.0μm
16'' 15 Viton


5-10μm

16 Expanded PTFE


10-20μm





20-40μm




Do you provide OEM/ODM services for filtration products?

Yes, OEM/ODM services are available. Please send us your detailed requirements, and our technical team will evaluate your needs and provide professional filtration solutions and proposals. We can also assist in designing suitable filter configurations based on your application.


What is the service life of lenticular filters?

The service life of lenticular filters depends on factors such as the operating environment, frequency of use, initial fluid condition, and filter type. Please provide more information about your application, and our technical team can help evaluate the expected service life.


Which industries use LOONG's lenticular filters?

LOONG's lenticular filters are used across a variety of industries, including food and beverage, microelectronics, life sciences, and other industrial applications.


What is the difference between surface filtration and depth filtration?

Surface filtration captures contaminants primarily on the surface of the filter media, particularly particles larger than the effective pore size. Depth filtration, by contrast, captures contaminants throughout the internal structure of the media, where particles are retained at different depths within the filter.


Are LOONG's filter cartridges compliant with food-contact and pharmaceutical requirements?

Yes. Most of our filter cartridges are manufactured to meet relevant FDA and pharmaceutical requirements. Selected products are also produced in accordance with GMP requirements and EC 2023/2006 for food-contact materials. Please contact us for detailed product-specific compliance and certification information.
