PTFE vs. PES Filter: Which is Best for Sterile Filtration?

Views: 258 Author: LOONG FILTRATION Publish Time: 2026-01-15 Origin: Site

Inquire

Introduction:

In high-standard industrial sectors such as biopharmaceuticals and food and beverage manufacturing, filtration is far more than just "removing particles." It's a critical step in ensuring product yield and regulatory compliance. Whether you're filtering vaccine products or ensuring the quality stability of dairy products, the choice of membrane material：PTFE or PESis a fundamental decision because it directly impacts your Total Cost of Ownership (TCO).

Many purchasing managers and process engineers believe that "0.2 microns is 0.2 microns," ignoring the differences in materials. This misconception is dangerous. Choosing a hydrophobic filter for aqueous applications can lead to costly solvent waste during pre-wetting, while choosing a chemically incompatible membrane for corrosive fluids can result in catastrophic integrity failure.

At LOONG Filtration, we believe that understanding membrane performance and structure is the first step in optimizing your production line. This guide aims to help you choose the best filtration solution for the right fluid, balancing safety, efficiency, and budget, by analyzing the performance, structure, and advantages of these two commonly used membrane materials in the industry and providing a clear framework.

I. The Core Science: Hydrophobic vs. Hydrophilic Membranes

To make an informed purchasing decision, we must look beyond the pore size rating and examine the surface chemistry of the membrane. The fundamental difference lies in how they interact with water.

Hydrophobic PTFE: The "Water-Hating" Shield

Native PTFE (Polytetrafluoroethylene) is naturally hydrophobic. It actively repels water, creating a barrier that liquid water cannot pass through unless extreme pressure is applied (exceeding the water intrusion pressure).

The Business Value: This property makes PTFE the "ultimate shield" for gas filtration and tank venting. It ensures that moisture from the fermentation tank does not wet the filter, allowing sterile air to flow freely while blocking bacteria.

Hydrophilic PES: The "Water-Loving" Conduit

PES (Polyethersulfone) is naturally hydrophilic. It has a high affinity for water, allowing aqueous solutions to wet the membrane instantly and pass through with minimal resistance.

The Business Value: For liquid filtration (buffers, media, final products), PES eliminates the need for complex pre-wetting procedures, significantly reducing setup time and the consumption of wetting agents like alcohol.
Engineer’s Note: While "Modified PTFE" (hydrophilic PTFE) exists, it is often significantly more expensive than PES and typically offers lower flow rates for pure water applications. For standard aqueous sterile filtration, PES is usually the superior ROI choice.

II. Polyethersulfone (PES): The Champion of Aqueous Liquids

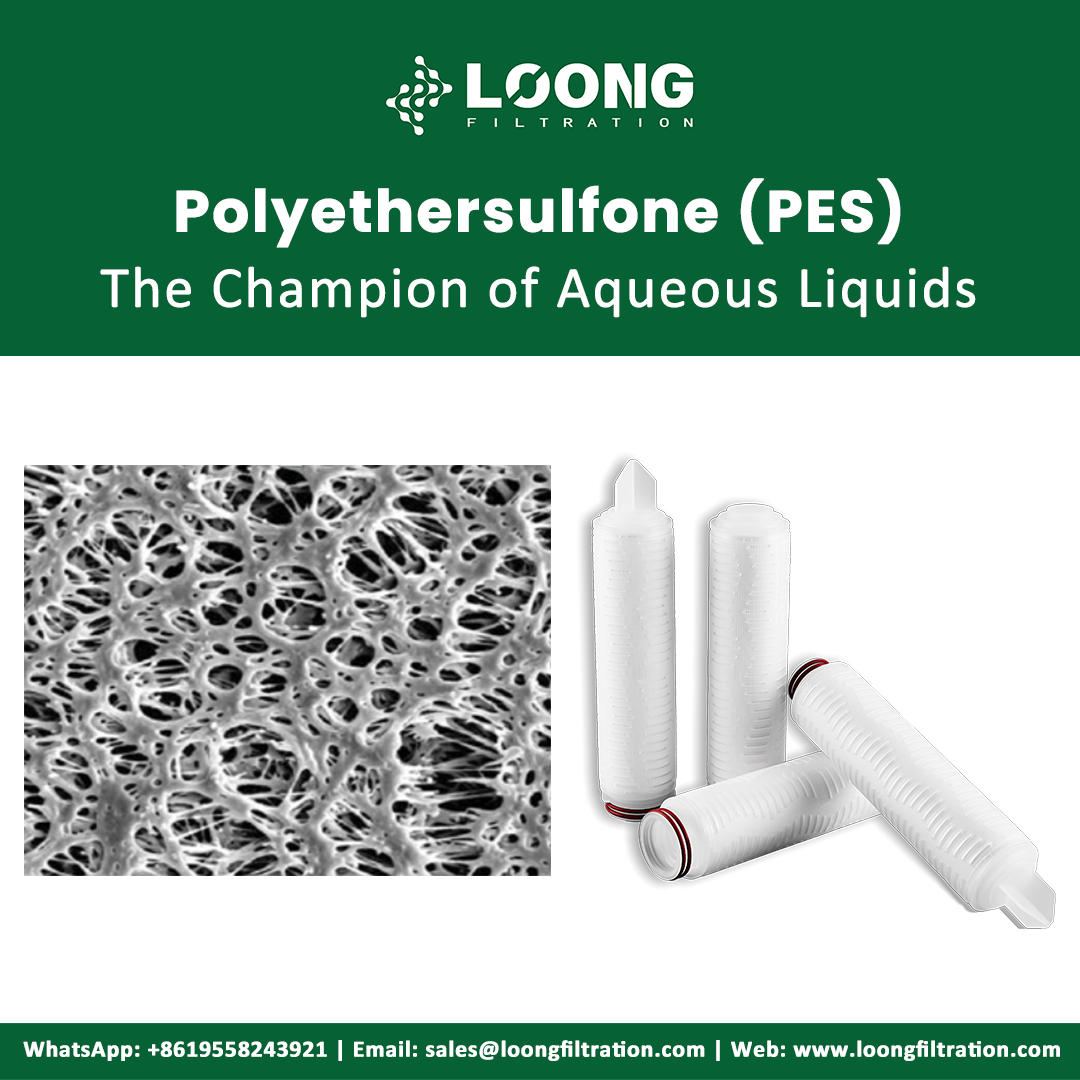

Polyethersulfone (PES) Filter Supplier

If your production line handles water-based fluids—ranging from cell culture media in biopharma to electrolyte solutions in electronics—PES is widely regarded as the gold standard. Here is why switching to high-quality PES cartridges from LOONG Filtration can optimize your OPEX.

Superior Flow Rates & Throughput

PES membranes typically feature an asymmetric pore structure. This unique geometry acts like a built-in pre-filter, where larger pores on the upstream side capture bulkier particles, protecting the tighter downstream pores.

Benefit: This results in significantly higher flow rates compared to symmetric membranes (like Nylon) or hydrophobic alternatives. Higher flow rates mean you can process batches faster, reducing the bottleneck in your filling line.

Low Protein Binding: Protecting Your Yield

For biopharmaceutical manufacturers, product yield is everything. Many active pharmaceutical ingredients (APIs) and proteins are "sticky" and can adhere to filter media.

Benefit: PES is engineered for ultra-low protein binding. This ensures that your valuable product passes through the filter rather than getting stuck in it. If you are filtering expensive biologicals, vaccines, or blood products, PES is non-negotiable for maximizing revenue per batch.

Broad pH Compatibility (pH 1–14)

Modern PES membranes are robust. They can withstand a wide range of pH levels, making them suitable for most standard Cleaning-in-Place (CIP) cycles involving caustic soda or citric acid.

Are you unsure if your current PES filters are offering the best flow-to-cost ratio? Our engineering team can perform a detailed sizing simulation for your specific process fluids.

Email us for a free consultation: sales@loongfiltration.com
Chat with an expert on WhatsApp: +86-19558243921

III. Polytetrafluoroethylene (PTFE): The Ultimate Shield for Gas & Solvents

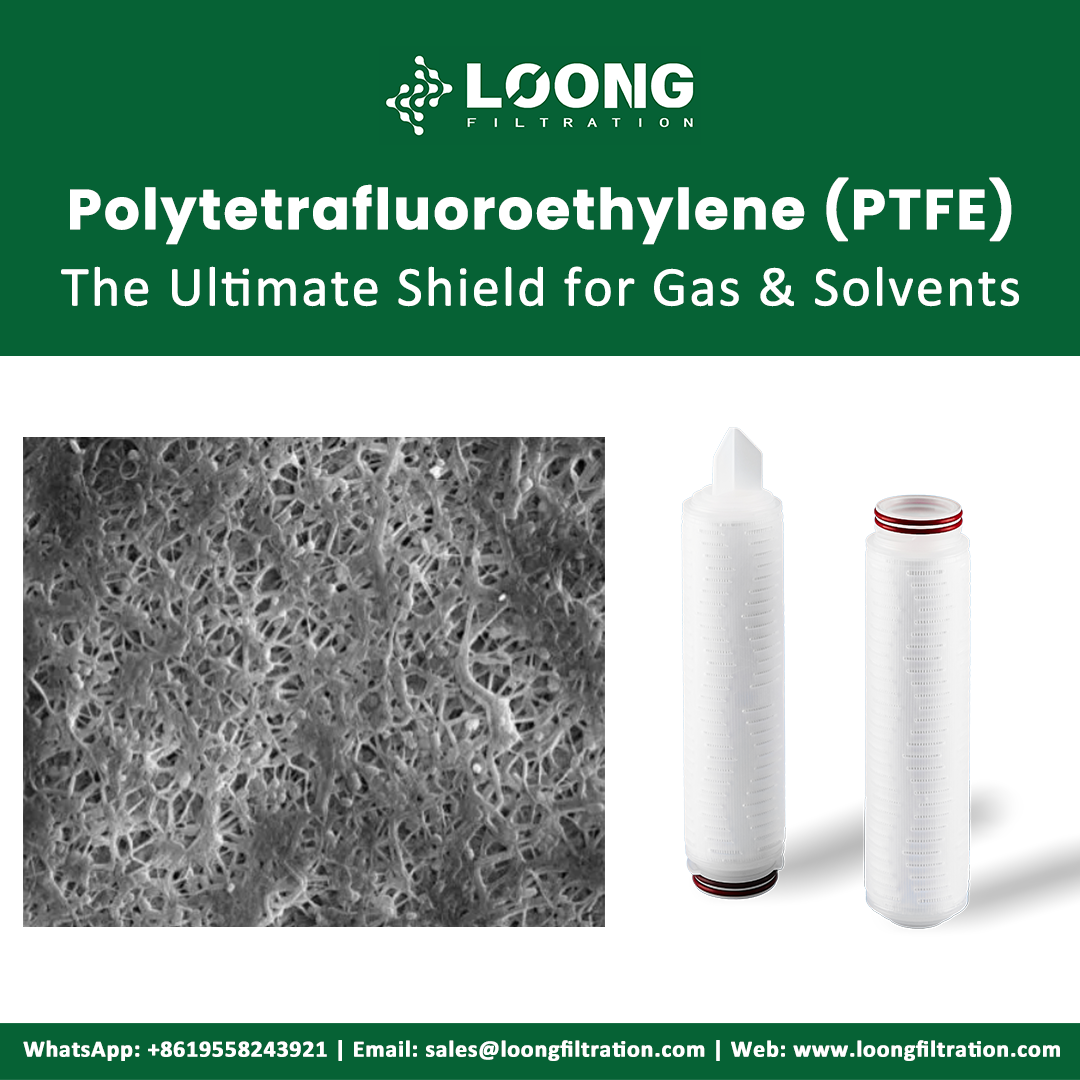

Polytetrafluoroethylene (PTFE) Filter Manufacturer

While PES dominates the aqueous world, PTFE is the undisputed king of aggressive environments and critical air applications. Known chemically as the "Tank" of membrane materials, PTFE is indispensable for processes requiring extreme resilience.

Hydrophobicity for Sterile Venting

In bioreactors and fermentation tanks, maintaining a sterile barrier between the tank contents and the outside environment is crucial.

The Pain Point: If a vent filter gets wet (from tank splashing or condensation), it creates a "water lock" that blocks airflow. This can cause the tank to collapse under vacuum or rupture under pressure.
The LOONG Solution: Our hydrophobic PTFE cartridges repel moisture naturally(). They ensure continuous, breathable sterility, preventing costly tank deformation and batch contamination risks.

Extreme Chemical Resistance

PTFE is compatible with almost the entire chemical spectrum, including aggressive acids, bases, and solvents that would dissolve PES instantly().

Application: It is the standard choice for filtering harsh solvents (like Acetone, DMSO) in API production and aggressive cleaning fluids in semiconductor manufacturing.

Thermal Stability & SIP Durability

Sterile manufacturing requires frequent sterilization. LOONG Filtration’s PTFE cartridges are validated to withstand up to 100 Steam-in-Place (SIP) cycles at 121°C–135°C. This durability translates directly to a lower replacement frequency and reduced downtime for your maintenance teams.

IV. Head-to-Head Comparison: Performance & ROI Matrix

To help you visualize the trade-offs, we have compiled a direct comparison based on typical industrial performance data.

Feature	Polyethersulfone (PES)	Polytetrafluoroethylene (PTFE)	Commercial Implication (ROI)
Wettability	Hydrophilic (No pre-wetting needed)	Hydrophobic (Repels water)	PES saves labor & solvent costs for aqueous liquids.
Flow Rate (Water)	High (Asymmetric structure)	Low (Unless pre-wetted)	PES allows for faster batch processing.
Protein Binding	Ultra-Low	Moderate to High	PES protects yield for high-value biologicals.
Chemical Compatibility	Good (pH 1–14)	Excellent (All solvents/acids)	PTFE is mandatory for aggressive chemicals.
Airflow (Dry)	Moderate	High	PTFE is the only safe choice for tank venting.
Main Use Case	Water, Buffers, Media, SVPs	Air Vents, Gases, Aggressive Solvents	Choosing correctly prevents "over-engineering."

V. How to Choose for Your Factory?

As a factory manager or sourcing director, you don't just buy filters; you buy "process security." Use this simple logic flow to finalize your specs:

Scenario A: Sterile Air / Gas / Tank Venting

Verdict: PTFE (Hydrophobic)
Why: You must ensure the filter remains dry to allow airflow. A wet filter blocks the line.
LOONG Tip: For critical fermentation tanks, always ensure your supplier provides a Validation Guide proving bacterial retention (B. diminuta) in humid conditions.

Scenario B: Aqueous Solutions & Biologicals (pH 1–14)

Verdict: PES (Hydrophilic)
Why: It offers the highest flow rates and lowest protein binding. Using PTFE here would require an expensive and risky alcohol pre-wetting step.
LOONG Tip: For cost-sensitive pre-filtration, consider a PES+PP composite to extend the service life of your final sterile filter.

Scenario C: Aggressive Solvents (Acids, Bases, Organics)

Verdict: PTFE
Why: PES membranes will swell or degrade in harsh solvents, leading to integrity failure and particle shedding.

VI. Frequently Asked Questions (FAQ)

Q1: Can I use LOONG PTFE cartridges to replace Pall Emflon® or Sartorius Sartofluor®?

A: Yes. We offer direct replacements with compatible end-caps (Code 7, Code 2, 222/226) Our filters are validated for bacterial retention (ASTM F838) and meet equivalent flow and thermal specifications, often with significantly better lead times.

Q2: How do I perform Integrity Testing on hydrophobic PTFE filters?

A: Since water cannot wet PTFE, you must use a Water Intrusion Test (WIT) or wet the filter with a 60/40 IPA/Water mixture to perform a Bubble Point test. LOONG’s technical team can provide detailed SOPs for these procedures.

Q3: Is PES compatible with alcohol?

A: PES can tolerate short-term exposure to alcohols (like during a sanitation flush), but for continuous filtration of pure alcohol or high-concentration solvents, PTFE is the safer, more durable recommendation.

Conclusion: Matching the Membrane to the Mission

The choice between PTFE and PES is not about "good vs. bad"—it is about suitability.

Choose PES to maximize yield and speed in water-based applications.
Choose PTFE to guarantee safety in venting and aggressive solvent lines.

In an industry where a single contamination event can cost millions, relying on overpriced international brands with long lead times is no longer the only strategy.

LOONG Filtration offers the Quality Assurance (QA) of a top-tier manufacturer with the flexibility and cost-efficiency you need to stay competitive.

We don't just sell part numbers; we deliver validated compliance and peace of mind.

Ready to Optimize Your Filtration Costs?

Don't let "over-specifying" drain your budget. Contact LOONG Filtration today for a free TCO Audit or to request samples for your validation trials.
