Advantages of Lenticular Filtration

Industrial filtration often fails at one hard point. The liquid is not simple enough. A lenticular filter helps solve this problem. It captures particles inside depth media, not only on the surface. In this article, you will learn why lenticular filtration improves clarity, protects equipment, and lowers process risk.

Key Takeaways

Why Lenticular Filtration is Essential for Industrial Clarification

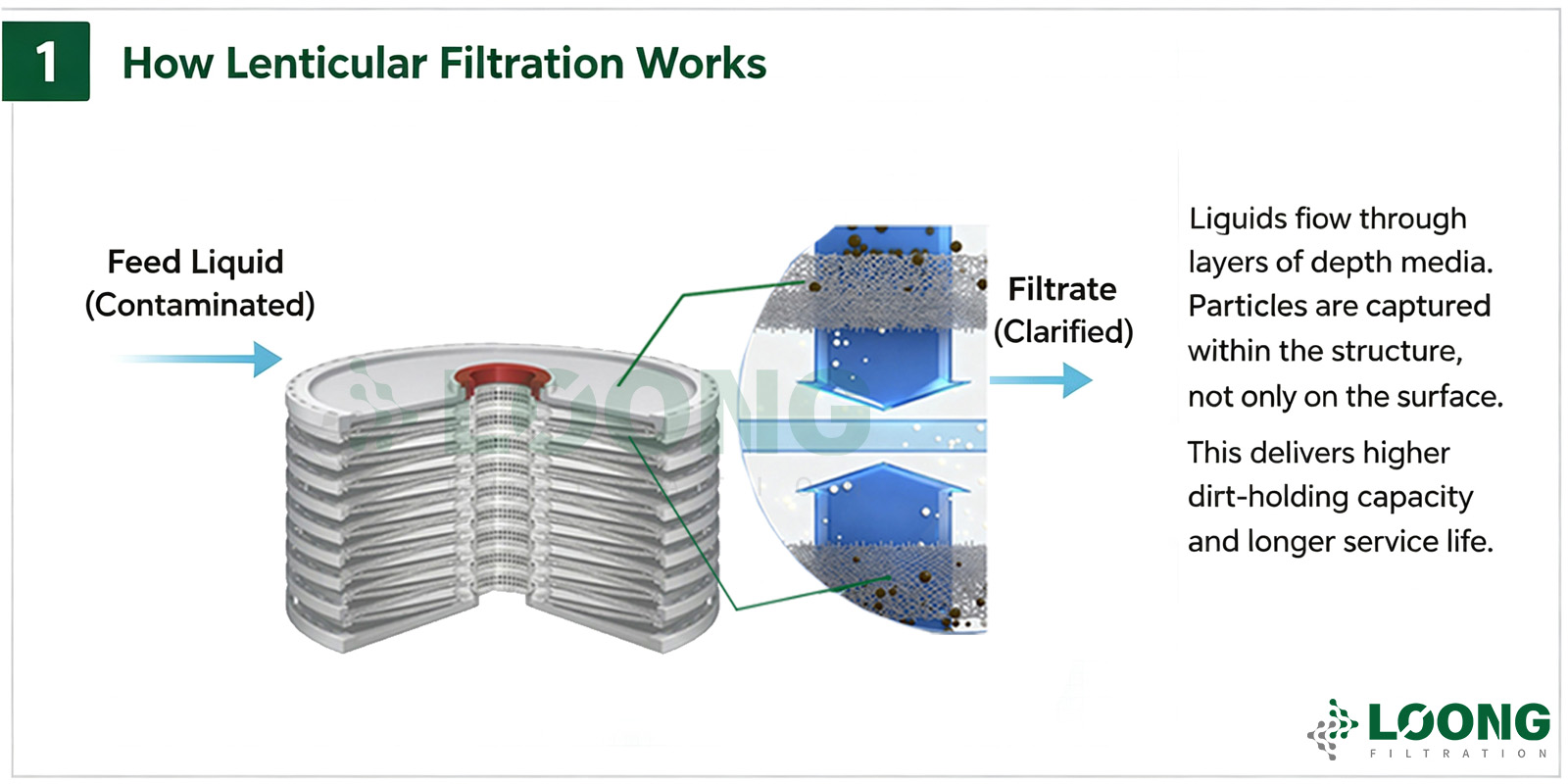

A lenticular filter is a depth filtration device built from stacked filter cells. The liquid passes through a thick, specialized media structure inside the lenticular filter housing, then moves toward the center core. During this flow path, particles are trapped through the depth of the media.

This is different from simple surface filtration. A surface filter catches particles mainly on its outer layer. Once that layer blocks, flow drops quickly. A lenticular filter can hold more solids inside its media structure, so it often runs longer before replacement.

This advantage matters when the liquid is not clean or predictable. Wine, beer, juice, edible oil, biological fluid, cell culture lysate, and fine chemical liquid can contain mixed particles. Some particles are hard. Some are soft. Some form haze or gels. Lenticular filtration gives these fluids a larger capture zone.

It also fits well as a middle filtration stage. It can work after coarse separation and before membrane filtration, polishing, sterile filtration, or filling. In many production lines, this position is critical. It removes the main contaminant load before the most expensive final filters.

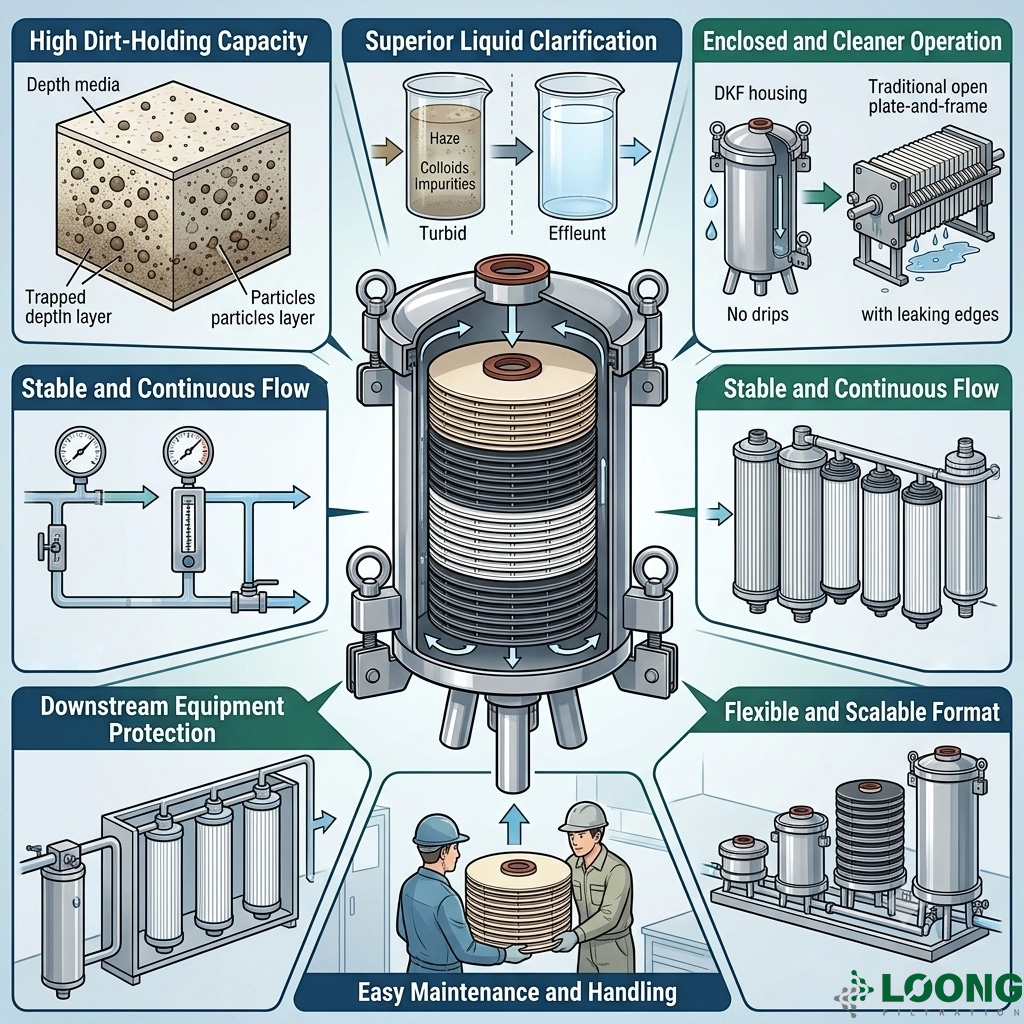

Top 7 Key Advantages of a Lenticular Filter Module

• High Dirt-Holding Capacity: Utilizing thick depth media layers, it traps particles deep inside.

• Superior Liquid Clarification: Removes invisible haze, colloids, and organic impurities effectively.

• Enclosed and Cleaner Operation: The sealed housing eliminates product exposure, dripping, and oxidation risk.

• Stable and Continuous Flow: Manages high solids loads without quick surface blinding to keep production lines moving predictably.

• Downstream Equipment Protection: Removes gels, soft particles, and high turbidity early to protect expensive final membrane filters from early blockage.

• Easy Maintenance and Handling: Replaces compact modules instead of loose filter sheets, reducing mess, labor time, and setup complexity.

• Flexible and Scalable Format: Supports seamless scale-up from small pilot trials to large commercial batch production by adding layers or housing sizes.

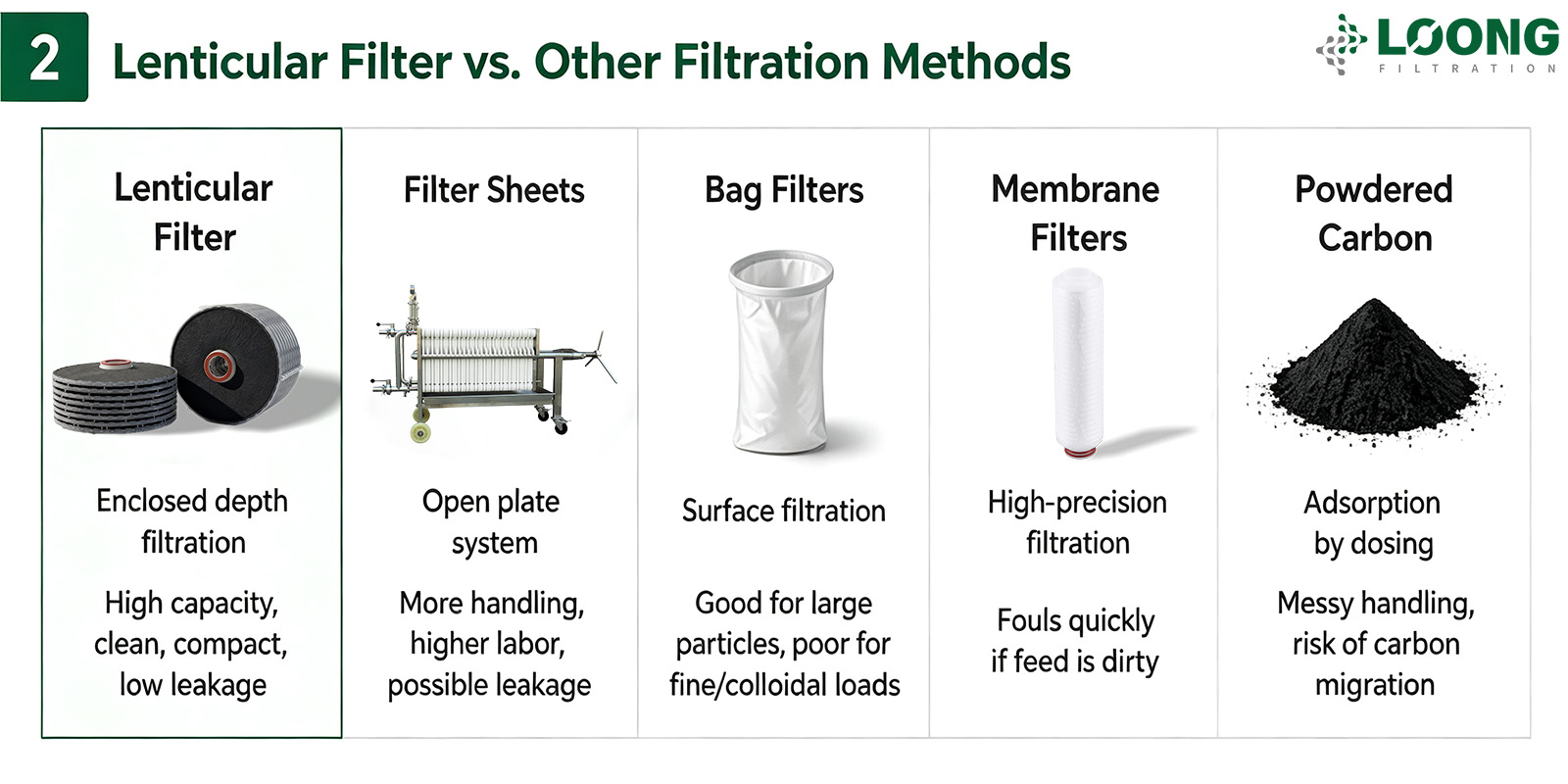

Lenticular Filter vs. Filter Sheets& Bags: Which is Better?

When choosing an industrial clarification system, understanding how different technologies compare is essential to optimizing your process. While various filters serve distinct purposes, lenticular modules bridge the gap between rough pre-filtration and sensitive final polishing.

Here is how lenticular technology stands against four common industrial alternatives:

1. Lenticular Filters vs. Traditional Filter Sheets

While both technologies rely on the proven principles of depth filtration, the major difference lies entirely in the format and housing.

• The Traditional Challenge: Standard filter sheets typically require open plate-and-frame systems, which demand high operator attention, extensive manual handling, and a larger floor space footprint.

• The Lenticular Advantage: Lenticular modules place the depth media into a highly compact, fully enclosed structure.

• Why It Matters: This sealed format virtually eliminates edge leakage, limits ambient product exposure, and minimizes footprint—offering a massive financial advantage for plants processing high-value, sensitive, or easily oxidized liquids.

2. Lenticular Filters vs. Standard Bag Filters

Bag filters and lenticular filters operate on completely different mechanical levels, making them suited for different fluid loads.

• The Bag Filter Role: Bag filters excel at high-volume, large particle removal. They are simple, highly cost-effective, and ideal for rough, heavy-duty primary tasks.

• The Performance Gap: Bag filters struggle significantly when a liquid contains fine micro-particles, soft deformable solids, persistent haze, or colloidal matter.

• Why It Matters: Lenticular modules trap these finer, gelatinous contaminants deep within their thick matrix, delivering a level of liquid clarity that standard filter bags cannot achieve.

3. Lenticular Filters vs. Final Membrane Filters

Rather than competing, lenticular and membrane filters work best as a powerful team because they serve completely different roles in a process pipeline.

• The Membrane Filter Role: Membrane filters provide precise, absolute, or sterile-grade final polishing based on their specific micron ratings. However, they possess very low dirt-holding capacity and foul rapidly if the incoming liquid contains high turbidity.

• The Lenticular Advantage: Acting as a robust upstream barrier, lenticular filtration intercepts and removes the heavier particulate load first.

• Why It Matters: By handling the bulk clarification, lenticular modules successfully protect expensive downstream membrane cartridges from premature blockage, drastically extending their service life.

4. Lenticular Filters vs. Loose Powdered Carbon (Precoat)

For applications requiring chemical adsorption or decolorization, lenticular technology offers a vastly cleaner alternative to messy precoat setups.

• The Powdered Carbon Challenge: Utilizing loose activated carbon powder or precoat methods requires tedious handling, creates environmental dust, and presents a severe risk of carbon migration (leakage) downstream.

• The Lenticular Advantage: Activated carbon depth stack designs bind premium carbon particles directly inside a cohesive, contained module, combining physical adsorption and mechanical depth filtration into one step.

• Why It Matters: This contained design eliminates loose media handling, speeds up batch changeouts, and strictly controls downstream carbon bypass risks.

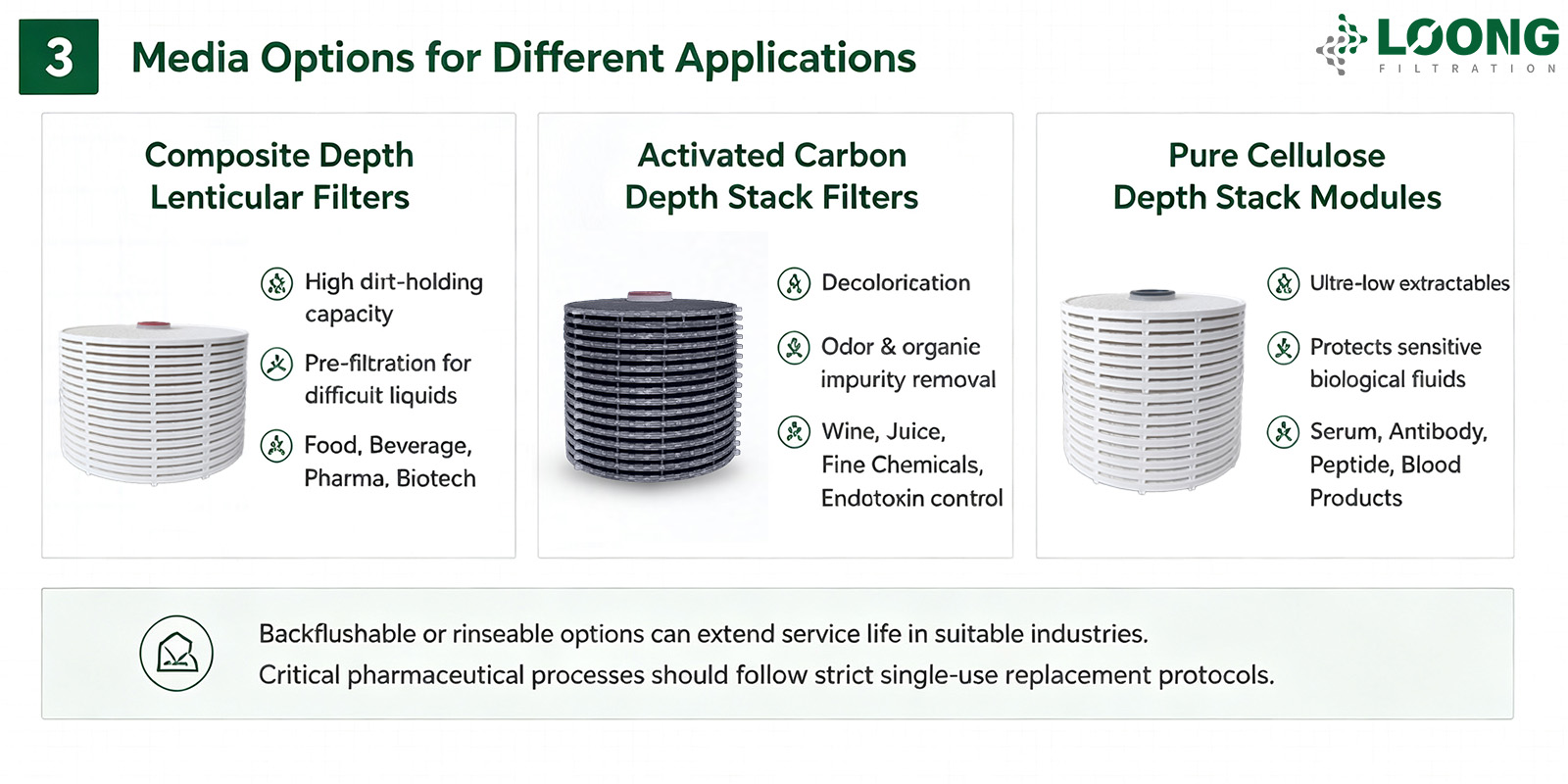

Material Options Expand the Advantages of Lenticular Filtration

 A major advantage of lenticular filtration is media flexibility. Different process liquids require distinct capture mechanisms—whether your application demands precise particle removal, deep adsorption, low extractables, or high-flow longevity.

Here is a comprehensive breakdown of the core media options and how to match them to your specific production needs:

1. Composite Depth Lenticular Filters (For Difficult Process Fluids)

These filters feature a highly porous structure engineered to support exceptional dirt-holding capacity and high retention efficiency.

• Core Function: Effectively manages complex, high-viscosity, or colloidal liquids.

• Target Applications: Ideal for crucial pre-filtration stages across the food, beverage, pharmaceutical, and biotechnology sectors.

2. Activated Carbon Depth Stack Filters (For Advanced Adsorption)

Beyond mechanical trapping, this format integrates chemical adsorption directly into a single enclosed module, completely eliminating the mess and safety hazards of handling loose carbon powder.

• Core Function: Drives efficient decolorization, off-flavor reduction, and organic impurity removal.

• Target Applications: Widely used for wine and juice polishing, fine chemical intermediate purification, and endotoxin-related control in biopharma processes.

3. Pure Cellulose Depth Stack Modules (For Purity-Sensitive Fluids)

Crafted strictly from high-purity cellulose, these modules are designed for critical processes where contamination, chemical leaching, or extractables are absolutely not allowed.

• Core Function: Delivers extreme process consistency with ultra-low extractables to protect delicate active ingredients.

• Target Applications: Engineered for high-value biological fluids including serum, serum-containing media, antibody solutions, peptide APIs, and blood products.

Technical Note on Backflushing & Reuse: While backflushable or rinseable options can extend service life under gentle cleaning conditions in selected industries, critical pharmaceutical processes must always adhere to strict single-use replacement protocols. Product safety and regulatory compliance should always come before filter reuse.

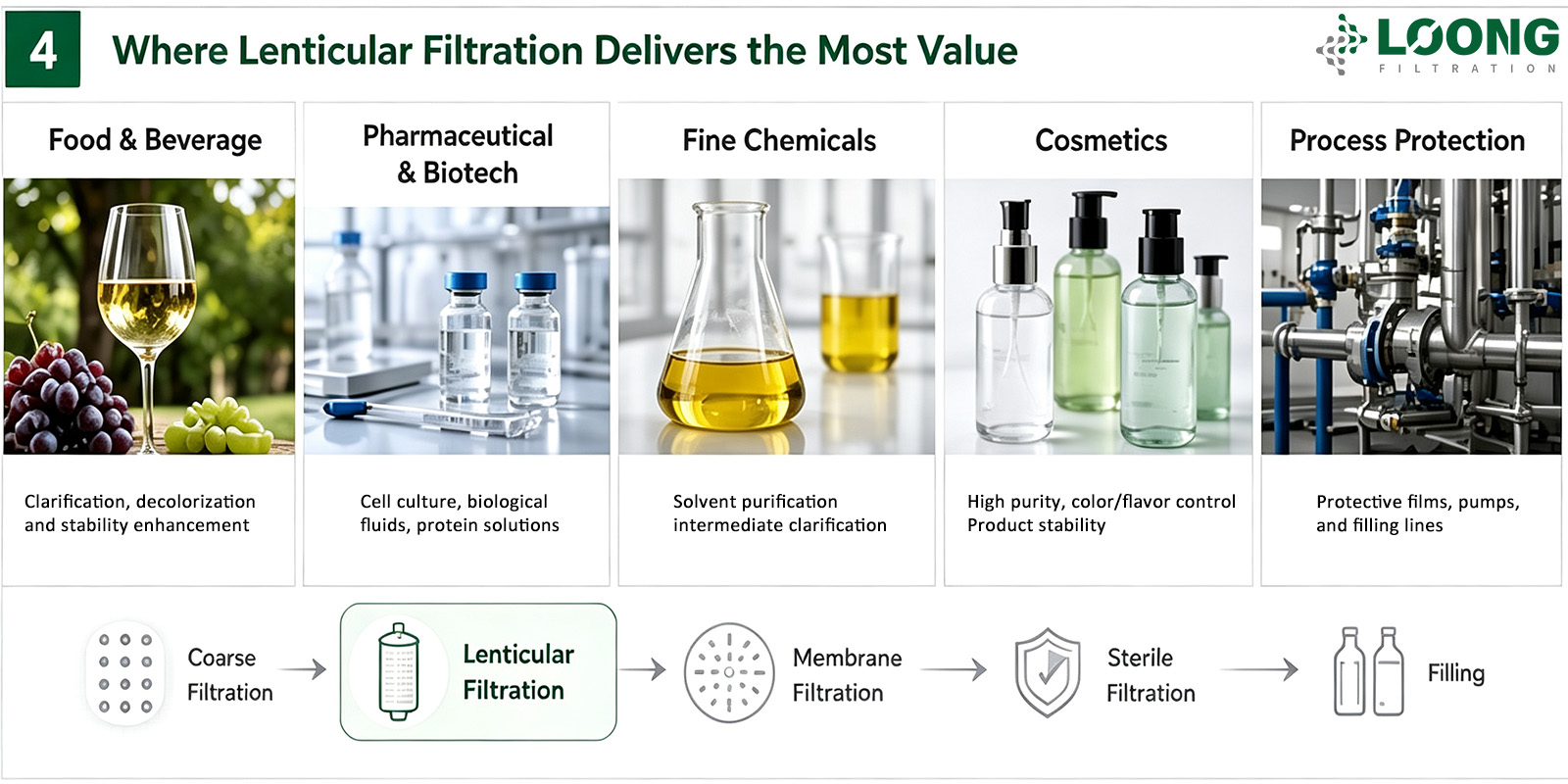

Application Advantages Across Different Industries

In food and beverage production, clarity affects product value. Wine, beer, juice, spirits, edible oil, sweeteners, and amino acid liquids can all need clarification or polishing. Lenticular filtration helps reduce haze, visible particles, and unwanted process residues.

It can also protect taste and appearance. In beverage processing, unstable clarity can cause customer complaints. A suitable lenticular filter helps producers manage turbidity before packaging. It also supports cleaner operation than open filtration systems.

In pharma and biotech, consistency matters even more. Biological fluids often carry fine particles, cell debris, proteins, or colloidal loads. If these reach the final membrane stage, filters may foul early. Lenticular filtration helps stabilize the process before critical filtration steps.

For fine chemicals and cosmetics, the main advantage may be purification. Some liquids need decolorization, odor removal, or reduction of organic impurities. Activated carbon depth stack filtration gives the process an enclosed adsorption route. This is cleaner than loose carbon handling in many cases.

In contract manufacturing or custom production, flexibility matters. One plant may handle many liquid types. Lenticular filtration gives engineers more media choices, micron ratings, and housing configurations. This helps them adapt one platform to several production needs.

Tip：For multiple product lines, select a supplier able to support media matching and housing compatibility.



How Lenticular Filtration Helps Control Operating Costs

The true cost advantage of lenticular filtration does not come from the initial filter price alone—it comes from optimizing the entire process. A cheaper filter can quickly become expensive if it blocks early, wastes product, or damages downstream equipment.

By upgrading to a properly configured lenticular system, facilities can control operating costs through four key areas:

1. Reduced Changeout Frequency & Labor Costs

Longer Filtration Cycles: Correctly selected lenticular filters handle higher solids loads, resulting in longer cycles and fewer system shutdowns.

Labor Savings: Fewer changeouts mean significantly less operator time spent on tedious installation, rinsing, venting, and replacement procedures.

Production Stability: In batch production environments, minimizing downtime directly improves schedule predictability and throughput.

2. Minimized Product Loss

Zero Leakage: Fully enclosed stainless steel housings eliminate the constant dripping, edge leakage, and product waste typical of traditional open systems.

Exposure Control: Preventing outside air contact reduces contamination and oxidation risks—a critical advantage when processing high-value, sensitive, or easily oxidized liquids.

3. Comprehensive Downstream Equipment Protection

Safeguarding Costly Filters: Final membrane filters, sterile filters, and polishing stages are major capital expenses. If they block prematurely, facilities suffer immediate financial losses in both hardware and production time.

Load Reduction: Lenticular modules act as a robust pre-filtration barrier, trapping heavy solids and soft contaminants early so your most expensive final filters can achieve their full service life.

4. Lower "Quality Costs" (Risk Mitigation)

Eliminating Rework: Poor clarification often leads to costly re-filtering, severe batch delays, or worst-case scenario, completely rejected product lots.

Predictable Consistency: A stable depth filtration stage provides a reliable, repeatable process—ensuring your end product consistently hits strict clarity, purity, and safety expectations.



How to Choose the Right Lenticular Filter for Maximum Advantage

Filtration Stage & Micron Rating: Select a larger rating for heavy loads and a tighter rating for fine clarification.

Contaminant Type: Match depth media for particles, activated carbon for color/odor, and pure cellulose for biological fluids.

Operating Conditions: Verify temperature, pressure, fluid chemistry, viscosity, and gasket compatibility.

Production Capacity: Consider batch size, flow rate, solids load, and available floor space when choosing a housing, as a small pilot system may not predict full production perfectly.

Scale-Up Factors: Monitor pressure rise, hold-up volume, and replacement frequency to ensure a smooth transition from pilot to commercial scale.

Validation & Documentation: Provide compliance support—including material information, production control records, and technical documents—to reduce sourcing risk and audit pressure for food, beverage, pharma, and biotech buyers.

Note：A proper trial should track clarity, flow rate, pressure rise, product loss, and final filter life.

When Lenticular Filtration Is the Right Choice

Lenticular filtration is a strong choice when product clarity affects market quality. If haze, particles, or color variation can harm the product, depth stack filtration deserves attention. This is common in beverages, edible oils, cosmetics, and fine chemical liquids.

It is also a strong choice when the process needs clean handling. Open filtration can create dripping, exposure, and cleaning work. An enclosed lenticular filter system helps reduce those risks. This supports cleaner production rooms and safer operator routines.

It is useful when downstream filters block too often. Early membrane blockage usually means upstream prefiltration is weak. A lenticular filter can reduce the solids load before final filtration. This helps improve flow, extend service life, and protect the final stage.

It is also useful when one plant handles several fluids. Different media types allow the same basic filtration concept to support many duties. This makes it easier to build a flexible filtration program.

However, it is not the answer to every issue. If the process only needs rough screening, a bag filter may be enough. If the process needs final sterile filtration, a validated membrane filter remains necessary. Lenticular filtration works best when it fills the gap between rough removal and final precision filtration.

Conclusion

LOONG FILTRATION provides lenticular filter solutions for clarification, adsorption, and process protection. Its depth stack options support food, beverage, pharma, biotech, and fine chemical use. By matching media, housing, and process needs, it helps improve clarity, reduce product loss, and protect downstream filtration systems.

FAQS

Q: What is the main advantage of a lenticular filter?

A: A lenticular filter offers high dirt-holding capacity in an enclosed format.

Q: Why choose lenticular filtration over sheet filtration?

A: It is cleaner, more compact, and easier to change.

Q: Can a lenticular filter reduce operating cost?

A: Yes. A lenticular filter can reduce downtime and final filter blocage.

Q: When should it be replaced?

A: Replace it when flow drops or pressure reaches the supplier limit.

Q: Is it suitable for color removal?

A: Yes, activated carbon depth stack media can help.
