● An activated carbon depth stack filter combines depth filtration and adsorption in one enclosed module.
● It helps remove particles, color bodies, odor compounds, organic impurities, and certain process contaminants.
● It is often used before final membrane filtration, cartridge filtration, or sterile filtration steps.
● Compared with loose activated carbon powder, it gives a cleaner and more controlled process.
● It supports applications in food and beverage, fine chemical, pharma, biotech, and process liquid purification.
● The right depth stack filter should match feed turbidity, target clarity, impurity type, flow rate, batch volume, pressure limit, and housing design.
● It is not only a filter element. It is part of a larger process filtration strategy.
● For critical processes, compatibility review, trial testing, and validation support are important before full-scale use.
Activated Carbon Depth Stack Filter Core Information | |||
|---|---|---|---|
No. | Core Category | Detailed Description | Key Notes |
1 | Product Definition | An activated carbon depth stack filter combines depth filtration and adsorption in one enclosed module. | Integrated filtration unit combining depth filtration and adsorption functions |
2 | Core Function | It helps remove particles, color bodies, odor compounds, organic impurities, and certain process contaminants. | Dual purification capability of physical retention and chemical adsorption |
3 | Typical Application Position | It is often used before final membrane filtration, cartridge filtration, or sterile filtration steps. | As a pre-treatment step to protect downstream precision filtration equipment and extend its service life |
4 | Product Advantages | Compared with loose activated carbon powder, it gives a cleaner and more controlled process. | Avoids leakage of activated carbon powder, reduces process pollution risk, and improves process stability |
5 | Applicable Industries | It supports applications in food and beverage, fine chemical, pharma, biotech, and process liquid purification. | Adapts to liquid purification needs of multiple industries and meets compliance requirements of different scenarios |
6 | Selection Points | The right depth stack filter should match feed turbidity, target clarity, impurity type, flow rate, batch volume, pressure limit, and housing design. | Comprehensive selection based on full process parameters, not single parameter matching |
7 | Product Positioning | It is not only a filter element. It is part of a larger process filtration strategy. | Needs to be systematically designed as part of the overall filtration solution, not used in isolation |
8 | Key Precautions | For critical processes, compatibility review, trial testing, and validation support are important before full-scale use. | For high-requirement scenarios, sufficient pre-verification is required to ensure process stability and safety |

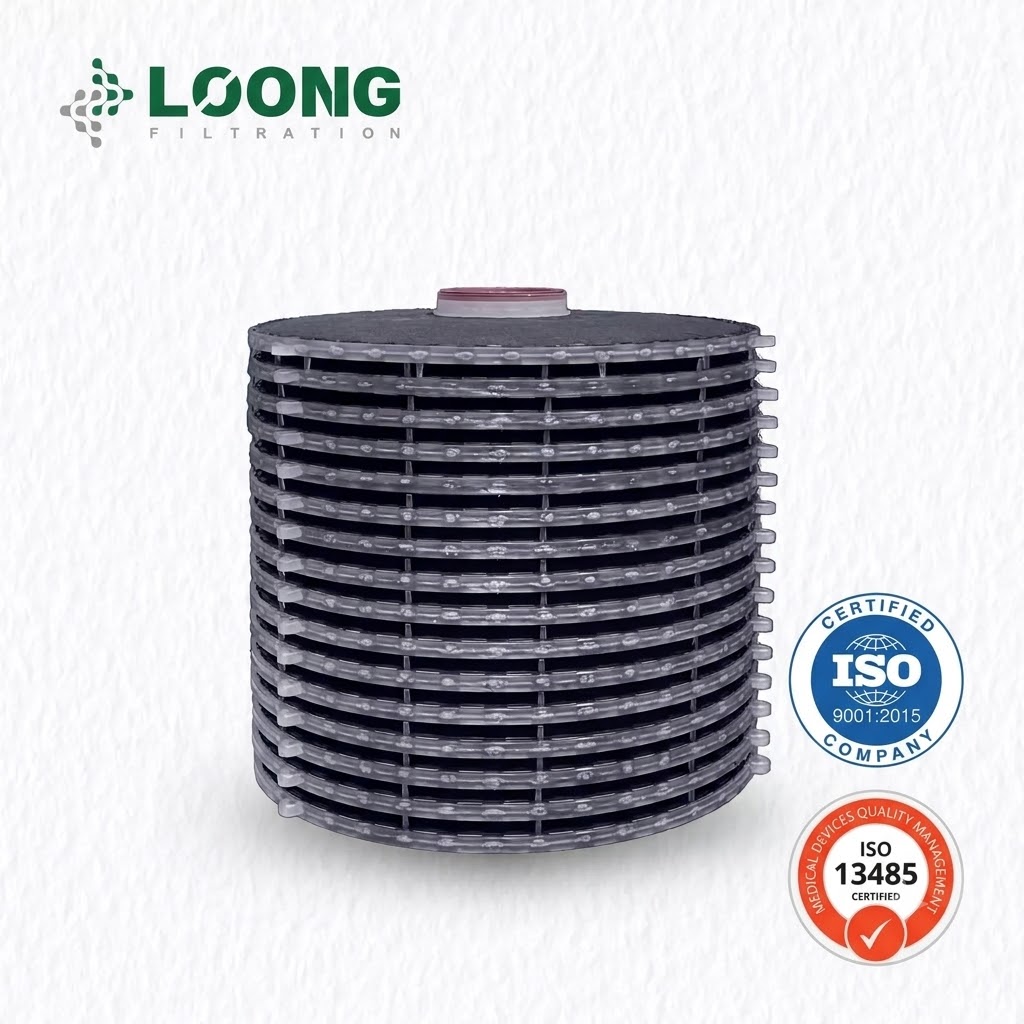

An activated carbon depth stack filter is a modular liquid filtration element made from stacked filter cells. Each cell contains depth filtration media and activated carbon-based adsorptive material. The filter is installed inside a lenticular filter housing, where process liquid flows through the media stack.
Its main purpose is not only to trap solids. It also adsorbs unwanted color, odor, organic impurities, and other trace contaminants. This makes it useful when a process needs both clarification and purification.
A regular depth stack filter mainly removes particles through a thick filter matrix. An activated carbon version adds an adsorption function. This difference matters when liquid quality depends on more than visible clarity.
For example, a beverage liquid may look clear but still carry odor or color. A fine chemical intermediate may need color correction before the next reaction step. A pharma process may need impurity reduction before downstream filtration. In these cases, an activated carbon depth stack filter can support a cleaner and more stable process.

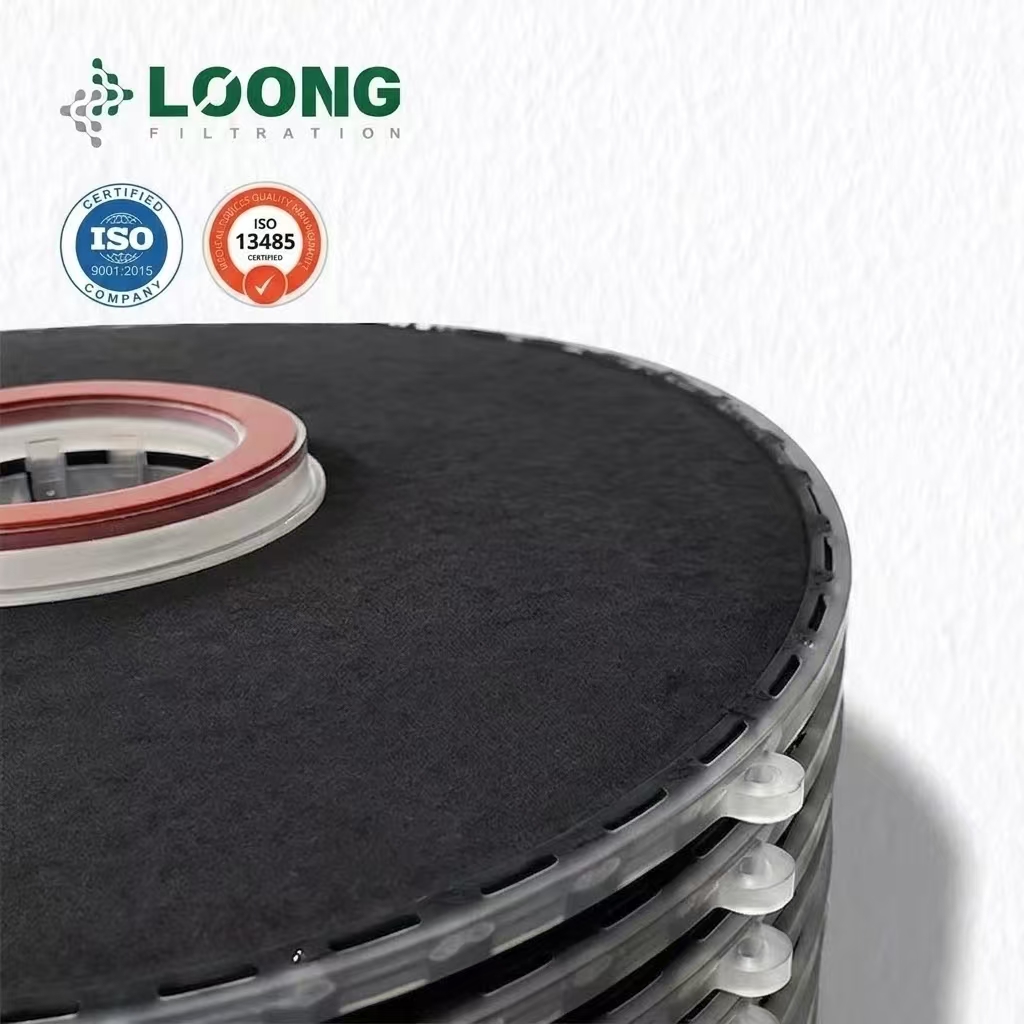

The word “stack” refers to the disc-style structure. Multiple filter cells are arranged in a compact module. This design provides a large filtration area inside a closed housing. It helps users process more liquid while reducing open handling.
An activated carbon depth stack filter usually includes several functional layers. The depth media captures particles inside the filter matrix. Activated carbon adsorbs unwanted dissolved or semi-dissolved substances. Support layers and core parts help maintain flow and module strength.
The key point is the combination of two mechanisms. Depth filtration catches suspended solids, haze particles, gels, and fine debris. Adsorption captures certain molecules by attraction to the carbon surface. The result is a broader purification effect than simple mechanical filtration.
Activated carbon has a large surface area. This gives it strong adsorption capacity for many color and odor compounds. In a stack filter format, the carbon is held inside a structured media layer. This can reduce the carbon dust and separation problems often linked to loose powdered carbon.
The enclosed structure also helps improve process hygiene. Operators do not need to dose and separate loose carbon in an open tank. They install the module, wet it, run the process, and replace it when it reaches the end of its service cycle.
This matters for plants that need cleaner handling, less product exposure, and easier maintenance. It also helps protect downstream equipment. If color bodies, organic impurities, and fine particles are reduced earlier, final filters may face less fouling.

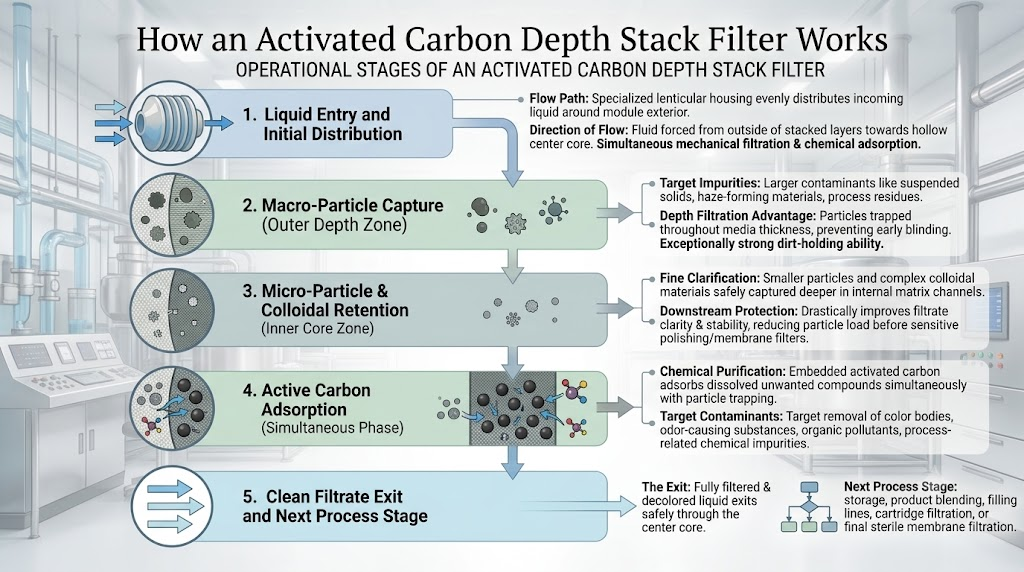

The purification journey begins the moment the process liquid enters the lenticular filter housing. Below is the detailed, multi-stage mechanism of how the media achieves simultaneous clarification and adsorption.
Flow Path: The specialized lenticular housing evenly distributes the incoming liquid around the exterior of the stack module.
Direction of Flow: The fluid is forced to pass from the outside of the stacked media layers toward the hollow center core. During this precise pathway, the specialized media performs mechanical filtration and chemical adsorption at the same time.
Target Impurities: First, larger contaminants such as suspended solids, haze-forming materials, or process residues meet the outer media zone.
Depth Filtration Advantage: Instead of accumulating only on the surface and causing early blinding, these particles are trapped throughout the entire thickness of the media matrix. This unique depth mechanism gives the filter its exceptionally strong dirt-holding ability.
Fine Clarification: Next, smaller particles and complex colloidal materials are safely captured deeper within the internal matrix channels.
Downstream Protection: This deep-bed retention drastically improves filtrate clarity and stability, while significantly reducing the particle load before the liquid reaches sensitive downstream polishing filters or final membrane filters.
Chemical Purification: At the exact same time the particles are being trapped, the embedded activated carbon goes to work adsorbing dissolved unwanted compounds.
Target Contaminants: This includes the target removal of color bodies, odor-causing substances, organic pollutants, or process-related chemical impurities.
Variables: The final purification efficiency relies heavily on fluid contact time, operating flow rate, impurity type, and the selected media grade.
The Exit: Finally, the fully filtered and decolored liquid exits safely through the center core of the module.
Downstream Integration: From there, the stabilized filtrate moves directly to the next stage of production, which may include storage, product blending, filling lines, cartridge filtration, or final sterile membrane filtration.
In industrial process filtration, many liquid quality failures are not caused by visible solids alone. A fluid may pass through a standard sediment filter and still fail strict quality checks because dissolved color, odor, organic impurities, and trace chemical contaminants remain behind. This is precisely where an activated carbon depth stack filter becomes essential.
Food and Beverage Processing: It supports critical decolorization, odor control, and taste-related purification for wine, juice, sweeteners, amino acids, and spirits. The primary goal is achieving an enhanced visual appearance, cleaner flavor profiles, and consistent product quality.
Fine Chemical Production: It purifies complex intermediates by removing stubborn color, odor, or organic residues left over from reaction or extraction steps. This preemptively lowers the impurity load before downstream processing.
Pharmaceutical and Biotechnology: It provides dependable support for API solution decolorization, biological clarification, and small-molecule purification.
Beyond particle removal, this modular design directly solves a major operational and safety problem in the plant:
The Traditional Pain Point: Using traditional loose activated carbon powder is notoriously messy, labor-intensive, and requires open-tank dosing, mixing, settling, and complex secondary separation stages.
The Stacked Module Solution: A closed activated carbon depth stack filter provides a much cleaner, enclosed alternative. It is significantly easier to change out, easier to contain without dust contamination, and integrates seamlessly into any fully closed, hygienic filtration line.
Different filters solve different problems. A good process does not choose a filter only by micron rating. It chooses a filter by removal target, fluid risk, and downstream need.
Filter Option | Main Function | Best Use | Limitation |
Adsorption plus depth clarification | Color, odor, organic impurity, and particle reduction | Must be matched to liquid chemistry | |
Standard depth stack filter | Particle and haze removal | Clarification and pre-filtration | Limited adsorption ability |
Surface retention | Defined particle removal and polishing | Can foul quickly under high solids load | |
Fine or sterile filtration | Final microbial or fine particle control | Sensitive to upstream fouling | |
Loose activated carbon | Strong batch adsorption | High adsorption demand | Messy handling and extra separation |
A standard depth stack filter is useful when the main target is suspended solids. It can improve clarity and protect downstream filters. But it may not remove odor or color effectively.
A pleated cartridge filter offers more defined retention. It is often used for polishing or final particle removal. Yet it may not handle heavy solids or organic impurity loads well.
A membrane filter is usually placed later in the process. It can provide fine or sterile filtration, depending on the system. However, membranes can clog if upstream impurities are not controlled.
An activated carbon depth stack filter often fits before these final stages. It lowers the burden on downstream filters while improving liquid quality.
Tip: Do not select by micron rating alone. Start with the impurity you need to remove, then match media type, flow rate, and housing size.
This type of activated carbon depth stack filter is common in industries where liquid purity directly affects quality, safety, appearance, or yield. Since it is not limited to a single sector, the same basic purification principle serves multiple industrial process streams.
Key Applications: Clarification and purification of wine, juice, sweeteners, amino acids, and spirits.
Primary Benefit: It is especially useful when product appearance, color correction, or odor removal matters for the final product quality.
Key Applications: Removing unwanted color and odor from chemical intermediates, solvents, or specialty liquids.
Primary Benefit: It significantly reduces the organic impurity load, protecting downstream equipment from early fouling.
Key Applications: Higher-purity liquid steps, including API solutions, biological process streams, or small-molecule applications.
Compliance Note: In these critical settings, buyers should strictly review biosafety, extractables, chemical compatibility, and validation data before full-scale adoption.
Key Applications: Small-scale trials, scale-up planning, and OEM projects.
Primary Benefit: Smaller disc stack or trial-scale formats help process engineers test performance before large-volume purchasing. Trial testing is crucial because adsorption behavior depends heavily on the real fluid chemistry.

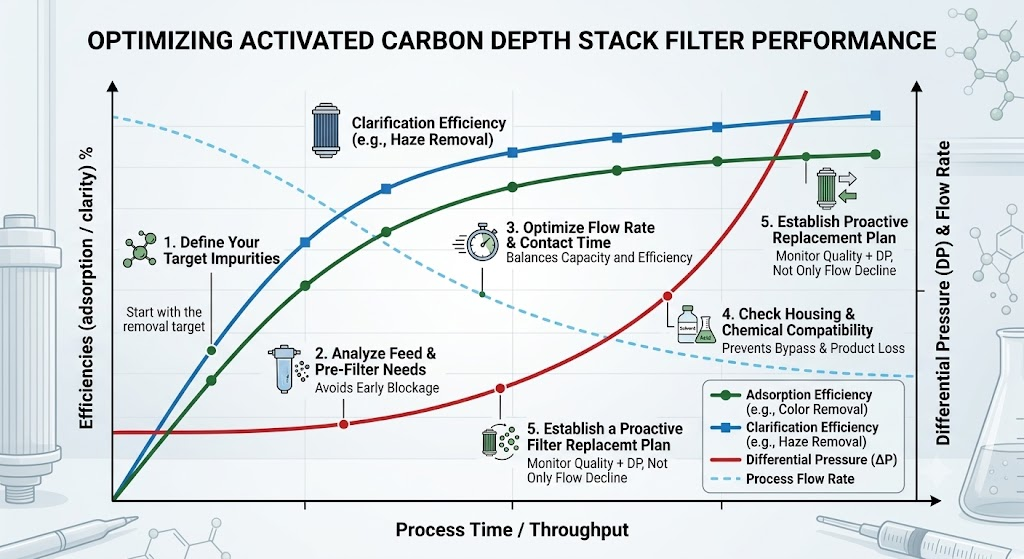

Selecting the right activated carbon depth stack filter requires balancing fluid chemistry with your specific operational goals. Do not select by micron rating alone; instead, use the following critical steps to guide your sourcing strategy.
Identify the Goal: Determine whether you are trying to remove color, odor, endotoxin, organic residue, haze, or general suspended solids.
Process Impact: Each target requires a specific filter media structure and tailored process setup to ensure optimal retention and adsorption.
Pre-Filtration Needs: High turbidity or heavy particle loads can block the media prematurely, shortening its service life.
Operational Tip: Placing a coarse pre-filter before the activated carbon depth stack filter prevents early blockage and maximizes carbon adsorption efficiency.
The Balance: If the liquid moves too fast, the critical contact time between the fluid and the carbon is cut short. Conversely, if the flow is too slow, overall production capacity suffers.
Best Practice: Establish an operating flow rate that balances adsorption efficiency, differential pressure drop, and daily output volume.
Mechanical Fit: The module must perfectly match the internal lenticular filter housing size, gasket type, sealing style, flow path, and operating pressure. A poor fit risks bypass, leakage, or product loss.
Chemical Resistance: The filter media, center core, gaskets, and support layers must be fully compatible with your process fluid, whether it contains solvents, acids, alkaline ingredients, proteins, or active compounds.
Monitoring Exhaustion: A filter with exceptional adsorption performance may reach its organic capacity long before differential pressure rises sharply.
Replacement Strategy: Teams should monitor both product quality (filtrate clarity/color) and differential pressure, rather than relying solely on flow decline to trigger a changeout.
Achieving stable filtration and maximizing the lifespan of your activated carbon depth stack filter depends on correct operational discipline. Use this practical guide to ensure consistent effluent quality and prevent common process failures.
Proper Seating: Ensuring the module sits perfectly aligned inside the lenticular housing is the critical first step.
Gasket Inspection: Gaskets must be clean, correctly aligned, and fully compatible with the chemical properties of the process fluid.
Bypass Risk: Poor seating or damaged seals will cause fluid bypass, meaning the untreated liquid escapes filtration entirely.
Slow Filling: Before starting full production, the filter module must be completely wetted and vented. Filling the housing slowly helps effectively remove internal air pockets.
Flow Stability: Trapped air inside the housing reduces the effective contact area of the media and leads to unstable, turbulent flow.
Protecting the Matrix: Keep the filtration flow steady during the entire run. Sudden pressure shocks or rapid surges can easily disturb the internal media bed or cause permanent damage to the delicate filter layers.
Pump Control: Utilizing a controlled, steady pump helps protect the thick depth matrix and supports a more predictable, high-quality output.
Particle Loading: Monitor the differential pressure (ΔP) continuously throughout the run. A steadily rising pressure indicates that the filter matrix is successfully trapping particles.
Blockage vs. Exhaustion: A sharp drop in flow usually flags a severe blockage. However, carbon adsorption exhaustion often happens long before a significant pressure rise occurs. Therefore, frequent product quality checks are vital.
Critical Indicators: For high-purity or critical applications, the process must include definitive acceptance criteria.Track key indicators such as clarity, color removal, odor reduction, impurity levels, conductivity, and microbial risk.
Industry Compliance: The precise quality criteria must be tailored specifically to your target product and industry standards.
Technical Note on Troubleshooting: If you observe almost zero differential pressure during operation, stop the process and inspect the installation immediately. A lack of pressure change strongly suggests an internal fluid bypass, damaged seals, or a wrongly seated module.
An activated carbon depth stack filter combines clarification and adsorption in one enclosed module. It can remove particles, color, odor, and selected impurities while helping protect downstream filters. LOONG FILTRATION offers activated carbon depth filtration solutions designed for clean handling, strong adsorption, process compatibility, and support from trial testing to larger production needs.
A: A depth stack filter uses stacked media cells to trap particles inside the media.
A: A depth stack filter with carbon removes color, odor, and some impurities.
A: It lowers solids and impurity load before final filtration.
A: It may reduce labor, cleanup, and separation costs.
A: Replace it when pressure rises, flow drops, or quality declines.
