Are you still relying on traditional media filters for your critical industrial processes? As purity standards become stricter, legacy systems often fail to protect sensitive downstream equipment or meet compliance goals. Finding a reliable, cost-effective solution for fine particle separation is now a necessity for modern fluid management.
In this comprehensive technical guide, you will learn exactly how a membrane filter works, its major classifications, and how to select the best setup for your operations.
● A membrane filter acts as a precise physical barrier to separate contaminants based on pore size and pressure.
● The four main technologies include microfiltration, ultrafiltration, nanofiltration, and reverse osmosis.
● Choosing between dead-end and crossflow dynamics depends entirely on your feed stream turbidity and volume.
● Implementing proper clean-in-place (CIP) and backwashing protocols significantly extends membrane filter operational lifespan.

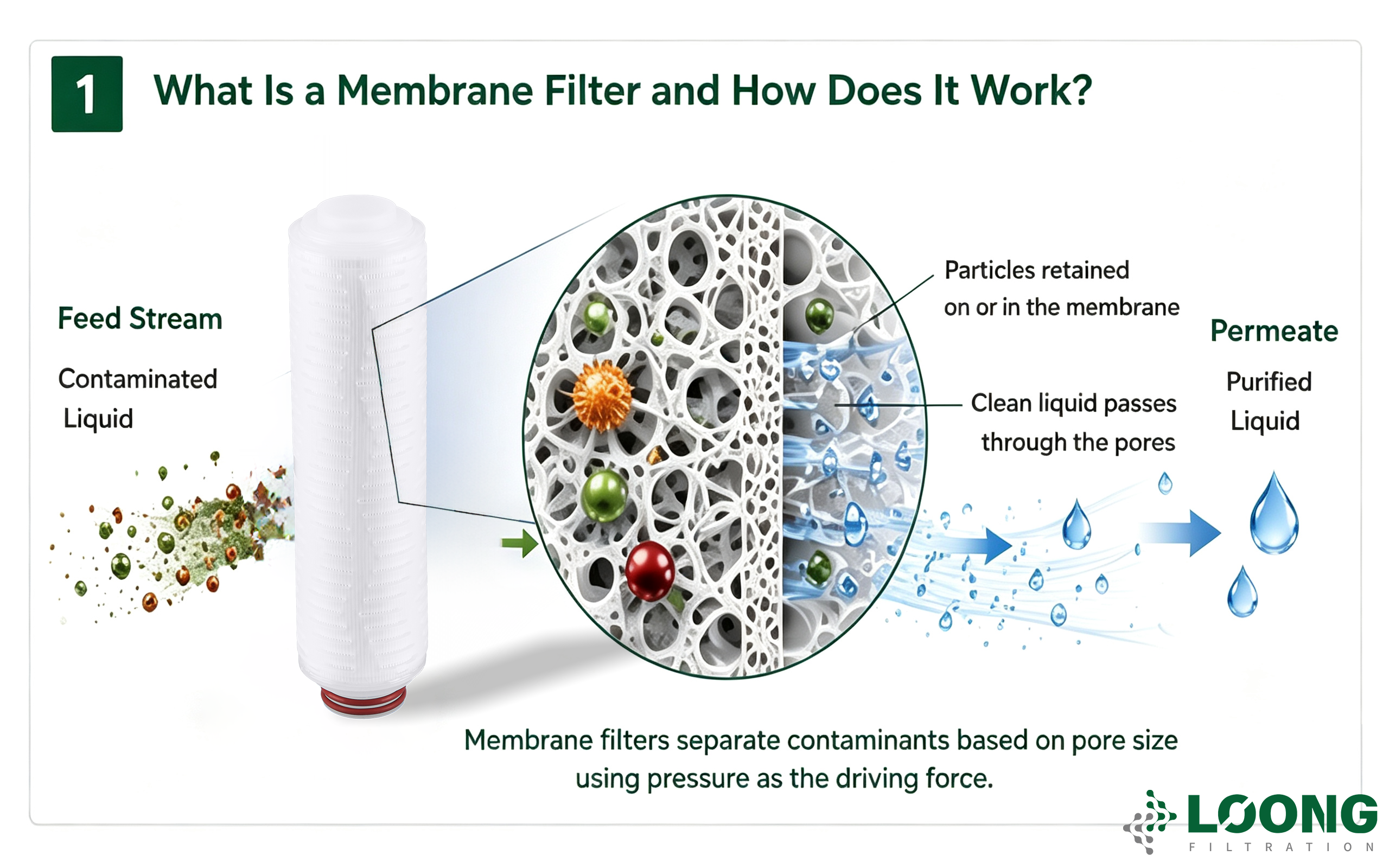

A membrane filter is a thin, selective physical barrier designed to separate specific components from a fluid stream. When a liquid mixture passes through the system, it splits into two distinct paths. The portion that successfully penetrates the semi-permeable structure is called the permeate, or the purified fluid. Conversely, the materials blocked by the barrier accumulate as the retentate, which is the concentrated waste or byproduct stream. This continuous separation allows industries to achieve highly predictable purification results without relying on chemical additives.
The performance of an industrial membrane filter depends heavily on its specific pore size rating. The filtration spectrum spans from relatively large microfiltration pores down to the molecular-level gaps found in reverse osmosis sheets. These ratings generally range from 10 micrometers down to less than a single nanometer. By selecting a precise pore size, you can shift your process from simple macro-particle sieving to the isolation of specific proteins, viruses, or dissolved ions. This predictable physical structure ensures that target contaminants are consistently blocked.
Membrane separation is not a passive process; it requires a driving force to push the fluid through the microscopic channels. Mechanical pressure is applied to the feed stream to overcome the natural resistance of the dense membrane structure. The amount of pressure required varies based on the tight nature of the pores. For instance, microfiltration systems usually operate at low ranges between 0.1 and 3 bar. In contrast, high-density separation methods like reverse osmosis demand significantly higher pressure levels to overcome osmotic forces and force water molecules through.
Industrial systems utilize different physical designs to balance space requirements with filtration efficiency. Pleated membrane filter cartridges are highly popular because they maximize the available surface area within a compact, space-saving footprint. By folding the material back and forth around a central core, manufacturers cram an immense amount of surface area into a single cartridge housing. Flat-sheet configurations, while simpler, are typically used in specialized plate-and-frame systems or spiral-wound elements where fluid dynamics require a different flow path to handle high solids.
Unlike depth filters that trap dirt throughout a thick matrix, a membrane filter operates primarily through a physical sieving mechanism. It blocks colloidal particles, bacteria, and macromolecules purely because they are larger than the geometric openings of the pores. This surface-level size exclusion ensures clean, mechanical separation. Because it does not rely on chemical adsorption or depth trapping, there is no risk of chemicals leaching into your purified permeate, nor will the filter suddenly release trapped dirt under pressure spikes.
To maintain an efficient operation, operators must monitor two critical performance metrics: flux rate and pressure drop. Flux represents the volume of purified liquid that passes through a specific area of the membrane over a set timeframe. Pressure drop, or transmembrane pressure, measures the difference in pressure between the feed side and the permeate side. As contaminants slowly accumulate on the selective surface, the pressure drop will naturally increase. Tracking this change tells you exactly when the system is reaching capacity and requires maintenance.
Note: Monitoring changes in the baseline pressure drop is the most reliable way to prevent irreversible pore blinding and unexpected system downtime.

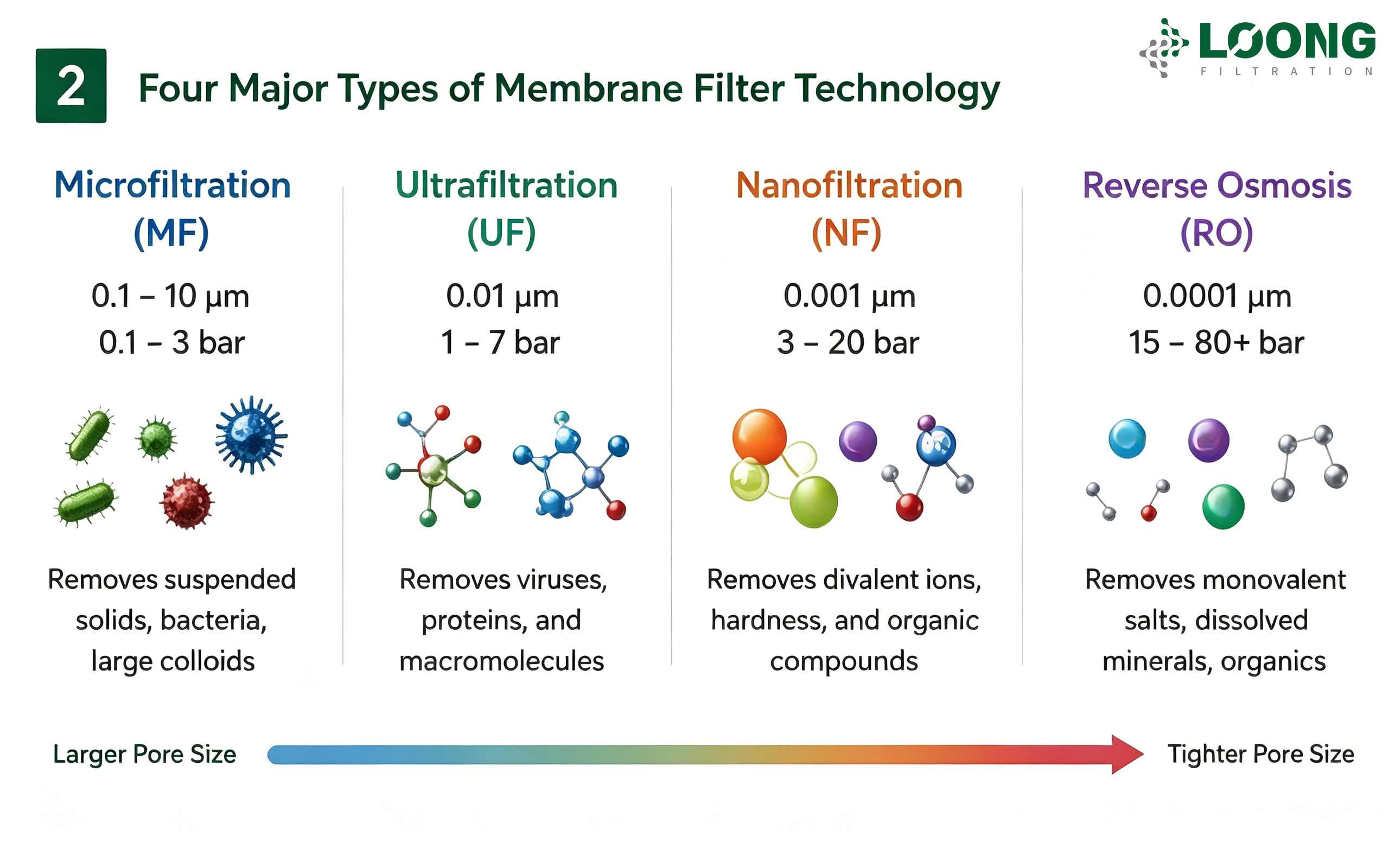

Microfiltration represents the primary frontline defense in advanced fluid separation. These filters feature a pore size range from 0.1 to 10 microns and operate under relatively low pressures, usually between 0.1 and 3 bar. Their main function is the removal of suspended solids, large macromolecular colloids, and primary microorganisms like yeast or algae. Industries frequently utilize microfiltration as an efficient pre-treatment step to protect more sensitive downstream purification equipment from premature clogging.
Moving down the spectrum, ultrafiltration provides a much tighter separation threshold with an average pore size around 0.01 microns. This microscopic structure allows ultrafiltration to effectively block smaller threats, including viruses, bacteria, and large organic macromolecules. It is widely recognized as an exceptional solution for advanced fluid sterile filtering. Because it removes pathogens without requiring high-pressure energy consumption, it serves as an excellent barrier for sensitive biological processing and water recycling.
Nanofiltration bridges the gap between ultrafiltration and total desalination with an ultra-fine pore size level of roughly 0.001 microns. This specialized technology possesses the unique capability to reject multivalent ions, such as magnesium and calcium, while allowing small monovalent salts to pass through. It also excels at removing dissolved organic matter and color compounds. This makes nanofiltration highly valuable for water softening processes and targeted substance concentration in chemical manufacturing.
Reverse osmosis is the most advanced classification, utilizing an exceptionally dense structure with a nominal micron size of 0.0001 microns. This system operates via hyperfiltration, blocking almost all dissolved solids, monovalent salts, and organic compounds. Liquid must be forced through this tight atomic matrix at high pressures. It is the premier choice for industrial desalination, seawater purification, and the production of ultrapure water for electronics and pharmaceutical manufacturing.
Membrane Classification | Typical Pore Size | Operating Pressure | Target Contaminants Removed |
Microfiltration (MF) | 0.1 – 10 μm | 0.1 – 3 bar | Suspended solids, bacteria, large colloids |
Ultrafiltration (UF) | 0.01 μm | 1 – 7 bar | Viruses, proteins, macromolecules |
Nanofiltration (NF) | 0.001 μm | 3 – 20 bar | Divalent ions, hardness, organic dyes |
Reverse Osmosis (RO) | 0.0001 μm | 15 – 80+ bar | Monovalent salts, dissolved minerals |

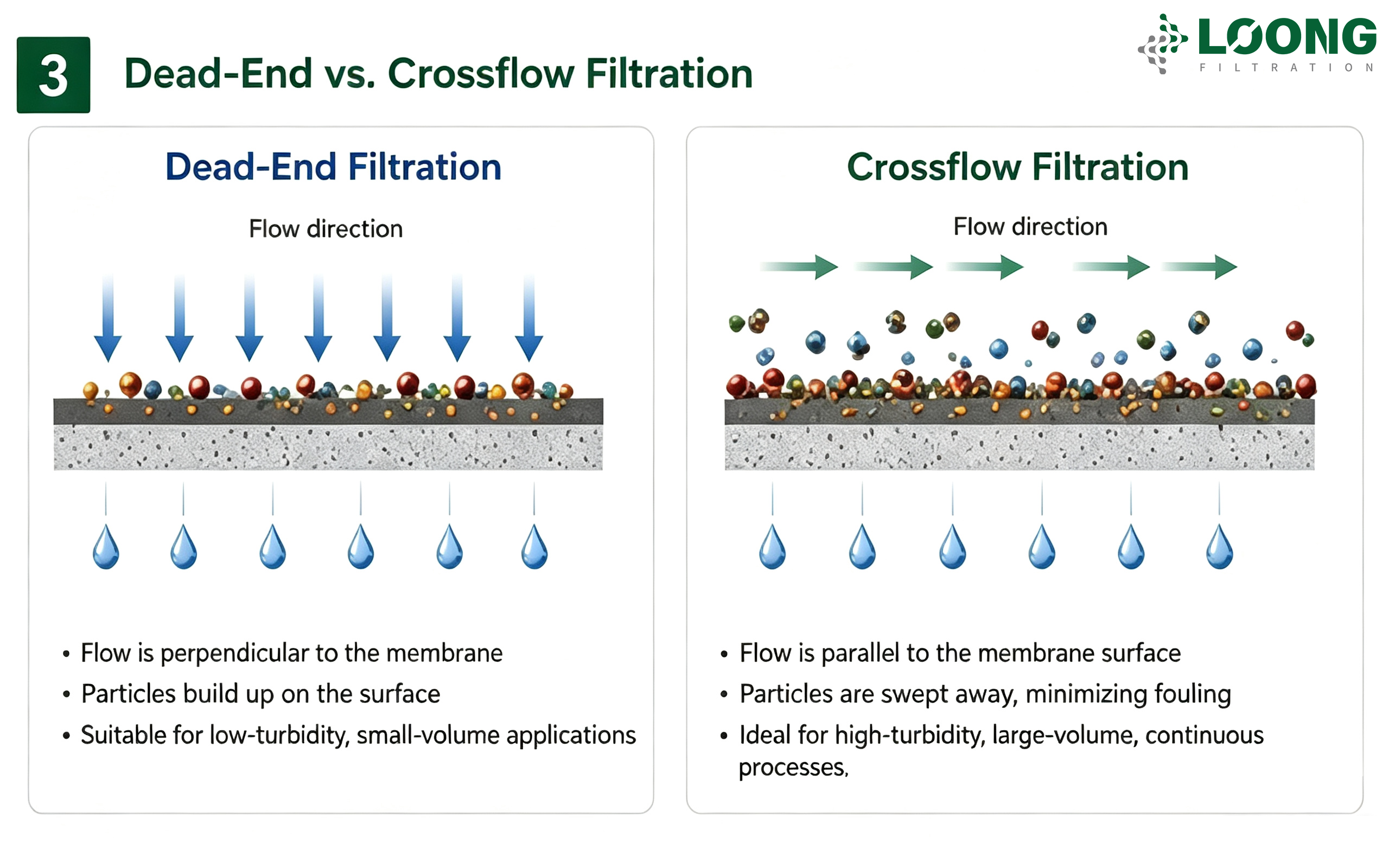

In a dead-end configuration, the feed stream flows 100% perpendicular to the membrane surface. All the liquid is forced directly through the barrier, meaning that any intercepted dirt accumulates directly on the face of the material. This creates a rapid buildup of a filter cake over time. Dead-end styles are highly efficient for low-turbidity fluids and are commonly found in single-use pleated cartridges where the total volume of suspended solids is minimal.
Crossflow filtration takes a different approach by directing the feed stream parallel to the membrane filter surface rather than straight through it. As the fluid sweeps rapidly across the face of the barrier, a portion passes through as permeate, while the remainder continues forward as retentate. This continuous, high-velocity parallel flow acts as a self-cleaning mechanism. It sweeps away accumulated contaminants, which drastically minimizes surface fouling and allows for steady operational performance.
Choosing between these two flow configurations requires a careful evaluation of your process fluid characteristics. If your feed stream features high turbidity, large volumes, and demands continuous operation, crossflow is the superior technical choice. It prevents the rapid blinding that would ruin a perpendicular system within minutes. Dead-end filtration should be reserved for batch processing, polishing steps, or clarifying highly clarified fluids where cartridge replacement intervals are economically acceptable.

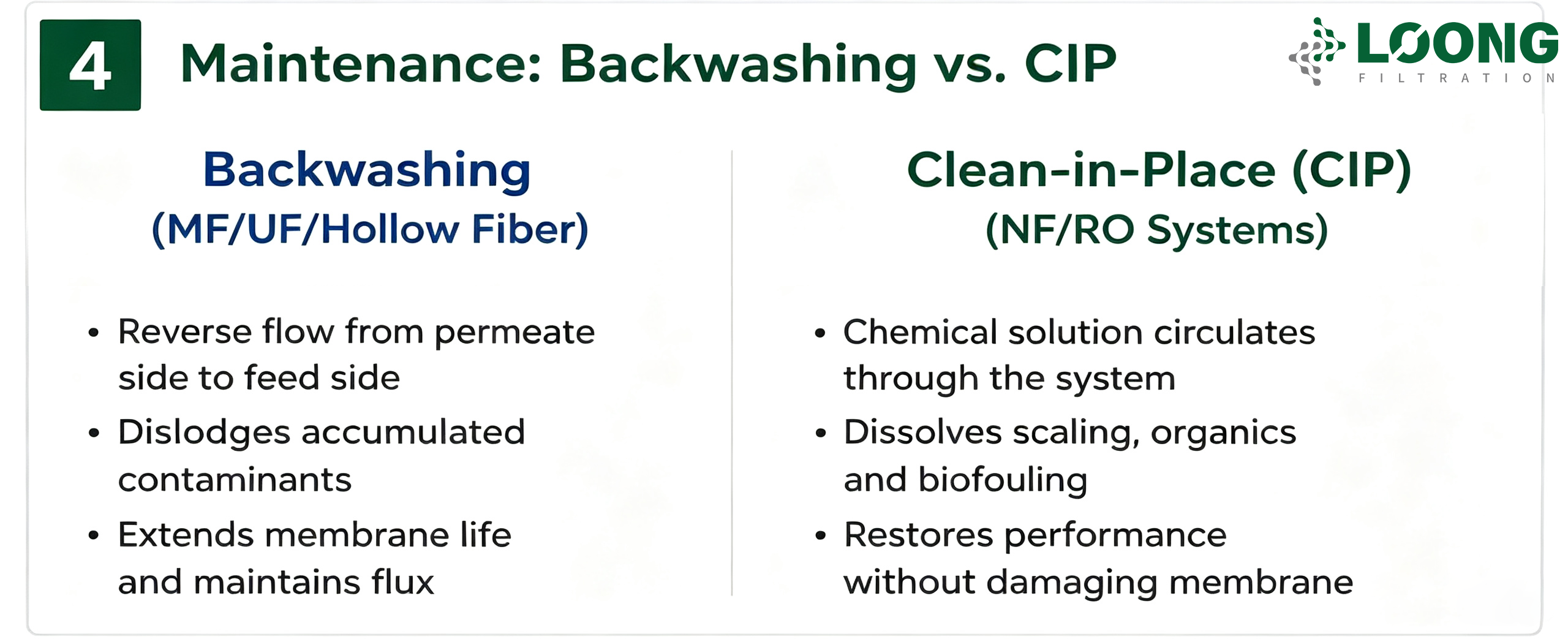

To combat the natural accumulation of debris, hollow fiber and open-pore membranes use a process called periodic backwashing. This maintenance technique involves reversing the flow of clean fluid under pressure from the permeate side back through to the feed side. The reversed flow physically dislodges the surface cake buildup and clears out the pores. Integrating regular, automated backwash cycles into your daily operation extends the lifespan of the filter and maintains high flux rates.
Advanced reverse osmosis and nanofiltration systems cannot tolerate standard backwashing because the intense reverse physical pressure would delaminate their delicate thin-film composite structures. Instead, they require specialized Clean-in-Place protocols. CIP involves circulating specific chemical formulations through the system to dissolve organic scaling, mineral deposits, and bio-fouling. These chemical agents are carefully chosen to restore flux without altering the integrity of the synthetic polymers.
Eventually, every filter element reaches the end of its useful service life. Single-use pleated cartridges must be replaced entirely when chemical cleaning or backwashing is no longer cost-effective or fails to restore the baseline pressure drop. Washable or cleanable systems offer longer physical lifetimes but demand higher chemical usage and labor costs. You must balance the capital expense of buying new replacement cartridges against the operational costs of maintaining reusable elements.

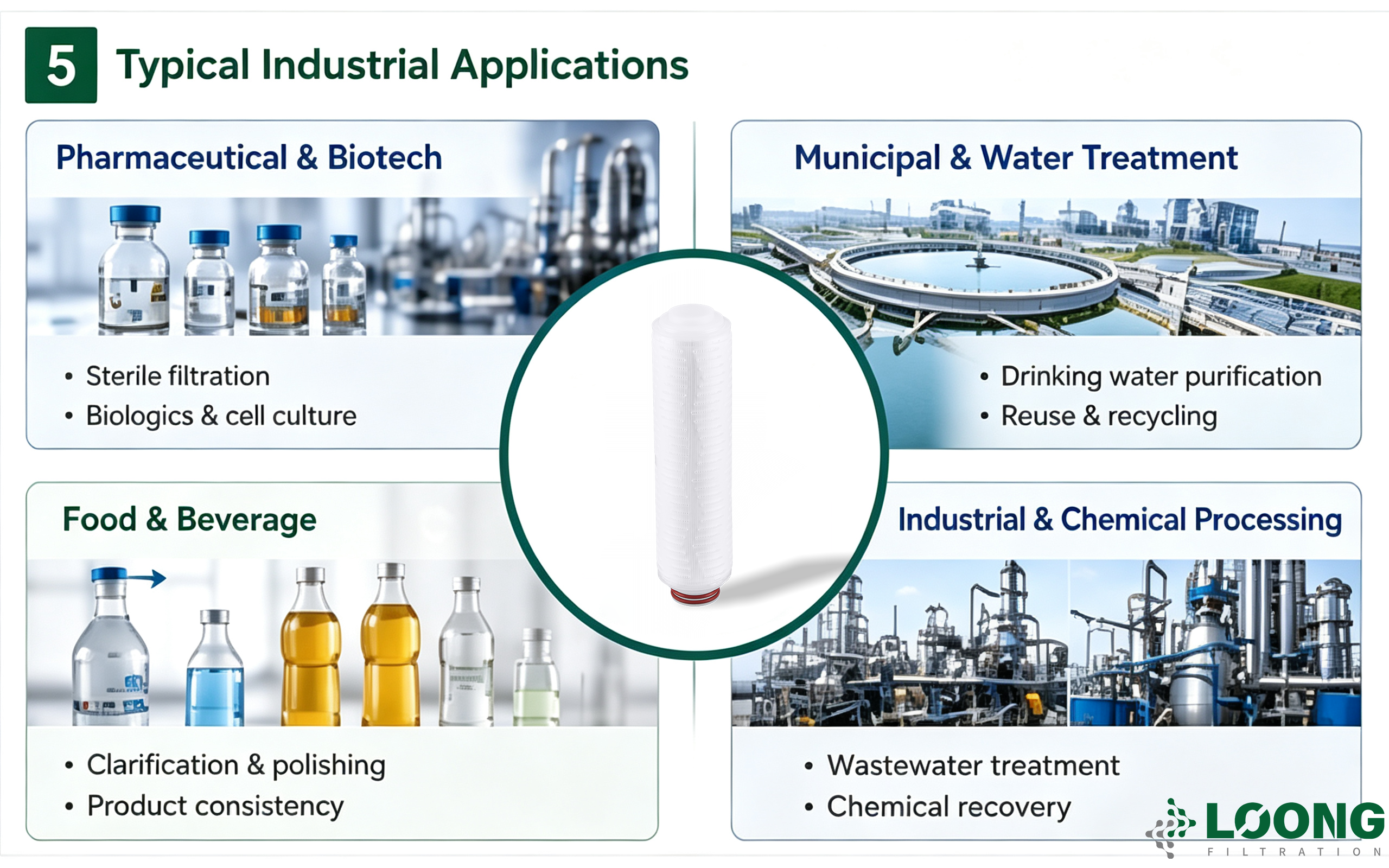

Municipalities worldwide rely heavily on advanced separation to provide safe drinking water to growing populations. Large-scale filtration installations remove dangerous chemical contaminants, microplastics, and stubborn pathogens like Giardia or Cryptosporidium. By establishing a reliable physical barrier, modern treatment plants deliver high-quality, certified drinking water without over-treating the supply with harsh chlorine additives that alter taste and create toxic disinfection byproducts.
In the food and beverage sector, maintaining product consistency and strict hygiene is paramount. Processing plants utilize membrane technology to achieve sterile clarification in dairy production, beer filtration, wine polishing, and bottled water creation. The mechanical size exclusion removes spoilage organisms and cloudiness without altering the delicate natural flavors, colors, or nutritional profiles of the products. This ensures a long shelf life while protecting brand reputation.
Stricter environmental regulations force modern factories to clean up their effluent streams before discharging them. Advanced filtration systems allow facilities to treat heavily contaminated industrial wastewater, turning a waste hazard into a reusable resource. Beyond environmental compliance, these systems frequently recover valuable materials, such as concentrated catalysts, precious metals, or usable process chemicals, directly from the wastewater loop to improve factory profitability.
Membrane bioreactors represent an incredible leap forward in municipal and industrial sewage treatment. This technology combines traditional biological digestion with a downstream physical separation component. By replacing conventional gravity settling tanks with high-efficiency membrane modules, MBR plants achieve superior effluent quality in a fraction of the footprint. The resulting water is often clean enough to be routed directly to industrial reuse or advanced aquifer recharge programs.

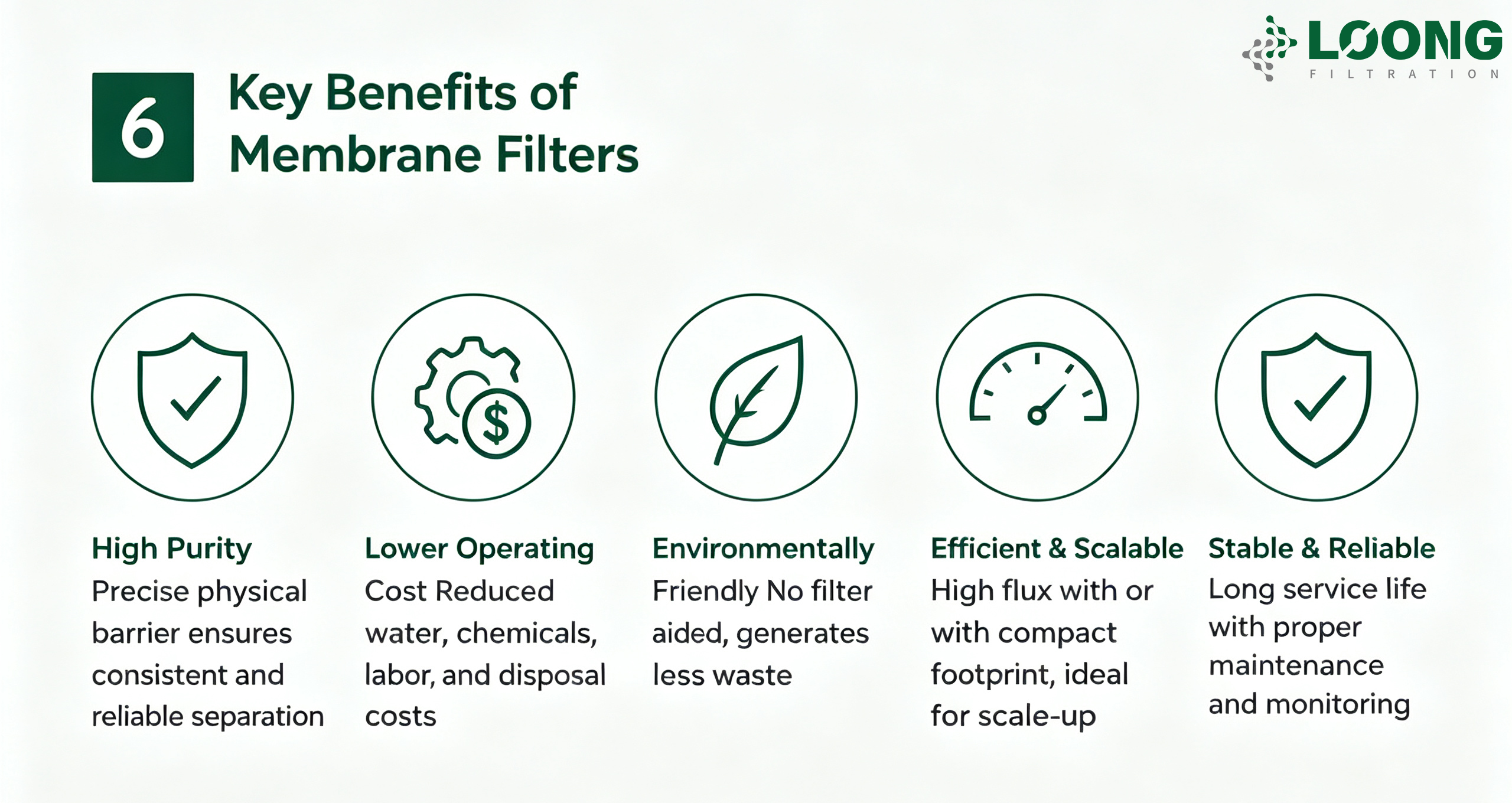

The greatest advantage of physical pore exclusion is its absolute predictability. Traditional media systems, like sand or carbon beds, can suffer from fluid channeling, where untreated liquid bypasses the media entirely. They can also shed fine particles into the clean stream. A certified membrane completely eliminates these risks. It delivers an unyielding physical barrier that guarantees ultra-pure, sterile liquids every single hour of operation.
While the initial capital investment for an advanced filtration system can be higher than legacy alternatives, the Total Cost of Ownership is significantly lower. By minimizing the number of processing steps and concentrating waste into a highly compact volume, you save money on raw water, chemical treatments, and disposal fees. The automated nature of these systems also slashes manual labor requirements and reduces the frequency of unexpected downtime.
Sustainability is a core focus for modern industrial enterprises. Traditional depth filtration often relies on filter aids like diatomaceous earth, which creates massive amounts of heavy, chemical-laden filter cake that must be trucked to landfills. Membrane separation requires no such additives. It isolates contaminants purely mechanically, producing a clean, concentrated liquid byproduct that reduces your environmental footprint and simplifies disposal compliance.
Operating high-pressure systems like reverse osmosis does require a notable amount of electrical energy to run the booster pumps. However, modern system designs balance these energy consumption challenges by integrating advanced energy recovery devices. These devices capture the hydraulic energy remaining in the high-pressure reject stream and transfer it directly back to the incoming feed water, cutting overall power requirements by up to 60%.
Understanding the true utility of a membrane filter requires a careful evaluation of its classification, flow mechanics, and pore-size capabilities. LOONG FILTRATION delivers high-performance filtration solutions engineered to reduce operational costs while ensuring exceptional fluid purity and strict compliance across your industrial processes.
A: A membrane filter is used to remove specific suspended solids, bacteria, or dissolved salts from water streams.
A: The feed stream flows parallel to the membrane filter surface, sweeping away particles to prevent heavy accumulation.
A: A membrane filter provides a precise physical barrier that guarantees predictable size exclusion and absolute fluid sterility.
A: Single-use options have lower upfront costs, but a washable membrane filter offers a better long-term total cost.
