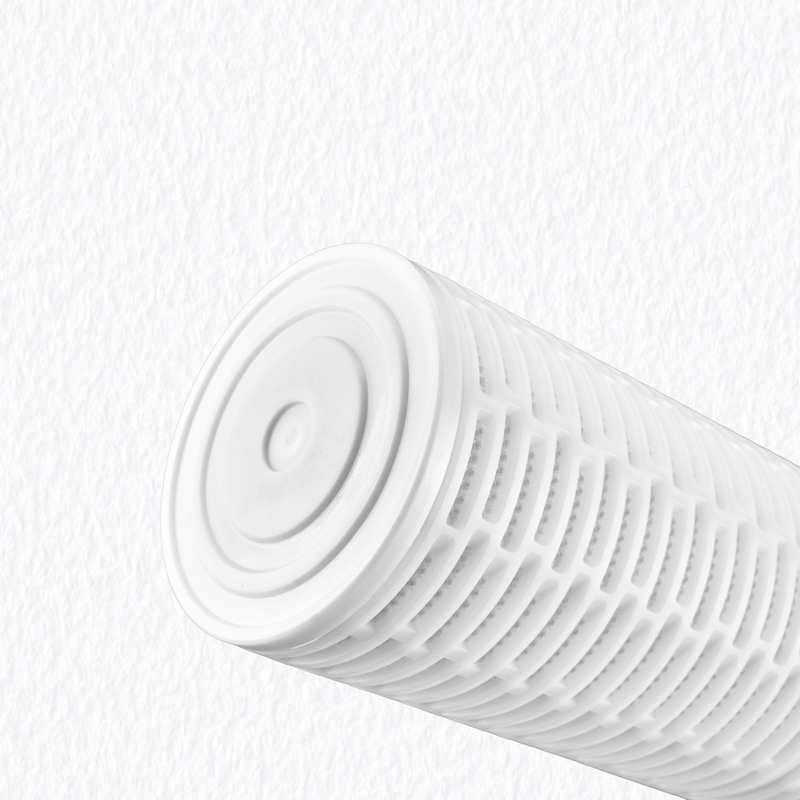

The cartridge uses GF/PTFE filter media together with an HDPE cage, providing particle retention while reducing the risk of unwanted extractables entering the process fluid. This makes it suitable for applications where solvent purity and filtration cleanliness are important. Final compatibility should still be confirmed against the specific solvent and operating conditions.

The correct micron rating depends on the particle size to be removed, required downstream cleanliness, contamination load, flow rate, and allowable pressure drop. Available ratings range from 1 to 100 μm, allowing the cartridge to be used for both finer particle removal and general prefiltration in high-purity liquid systems.

Compatibility depends on the process fluid, chemical concentration, operating temperature, contact time, and actual system conditions. GF/PTFE media provides good suitability for many high-purity liquid applications, but chemical compatibility should be confirmed before use with aggressive solvents or specialty chemicals.

The listed maximum operating temperature is 80°C, and the maximum differential pressure is 2.0 bar at 20°C. Actual allowable conditions should also consider the process fluid, filtration rating, flow rate, and cartridge configuration. Pressure and temperature should be evaluated together before final selection.

Compatibility should be checked according to cartridge outer diameter, length, sealing interface, flow direction, and housing dimensions. The listed sizes include 20", 40", and 60" lengths with an outer diameter of approximately 158–160 mm. Providing your existing cartridge model or housing dimensions is the most reliable way to confirm interchangeability.
