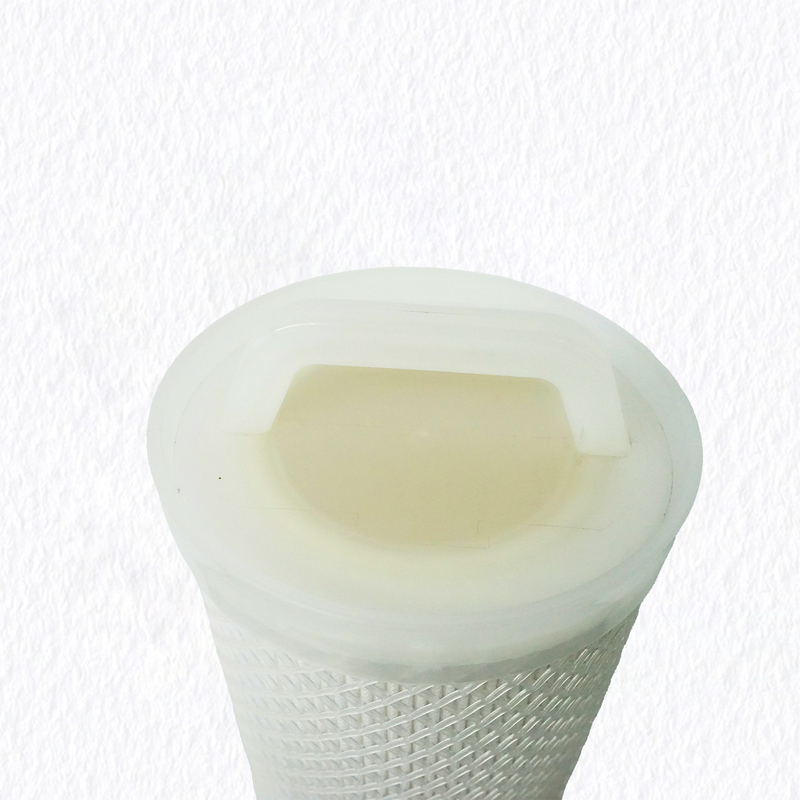

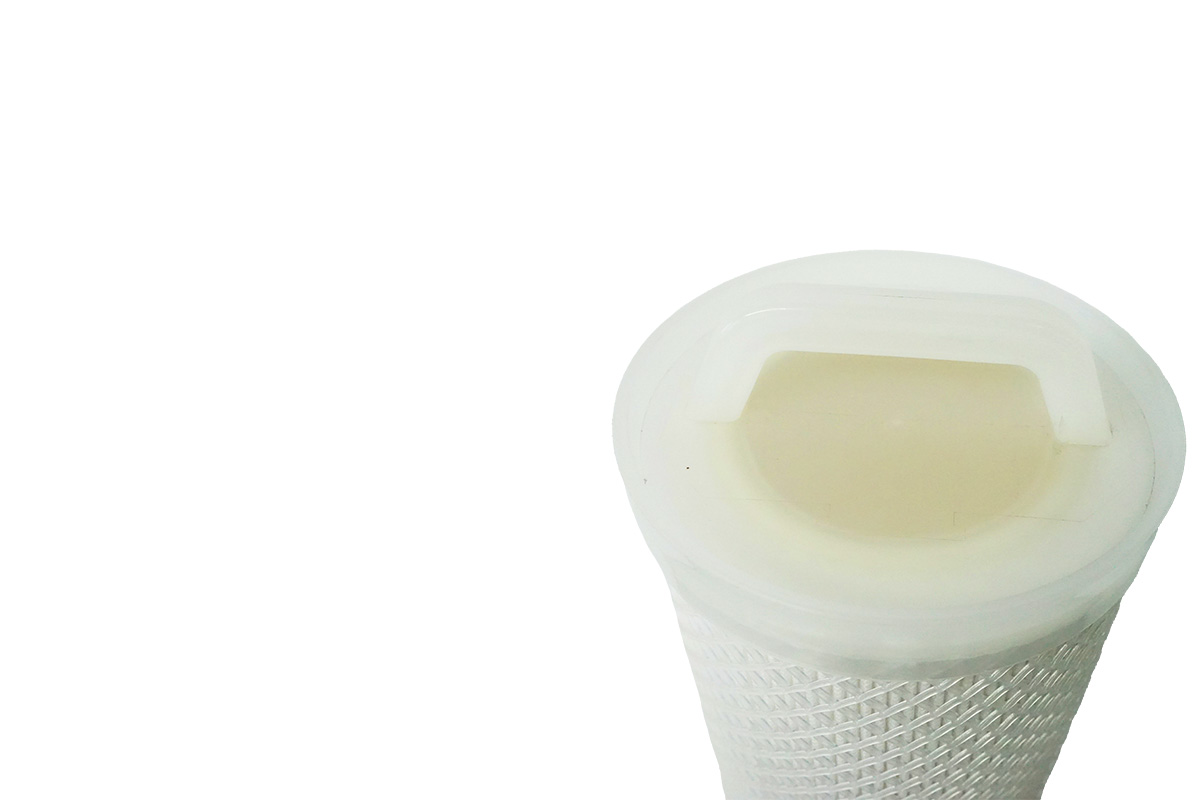

The cartridge uses GF+PP filter media and cage construction, combining glass fiber and polypropylene to support filtration performance at elevated temperatures. The listed maximum operating temperature is 100°C. Final suitability should still be confirmed according to the process fluid, flow rate, pressure, and actual operating conditions.

The correct micron rating depends on the particle size to be removed, contamination load, required downstream cleanliness, flow rate, and allowable differential pressure. Available ratings range from 1 to 100 μm, allowing the cartridge to be selected for general prefiltration as well as finer industrial particle-removal duties.

The listed maximum differential pressure is 3.0 bar at 20°C. Because allowable differential pressure can change as operating temperature increases, pressure and temperature should always be evaluated together when defining the actual process conditions.

Compatibility should be checked according to cartridge length, outer diameter, sealing interface, and housing dimensions. The listed outer diameter is 152 mm, with 20", 40", and 60" length options. Providing your current cartridge model or housing dimensions is the most reliable way to confirm fit.

Replacement should be based on filtration performance rather than a fixed service interval. Typical indicators include increasing differential pressure, reduced flow rate, longer processing time, or failure to achieve the required downstream cleanliness. Actual service life depends on contamination load, micron rating, fluid properties, operating temperature, and flow conditions.
