Absolute-rated filtration means the cartridge is designed to provide a defined level of particle retention at its specified micron rating. This gives more predictable filtration performance than general nominal filtration and makes the cartridge suitable for applications where consistent particle control and downstream cleanliness are important.

The correct micron rating depends on the particle size to be removed, required filtrate cleanliness, contamination load, flow rate, and allowable differential pressure. Available ratings range from 0.1 to 10 μm, allowing the cartridge to be used for fine filtration, polishing, and other precision liquid filtration duties.

PTFE filter media provides reliable particle retention together with good chemical stability for demanding liquid filtration applications. It is suitable for food, beverage, bottled water, and industrial pure water processes where consistent filtration performance is important. Final compatibility should still be confirmed against the actual process fluid and operating conditions.

The listed maximum operating temperature is 80°C, and the maximum differential pressure is 2.0 bar at 20°C. Actual allowable conditions should also consider the selected micron rating, process fluid, flow rate, and system configuration. Pressure and temperature should be evaluated together before final selection.

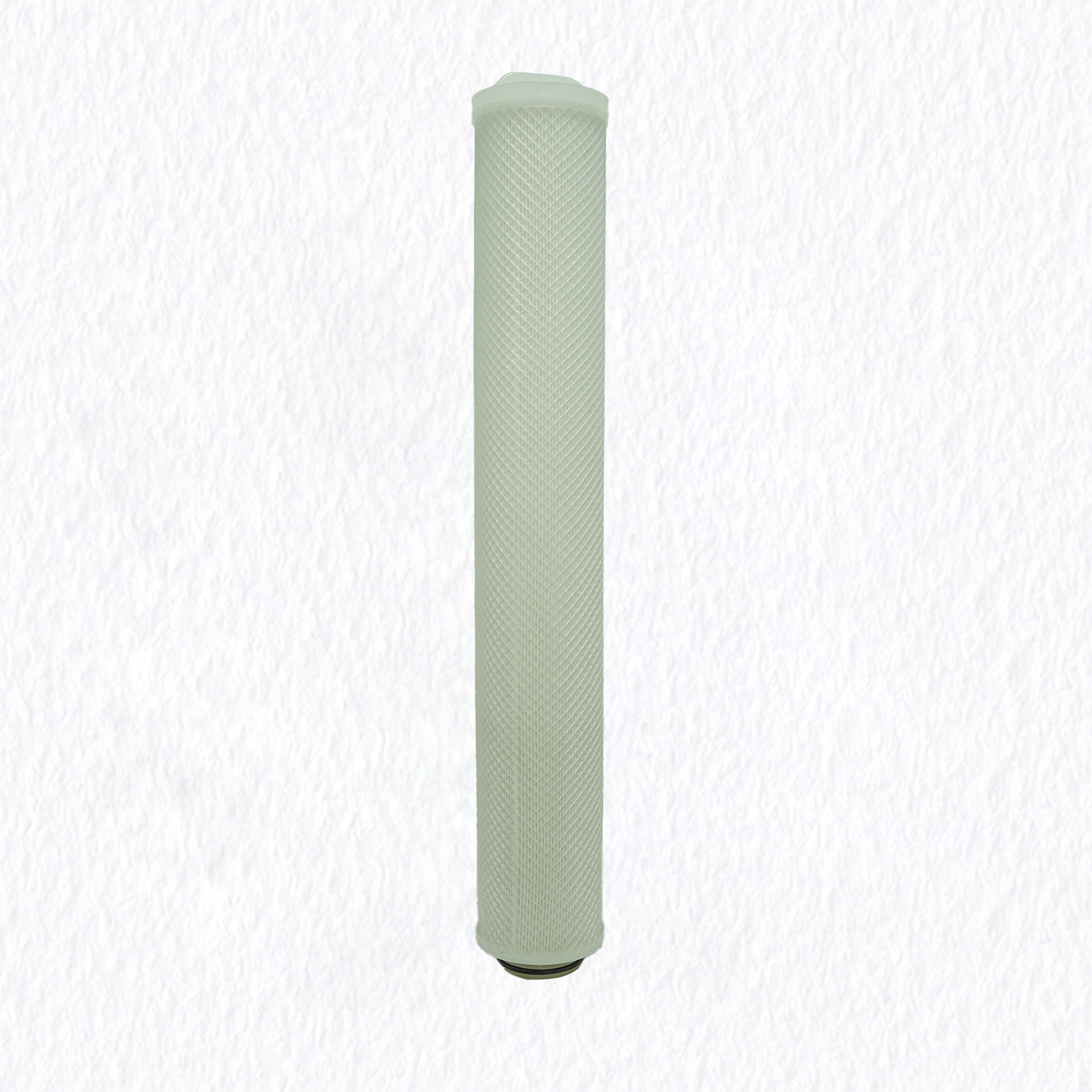

Compatibility should be checked according to cartridge outer diameter, length, sealing interface, and housing dimensions. The listed outer diameter is 152 mm, with 20", 40", and 60" length options. Providing your current cartridge model or housing dimensions is the most reliable way to confirm fit.
