The correct micron rating depends on the particle size to be removed, contamination load, required downstream cleanliness, flow rate, and allowable differential pressure. Available ratings range from 0.1 to 10 μm, allowing the cartridge to be used for finer filtration, polishing, and general industrial prefiltration duties.

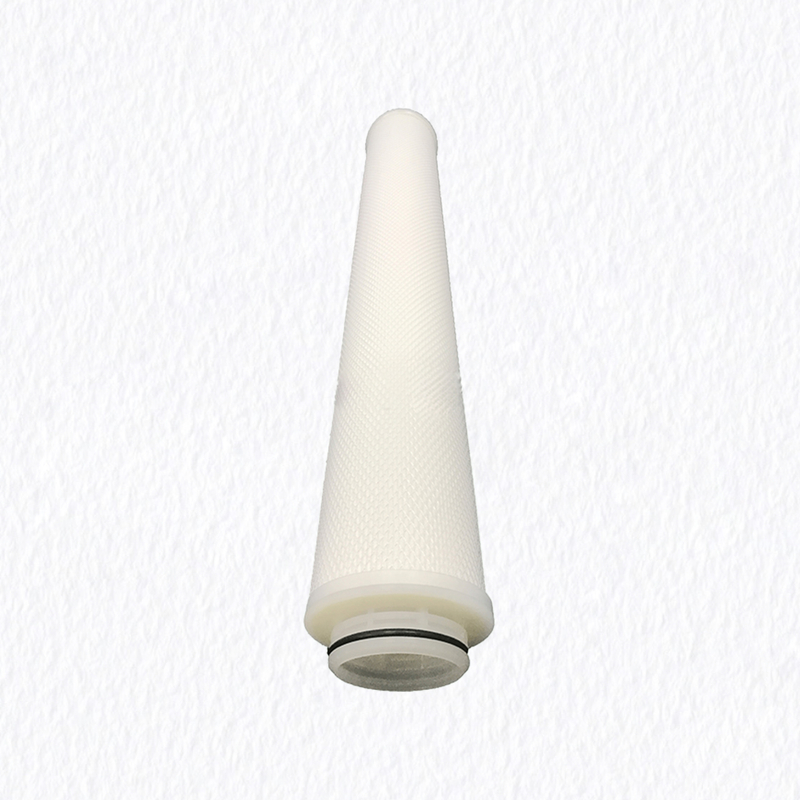

The cartridge uses polypropylene filter media and a polypropylene cage, making it suitable for many common industrial liquid filtration applications. However, compatibility depends on the actual fluid composition, chemical concentration, operating temperature, and contact time. Compatibility should be confirmed before use with aggressive or unusual process fluids.

The listed maximum operating temperature is 80°C, and the maximum differential pressure is 2.5 bar at 20°C. Actual allowable conditions should also consider the selected micron rating, process fluid, flow rate, and system configuration. Pressure and temperature should be evaluated together before final selection.

Compatibility should be checked according to cartridge outer diameter, length, sealing interface, and housing dimensions. The listed cartridge lengths are 20" and 40", with outer diameters of approximately 152–165 mm. Providing the current cartridge model or housing dimensions is the most reliable way to confirm fit.

Replacement should be based on filtration performance rather than a fixed service interval. Typical indicators include increasing differential pressure, reduced flow rate, longer processing time, or failure to achieve the required downstream cleanliness. Actual service life depends on contaminant loading, micron rating, fluid properties, flow conditions, and operating temperature.
