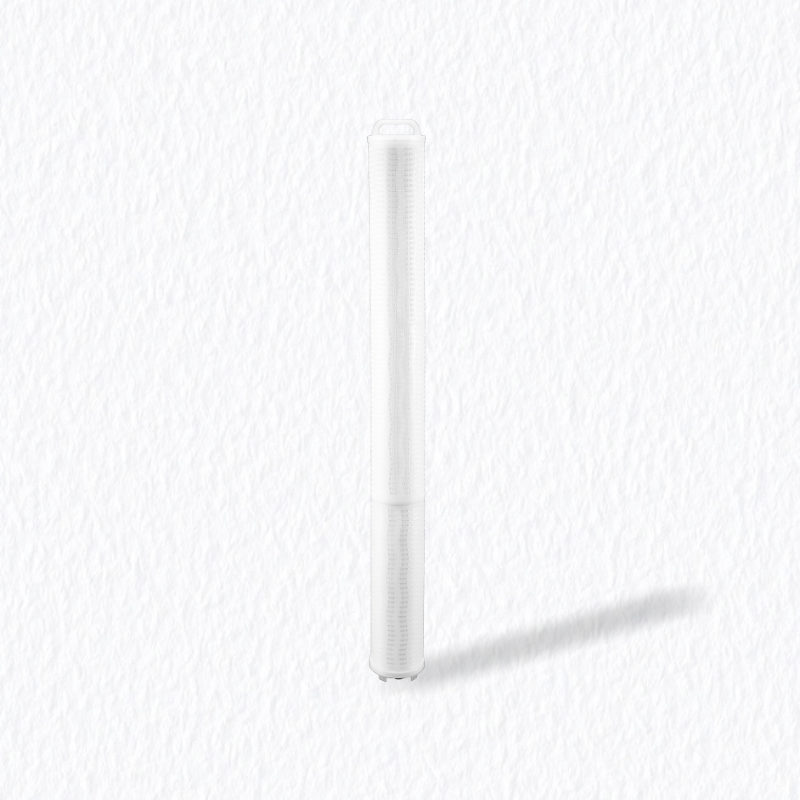

The cartridge uses a GF+PP filter media and cage construction, providing improved thermal capability for elevated-temperature filtration. The listed maximum operating temperature is 100°C. Actual suitability should still be confirmed according to the process fluid, operating pressure, flow rate, exposure time, and system conditions.

It is designed as a replacement solution for 3M HFR-type applications, but dimensional and housing compatibility should be verified before installation. Key factors include cartridge length, outer diameter, sealing interface, flow direction, and housing structure. Providing the existing HFR model or dimensional drawing is the most reliable way to confirm interchangeability.

The correct micron rating depends on the particle size to be removed, feed contamination level, required downstream cleanliness, flow rate, and allowable differential pressure. Available ratings range from 1 to 100 μm, allowing selection for both general prefiltration and finer industrial particle-removal applications.

The listed maximum differential pressure is 3.0 bar at 20°C. Because allowable pressure can change as operating temperature increases, pressure and temperature should always be evaluated together rather than independently. Final operating limits should be confirmed for the actual process temperature and fluid conditions.

Compatibility should be checked according to cartridge length, outer diameter, sealing interface, flow direction, and housing dimensions. The listed sizes include 20", 40", and 60" lengths with outer diameters of approximately 158–164 mm. Comparing these values with the existing cartridge specification is the most reliable way to confirm fit.
