SHFP/SHFA/SHFE
Food & Beverage, Fine Chemical
Capsule Filters
PP
| Availability: | |
|---|---|
| Quantity: | |

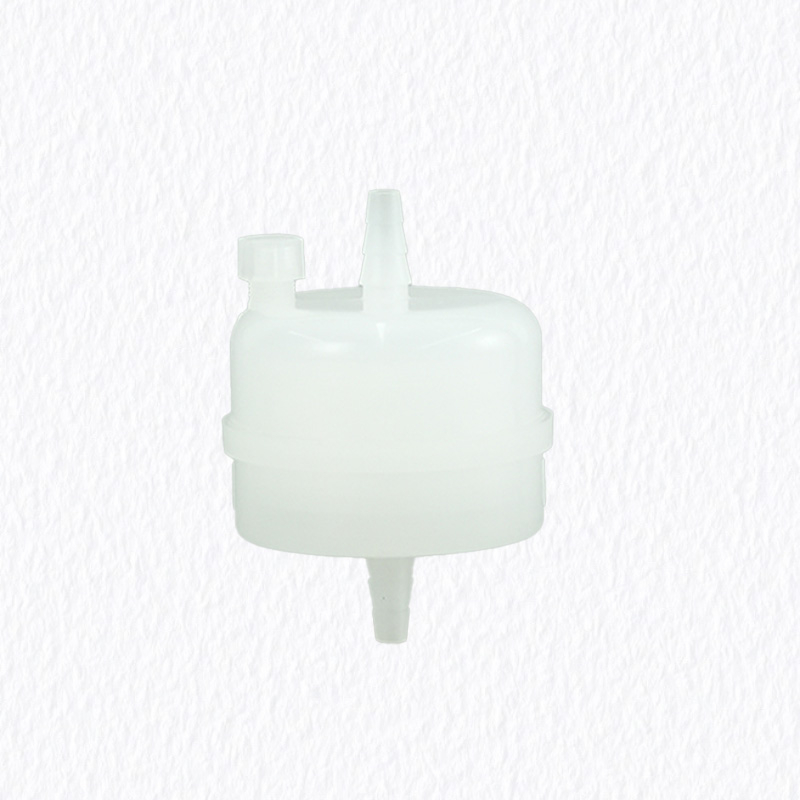

Multi-layer PP Capsule Filter - For High Load & Low Pressure Drop Clarification
APPLICATIONS
• Optimized Gradient Filtration: The scientifically arranged multi-layer PP media creates a pore size gradient for depth loading and efficient particle capture, maximizing dirt holding capacity.
• Broad Chemical Applicability: Polypropylene material offers excellent resistance to most acids, alkalis, and aqueous solutions, suitable for diverse industrial fluids.
• Reliable Product Purity Assurance: The filtration process is free from fiber or media migration, ensuring downstream fluid cleanliness for food and general industrial standards.
• Significant Cost Efficiency: Extended service life from high dirt capacity reduces change-out frequency and waste, while low operating pressure drop lowers the total cost of ownership.
Multi-layer PP Capsule Filter - For High Load & Low Pressure Drop Clarification
APPLICATIONS
• Optimized Gradient Filtration: The scientifically arranged multi-layer PP media creates a pore size gradient for depth loading and efficient particle capture, maximizing dirt holding capacity.
• Broad Chemical Applicability: Polypropylene material offers excellent resistance to most acids, alkalis, and aqueous solutions, suitable for diverse industrial fluids.
• Reliable Product Purity Assurance: The filtration process is free from fiber or media migration, ensuring downstream fluid cleanliness for food and general industrial standards.
• Significant Cost Efficiency: Extended service life from high dirt capacity reduces change-out frequency and waste, while low operating pressure drop lowers the total cost of ownership.
>>>Food & Beverage
• Beverage Clarification:
Filtration of bottled water, soft drinks, beer, and wine.
• Edible Liquid Purification:
Purification of vinegar, soy sauce, and liquid condiments.
• Edible Oil Polishing:
Final polish filtration of vegetable and cooking oils.
>>>Chemical & General Manufacturing
• Chemical Pre-treatment:
Particulate removal and clarification of general acids, alkalis, and aqueous chemicals.
• Ink & Pigment Purification:
Contaminant filtration for water-based inks, paints, and pigments.
• Industrial Water Treatment:
Filtration of cleaning agents and process water.
MATERIALS OF CONSTRUCTION
| Filter Media | PP |
| Cage & Support & End Caps | PP |
| Drainage | PP |
STEAM CONDITIONS
| Hot Water Disinfection | 30mins@90 ℃ |
| High-pressure Steam Sterilization | 30mins@121 ℃ |
CHARACTERS
| Filtration Area | 500,1000,2100cm² |
| Min. Burst Pressure | 123.5psi(8.5barg) |
| Removal Ratings(μm) | 0.6,1.0,3.0,5.0,7.0,10,20,30,50 |
>>>Food & Beverage
• Beverage Clarification:
Filtration of bottled water, soft drinks, beer, and wine.
• Edible Liquid Purification:
Purification of vinegar, soy sauce, and liquid condiments.
• Edible Oil Polishing:
Final polish filtration of vegetable and cooking oils.
>>>Chemical & General Manufacturing
• Chemical Pre-treatment:
Particulate removal and clarification of general acids, alkalis, and aqueous chemicals.
• Ink & Pigment Purification:
Contaminant filtration for water-based inks, paints, and pigments.
• Industrial Water Treatment:
Filtration of cleaning agents and process water.
MATERIALS OF CONSTRUCTION
| Filter Media | PP |
| Cage & Support & End Caps | PP |
| Drainage | PP |
STEAM CONDITIONS
| Hot Water Disinfection | 30mins@90 ℃ |
| High-pressure Steam Sterilization | 30mins@121 ℃ |
CHARACTERS
| Filtration Area | 500,1000,2100cm² |
| Min. Burst Pressure | 123.5psi(8.5barg) |
| Removal Ratings(μm) | 0.6,1.0,3.0,5.0,7.0,10,20,30,50 |
| SERIES | MATERIAL | RATING(μm) | SIZE | SEAL | CONNECTION |
| Phamarmical | PP | 0.1μm | 2.5 | No | 1/4〞NPT With 6-9mm pagoda adapter |
| Laboratory | MCE | 0.22μm | 5 | Silicone | 1/2〞NPT |
| Electronics | Nylon | 0.45μm | 10 | EPDM | 3/8〞NPT |
| PES | 0.65μm | 85 | |||
| PTFE | 1.0μm | ||||
| Hydrophilic PTFE | 3.0μm | ||||
| PVDF | 10μm | ||||
| Hydrophilic PVDF | 0.22+0.22μm | ||||
| GF | 0.22+0.45μm |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | SIZE | SEAL | CONNECTION |
| Phamarmical | PP | 0.1μm | 2.5 | No | 1/4〞NPT With 6-9mm pagoda adapter |
| Laboratory | MCE | 0.22μm | 5 | Silicone | 1/2〞NPT |
| Electronics | Nylon | 0.45μm | 10 | EPDM | 3/8〞NPT |
| PES | 0.65μm | 85 | |||
| PTFE | 1.0μm | ||||
| Hydrophilic PTFE | 3.0μm | ||||
| PVDF | 10μm | ||||
| Hydrophilic PVDF | 0.22+0.22μm | ||||
| GF | 0.22+0.45μm |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
