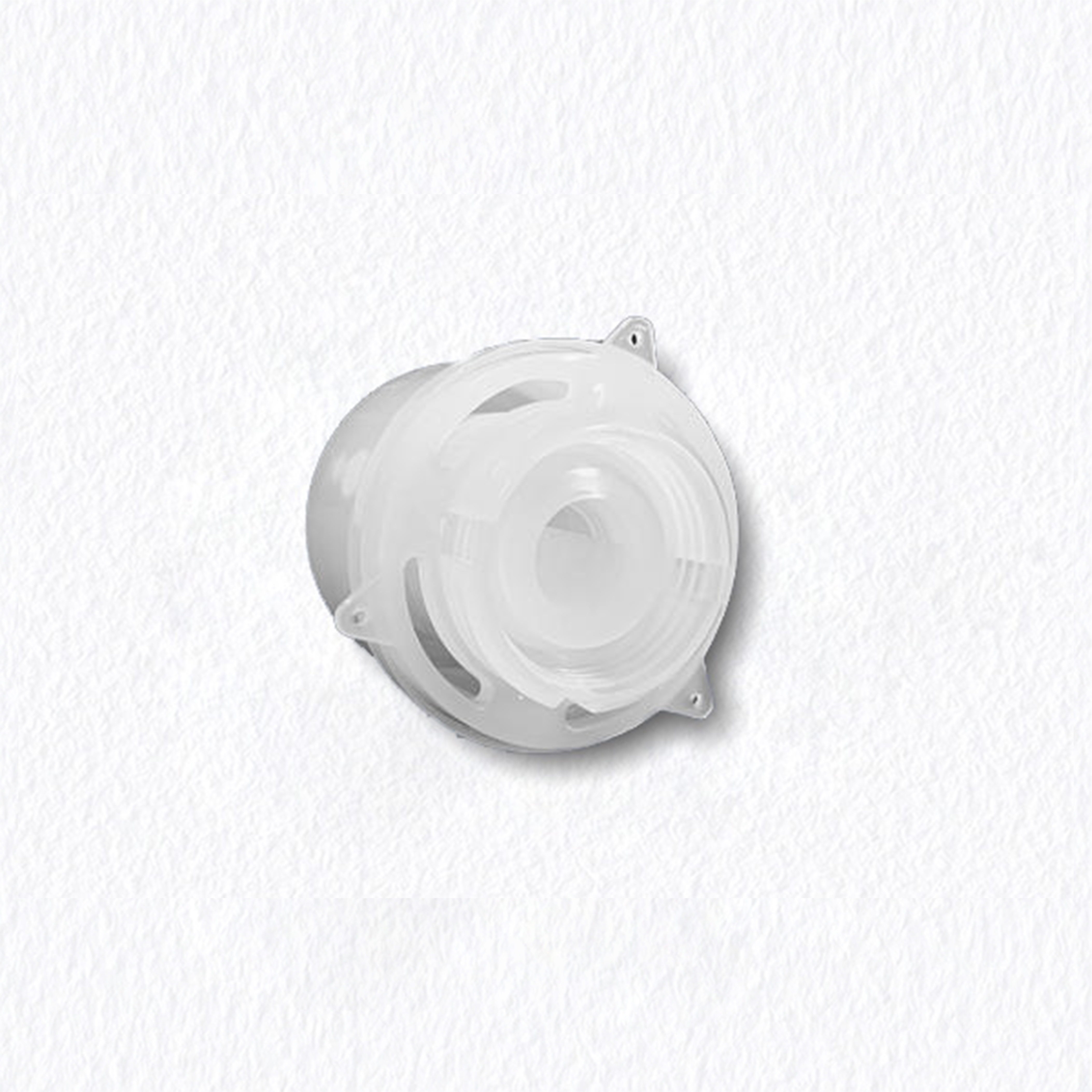

SPSVC Series DIN Capsule Filter - High Flow PTFE Venting Solution for Sterile Tanks
APPLICATIONS
• Biopharmaceutical Fermentation: Sterile inlet and exhaust venting for fermenters and bioreactors.
• Pharmaceutical Storage Systems: Vent filtration for sterile bulk tanks, buffer vessels, and WFI storage tanks.
• Food & Beverage Processing: Clean gas exchange for ingredient and product storage tanks to prevent contamination.
• Aseptic Packaging Lines: Filtration of overlay or protective gases for sterile filling equipment.
SPSVC Series DIN Capsule Filter - High Flow PTFE Venting Solution for Sterile Tanks
APPLICATIONS
• Biopharmaceutical Fermentation: Sterile inlet and exhaust venting for fermenters and bioreactors.
• Pharmaceutical Storage Systems: Vent filtration for sterile bulk tanks, buffer vessels, and WFI storage tanks.
• Food & Beverage Processing: Clean gas exchange for ingredient and product storage tanks to prevent contamination.
• Aseptic Packaging Lines: Filtration of overlay or protective gases for sterile filling equipment.
• Reliable Connection & Performance
Standard DIN threaded connection ensures sealing and compatibility, with 100% integrity testing for verified reliability.
• Clean Construction & Material Safety
Adhesive-free thermal bonding process and PTFE material eliminate shedding risk, meeting FDA requirements for food contact.
• Excellent Fluid Dynamics
PTFE membrane offers very low flow resistance, enabling high flow rates and minimal pressure drop.
• Broad Chemical Compatibility
PTFE material provides exceptional resistance to most acids, alkalis, and solvents for wide application suitability.
MATERIALS OF CONSTRUCTION
| Filter Media | PTFE |
| Cage & Support & End Caps | PP |
| Drainage | PP |
| Hot Water Disinfection | 30mins@90 ℃ |
| High-pressure Steam Sterilization | 30mins@121 ℃ |
CHARACTERS
| Filtration Area | 600c㎡ |
| Removal Ratings(μm) | 0.22 |
| Inlet&Outlet | 1’’Din Internal thread |
• Reliable Connection & Performance
Standard DIN threaded connection ensures sealing and compatibility, with 100% integrity testing for verified reliability.
• Clean Construction & Material Safety
Adhesive-free thermal bonding process and PTFE material eliminate shedding risk, meeting FDA requirements for food contact.
• Excellent Fluid Dynamics
PTFE membrane offers very low flow resistance, enabling high flow rates and minimal pressure drop.
• Broad Chemical Compatibility
PTFE material provides exceptional resistance to most acids, alkalis, and solvents for wide application suitability.
MATERIALS OF CONSTRUCTION
| Filter Media | PTFE |
| Cage & Support & End Caps | PP |
| Drainage | PP |
| Hot Water Disinfection | 30mins@90 ℃ |
| High-pressure Steam Sterilization | 30mins@121 ℃ |
CHARACTERS
| Filtration Area | 600c㎡ |
| Removal Ratings(μm) | 0.22 |
| Inlet&Outlet | 1’’Din Internal thread |
| SERIES | MATERIAL | RATING(μm) | SIZE | SEAL | CONNECTION |
| Phamarmical | PP | 0.1μm | 2.5 | No | 1/4〞NPT With 6-9mm pagoda adapter |
| Laboratory | MCE | 0.22μm | 5 | Silicone | 1/2〞NPT |
| Electronics | Nylon | 0.45μm | 10 | EPDM | 3/8〞NPT |
| PES | 0.65μm | 85 | |||
| PTFE | 1.0μm | ||||
| Hydrophilic PTFE | 3.0μm | ||||
| PVDF | 10μm | ||||
| Hydrophilic PVDF | 0.22+0.22μm | ||||
| GF | 0.22+0.45μm |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | SIZE | SEAL | CONNECTION |
| Phamarmical | PP | 0.1μm | 2.5 | No | 1/4〞NPT With 6-9mm pagoda adapter |
| Laboratory | MCE | 0.22μm | 5 | Silicone | 1/2〞NPT |
| Electronics | Nylon | 0.45μm | 10 | EPDM | 3/8〞NPT |
| PES | 0.65μm | 85 | |||
| PTFE | 1.0μm | ||||
| Hydrophilic PTFE | 3.0μm | ||||
| PVDF | 10μm | ||||
| Hydrophilic PVDF | 0.22+0.22μm | ||||
| GF | 0.22+0.45μm |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
