SHFP/SHFA/SHFE
Pharma&Biotech, Food & Beverage, Fine Chemical
Capsule Filters
Nylon
| Availability: | |
|---|---|
| Quantity: | |

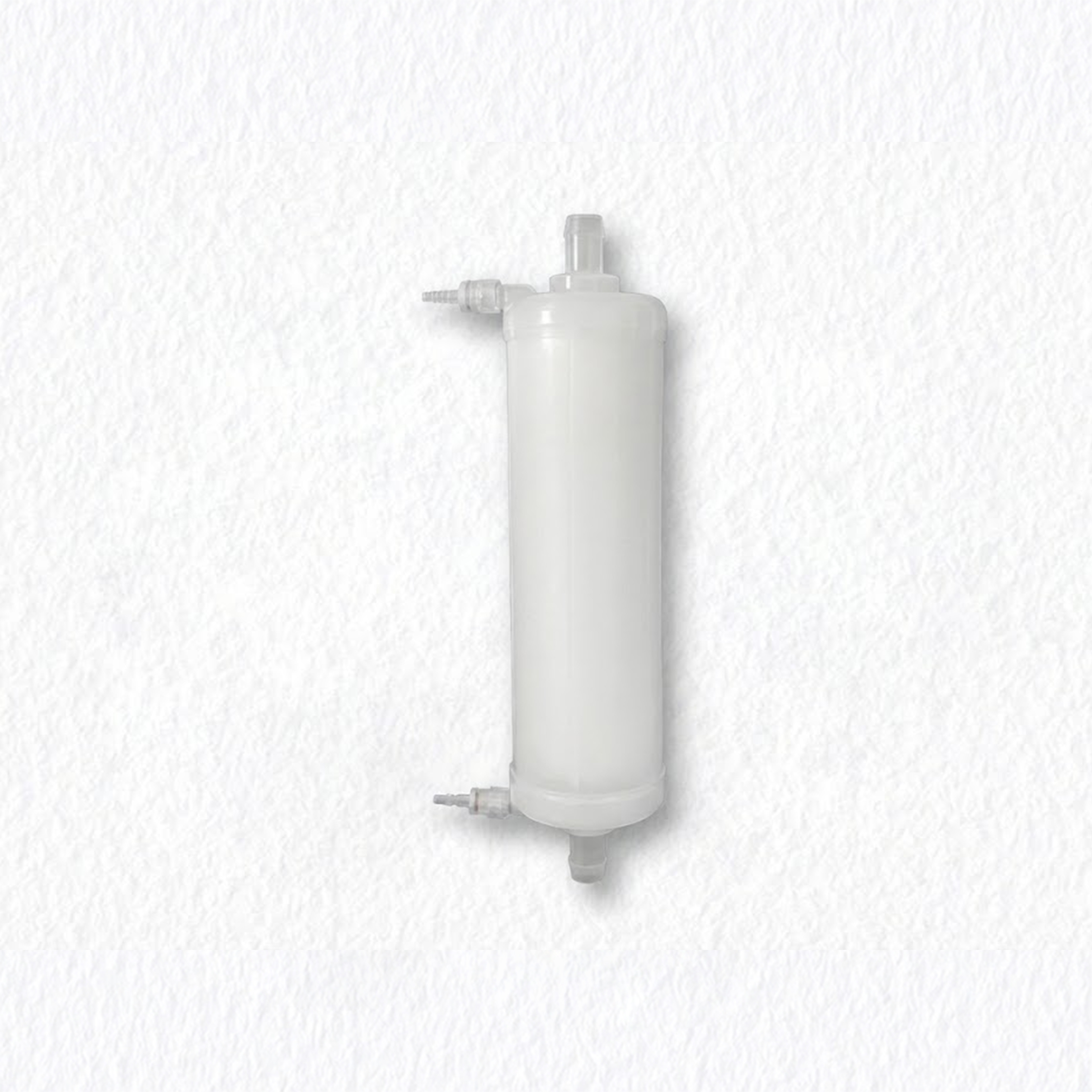

High Capacity Nylon Capsule Filter - For Large Volume & Critical Process Fluids
APPLICATIONS
• Pharmaceutical & Water Purification: Final filtration for Purified Water/WFI systems; precision filtration of pharmaceutical intermediate solutions.
• Food & Beverage: Large-scale clarification and sterilization filtration of beverages, alcoholic drinks, and condiments.
• Fine Chemicals: Particulate removal and product purification for aqueous chemical reagents, catalyst solutions, and fine chemicals
High Capacity Nylon Capsule Filter - For Large Volume & Critical Process Fluids
APPLICATIONS
• Pharmaceutical & Water Purification: Final filtration for Purified Water/WFI systems; precision filtration of pharmaceutical intermediate solutions.
• Food & Beverage: Large-scale clarification and sterilization filtration of beverages, alcoholic drinks, and condiments.
• Fine Chemicals: Particulate removal and product purification for aqueous chemical reagents, catalyst solutions, and fine chemicals
• Verified Reliability:
Each cartridge is 100% integrity tested, providing assured filtration performance for process safety and consistency.
• High Capacity & Long Life:
The enlarged design coupled with a high-flux Nylon membrane significantly increases throughput and extends service life, reducing change-out frequency.
• Clean Construction:
Advanced thermal welding eliminates adhesives, preventing associated extractables and meeting high-purity standards.
• Broad Material Compatibility:
The Nylon 66 material offers excellent chemical resistance and is non-fiber releasing, suitable for a wide range of industrial fluids.
MATERIALS OF CONSTRUCTION
| Filter Media | Nylon 66 |
| Cage & Support & End Caps | PP |
| Drainage | PP |
STEAM CONDITIONS
| Hot Water Disinfection | 30mins@90 ℃ |
| High-pressure Steam Sterilization | 30mins@121 ℃ |
CHARACTERS
| Length | 318mm |
| Min. Burst Pressure | 123.5psi(8.5barg) |
| Removal Ratings(μm) | 0.1,0.2,0.45,0.65,1.0,3.0 |
| Inlet&Outlet | 1’’ TC |
• Verified Reliability:
Each cartridge is 100% integrity tested, providing assured filtration performance for process safety and consistency.
• High Capacity & Long Life:
The enlarged design coupled with a high-flux Nylon membrane significantly increases throughput and extends service life, reducing change-out frequency.
• Clean Construction:
Advanced thermal welding eliminates adhesives, preventing associated extractables and meeting high-purity standards.
• Broad Material Compatibility:
The Nylon 66 material offers excellent chemical resistance and is non-fiber releasing, suitable for a wide range of industrial fluids.
MATERIALS OF CONSTRUCTION
| Filter Media | Nylon 66 |
| Cage & Support & End Caps | PP |
| Drainage | PP |
STEAM CONDITIONS
| Hot Water Disinfection | 30mins@90 ℃ |
| High-pressure Steam Sterilization | 30mins@121 ℃ |
CHARACTERS
| Length | 318mm |
| Min. Burst Pressure | 123.5psi(8.5barg) |
| Removal Ratings(μm) | 0.1,0.2,0.45,0.65,1.0,3.0 |
| Inlet&Outlet | 1’’ TC |
| SERIES | MATERIAL | RATING(μm) | SIZE | SEAL | CONNECTION |
| Phamarmical | PP | 0.1μm | 2.5 | No | 1/4〞NPT With 6-9mm pagoda adapter |
| Laboratory | MCE | 0.22μm | 5 | Silicone | 1/2〞NPT |
| Electronics | Nylon | 0.45μm | 10 | EPDM | 3/8〞NPT |
| PES | 0.65μm | 85 | |||
| PTFE | 1.0μm | ||||
| Hydrophilic PTFE | 3.0μm | ||||
| PVDF | 10μm | ||||
| Hydrophilic PVDF | 0.22+0.22μm | ||||
| GF | 0.22+0.45μm |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | SIZE | SEAL | CONNECTION |
| Phamarmical | PP | 0.1μm | 2.5 | No | 1/4〞NPT With 6-9mm pagoda adapter |
| Laboratory | MCE | 0.22μm | 5 | Silicone | 1/2〞NPT |
| Electronics | Nylon | 0.45μm | 10 | EPDM | 3/8〞NPT |
| PES | 0.65μm | 85 | |||
| PTFE | 1.0μm | ||||
| Hydrophilic PTFE | 3.0μm | ||||
| PVDF | 10μm | ||||
| Hydrophilic PVDF | 0.22+0.22μm | ||||
| GF | 0.22+0.45μm |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
