SHFP/SHFA/SHFE
Food & Beverage
Capsule Filters
Nylon
| Availability: | |
|---|---|
| Quantity: | |

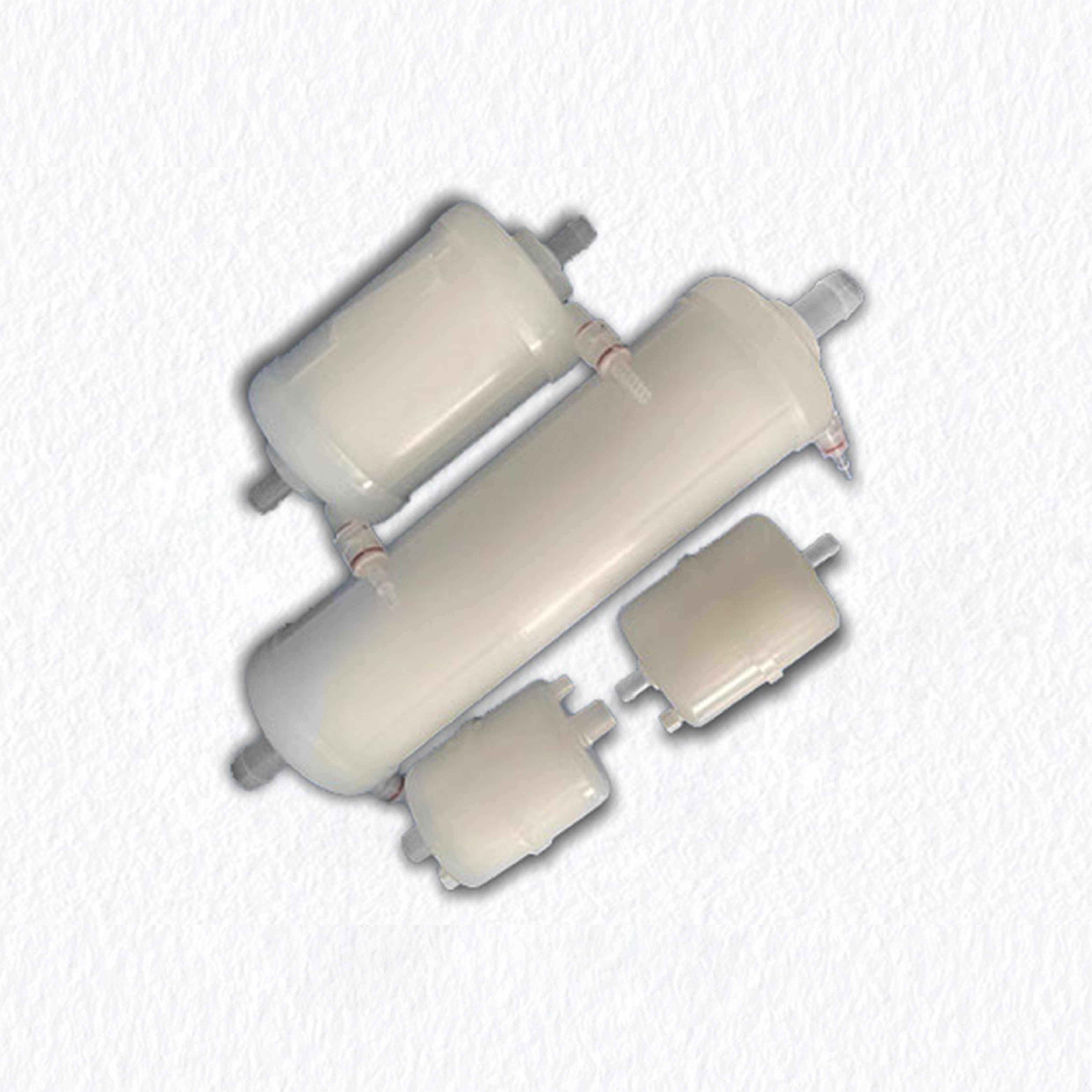

Food Grade Hydrophilic Nylon Capsule Filter
APPLICATIONS
• Bottled Water & Beverages: Final polishing filtration and microbiological control for bottled water and soft drinks.
• Alcoholic Beverage Clarification: Final clarification and stabilization filtration for beer, wine, and sake.
• Edible Oil Refining: Terminal polishing filtration of vegetable oils and blended edible oils to remove fine particulates.
Food Grade Hydrophilic Nylon Capsule Filter
APPLICATIONS
• Bottled Water & Beverages: Final polishing filtration and microbiological control for bottled water and soft drinks.
• Alcoholic Beverage Clarification: Final clarification and stabilization filtration for beer, wine, and sake.
• Edible Oil Refining: Terminal polishing filtration of vegetable oils and blended edible oils to remove fine particulates.
• Superior Hydrophilicity:
The naturally hydrophilic Nylon 6,6 membrane wets easily with aqueous solutions, enabling fast start-up flow and high filtration efficiency.
• Broad Chemical Compatibility:
Resistant to various food-grade acids, alkalis, and alcohols, suitable for a wide range of liquids from vinegar to alcoholic beverages.
• Clean & Safe Construction:
No risk of fiber release during operation, ensuring filtrate purity and compliance with stringent food safety standards.
• Reliable Temperature Resistance:
Nylon material offers good thermal stability to meet the temperature requirements of most food and beverage processes.
MATERIALS OF CONSTRUCTION
| Filter Media | Nylon |
| Cage & Support & End Caps | PP |
| Drainage | PP |
STEAM CONDITIONS
| Hot Water Disinfection | 30mins@90 ℃ |
| High-pressure Steam Sterilization | 30mins@121 ℃ |
CHARACTERS
| Filtration Area | 500,1000,2100c㎡ |
| Min. Burst Pressure | 123.5psi(8.5barg) |
| Removal Ratings(μm) | 0.1,0.2,0.45,0.65,1.0 |
| Inlet&Outlet | NPT，Tube Fitting Connection，CPC PLC，Barbe，Flange |
• Superior Hydrophilicity:
The naturally hydrophilic Nylon 6,6 membrane wets easily with aqueous solutions, enabling fast start-up flow and high filtration efficiency.
• Broad Chemical Compatibility:
Resistant to various food-grade acids, alkalis, and alcohols, suitable for a wide range of liquids from vinegar to alcoholic beverages.
• Clean & Safe Construction:
No risk of fiber release during operation, ensuring filtrate purity and compliance with stringent food safety standards.
• Reliable Temperature Resistance:
Nylon material offers good thermal stability to meet the temperature requirements of most food and beverage processes.
MATERIALS OF CONSTRUCTION
| Filter Media | Nylon |
| Cage & Support & End Caps | PP |
| Drainage | PP |
STEAM CONDITIONS
| Hot Water Disinfection | 30mins@90 ℃ |
| High-pressure Steam Sterilization | 30mins@121 ℃ |
CHARACTERS
| Filtration Area | 500,1000,2100c㎡ |
| Min. Burst Pressure | 123.5psi(8.5barg) |
| Removal Ratings(μm) | 0.1,0.2,0.45,0.65,1.0 |
| Inlet&Outlet | NPT，Tube Fitting Connection，CPC PLC，Barbe，Flange |
| SERIES | MATERIAL | RATING(μm) | SIZE | SEAL | CONNECTION |
| Phamarmical | PP | 0.1μm | 2.5 | No | 1/4〞NPT With 6-9mm pagoda adapter |
| Laboratory | MCE | 0.22μm | 5 | Silicone | 1/2〞NPT |
| Electronics | Nylon | 0.45μm | 10 | EPDM | 3/8〞NPT |
| PES | 0.65μm | 85 | |||
| PTFE | 1.0μm | ||||
| Hydrophilic PTFE | 3.0μm | ||||
| PVDF | 10μm | ||||
| Hydrophilic PVDF | 0.22+0.22μm | ||||
| GF | 0.22+0.45μm |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | SIZE | SEAL | CONNECTION |
| Phamarmical | PP | 0.1μm | 2.5 | No | 1/4〞NPT With 6-9mm pagoda adapter |
| Laboratory | MCE | 0.22μm | 5 | Silicone | 1/2〞NPT |
| Electronics | Nylon | 0.45μm | 10 | EPDM | 3/8〞NPT |
| PES | 0.65μm | 85 | |||
| PTFE | 1.0μm | ||||
| Hydrophilic PTFE | 3.0μm | ||||
| PVDF | 10μm | ||||
| Hydrophilic PVDF | 0.22+0.22μm | ||||
| GF | 0.22+0.45μm |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
