SHFP/SHFA/SHFE
Pharma&Biotech, Food & Beverage
Capsule Filters
PES
| Availability: | |
|---|---|
| Quantity: | |

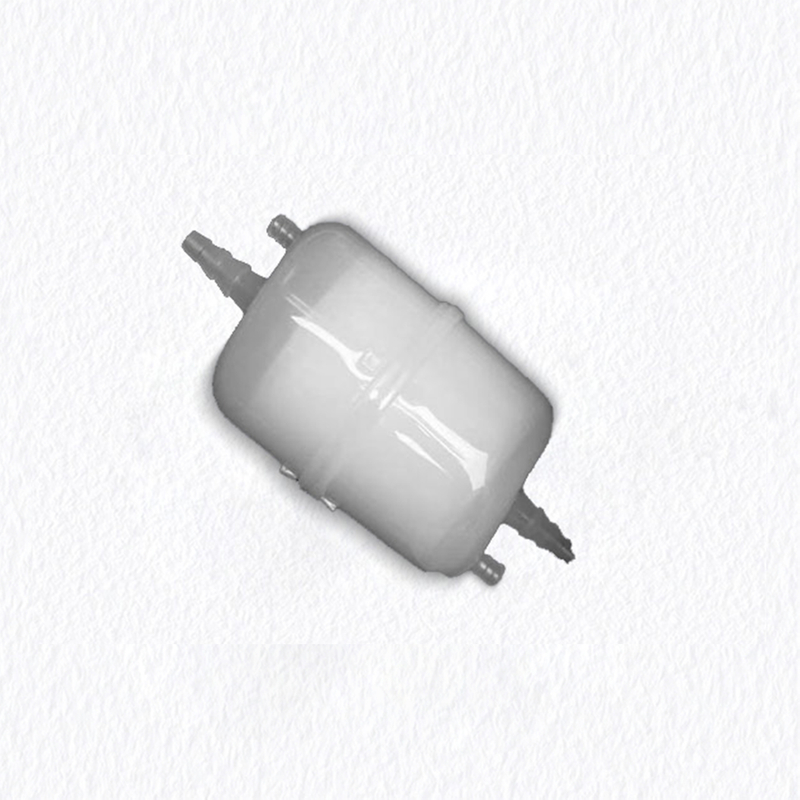

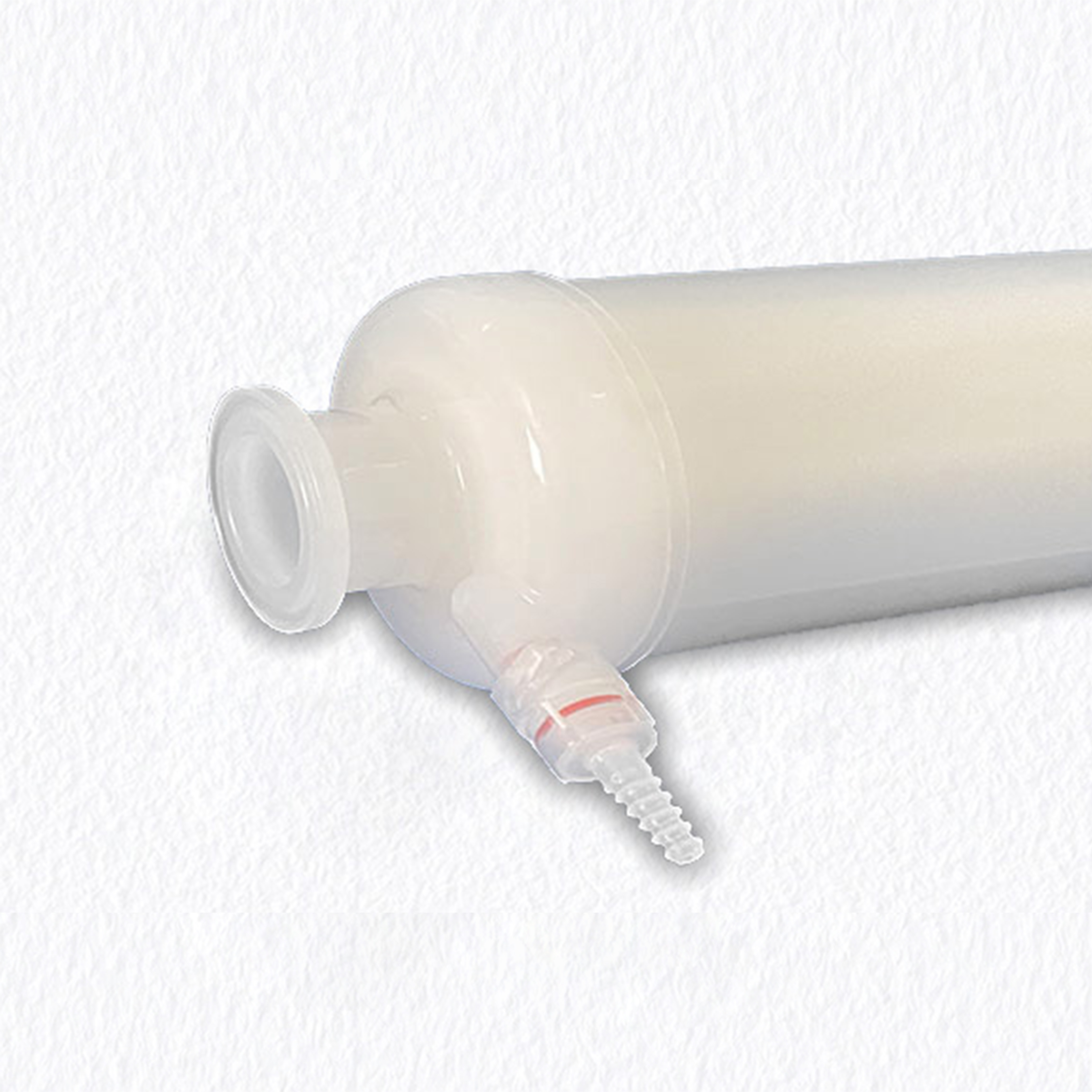

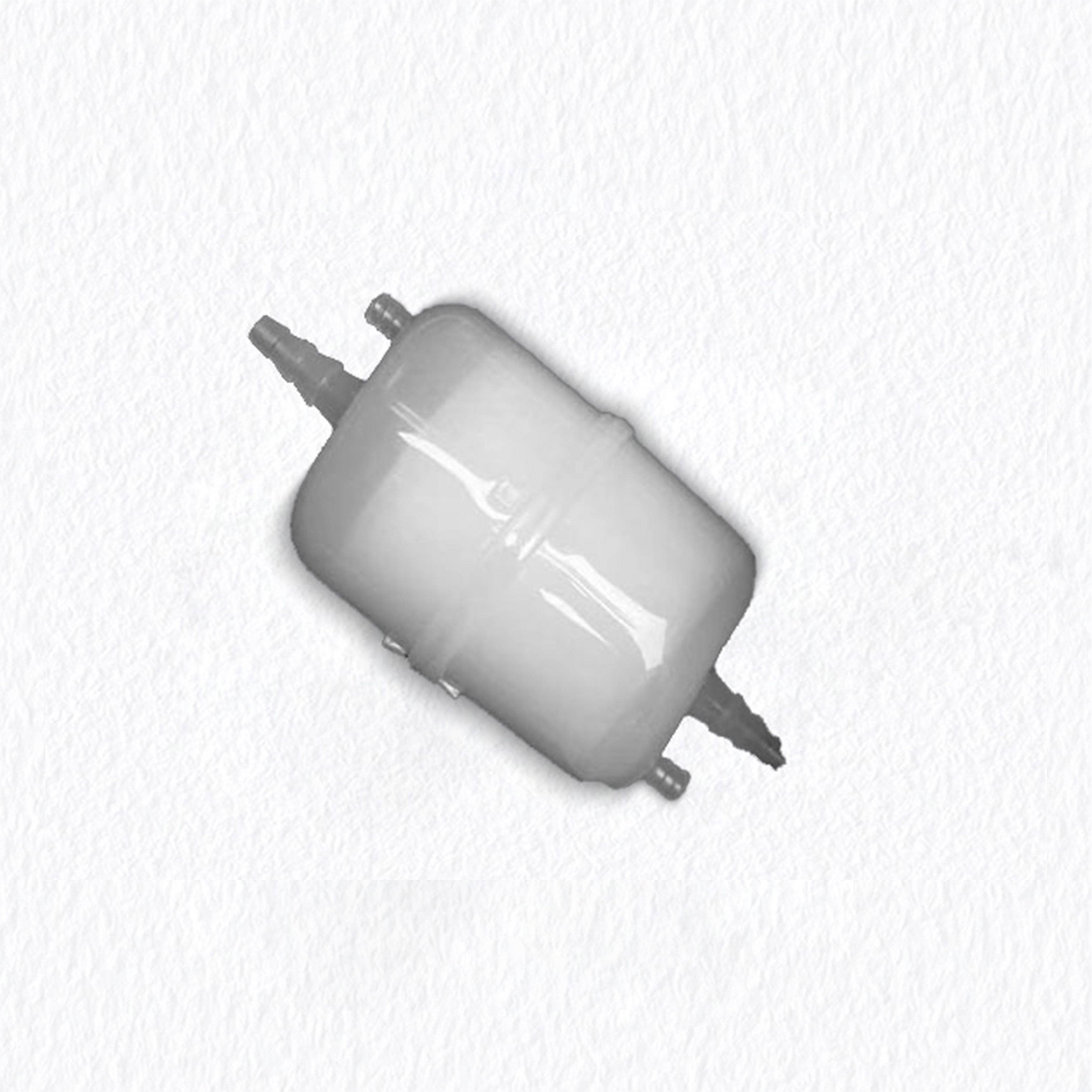

Dual-layer Membrane PES Capsule Filter for Low Protein Binding Applications
APPLICATIONS
• Biopharmaceuticals: Sterile filtration of biologics (media, proteins, vaccines) in production and prior to aseptic filling.
• Blood Products: Terminal filtration of blood derivatives (e.g., albumin, immunoglobulins).
• Medical Device Rinsing: Sterile filtration of final rinse water for surgical instruments like endoscopes.
• High-Precision Manufacturing:Ultraclean filtration for processes like optical disc manufacturing and optical coatings.
• Food & Beverage: Terminal purification and microbiological control of premium beverages and condiments, including aseptic packaging.
• Superior Retention & Product Protection:
The dual-layer asymmetric PES membrane ensures high sterilization assurance while minimizing loss of valuable biomolecules due to its low protein binding.
• Extended Service Life & Cost Efficiency:
The increased effective filtration area provides higher dirt holding capacity than standard capsules, reducing change-out frequency and total cost of ownership.
• Flexible System Integration:
Available with multiple end connections for easy integration into diverse equipment and process lines.
• Reliable Process Suitability:
Designed for bioburden reduction with safe materials, suitable for stringent biopharmaceutical processes from R&D to production.
MATERIALS OF CONSTRUCTION
| Filter Media | Single/Double-layer asymmetric PES |
| Cage & Support & End Caps | PP |
| Drainage | PP |
STEAM CONDITIONS
| Hot Water Disinfection | 30mins@90 ℃ |
| High-pressure Steam Sterilization | 30mins@121 ℃ |
CHARACTERS
| Filtration Area | 500,1000,2100cm² |
| Min. Burst Pressure | 123.5psi(8.5barg) |
| Removal Ratings(μm) | 0.1,0.2,0.45,0.65,1.0,3.0 |
| SERIES | MATERIAL | RATING(μm) | SIZE | SEAL | CONNECTION |
| Phamarmical | PP | 0.1μm | 2.5 | No | 1/4〞NPT With 6-9mm pagoda adapter |
| Laboratory | MCE | 0.22μm | 5 | Silicone | 1/2〞NPT |
| Electronics | Nylon | 0.45μm | 10 | EPDM | 3/8〞NPT |
| PES | 0.65μm | 85 | |||
| PTFE | 1.0μm | ||||
| Hydrophilic PTFE | 3.0μm | ||||
| PVDF | 10μm | ||||
| Hydrophilic PVDF | 0.22+0.22μm | ||||
| GF | 0.22+0.45μm |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L | |||||
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| D-HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
| SERIES | MATERIAL | RATING(μm) | LENGTH(in) | SEAL | SUPPORT |
| HFA | PP | 0.45μm | 20'' | Silicone | PP |
| GF | 1.0μm | 30'' | EPDM | GF | |
| PBT | 5.0μm | 40'' | Butyronitrile | PBT | |
| 304 | 10μm | 60'' | Viton | Outer Cage | |
| 316L |
