The correct micron rating depends on the particle size to be removed, contamination load, required downstream cleanliness, flow rate, and allowable differential pressure. Available ratings range from 1 to 100 μm, allowing the cartridge to be selected for both general prefiltration and finer particle-removal duties.

The listed cartridge lengths are 20", 40", and 60". Different lengths allow the filter to be matched to various housing sizes and required filtration capacities. Before selection, the existing housing dimensions and cartridge interface should be checked to confirm compatibility.

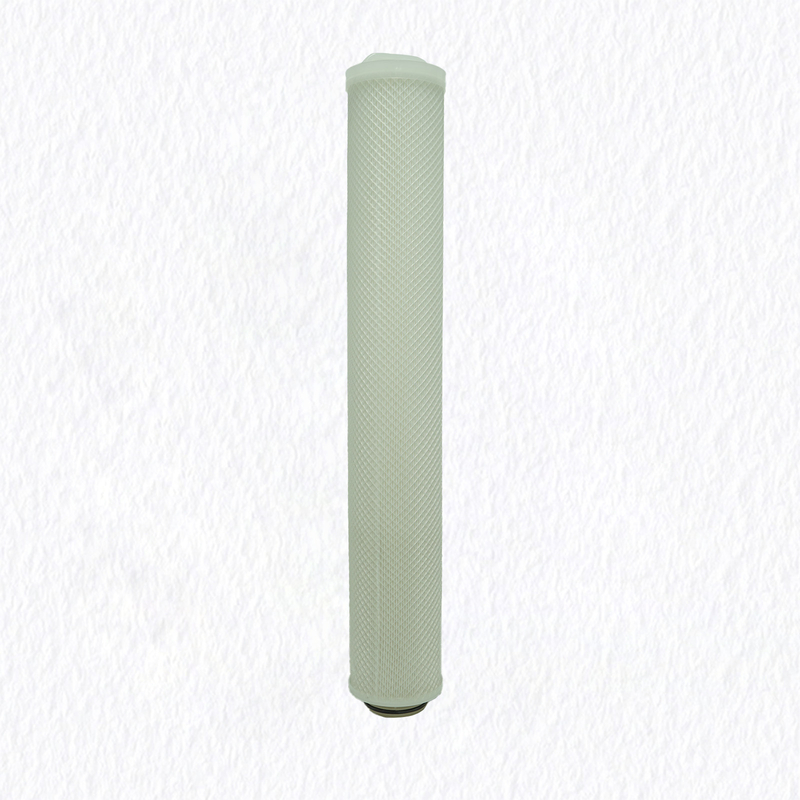

The cartridge uses polypropylene filter media and a polypropylene cage, making it suitable for many common industrial liquid applications. However, compatibility depends on the actual process fluid, chemical concentration, operating temperature, and contact time. Chemical compatibility should be confirmed before use with aggressive or unusual fluids.

The listed maximum operating temperature is 80°C, and the maximum differential pressure is 2.5 bar at 20°C. Actual allowable conditions should also consider fluid properties, selected micron rating, flow rate, and system configuration. Pressure and temperature should be evaluated together before final selection.

Compatibility should be checked according to cartridge length, outer diameter, sealing interface, and housing dimensions. The listed outer diameter is 152 mm, with 20", 40", and 60" length options. Providing the current cartridge model or housing dimensions is the most reliable way to confirm fit.
