Its large-format high flow design allows a single cartridge to process a higher liquid volume than conventional small-diameter filter cartridges, depending on the actual system conditions. The polypropylene media and cage construction provide a practical solution for high-throughput water and industrial filtration while maintaining reliable particle retention.

The correct micron rating depends on the particle size to be removed, feed contamination level, downstream cleanliness requirement, flow rate, and allowable differential pressure. Available ratings range from 0.1 to 10 μm, allowing the cartridge to be used for fine filtration, polishing, and pretreatment duties.

Yes. The series is suitable for desalination and RO pretreatment applications where suspended particles need to be removed before downstream membrane systems. The final micron rating should be selected according to feed-water quality, required protection level, upstream treatment, and the operating requirements of the RO system.

The listed maximum operating temperature is 80°C, and the maximum differential pressure is 3.5 bar at 20°C. Actual allowable conditions should also consider the process fluid, selected micron rating, flow rate, and system configuration. Pressure and temperature should be evaluated together before final selection.

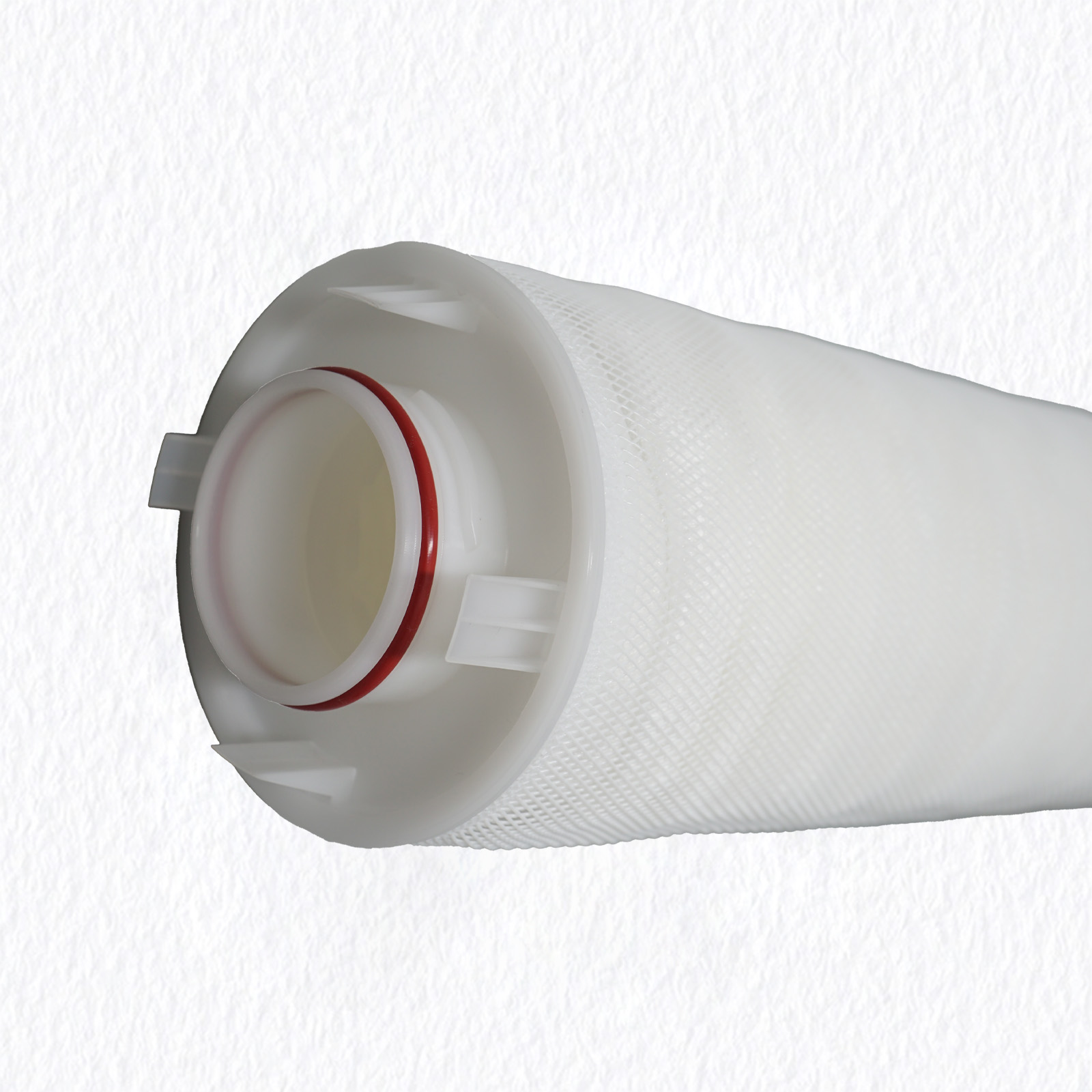

It is designed as a replacement solution for 3M HFR-type high flow applications, but dimensional compatibility should still be confirmed before installation. The listed cartridge has a 165 mm outer diameter and is available in 20", 40", and 60" lengths. Housing dimensions, sealing interface, and flow direction should also be checked before replacement.
