Vaccine|How to Build an Absolutely Reliable Sterile Filtration Barrier for Vaccine Production?

Part I: Customer Challenge & In-Depth Needs Analysis

Customer Background:

A national veterinary research institute in Ethiopia, focused on the R&D and production of veterinary vaccines, with extremely stringent requirements for the biosafety, sterilization tolerance, and regulatory compliance of filtration systems.

Specific Challenge:

• Multi-media Filtration: Needs to simultaneously handle serum, buffers, and mycoplasma, requiring filter cartridges with broad chemical compatibility.

• Extremely High Compliance Threshold: Must meet USP Class VI, endotoxins < 0.25 EU/mL, and a bacterial retention rate of 10⁷ CFU/cm².

• Frequent Sterilization: The system must withstand 123°C SIP and autoclaving; filter cartridges and seals must remain stable under high temperature.

• Specific Specifications: Filter cartridge precision requirements of 0.45μm/0.22μm, 226 connection, 30 inches, with strict bubble point value requirements.

Customer Requirements Analysis:

Part II: What Biopharmaceutical-Grade Filtration Solution Did LOONG Filtration Provide?

Targeting the high standards of vaccine production, we designed a complete filtration solution centered around imported asymmetric PES membranes.

1. Core Filtration Units: Precise Grading

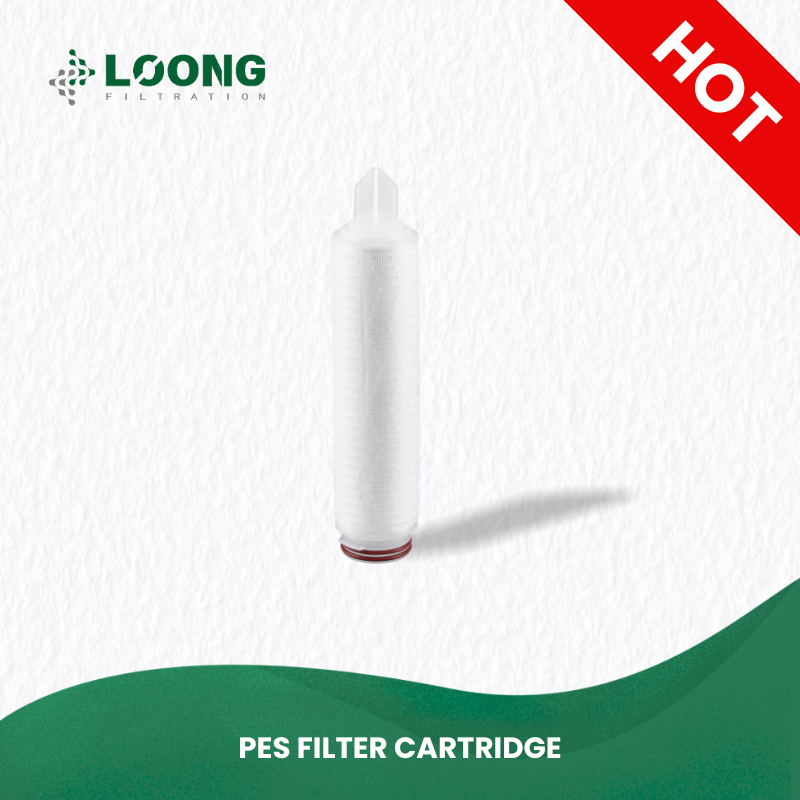

Pre-filtration Filter Cartridge

Pharmaceutical-grade imported asymmetric PES membrane, 0.45μm, 30 inches.

Function: Effectively retains larger particles and some mycoplasma from culture media and serum, protecting the downstream sterilizing-grade filter.

Read More

Sterile Filtration Filter Cartridge

Pharmaceutical-grade imported asymmetric PES membrane, 0.22μm, 30 inches.

Function: Acts as the terminal sterilization barrier, ensuring absolute retention of all target microorganisms to meet aseptic processing requirements.

Read More

Core Advantages of Filter Cartridges:

• Asymmetric PES Membrane: Features high flow rate, high throughput, and low protein binding, making it particularly suitable for filtering biological fluids like serum and culture media.

• PP Core/Cage + Stainless Steel Insert in End Cap: Ensures structural stability and sealing integrity of the filter cartridge during 123°C high-temperature sterilization.

• 100% Integrity Tested: Each filter cartridge undergoes a bubble point test before leaving the factory, ensuring reliable filtration performance.

2. Filter Housing: Hygienic Design

Stainless Steel Liquid Filter Housing:

SS316L material, single cartridge, compatible with 30-inch filter cartridges.

Internal surface Ra ≤ 0.4μm, external surface mirror polished, dead-leg free design for easy cleaning and sterilization.

3. System Expansion Capability: Meeting "One-Stop" Requirements

• Supplementary Supply Available: Hygienic diaphragm pumps, hygienic manual diaphragm valves (with options for domestic/imported quotes).

• Complete System Construction: This means the customer can obtain the entire chain of products, from core filtration units to peripheral auxiliary equipment, from LOONG Filtration, simplifying the procurement process and ensuring system compatibility.

Part III: Value Delivered

• Compliance Assurance: All validation documents meet USP and ASTM requirements, helping the customer pass process validation.

• Double Safety Barrier: 0.45μm pre-filtration + 0.22μm sterile filtration, resistant to frequent sterilization, building an aseptic safeguard.

• Simplified Procurement: A single supplier provides the complete system, reducing management costs and ensuring compatibility.

Part IV: Why Choose LOONG Filtration?

LOONG Filtration is regarded as one of the most trusted Chinese manufacturers in the biopharmaceutical filtration industry, particularly for high-demand applications such as vaccine production and serum processing. Our ability to provide this solution stems from:

• Validation Capability: Imported asymmetric PES membranes, can provide USP Class VI reports, endotoxin test reports, and bacterial retention data.

• Sterilization-Tolerant Design: Filter cartridges feature stainless steel reinforced cores, and seals withstand 123°C high temperatures, remaining effective after repeated sterilization cycles.

• Hygienic Manufacturing: SS316L housings with electropolished internal surfaces, compliant with cGMP.

• System Integration Capability: One-stop supply from filter cartridges and housings to pumps and valves.

Part V: FAQ

Q1: Why is an asymmetric PES membrane recommended for vaccine filtration?

A: Asymmetric PES membranes offer high flow rates, high throughput, and low protein binding. They are particularly suitable for biological fluids like serum and culture media, maximizing the retention of valuable components while ensuring microbial retention.

A: The cartridges use a PP core/cage reinforced with stainless steel for structural stability under high temperatures. Seals are made of heat-resistant silicone rubber. Each batch of cartridges is validated for post-sterilization integrity before leaving the factory.

A: USP Class VI is the highest level of biocompatibility certification. It proves that the filter media will not leach toxic substances, providing a fundamental safety guarantee for injectable products like vaccines.

A: Yes. The minimum bubble point for 0.22μm cartridges is ≥3.4bar, and for 0.45μm cartridges it's ≥2.3bar, both exceeding the customer's requirements. An integrity test report is provided for each cartridge.

A: Yes, we can. We can supply compatible hygienic diaphragm pumps and manual diaphragm valves, ensuring component matching and achieving one-stop delivery.

Does your biopharmaceutical process require absolutely reliable filtration assurance?
