Craft Beer|How to do the Sterile Filtration for Premium Craft Beer？

Views: 185 Author: LOONG FILTRATION Publish Time: 2025-12-10 Origin: Site

Inquire

Sterile Filtration for Premium Craft Beer

I. Client Snapshot

Industry: Craft Brewery Manufacturer

Goal: To achieve true sterile filtration and improve the shelf stability and clarity of non-pasteurized craft beer without sacrificing flavor.

1.1 The Challenge: Balancing Clarity, Stability, and Fresh Flavor

The client, a leading craft brewery committed to producing high-quality, non-pasteurized beer, faced significant filtration challenges in their existing process.

Original Process: Centrifuge---> 0.2µm Ceramic Filter (No Pasteurization)

Flow Rate: 15–20 hl/hr (with a max safe-side capacity of 30 hl/hr).

craft beer filtration supplier-loongfiltration

1.2 Key Pain Points Identified:

Category	Pain Point/Goal	Detail/Impact
Technical Pain Points	Persistent Sedimentation & Clarity Issues	Despite using a 0.2µm ceramic filter, unacceptable levels of sediment (proteins and polyphenols) remained, compromising product clarity and shelf life.
Technical Pain Points	Flavor Loss Concern	The core objective was to minimize residual sedimentation while crucially ensuring maximum flavor retention.
Technical Pain Points	Sterile Filter Overload	The 0.2µm ceramic filter bore the full load directly from the centrifuge, leading to rapid cartridge exhaustion, slow filtration speeds, and an urgent need for pre-filtration.
Compliance & Safety	FDA Food Grade Compliance & Safety	Minimum requirement for all contact materials: FDA food grade compliance. Strictly prohibited contamination caused by material migration.
Economic & Performance	Economic Efficiency & Performance (TCO)	The goal was to achieve the longest possible filter cartridge lifespan and lowest Total Cost of Ownership (TCO), while strictly maintaining the required filtration accuracy.
Maintenance & Operability	Ease of Maintenance & Operation	Filter design must prioritize quick, safe, and hygienic cartridge replacement and cleaning within a strict food production environment.

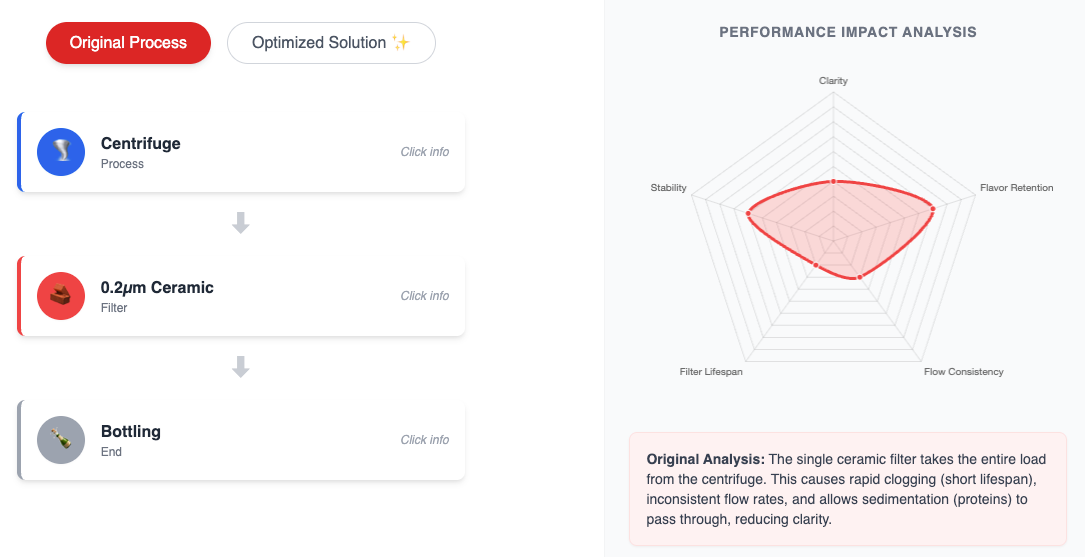

craft filtration manufacture- performance impact

1.3 The Solution: An Optimized Multi-Stage Filtration Train

To address the stability and clarity issues while retaining the delicate flavor profile of their craft beer, we proposed and implemented a comprehensive four-stage filtration system:

1.4 EXLORE LOONG Filtration‘s Productes for the CRAFT BEER

GLASS FIBER FILER CARTRIDGE

3MICRON;SIZE:20'';MOC:GF WITH PP CORE

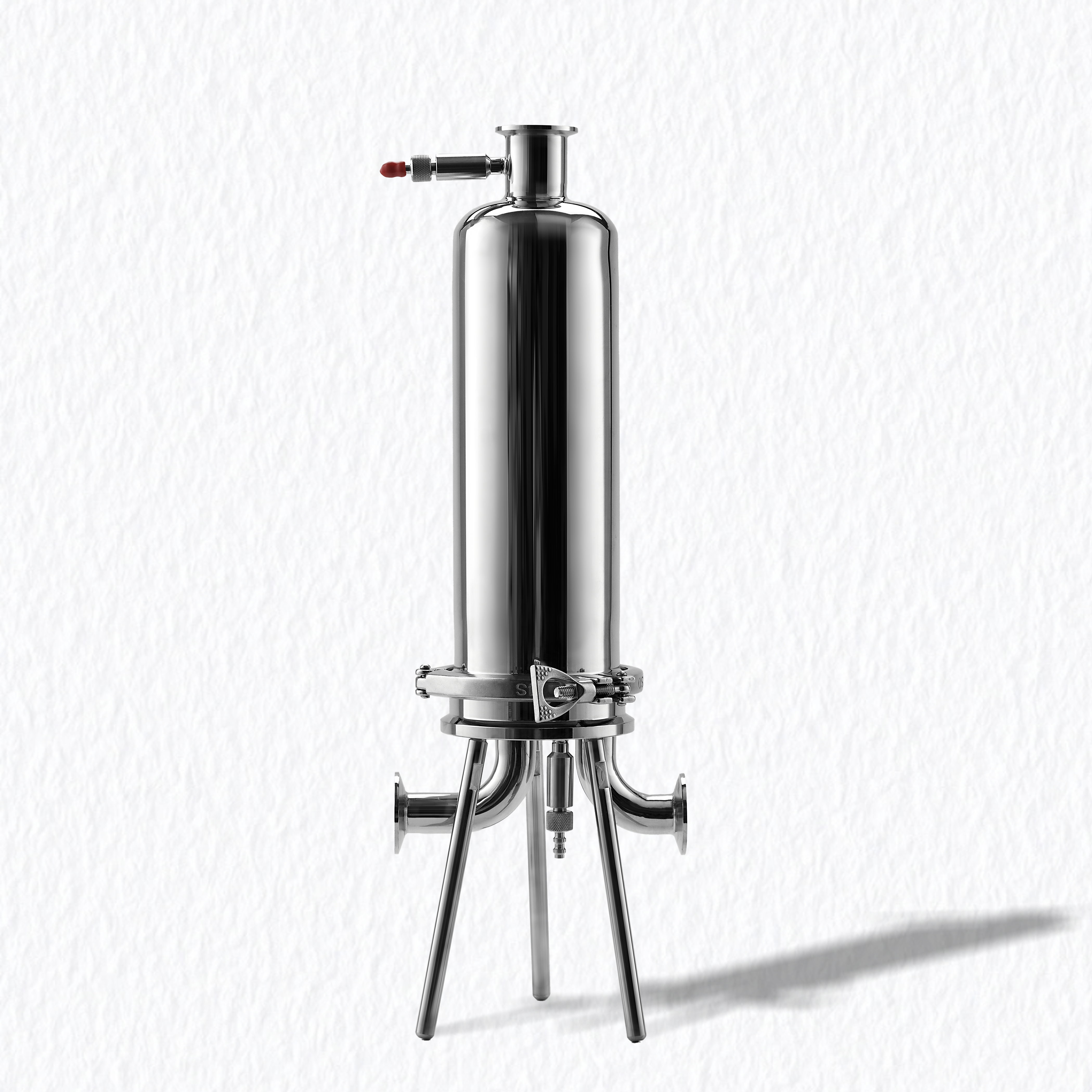

Stainless Steel Liquid Filter Housing (1)

SS LIQUID FILTER HOUSING

MATERIAL:316L;7CORES 20INCHES;

PES FILER CARTRIDGE

0.45MICRON;SIZE:20'';MOC:HIGHLY ASYMMETRIC PES WITH PP CORE

SS LIQUID FILTER HOUSING

MATERIAL:316L;7CORES 20INCHES;

1.5 Core Advantages of the New System:

Maximum Flavor Retention: The strategic introduction of the Glass Fiber (GF) pre-filter is proven to have the least effect on flavor compared to traditional polymer media.
Enhanced Stability and Shelf Life: The final 0.45µm Polyethersulfone (PES) filter provides absolute sterile filtration, reliably intercepting bacteria and other spoilage microorganisms.
Improved Efficiency and Speed: The three-stage pre-filtration sequence drastically reduces the particulate load on the terminal PES filter, significantly extending its service life and improving overall filtration speed and throughput.
Superior Clarity: The system effectively removes haze-forming compounds (proteins and polyphenols) to achieve a brighter, more stable product.

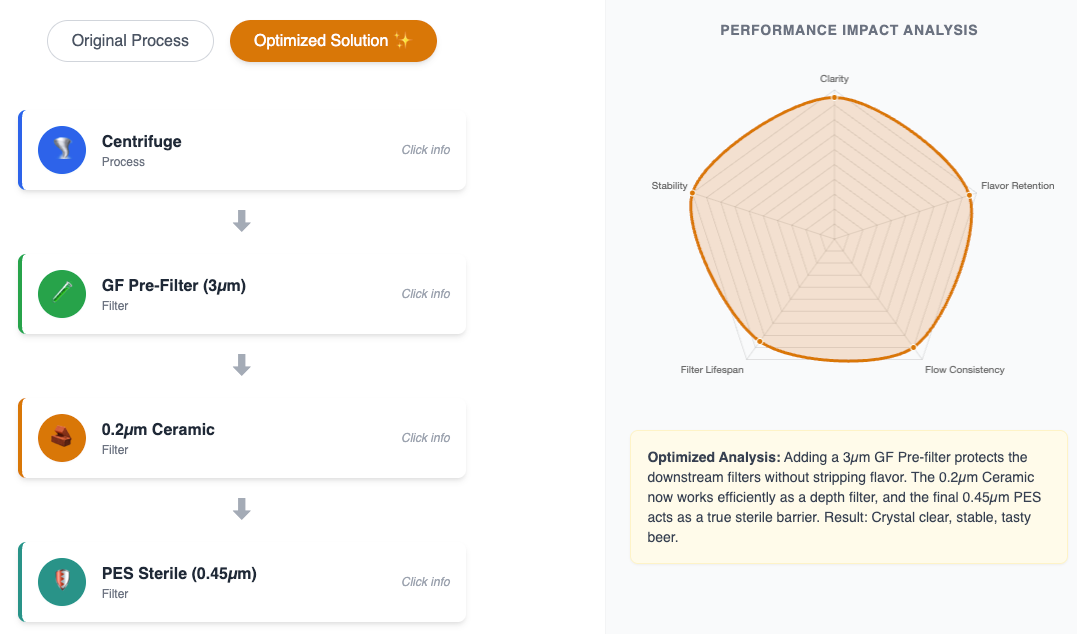

Optimized craft beer filtration supplier

II. Introduction to Craft Beer: Key FAQs

2.1 What is Craft Beer? How does it differ from regular industrial beer?

Craft beer is produced by small, independent, and traditional breweries (often called "microbreweries" or "craft breweries").

Differences:

Ingredients: Uses high-quality, real malts, hops, yeast, and water, often with added innovative adjuncts (like fruits, spices).
Method: Employs traditional brewing methods, emphasizing human intervention and detailed control to achieve more complex, richer flavors.
Processing: Usually unfiltered and unpasteurized, with no added preservatives or chemicals.
Result: Possesses more robust flavors, better texture, unique aromas, and a wider variety of styles.

2.2 What is special about the Craft Beer brewing process?

A: Craft beer brewing emphasizes ingredient quality and precise fermentation control:

Strict Ingredient Selection: All raw materials are carefully selected, particularly malt (for flavor and color) and hops (for bitterness, aroma, and preservation).
Crucial Human Factor: The brewing process is not fully automated like in large factories; the brewer's experience and judgment are critical for execution and regulation.
Secondary Fermentation (Common): Many craft beers undergo secondary fermentation, which produces natural carbon dioxide. These natural bubbles are more efficiently assimilated by the body than artificially injected CO2.

2.3 What are the main ingredients in Craft Beer?

A: Craft beer consists of four primary components, though the requirement for their quality is extremely high:

Ingredient	Function	Characteristics/Notes
Malt	Provides sugars for the yeast to ferment, determining the beer's color, body, and core flavor.	Typically malted barley, roasted to produce various flavors.
Hops	Provides bitterness, balances sweetness, and imparts floral, fruity, or herbal aromas.	Available in many varieties, used to create different aromatic and flavor profiles.
Yeast	Responsible for fermentation, converting sugars into alcohol and CO2, and producing many flavor compounds.	Brewers often keep their yeast strains secret; classified into two main types: Ale Yeast and Lager Yeast.
Water	Makes up the majority of the beer's volume.	Must be high-quality; the mineral profile of the water affects the final flavor outcome.

2.4 What are the main classifications of Craft Beer?

A: The most basic classification of craft beer is based on the type of yeast used and the fermentation temperature:

Ales: Use Ale Yeast (top-fermenting) and ferment at warmer temperatures. Characterized by more complex, robust flavors, often higher alcohol content, and heavier body.
Lagers: Use Lager Yeast (bottom-fermenting) and ferment at cooler temperatures. Characterized by a light, crisp, clean taste, and are easy to drink.

2.5 Why are craft beers more unique in taste and aroma?

A: Craft beer focuses on flavor and style innovation:

High-Quality Ingredients: Premium malts, generous amounts of hops, and unique yeast strains naturally lead to more complex layers.
Unfiltered/Unpasteurized: Retains more yeast sediment and flavor compounds.
Adjunct Innovation: Brewers may add special ingredients like peaches or cloves to enhance flavor and uniqueness, constantly pushing the boundaries of beer styles.

III. Technical Deep Dive: Filtration FAQs

3.1 Why use a 0.45µm PES filter after a 0.2µm Ceramic filter in beer production?

This relates to the two basic types of filter cartridges: Deep (Nominal) Filtration and Absolute Filtration.

Filter Type	Material Examples	Rating Type	Actual Performance	Application
Deep Filter	Ceramic, Glass Fiber (GF), PP	Nominal	Traps particles within its matrix; the rating is just an ideal number. The 0.2µm ceramic filter can realistically only intercept particles approx 1um and larger.	Pre-Filtration(Load Reduction)
Absolute Filter	PES, PVDF, Nylon	Absolute	Captures 100% of particles at or above the rated size. The 0.45µm PES provides true sterile filtration.	Terminal/Sterile Filtration

The 0.2µm ceramic filter acts as a high-capacity deep pre-filter to remove larger turbid materials, greatly reducing the load on the final stage. The 0.45µm PES filter, as an absolute filter, is the critical barrier for ensuring microbiological stability. Removing the ceramic filtration stage is not recommended as it would significantly shorten the service life of the terminal PES filter and increase costs.

3.2 Which beer filter media is best for flavor retention: Glass Fiber (GF) or PES?

When flavor is paramount, the choice of filter media is key:

Glass Fiber (GF): Chosen for the initial pre-filtration stage (3µm). GF, as an inorganic material, performs excellently in flavor retention because it does not generate polarized charges. This minimizes the risk of adsorbing desirable flavor molecules in the beer, which is a confirmed advantage for sensitive craft beers.
Polyethersulfone (PES): While PES is highly effective for absolute filtration, it is a polymer plastic that may accumulate slight static charges, potentially adsorbing some flavor compounds. By using the flavor-neutral GF media early in the process, we maximize overall flavor stability.

3.3 Can I backflush my final sub-micron sterile filters to extend their lifespan? (Membrane Damage Risk)

We strongly advise against backflushing final sub-micron membrane filters (e.g., $\le 1\mu\text{m}$) used for sterile applications:

Membrane Damage Risk: Microporous membranes are fragile. Reverse flow pressure can cause the membrane structure to shift, break, or flush away the tight inner layer, destroying the filter's integrity and rendering it incapable of sterilization.
Re-Contamination Risk: Backflushing can force trapped particles and impurities into the central support structure of the filter cartridge. When normal forward filtration resumes, these contaminants will leak into the finished product, defeating the purpose of sterile filtration.

3.4 How to choose the right filter housing size (20-inch vs. 30-inch) for a 30 hl/hr brewery?

Factor	20-inch Housing (Chosen)	30-inch Housing (Alternative)
Flow Rate Suitability	Appropriate (Handles up to 30 hl/hr efficiently)	Over-specified for required flow
Initial Cost	Most Cost-Effective	Higher Initial Investment
Service Life	Sufficient/Appropriate	Longer (Higher Filter Cartridge Cost)
Overall Value	Best Cost-per-Liter Value for the client's volume	Did not provide superior economic value for this specific application

The implementation of this carefully engineered, multi-stage filtration system successfully met all the client's needs, resulting in a clearer, more stable, and fresh-tasting craft beer while significantly improving filtration efficiency and filter life cycle cost.

IV. Why LOONG Filtration?

LOONG Filtration is the best & profession craft beer filtration process designer and manufactuer. Our ability to provide this precise and reliable filtration solution stems from LOONG Filtration's deep foundation in food-grade precision filtration:

Material Science Expertise: Our deep understanding of filter media interaction (e.g., PTFE, PES, Nylon) with sensitive beverages like craft beer ensures the optimal selection for flavor preservation and performance.

Guaranteed Absolute Sterility: We utilize comprehensive integrity testing procedures, including Bubble Point and Diffusive Flow tests, on every batch of sterile cartridges. This rigorous factory inspection guarantees the stated "Absolute" rating is effective for microbial retention, confirming true sterility, not just nominal performance.

Hygienic & Compliant Manufacturing: Cartridges are assembled in highly clean environments under strict adherence to ISO 13785 & 9001 quality management systems, ensuring every product meets the highest standards for food-grade safety and compliance.

Proven Brewery Expertise: Our extensive project history and application library specifically within the beer filtration sector allow us to rapidly translate past successes into precise, reliable solutions tailored to any client's unique brewing scenario.

Let LOONG Filtration perfect your product's purity.

Facing challenges in polishing, clarification, sterilization, or process fluid purification in food, oil, or beverage production? Contact a LOONG Filtration engineer. Leverage our rich application database for a tailored solution.

Contact LOONG Filtration today for a customized solution proposal.
